European FEM Single Girder Gantry Crane
Economical Single Girder Electric Hoist Gantry Crane up to 32 Ton

Single girder gantry cranes with European crane style are designed with advanced crane technology, based on international standards of FEM (Europe), DIN (Germany), ISO(International).With advanced crane technology and optimal crane configurations, our European single girder gantry cranes are with strong rigidity, outstanding structure, high strength, light dead weight and wheel load pressure, low power consumption, etc.

European Single Girder Gantry Crane is a cost-effective overhead travelling crane solutions to applications where the installation of crane supporting columns or building facility is not available. They are also can work as an assistant tools under large travelling bridge cranes for supportive material handling. Process gantry crane with tailored crane designs and configurations will be the most cost-effective solution for your particular application. Contact us get free gantry crane design drawings and at specific gantry crane price.

Main parameters and specifications of European hoist gantry crane

With FEM monorail hoist or European single girder hoists,the lifting capacity of European standard hoist gantry cranes can reach up to 20 ton, and lifting height and span can be processed based on your particular and actual lifting conditions and requirements.

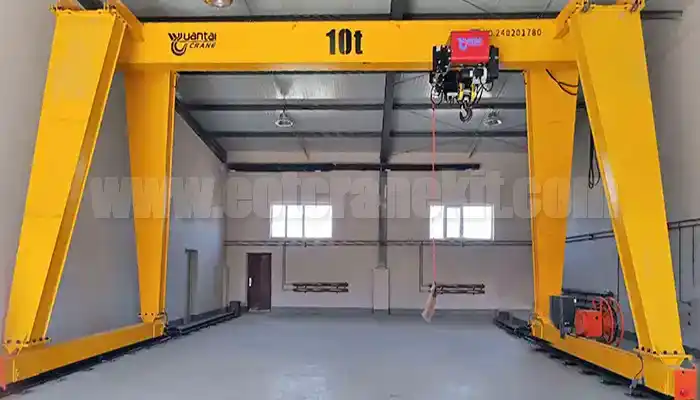

European standard single girder gantry crane

• Lifting capacity of standard single girder gantry crane: 3-20 ton
• Lifting hoist: FEM single girder wire rope hoists
• Span of standard single girder gantry crane: 7.5-31.5 m
• Lifting height of standard single girder gantry crane: 6/9/12/18 m
• Working class of standard single girder gantry crane: A5

The single girder hoist gantry crane is more economical, much easier for installation and commissioning, and gantry crane cost for maintenanceis extremely low.More on monorail hoist gantry crane specifications and gantry crane price, please contact us.

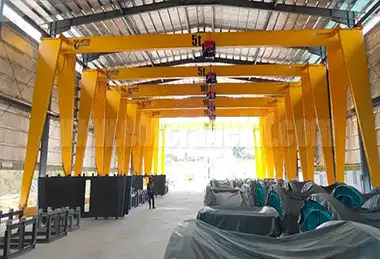

European style single girder overhead crane based on FEM standards

European style single girder overhead crane based on FEM standards

European style single girder overhead crane based on FEM standards

European advanced crane structure, Optimal crane configurations

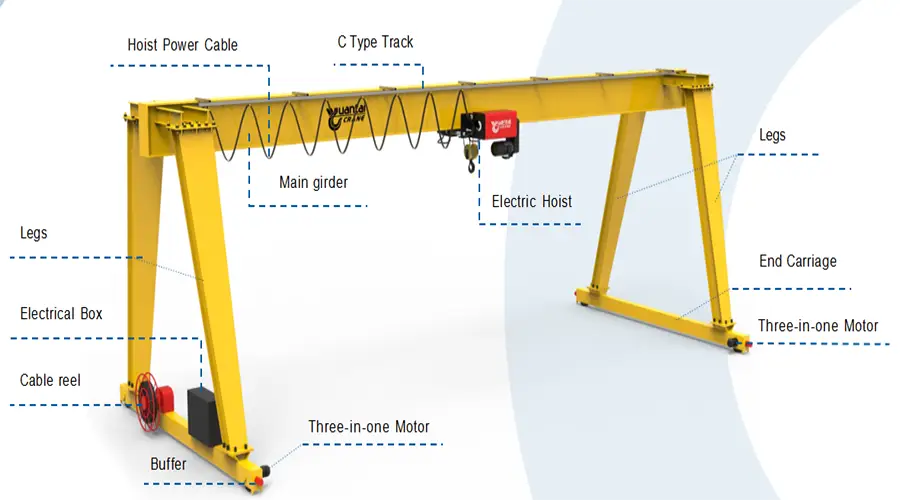

The European gantry crane is a type of gantry crane, designed and manufactured according to FEM standard and European standards, developed on advanced crane technology to ensure the efficiency and safety, and durability . The European hoist gantry cranes are mainly made up by crane beam girder, two supporting legs, single girder hoists trolley, electrical parts, electrics, safety devices and other components.

The configurations of European style gantry cranes are very advanced, which are usually consisted of Schneider electrical, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, andother parts and components for your selections.

Features of European single beam gantry crane

• European standard design & crane production, frequency conversion operating control.
• All steel plates of crane structure will undergo the processing of shot blasting to ensure quality.
• Two layers of zinc-rich epoxy coating to ensure good appearance and fine gloss of the gantry crane.
• Gas protection or submerged arc welding and welding seam will be checked withray and ultrasonicnon-destructive inspection.
• All of the crane hoists are tested with Dynamic load 1.1x/static load 1.25x before leaving factory.
• Various safety devices to ensure safety of crane operation such as, standard safety monitoring, sound-light alarm and infrared collision prevention,etc.
• Anemometer is equipped when lifting height is greater than 15 meters.
• Flexible legs design will be adopted when gantry crane span is greater than 35m.
• The power supply can be supplied by cable, sliding contact line.

European Electric Hoist

Main Girder

Ground Girder

Electric Cabinet

Advantages

• Compact design, reasonablestructure, light deadweight,
• Overall processing, high precision,
• Modular design, easy transportation and installation
• Frequency control, smooth operation and high efficiency.
• Low noise, low power consumption, environment friendly.

Applications

The European FEM, DIN & ISO standards single girder hoist gantry cranes are widely used in the following applications:

• The single girder hoist gantry crane are mainly used for outdoor loading and unloading operations in freight yards, material yards and bulk cargoes,etc.
• The European hoist gantry crane also can be used indoors such as in manufacturing assembly workshops, warehouse and other places, for the loads handling during manufacturing, maintenance,transportation and delivery, etc.
• The European standard FEM gantry hoist crane are not supposed to be used in applications where are with potentially self-explosive gas, dust or corrosive gas medium or with relative humidity greater than 85%,etc. Process cranes are required please contact us.

Process single girder gantry crane design, Cost-effective single girdergantry crane price

How to select a semi-gantry crane for your application? In order to give you suitable semi-gantry crane solution and specific crane price promptly, please confirm the following with our gantry crane engineeras much as possible:

• Capacity:____ ,Span:____, Height of Lift:____,Travelling Length:___
• Power supply: 3phase___Voltage___Hz
• Operation: Through Pendant/Radio Remote/Cabin Control?
• Application:Industry type: _____, Indoor/Outdoor:____. Loads: _______
• Size of Existing Rail: ___

Free consultation of single girder gantry crane is available.Any questions or problem are welcomed.Please just leave a message below and replywillbe given within 24 hours. Free European style single girder gantry crane design drawing and specific price are available.
