Wall Travelling Jib Crane
Wall travelling jib crane, a perfect & economical cantilever wall travelling crane for light & long distance lifting. Wall travelling jib crane, your efficient light duty crane!
| Crane Type | BB Wall travelling jib crane |
| Lifting Capacity | 0.5 ton, 1 ton, 3 ton, 5 ton |
| Lifting Height | 3m~10m |
| Working Class | A3 |
| Ambient Temperature | -25~40℃ |
Category: Jib Crane
Your Trusted Overhead Travelling Cranes Manufacturer & Supplier
Cantilever Wall Travelling Jib Crane Design

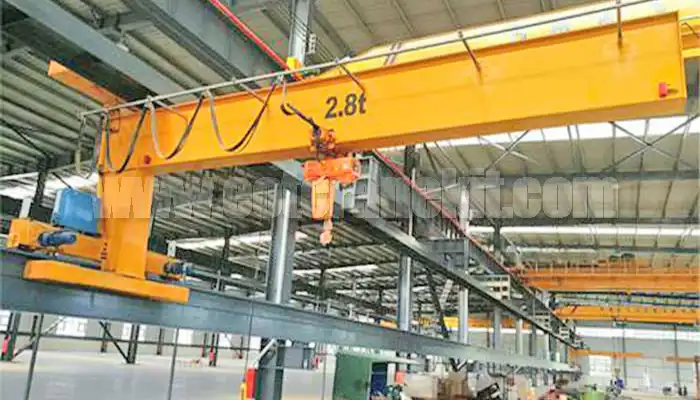

Affordable Wall Travelling Jib Crane
Wall travelling jib crane is a cost effective overhead travelling crane solution which travels along the crane rail travelling on the wall or other supporting structure of assembly workshop, making the best value of the workshop space. Cantilever wall travelling crane can provide long lateral movement of loads and objects and also offering vertical hoisting with the jib hoist equipped with either chain hoist or wire rope hoist.
Wall travelling jib crane is a perfect & economical cantilever wall travelling crane for light & long distance material handling. The cantilever wall travelling jib crane provides profitable supplement to the overhead travelling crane bay. The cantilever wall travelling crane takes less floor coverage than overhead bridge crane and offers more benefits. The wall travelling jib crane with with long runway is perfect for a workshop or workshops lined up in straightly line which can transport loads directly and eliminate the idle times among machinery and personnel effectively, a efficient and cost-effective wall travelling crane solution.
Main Parameters of Wall Travelling Jib Crane
The crane lifting capacity of wall travelling jib crane is 0.5 to 10 tons and working class is A3, and the main parameters are presented in the following tables:
Main parameters of wall travelling jib cranes:
- Crane type: BB types wall travelling jib crane
- Lifting capacity of wall travelling jib crane: 0.5 ton ~5 ton
- Lifting height of wall travelling jib crane: 3m~10m
- Working class of wall travelling jib crane: A3
- Ambient temperature of wall travelling jib crane: -25~40℃
- Application requirements: The supporting structure or the walls of the building can offer anchor point and counterbalance weight
- Benefit: Wall travelling crane is able to be travelling closer to the ceiling than many other types of wall travelling jib cranes.
- Custom designed wall jib crane is available
Structure & Components
The main crane parts and components of wall cantilever crane is consisted of crane cantilever, crane driven system, hoisting system , crane rail and mounting system, control system and crane safety devices and measures, etc.
The cantilever crane travels along the crane rail travelling on the wall or other supporting structure of assembly workshop, making the best value of the workshop space. Along the travelling rail on the wall, the cantilever wall travelling crane can offer long lateral movement of loads and objects and also vertical hoisting with the jib hoist system, including chain hoist or wire rope hoist.
Wall travelling jib crane design:
Make the best use of your available space in the workshop which are widely used together with overhead travelling cranes.
Safe operation:
Overhead limit switch, up & down limit switch, and phase frequency protection with other protections based on your requirements and application conditions.
High quality components:
The quality of crane parts determines overall performance. Options include ABM, SEW motors, Schneider, ABB electrical components, and cost-effective Chinese top brands.
Easy Crane control:
The wall travelling crane can be operated by pendant control or remote control for flexible operation.
Jib Cantilever Designs
According to your wall crane application, the wall cantilever cranes can be designed with different styles of cantilevers such as full cantilever, beam cantilever, box cantilever , & tie rod cantilever to meet your requires in terms of lifting height, overhead clearance, or other special needs, etc. Contact us to learn more about the wall travelling jib crane designs and the specific jib crane price for your application.
Full cantilever Box girder
Full cantilever, H beam
Tie rod cantilever enclosed track beam
Tie rod cantilever with H beam girder
Jib Hoist Types & Applications
For different applications and hoisting requirements, various jib hoist options are available, including electric wire rope hoists, chain hoists, and specialized explosion-proof or low headroom designs.
European Style Electric Hoist
European Style Electric Hoist
Suitable for single girder overhead cranes, H beam and I beam cranes, monorail systems, and other light-duty lifting applications requiring compact design and high efficiency.
Chinese Style Electric Wire Rope Hoist
Chinese Style Electric Wire Rope Hoist
Cost-effective hoisting solution widely used on single girder overhead cranes, offering reliable performance for general industrial lifting tasks.
Explosion Proof Electric Wire Rope Hoist
Explosion Proof Electric Wire Rope Hoist
Designed for hazardous environments such as chemical plants and oil & gas industries, ensuring safe operation under explosive conditions.
Low Headroom Electric Wire Rope Hoist
Low Headroom Electric Wire Rope Hoist
Ideal for workshops with limited ceiling height, maximizing lifting height while maintaining compact installation.
Ladle Handling Electric Wire Rope Hoist
Ladle Handling Electric Wire Rope Hoist
Specially designed for hot metal handling in steel and metallurgical industries, typically available in 2 ton, 3 ton, 5 ton, and 10 ton capacities.
Electric Trolley Chain Hoist
Electric Trolley Electric Chain Hoist
Provides motorized horizontal movement, suitable for flexible lifting operations on single girder crane systems.
Manual Trolley Chain Hoist
Manual Trolley Electric Chain Hoist
Economical and simple solution for light-duty lifting where power supply is not required.
Low Headroom Electric Chain Hoist
Low Headroom Electric Chain Hoist
Compact structure designed to maximize hook height in restricted spaces, ideal for low ceiling workshops.
Features & Advantages of Wall Travelling Jib Cranes
Cantilever wall travelling jib crane is one of the most cost-effective overhead travelling cranes for small and light duty load handling.
Space and Money Saving
Due to the wall travelling jib crane running on walls or other elevated supporting structures, it does not occupy valuable floor space, helping reduce facility costs. In addition, the simple full cantilever design lowers production, transportation, and installation costs.
Efficient for Light Duty Material Handling
This small jib crane is ideal for light duty material handling tasks, offering high efficiency and improving the productivity of processing and assembly lines.
Perfect for Long Lateral Material Handling
The runway length of the wall travelling jib crane is virtually unlimited, making it especially suitable for workshops arranged in long, straight production lines.
Ideal for Low Headroom Facilities
The cantilever wall travelling jib crane is an excellent solution for workshops with low ceilings or restricted overhead space. Its full cantilever design provides higher lifting height compared to tie-rod types, making it suitable for narrow and confined spaces with customized configurations.
High Quality and Long Service Life
The steel structure is manufactured using high-quality materials, ensuring stable performance, durability, and long-term safe operation with minimal maintenance.
Easy and Efficient Control
Both ground handle control and remote control options are available, enabling precise, quick, and efficient crane operation to meet various working requirements.
Application of Wall-travelling Jib Crane
Equipped with different types of hoists, the small jib crane can be used in various applications for light duty material handling or worked as a supplement tools of overhead travelling bridge cranes. Typically, the wall travelling jib crane is ideal hoisting equipment for workshops with low ceiling or limited overhead space. What's more, they are perfect solution for workshops or linked workshops need a long lateral material handling.
Wall travelling jib crane is an optimal solution for material handling, used in many applications, such as, machine manufacturing workshop, assembly workshop, maintenance factory, warehouse and many others, etc. The cantilever wall travelling crane can meet your requirements of application and lifting with custom crane design at cost-effective price.
Wall travelling jib crane with electric chain hoist - Wall jib crane series
Wall travelling jib crane with electric wire rope hoist - Wall jib crane series
Process Wall Travelling Crane Design, Economical Wall Jib Crane Price
Customized wall travelling jib cranes with process crane design and particular jib crane specifications for your specific applications are the most cost-effective crane solutions.
In order to give your specific quotation quickly, could you please send us the inquiry with the details of wall travelling the jib crane for us to quote:

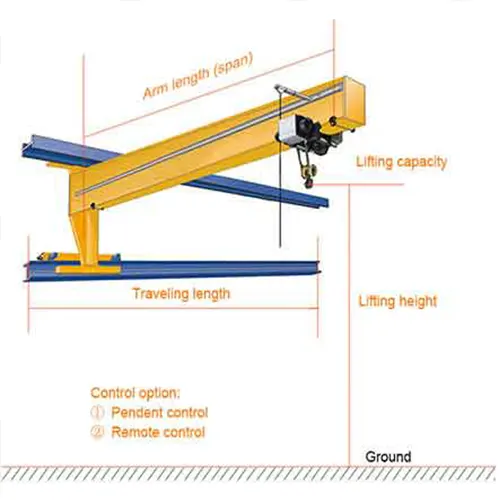

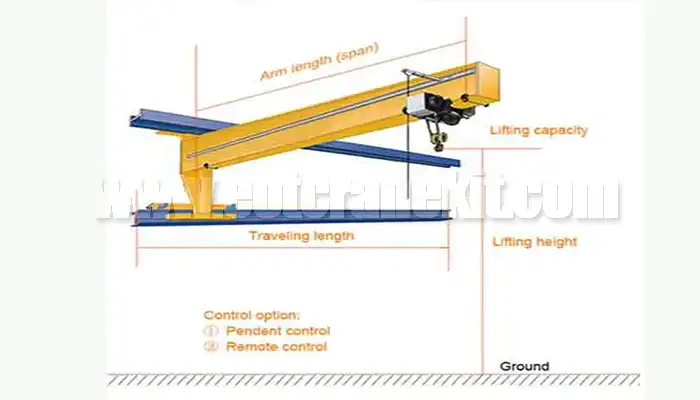

Wall travelling jib crane drawing
Paremeters needed to give you the specific Wall travelling jib crane price
- 1. Type of the jib crane: Wall travelling jib crane
- 2. Lifting capacity of Wall travelling jib crane : ____?
- 3. Lifting height of Wall travelling jib crane: ____?
- 4. Valid radius (the jib length) of Wall travelling jib crane: ____?
- 5.The power voltage of Wall travelling jib crane: ____（240V 50Hz 3phase）
- 6.Travelling length of Wall travelling jib crane: ____
- 7.Crane control of Wall travelling jib crane: ____ (Pendant control or remote control)
Please confirm the specifications of Wall travelling jib cranes to get lastes crane price.
If you do not know about how to select the jib crane, please feel free to leave us a message or email to us. The reply of our jib crane engineer will be given within 24 hours. Contact us to get the free wall travelling jib crane drawing and specific wall travelling jib crane price now.
