Shipbuilding & Boat Making
In the shipbuilding industry, the overhead material handling cranes and hoists are adopted for the material handing in the assembly of light & heavy components, transport of huge & heavy hull to the launching of yachts and boats, etc. To confront the challenges of various industrial applications of ship building industry, various types of shipyard industrial hoists and overhead travelling crane systems are developed to satisfy the requirements of industry and customers precisely.
Industry shipyard crane for material handling for shipyards
The industrial shipyard cranes are adopted for the ship assembly operations with a wide range of configurations and specifications to meet the various lifting requirements throughout the production process entirely. For the metal section, the shipyard cranes systems can efficiently and safely to carry out the material handling works. In the hull section, the precise position of the large loads also can be completed by the industrial crane system. What's more, for smaller boats and motor yachts manufacturing plants and factory, an area-serving overhead cranes system are adopted which interlinks the individual steps in assembly throughout the production bays,etc.
For all the material handling requirements in the sequence of assembly line includes processing, assembly, fieldwork, launch, rigging, and delivery, our series of tailored industrial hoists and overhead crane systems can fully meet your various industrial applications.
Designed for large-scale shipbuilding operations, these cranes are widely used in dry docks, slipways, and ship assembly yards for lifting heavy hull sections and blocks.
They provide high lifting capacity, wide span coverage, and reliable outdoor performance under harsh marine environments.

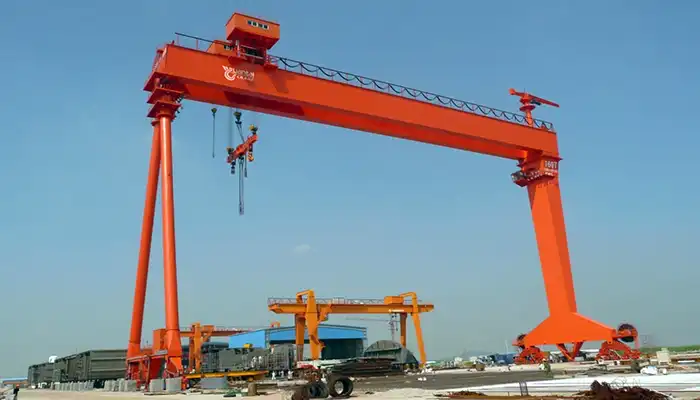

outdoor shipyard gantry cranes for shipbuilding, with capacity up to 2000 ton
Rail mounted gantry cranes are ideal for fixed-path heavy-duty material handling in shipyards and port terminals.
The double girder structure ensures superior stability, higher lifting heights, and precise load positioning for steel plates and prefabricated sections.
rail mounted double girder gantry crane design
Truss girder gantry cranes are lightweight yet strong, designed to reduce wind resistance in outdoor shipyard applications.
They are especially suitable for long-span operations and handling large structural components with optimized steel usage.
Shipyard crane with truss girder
gantry crane design

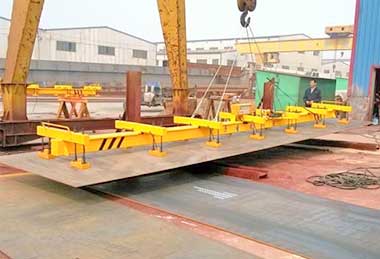

Gantry cranes equipped with electromagnetic beam spreaders are ideal for handling steel plates, profiles, and bulk ferrous materials.
They enhance safety and efficiency in loading, unloading, and assembly processes in shipbuilding and port operations.
Shipyard crane with electromagnetic beam spreader
gantry crane design
Industry shipbuilding cranes for small workshops
For smaller boats manufacturing factories and plants, our light duty crane system and low headroom design industrial cranes are installed for material handling. For precisely fitting of parts & carefully boat positioning , our general use overhead cranes or light KBK crane system with compact designs can be used to fulfill the task. And for low headroom workshops or facility, our low headroom crane and low profile hoists can offer you the maximum lifting height within the confined space.
For the storing and retrieving of the small boats and yachts , an travelling crane system that run on rails above the water or the pillar-mounted slewing cantilever jib cranes can be selected based on your requirements. Both types of industrial cranes systems can help you to lift and transport the boats or yachts gently and precisely.
Single girder overhead travelling crane
Widely used in shipbuilding workshops for light to medium-duty lifting such as handling steel plates, pipes, and small prefabricated components.
Ideal for maintenance bays, fabrication lines, and assembly areas where cost-effective and efficient lifting is required.
Single girder overhead crane designs, various single girder crane hoists, economical single girder overhead crane price, ideal overhead travelling crane solution.
Double girder overhead travelling crane
Designed for heavy-duty shipyard operations such as lifting large hull blocks, engines, and heavy structural modules.
Supports advanced lifting tools like spreaders, magnets, and grabs for efficient steel handling and assembly processes.
Double girder overhead cranes -overhead travelling hoist crane & open winch crane - with below the hook lifting devices, grab, magnet, spreader,C hook, etc.
FEN standard open winch crane
Engineered for precision lifting of oversized ship sections, offshore structures, and heavy equipment in shipyards.
Suitable for synchronized lifting, tandem operations, and high-duty cycles in demanding marine environments.
FEM/ DIN open winch bridge crane-European standard double girder overhead crane with open winch trolley, your heavy duty winch crane up to 320 ton.
Air Hoist & Pneumatic Hoist
Commonly used in shipyards for explosion-proof environments such as fuel tank areas and hazardous zones.
Provides safe and reliable lifting for maintenance, assembly, and confined space operations onboard vessels.
Safe & fast air operated hoists. Air hoist & pneumatic hoist is a compressed air powered hoist & air operated hoists,wide specification, good price.
Double girder gantry crane
Essential for outdoor shipbuilding, used for assembling hull sections, lifting ship blocks, and launching vessels.
Suitable for large-span operations in dry docks, shipyards, and heavy fabrication zones.
Double girder gantry crane specifications: Capacity: 5 ton - 500 ton, Span Length: 12~35m, Working Class: A5, A6.Ask for double girder gantry crane price.
Floor mounted slewing jib crane
Ideal for localized lifting tasks in shipbuilding workshops such as welding stations, equipment assembly, and repair zones.
Provides flexible and efficient handling of small components and tools in confined working areas.
Free standing jib crane-Pillar mounted jib crane is a free standing jib crane with pillar jib mounted on floor, for short & crowded lifting, capacity up to 16 ton.
As one of the best crane manufactuer and supplier in China, we offer crane sevices for turnkey crane projects ie.overhead, gantry & jib cranes and other travelling cranes from crane degin, manufactuering & installation, and crane parts supplying, etc.
Under Hook Devices for Shipbuilding Industry
Explore a range of under hook devices used in shipyards and workshops to safely lift, transport, and position heavy ship sections, steel plates, coils, and machinery components.
Spreader Beams – Heavy Ship Block Handling
Designed for lifting long and oversized ship sections such as hull blocks, panels, and modular structures.
Ensures even load distribution and prevents deformation during hoisting in shipyards and dry dock operations.
Commonly used in tandem lifting, multi-point rigging, and large-span load handling for offshore modules and vessel sections.
Click to learn more on Spreader beams.
Lifting Beam – Balanced Component Lifting
Commonly used for handling engines, machinery components, and prefabricated ship parts in workshops.
Provides stable lifting for balanced loads during assembly, maintenance, and installation processes.
Ideal for repetitive lifting tasks in production lines where load stability and controlled positioning are critical.
Click to learn more on Lifting beam.
Lifting Tong – Steel Plate & Structure Gripping
Ideal for gripping and lifting steel plates, profiles, and structural components used in ship fabrication.
Widely applied in plate yards and cutting workshops for efficient and safe material handling.
Supports vertical and horizontal lifting of plates, improving safety and reducing manual handling risks.
Click to learn more on Lifting tong.
Crane C Hook – Coil & Pipe Handling
Specifically designed for lifting steel coils, pipes, and cylindrical materials used in shipbuilding.
Enables quick and safe loading and unloading of rolled steel materials in storage and processing areas.
Optimized for high-frequency handling operations with minimal rigging time and improved workflow efficiency.
Click to learn more on Crane C hook.
Crane Electromagnetics – Bulk Steel Handling
Used for handling bulk ferrous materials such as steel plates, scrap, and cut sections in shipyards.
Improves efficiency in loading, unloading, and sorting steel materials for fabrication and assembly lines.
Ideal for automated or semi-automated lifting systems in high-volume steel processing environments.
Click to learn more on Crane electromagnetics.
Sheet & Plate Lifters – Precision Plate Handling
Designed for lifting thin steel sheets and heavy plates used in hull construction and deck fabrication.
Ensures safe, non-damaging handling of large surface materials in shipyard production lines.
Provides secure gripping to prevent slipping, bending, or surface damage during transport and positioning.
Click to learn more on Sheet lifter & plate lifter.
Coil Lifters – Steel Coil Transport
Used for transporting steel coils required for pipe manufacturing and structural components in shipbuilding.
Provides secure lifting and positioning of coils in storage yards and processing workshops.
Supports both horizontal and vertical coil handling, improving safety and reducing handling time.
Click to learn more on Coil lifter.
Contact us to get tailored overhead crane design, free CAD overhead crane drawing, defined overhead crane specifications for your particular application with lower overhead crane costs & good overhead crane price. Send an overhead crane inquiry to your latest eot crane price now!
Shipbuilding Gantry Crane FAQs
Practical questions and answers for buyers of shipyard gantry cranes, including RMG and RTG cranes, under-hook devices, and lifting solutions for modular ship sections, steel plates, engines, and heavy components.
Can gantry cranes handle modular ship sections during offshore construction?
Yes, RMG and RTG shipbuilding gantry cranes can lift large modular ship sections safely.
- Suitable for offshore modules and hull sections in shipyards and dry docks.
- Typical lifting capacity: 50–150 tons for large modules.
- Supports multi-point rigging for even load distribution.
- Reduces deformation risk and ensures precise placement.
How are lifting beams and spreader beams used together with gantry cranes?
They distribute load evenly when lifting long or irregular-shaped components.
- Critical for long hull sections, decks, and prefabricated panels.
- Prevents bending or damage during transport.
- Compatible with standard shipyard gantry cranes (RMG/RTG).
- Enables tandem lifting and multi-hoist configurations.
What is the recommended method for lifting engines or heavy machinery in ship fabrication?
Use lifting beams with overhead or gantry cranes for balanced support.
- Ideal for heavy equipment like engines, generators, and pumps.
- Capacity typically ranges 5–50 tons per lift.
- Ensures precise alignment for assembly or installation.
- Reduces risk of damage to components and improves workshop workflow.
How do you lift steel plates, beams, and structural components safely?
Lifting tongs or sheet lifters provide secure gripping for safe handling.
- Designed for vertical and horizontal lifting in plate yards or cutting workshops.
- Typical loads: 1–20 tons per plate or beam.
- Minimizes manual handling and increases workplace safety.
- Integrates seamlessly with gantry cranes for large-scale ship fabrication.
Can gantry cranes lift cylindrical materials like steel pipes or coils efficiently?
Yes, using Crane C hooks or coil lifters allows safe, high-efficiency handling.
- Supports horizontal and vertical coil or pipe handling.
- Lifting capacity: 2–50 tons depending on material size.
- Reduces rigging time and improves workflow in storage or processing areas.
- Essential for shipbuilding workshops handling rolled steel or pipe sections.
How are crane electromagnets used in shipyards?
They handle bulk steel materials, scrap, and cut sections efficiently.
- Lifting capacity: 5–100 tons, depending on magnet size.
- Works with RMG/RTG gantry cranes for semi-automated lifting.
- Speeds up loading, unloading, and sorting steel materials.
- Enhances productivity in high-volume shipbuilding environments.
What safety and operational features should I consider when buying a gantry crane?
Look for overload protection, anti-sway systems, and load monitoring.
- Protects operators and prevents damage to hull blocks, engines, or steel plates.
- Essential for dry docks, shipyards, and fabrication workshops.
- Reduces downtime and ensures compliance with maritime safety standards.
- Improves reliability for long-term heavy lifting operations.
How can lifting operations be optimized for repetitive tasks in ship fabrication?
Using pre-configured lifting beams and modular hoists increases efficiency.
- Supports repeated lifting of engines, panels, or prefabricated structures.
- Reduces manual rigging time and load shifting.
- Ideal for production lines and assembly areas in shipyards.
- Handles varying loads safely, from small parts (2–5 tons) to large hull blocks (50–150 tons).
Can gantry cranes work outdoors in shipyards with harsh weather?
Yes, RMG and RTG gantry cranes are built for outdoor shipyard conditions.
- Designed to operate in rain, wind, and saltwater environments.
- Corrosion-resistant materials like galvanized steel or epoxy coatings extend lifespan.
- Suitable for handling hull sections, decks, and bulk materials outside workshops.
- Often integrated with remote controls or automated lifting systems for safety.
What capacities of shipbuilding gantry cranes are commonly used in workshops and dry docks?
Typical capacities range from 10–150 tons depending on the component size.
- Small cranes: 10–30 tons for machinery and mid-sized components.
- Medium cranes: 30–70 tons for hull sections and prefabricated modules.
- Large cranes: 100–150 tons for heavy ship blocks or offshore modules.
- Enables efficient workflow across assembly, maintenance, and installation operations.
Tailored shipyard crane, cost-effective shipyard crane solution
Our various types of industrial cranes and hoist systems are available for the shipbuilding industry, including single girder & double girder overhead cranes, shipyard gantry cranes such as RMG and RTG cranes, rotating jib cranes, and light KBK cranes. We provide solutions for both shipbuilding and boat-handling operations, designed to optimize efficiency, safety, and precision in your industrial environment.
We offer customized options for your industrial use, including:
- Capacity customization: Cranes designed to lift from small components (2–10 tons) up to massive hull blocks or offshore modules (100–150 tons).
- Span and height adjustments: Tailored to fit your workshop, dry dock, or outdoor shipyard layout.
- Under-hook device integration: Spreaders, lifting beams, tongs, C-hooks, coil lifters, and electromagnets for specific cargo types.
- Automation and control systems: Optional remote control, PLC integration, anti-sway, and load monitoring for safer, more precise operations.
- Material and coating options: Corrosion-resistant and marine-grade materials to withstand harsh shipyard environments.
- Specialized configurations: Multi-hoist systems, tandem lifting, or custom jib rotation angles for modular ship assembly and boat handling.
Contact us to get your personalized industrial hoist and crane systems. Send us an inquiry on shipyard crane now to discuss your specific industrial requirements and receive a tailored, cost-effective solution. WhatsApp: + 86 151 3871 1597.
