European Style Electric Wire Rope Hoist
1-32 Ton Single Girder Hoist & 1-80 Ton Double Girder Hoist

The European style electric wire rope hoist is a type of advanced hoist that has been developed with the gradual fusion of domestic and international standards, to meet the market's demands for lifting equipment that with higher efficiency, lower energy consumption, and higher safety. With a more advanced electric hoist designing concept, European standard electric wire rope hoists have been developed into various types to meet various industrial use and applications.

• Single girder hoist with capacity of 1-32 ton
• Double girder hoist with capacity of 1 -80 ton

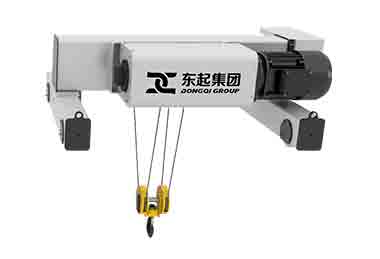

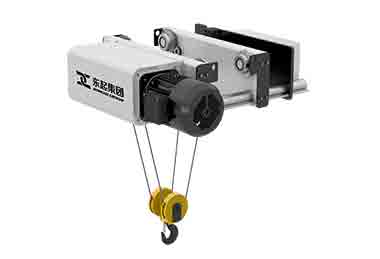

Single girder hoist with capacity of 1-32 ton

Single girder hoist with capacity of 1-32 ton

Every model of European-style electric wire rope hoists has a wide diameter drum that effectively lowers the left and right restrictions while increasing lifting height. When used in small workplaces, its low headroom and low profile design might give customers more space to operate in.

The European fem standard electric wire rope hoist has a modular design, compact structure, low headroom, low noise, low energy consumption, more steady operation, higher efficiency, and maintenance-free characteristics in comparison to CD/MD type electric wire rope hoists.

The fem electric hoist soon gained popularity in the home and overseas market after it was introduced. It is significantly more affordable than the electric wire rope hoist offered by major multinational companies. It is now one of our company's primary products.

Why to select the European style electric wire rope hoist?

• Compact design, light weight, low wheel pressure, best possible use of available space, and cost-effective hoist price.
• Low maintenance costs, full spare parts service, modular design.
• Adopt a low clearance design to save building or facility construction costs and on the other hand increasing workshop hoisting space for customer in limited workshops.
• Selected high-quality components that are low noise, dependable, and long-lasting
• Precise locating & positioning, efficient material handling operation, high sustainable work efficiency
• Safe and reliable, convenient and operational monitoring, easy to installation and repair

With reference to European FEM standard and the most recent national standard GB/T3811 "Design specification for cranes," the ND type electric wire rope single girder hoist is a brand-new invention. The single girder hoist or monorail hoist system is with the features of the advanced, cost-effective, eco-friendly, and energy-efficient, which enable the ND hoist one of the most popular hoisting equipment among the similar products.

European style electric wire rope hoist for single girder overhead crane hd type

CD/MD electric wire rope hoist for single girder crane ld type

Main specifications of European style single girder hoists

• Hoist Capacity: 1-32 ton
• Hoisting Height: 1-120 m
• Power Supply Voltage: 220-440V 50/60Hz 1/3Phase
• Protection Class: IP44-IP55
• Working Temperature: -20-+40 ℃
• Color: Customized, Blue, Yellow, orange, etc.

Advantage & features of single girder hoists

ND type electric single girder hoist has passed the CE certification of the European Union. It is reliable and efficient, and it has served more than 150 countries and regions to date.

Single Girder Hoist Motor Options

Option A: The structure design is compact and reasonable due to the co-axial design of the drum and lifting motor.

Option B: The compact C-design structure significantly increases the lifting height, effectively lowering the factory plant's height.

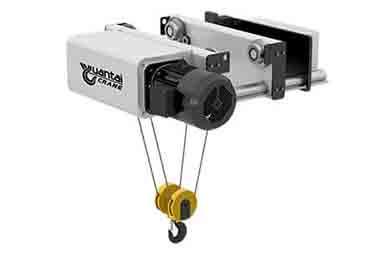

Option A

• Hoisting mechanism with independent intellectual property and FEM standard design.
• The hoisting motor and drum are coaxially designed, which results in a sensible and efficient structure.
• The lifting height is increased by a special low headroom structure design, which also makes the most use of vertical space to lower the height of facilities and plants.
• A maintenance-free, internal planetary gearbox.
• Synchronized driving wheels are distributed evenly on both sides to decrease wheel wear and damage .

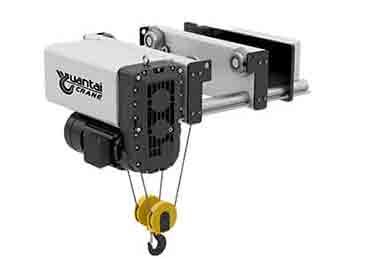

Option B

• Modular design of motor, drum and reducer. Compact C-design structures greatly enhance lifting height, resulting in a reduction in plant height.
• Minimum left and right hook approaches, side-mounted, three-stage helical gearbox, and maintenance-free.
• In order to decrease wheel wear and damage, synchronized driving wheels are distributed evenly on both sides.

Applications of Single Girder Hoists

The single girder hoist or monorail hoists are widly used on single girder cranes, Beam Girder Crane, monorails cranes. It is usually used for lighter material handling with capacity up ton 20 ton and with customized design, the capacity of single girder hoist can up to 32 ton.

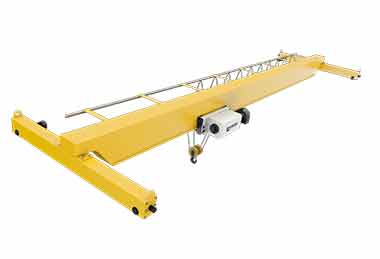

Single girder hoist overhead crane

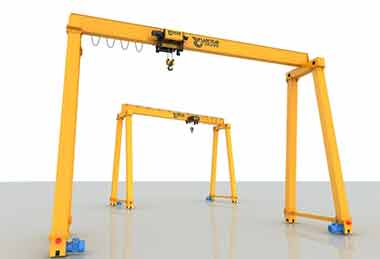

Single girder hoist gantry crane

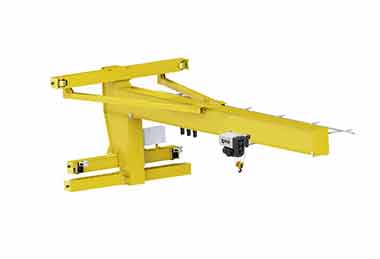

Single girder hoist jib crane

Technical Parameters of FEM standard single girder hoist

The ND type electric wire rope hoist for double girder cranes are designed according to the latest national standard GB/T3811 "Design specifications for cranes", and with reference to European FEM standard. The double girder hoist or hoist trolley are widely used for double girder overhead crane and double girder gantry cranes for heavy duty material handling with the capacity up to 80 ton with standard design. Customized double girder hoist trolley is available.

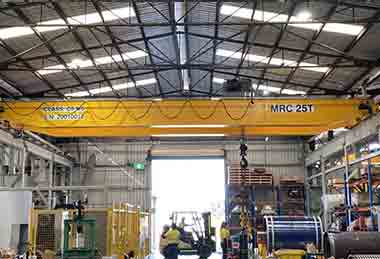

European style double girder hoist overhead travelling crane

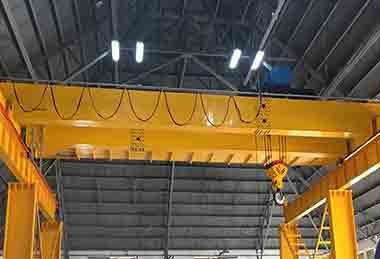

China style double girder hoist overhead crane

Main specifications of the double girder wire rope hoist

• Hoist capacity: 1,000-80,000 Kg
• Hoisting height: 6/9/12/15/18 m
• Hoist Power Supply Voltage: 220-600V 50/60Hz 3Phase (Single phase is not available.)
• Ambient temperature: -20~+40℃

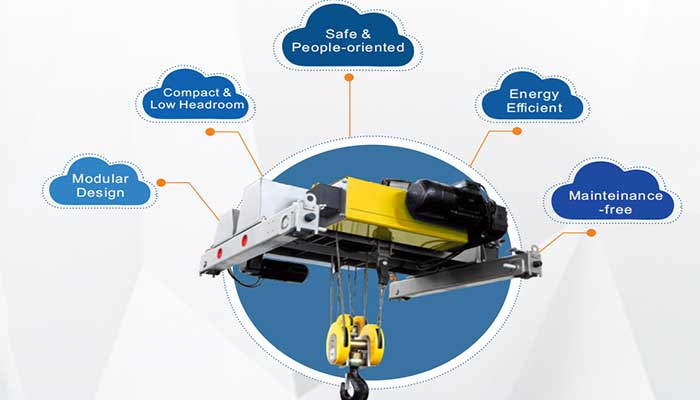

Features of European style double girder hoist

ND type electric wire rope hoist with trolley frame has passed the CE certification of the European Union. With the cost-effective, low headroom, compact design, reliable quality, the double girder hoist has served more than 150 countries and regions until now.

Double Girder Hoist Motor Options

Option A: The design& structure is reasonable and compact thanks to the co-axial design of the drum and lifting motor.

Option B: A compact C-design structure greatly raises the lifting height, lowering the plant's overall height.

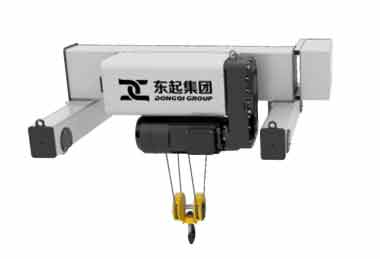

Option A

• Lightweight and long-lasting trolley frame made of rectangular hollow section steel
• Wheels made of alloyed steel with a high wear-and-tear resistance.
• Double driving motors distribute power on both sides, allowing for smooth running along a straight line.
• The compact structure maximizes the hook's effective three-dimensional space.

Option b

• Hoisting mechanism with independent intellectual property and FEM industry standard design.
• Lightweight and sturdy trolley frame composed of rectangular hollow section steel.
• Wheels with a high level of wear and tear resistance, made of alloyed steel.
• With two driving motors distributed on both sides, a straight line is smoothly operated.
• The hook's effective three-dimensional travel is maximized by the compact structure.

Double Girder Hoist & Crab Hoist Application

Double girder crab hoists are commonly used as lifting mechanisms on double girder cranes such as double girder overhead cranes and double girder gantry cranes. With the & independent electronic control system that, once connected to the crane system, the double girder crab hoist can work with the overhead travelling crane.

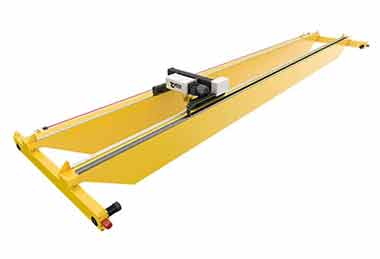

FEM style double girder hoist trolley overhead crane

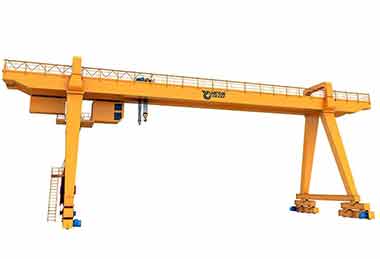

FEM style double girder hoist trolley gantry crane

Fem standard double girder hoist overhea crane video

Technical Parameters of Double Girder Hoist / Crab Hoist Trolley

Features of fem hoist parts and components

Electric cabinet

• An improved design that is easier to maintain; reliable components;
• Numerous safeguards to ensure the safety; IP54 classification;
• Standardized labels with clear instructions for simple upkeep

Trolley drive unit

• The complete 3-in-1 drive unit consists of a high-performance motor, gearbox, and brake;
• a compact structure, excellent noise control, low energy consumption, and eco-friendliness;
• inverter control, stability, and less impact force.
• Traveling speeds can be adjusted. A million brakes were guaranteed with an asbestos-free brake disc.

High-performance wire rope

• Tensile strength can reach 2160MPa.
• Corrosion can be effectively prevented by a properly galvanized surface.
• High flexibility leads to minimal wear and a long service life.
• Lifting height limiter

Drum

• The wire rope hoist drum is made of seamless Q345B carbon steel tubes that have been CNC-machined precisely and concentrically;
• The rope groove is a standard FEM design;
• High-strength lock plates are fastened to the hoist drum to hold the wire rope, ensuring lifting safety.

Rope guide

• The fem electric hoist's rope guide is made of lightweight, wear-resistant industrial nylon to efficiently lessen the wear on the wire rope.
• Safety first, prevent wire rope from skipping and losing due to off-groove.

Lifting drive unit

• Compact design with high performance; ABM(optional) Heavy duty; 60% ED rating;
• 2-speed motor and variable frequency motor;
• A million braking cycles are possible with an asbestos-free brake;

Lifting hook

• Lifting hook that complies with DIN standards, rotates 360 degrees, has a wire rope sheath, and is forged from T grade high strength material.
• Tailored European style Electric Wire Rope Hoist

Tailored European style Electric Wire Rope Hoist

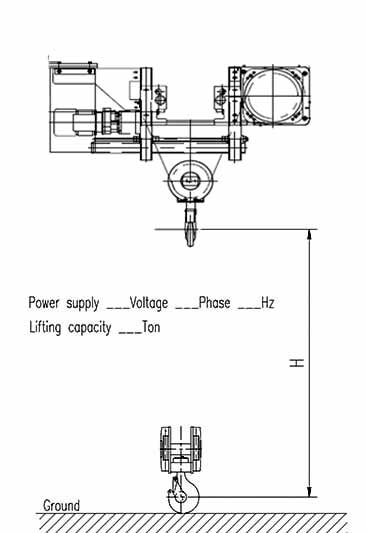

In order to give you specific single girder hoist design, please include the following information in the inquiry message form or in your inquiry email, we will send our monorail hoist quotation according your requirements.
Lifting capacity: ____ ton
Lifting height (H):____ m
Girder / Beam type :   Box girder, H/ I beam or others
Power supply: ____V ____Hz ____Phase

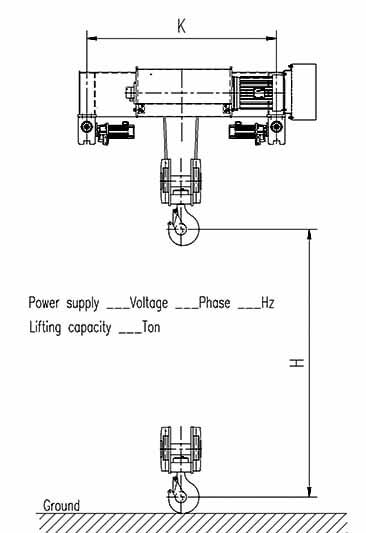

In order to give you specific double girder hoist design, please include the following information in the inquiry message form or in your inquiry email, we will send our elctric crab trolley quotation according your requirements.
Lifting capacity: ____ ton
Lifting height (H):____ m
Rail gauge (K): ____ m
Power supply: ____V ____Hz ____Phase
