Adjustable gantry cranes with adjustable gantry design & portable gantry design , your most flexible & cost-effective small gantry crane solutions for light duty material handling,etc.

According to differenr standards, the adjustable gantry crane can be grouped into different types.

• In terms of the ways of crane adjustment, the adjustable gantry crane can be grouped into height adjutable gantry crane and 3 way adjustable gantry crane.
• In terms of gantry power, it can be grouped into manual adjustable crane and motorized adjustable gantry crane, and
• in terms of raw materials of gantry, it can be grouped in adjustable steel gantry crane and aluminium gantry crane, etc

Based on your application conditions and your requirements, adjustable gantry cranes can be processed and provided. Please contact us to get your customized small adjustable gantry crane at lower crane costs.

Adjustable gantry cranes are a type of small portable gantry cranes with height adjustable gantry designs,, providing the most flexible gantry crane solutions for light material handling. The adjustable height gantry cranes can be easily relocated to any place and adjusted to provide different lifting heights.The smalladjustablegantry crane can be moved easily, disassembled and installed quickly, with small ground covering space.

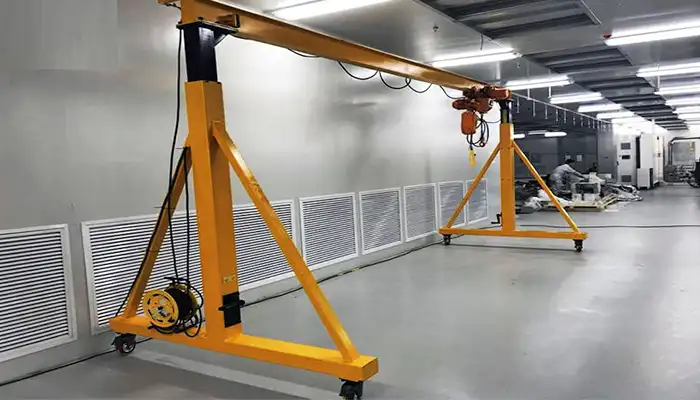

Height Adjustable Gantry Crane- Steel Types

Adjustable gantry cranes are a type of small portable gantry cranes with height adjustable gantry designs, providing the most flexible gantry crane solutions for light material handling. The main parameters of the adjustable gantry crane are presented for your reference to get your ideal custom small gantry crane. Contact us to get more information on the hegith adjustable gantry cranes.

Parameters of small adjustable gantry crane

• Types of small adjustable gantry crane:Height adjustable gantry cranes
• Lifting capacity of adjustable gantry crane : 0.5 ton ~ 5 ton,
• Span length of adjustable gantry crane: 3~ 9 m
• Lifting height of adjustable gantry crane: 2.6-3.8 m
• Working class of adjustable gantry crane: A2
• Motion type: Hand push type universal castor with brake device
• Height range instruction: According to the actual use requirements to increase the lifting height and height of the body
• Custom designed adjustable gantry are available.

Ask for adjustable gantry crane price

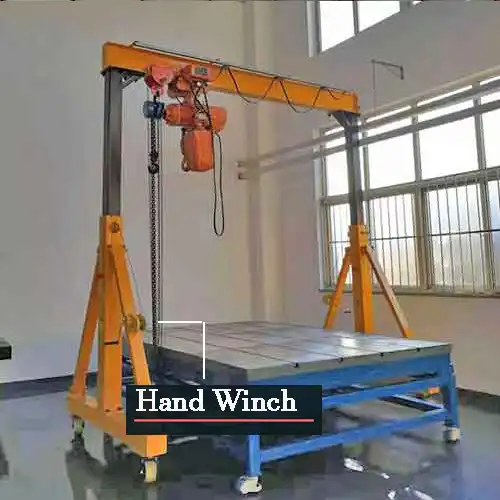

Hand winch adjustable height gantry crane

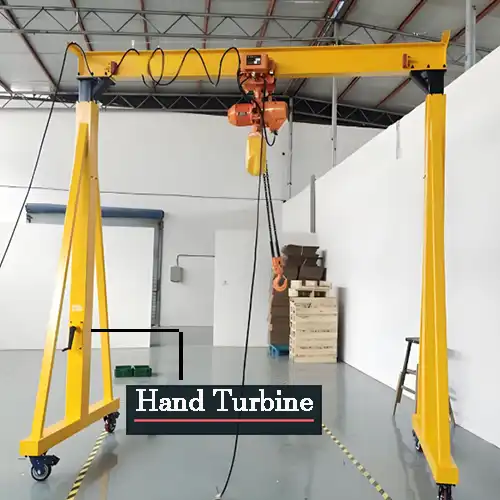

Hand turbine adjustable height gantry crane

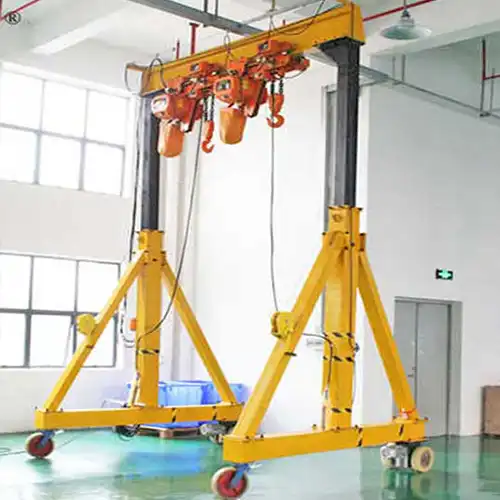

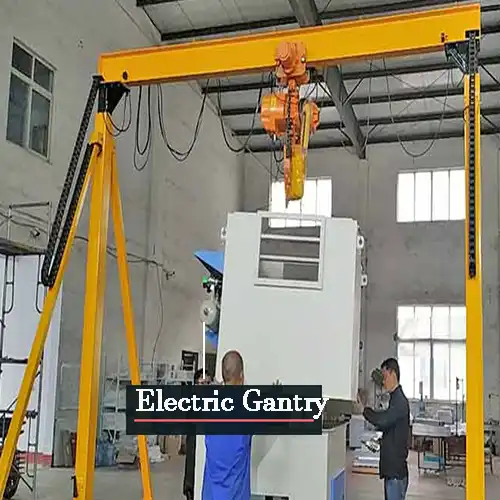

Electric adjustable height gantry cranes

Features of adjustable height gantry crane

• Light weight, stable gantry crane structure design, high safety.
• With moisture and corrosion protection , adjustable gantry offers a long working life.
• Explosion proof design are available for adjustable gantry crane.
• Height and Span length of steel gantry cranes can be adjustable.
• Span and lifting height of adjustable steel gantry cranes can be customized size.
• Detachable steel tube design make the assembly and dismantle of the steel portable gantry crane easy.
• Height adjustment of small gantry crane can be achieved by hand winch or by turbine according to request.

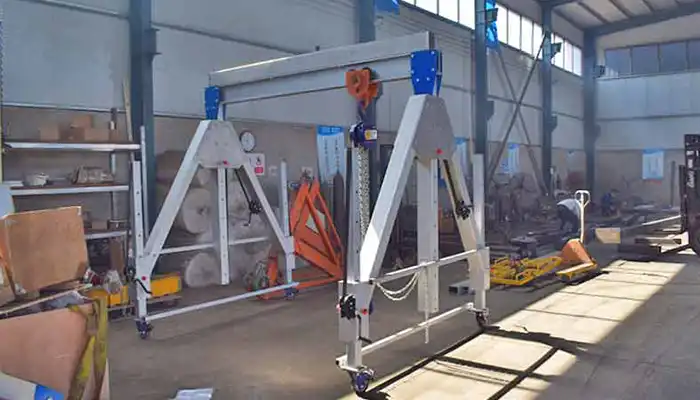

Height Adjustable Gantry Crane- Aluminum Gantry Types

Aluminum height adjustable gantry cranes offer a lightweight, portable, and corrosion-resistant solution for lifting tasks in workshops, warehouses, and maintenance sites. These gantries allow users to modify the lifting height easily, making them ideal for varying workspaces and load sizes. Common types include foldable, mobile, and heavy-duty models, each suited for different capacities and applications. Their modular design ensures quick assembly, flexibility, and safe handling of loads from 250 kg up to 5 tons.

Main Specifications of Height Adjustable Aluminum Gantry Cranes:

• Lifting Capacity: 250 kg to 5000 kg (varies by model)
• Adjustable Height Range: Typically from 1.5 m to 4.5 m
• Span Length Options: Commonly 2 m to 6 m
• Material: Lightweight aluminum alloy with corrosion resistance
• Mobility: Equipped with swivel casters (manual or locking)
• Design: Foldable or modular for easy transport and setup
• Usage: Indoor/outdoor, light-duty lifting, equipment maintenance, or workshop handling

Ask for adjustable gantry crane price

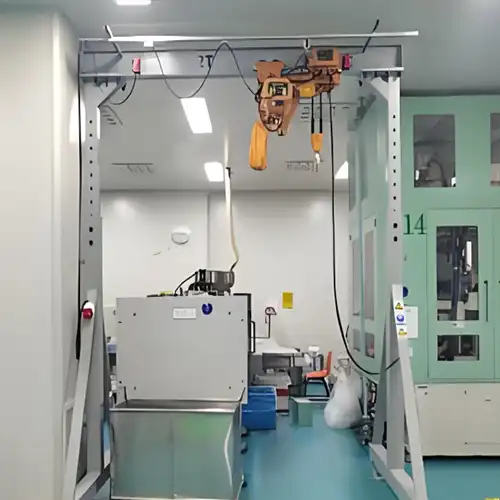

Portable height adjustable aluminum gantry crane

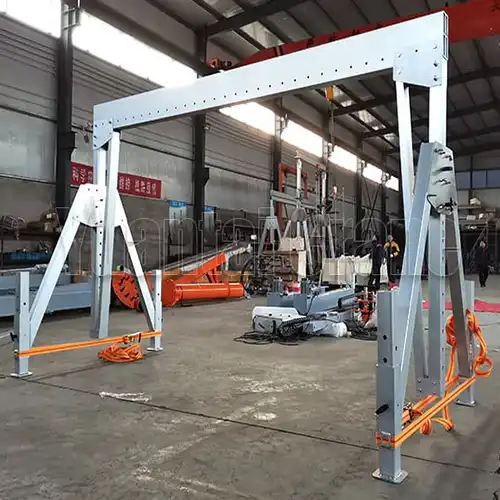

Freestandting aluminum height adjustable gantry crane

Adjustable gantry crane with telescopic height and telescopic gantry cranes

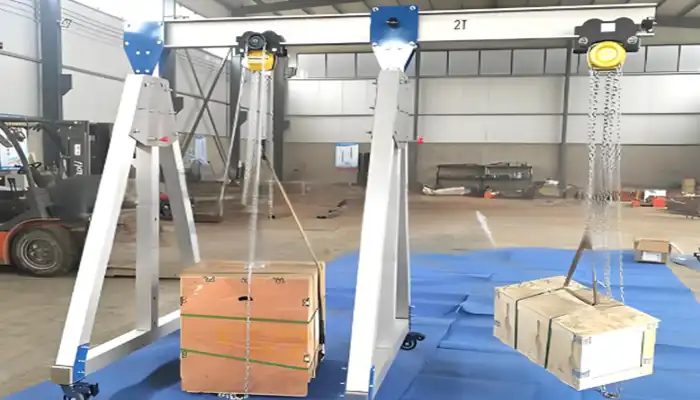

Height and Span adjustable gantry crane

The height and span adjustable gantry crane is extremely flexible in configuration and use, which can be adjusted in three direction such as , the height adjustment, span adjustment and tread adjustment. The small adjustable gantry cranes is designed with capacity of 10 tons of capacity and with a truly stable A-frame gantry design. The small adjustable gantry crane can be assembled in either full beam or cantilever configuration.

Features of 3 way adjustable gantry crane

• A truly stable A-frame small gantry crane structure
• Capacities of the adjustable gantry crane is up to 10 tons
• Special locking system holds the span of the small gantry crane in place
• I-Beam self-centers over load on uneven surfaces
• Mold-on polyurethane swivel casters of the adjustable small gantry cranes have four -position locks for secure placement
• With span in cantilever position, load can be guided off end of span onto other lift conveyances

Ask for adjustable gantry crane price

Advantages of adjustable small gantry crane

Three-way adjustable small gantry cranes are capable of multiple functions because of their stability and adjustability. Due to the stability and adjustability, the three way adjustable small gantry cranes are multifunctional.

• With a three-way adjustable crane design, the small gantry cranes can be adjusted in terms of crane span, height, and tread to fit different applications and requirements.
• The small three-way adjustable gantry crane is usually designed as a portable A-frame gantry crane, which enable the small gantry crane capable of handling loads from site to site in and out of your workshops.
• The small adjustable gantry cranes can be disassembled easily and quickly for transport by trucks, making them useful in a wide applications.
• Due to the special design, theportable gantry craneprovide high stability because the I-beam is free to pivot as it self-centers over the load. With high flexibility and control, the small adjustable gantry crane can be used on uneven floors, aisles, and under other overhead obstacles.

How to Adjust the adjustable gantry cranes

Height adjustment of the small adjustable gantry crane

Span adjustment of the small adjustable ganty crane

Tread adjustment of the small adjustable gantry crane

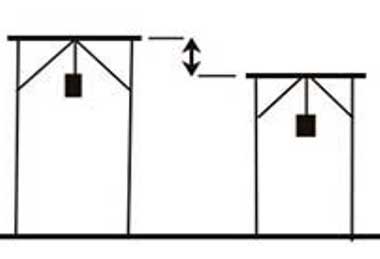

• Height adjustment of the small gantry crane by adjusting the adjustable leg support frames. Usually spring lock steel pins of the gantry frame are removed, the leg frame height can be raised or lowered and then the steel pins will be reinserted at the new height. The height adjustment of the small gantry crane is very useful during operation when there are overhead obstructions that must be cleared .

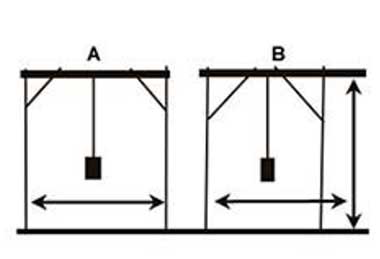

• Span adjustment of the small ganty crane which refers to the change of the clear span distance on the beam when the traffic access in a facility is narrow, but overhead clearances are wide open. Under the provided conditions, the leg frames of small gantry crane can be moved closer together on the I-beam to narrow down the clear span to pass through the facility.

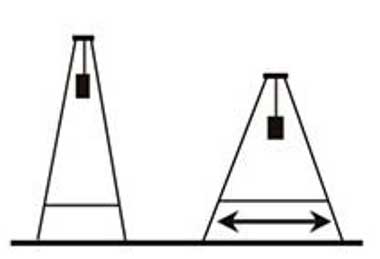

• Tread adjustment of the small gantry crane is required when both traffic access and overhead space is narrow. Tread width is the space between wheels on one leg frame, which determines how much space is needed to move the small gantry crane lengthwise through a facility while maintaining the full span length.

Application of adjustable gantry crane

Adjustable Gantry Crane is designed and manufactured for the small and the medium and factory or plant to meet the material handling needs in daily production . The small adjustable gantry cranes can be used in various applications such as assembly workshop,machining workshop, the mold manufacturing & installing workshops, automobile factories,research laboratory, general manufacturing, small freight station, warehouse, garage, maintenance station, repair shops and other occasions where lifting is required on infrequent base. .

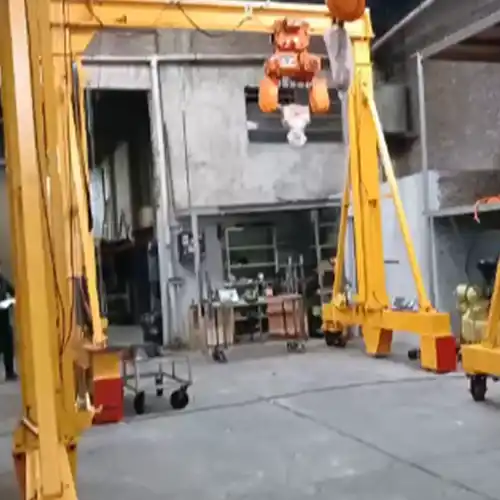

Height Adjustable gantry crane -Motor driven

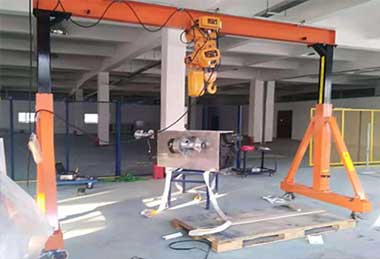

Height Adjustable gantry crane- manual driven

Manual Height adjustable gantry crane with manual hoist

Why select our adjustable height gantry crane

• Ease of Assembly - All components of the adjustable gantry cranes are designed and produced with the features of easy assembly and installation.
• Ease of Operation - The adjustable gantry cranes were engineered to be easy to operate to ensure the safety of operation and to increase productivity.
• Versatility- Complete set of overhead travelling crane systems are designed and provided to to meet your particular needs. The small steel gantry cranes with adjustable and portable gantry design offers the most flexible and versatile crane lifting solution.. The adjustable gantry cranes can be moved to almost any location and can be easily adjusted to offer lifting height of different sizes.
• Safety -All of our gantry cranes are pre-engineered for powered hoisting operation—with a factor of 15% of the gantry capacity for the combined weight of the hoist & trolley and an additional factor of 25% of the gantry crane capacity for the impact of powered hoists.
