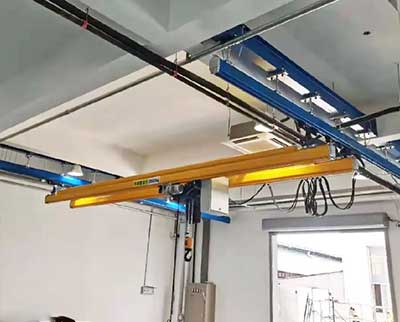

KBK Rail & Rigid Rail Ceiling Mounted Workstation Crane

Ceiling mounted kbk rail crane & rigid rail ceiling mounted workstation cranes 1 ton & 2 ton for sale. Design tailored light ceiling mounted crane now.

Crane type Ceiling mounted workstation crane
Crane capacity 250kg, 1000kg, 1500kg, 2000kg
Crane span 0.7-15m
Lifting height 2.5m-12m
Working class A3,A4

Category: Light KBK Crane

Your Trusted Ceiling Mounted Crane Manufacturer & Supplier

0.5 Ton- 2 Ton Ceiling Mounted Workstation Crane
KBK Rail & Rigid Rail Ceiling Crane System

Ceiling mounted kbk rail crane & rigid rail ceiling mounted workstation cranes 1 ton & 2 ton for sale. Design tailored light ceiling mounted crane now.

Why not install from the ceiling ?

Ceiling-mounted workstation crane systems provide coverage for a large rectangular work area. This crane solution does not need floor supporting structure but it requires the use of a building with sufficient overhead structure to hang and support the lifting crane and the loads.

Optimum space utilization

  • Overhead, area-serving load transport.
  • Overhead, area-serving load transport. Maximum space utilization due to minimal approach dimensions.
  • Suspended from pre-existing workshop ceilings or roof structures.
  • The crane runway requires no additional supports.

Convenient handling

  • Moved with ease by hand.
  • As a result of the articulated connections between the crane girders and trolleys, the operation runs smoothly and without snares.
  • Reduced deadweight.
  • Customer-specific and cost-effective solutions for workshop material handling
  • Because of the modular system design, there are numerous applications .

Flexible KBK Rail Ceiling Mounted Crane

The kbk rail ceiling mounted crane can be manufactured with integrated functionalities based on specific application conditions and lifting requirements thanks to modular crane designs. The kbk ceiling cranes can be made into single girder and double girder crane, telescopic crane and stacking cranes, etc. The ceiling-mounted KBK system has a SWL range of 125 to 2000 kg.

kbk rail single girder ceiling mounted crane

kbk rail single girder ceiling mounted crane

kbk rail double girder ceiling mounted crane

kbk rail double girder ceiling mounted crane

Main parameters of kbk rail ceiling mounted workstation crane

  • Crane type: flexible ceiling mounted rail crane with modular design
  • Capacity of kbk ceiling crane: 50kg, 250kg, 1000kg, 1500kg, 2000kg,
  • Span of ceiling mounted kbk crane: 0.7-15m
  • Lifting height of ceiling suspension kbk crane: 3-10m
  • Working class of kbk ceiling mounted crane: A1-A6
  • Power source of kbk rail ceiling crane: Customized is acceptable

Process designed KBK type ceiling mounted crane system for large scale automatic material handling are available. Contact us to confirm detailed ceiling mounted kbk crane specifications and drawings.

Flexible kbk rail single girder ceiling mounted crane

Flexible kbk rail single girder ceiling mounted crane

The single girder ceiling mounted kbk rail is designed with KBK standard components, with direct kbk rail track, electric chain hoists and other auxiliary standard components, etc. The single girder kbk rail crane enables material handling in specific areas quickly and accurately. Maximum span is 10m. Maximum capacity is 2000kg.Customer-specific ceiling mounted kbk rail crane configuration to meet individual requirements.

Telescopic ceiling crane system

Telescopic ceiling crane system

The telescopic beam ceiling mounted workstation crane can move loads along the main beam's reach to go beyond columns or other obstacles, increasing work range efficiently and making the best use of the limited space. The telescopic beam is attached to the main beam and can reach out 2.5m on one or both sides of the main beam to enlarge service areas where crane track cannot be installed, such as pipeline downside, heat pipe, among roofs, columns, and so on.

Double girder ceiling mounted crane

Double girder ceiling mounted crane

The KBK double-girder ceiling mounted suspension crane is a type of workstation crane that is designed to move in the orbital direction along the factory building, the lateral movement of the trolley, and the hook lifting movement. It is appropriate for loading, unloading, and lifting in warehouses, workshops, and stockyards, etc. The KBK ceiling mounted suspension crane is not suitable for high temperatures (>+40 °C) or low temperatures (-20 °C), dissolved red hot metal, or workplaces with strong corrosive chemical gases.

Ceiling mounted kbk monorails

Ceiling mounted kbk monorails

The ceiling mounted monorail crane, also known as a ceiling crane, provides an overhead material handling solution for workshops with limited space, making the most of the available space and the existing building structure, with the addition of columns if heavy duty lifting or a more complex design is required.

Rigid track ceiling mounted workstation cranes

Ceiling mounted rigid rail crane systems are better suited for connecting various manufacturing processes for light load handling at different working sectors or stations without taking up any floor space. The light duty ceiling mounted crane system with truss-type track design can reduce lifting points and make auxiliary hanging more simple, simplifying the steel structure in the air, reducing load on the plant, and saving your construction cost.

rigid track ceiling mounted workstation cranes

Main parameters of rigid track ceiling mounted workstation cranes

Rigid rail ceiling mounted workstation crane systems are based on European technology, with modular crane designs, enclose track crane beams, and rigid crane rails with strengthened truss structure to ensure rigidity with minimum self weight. With the mentioned features, the workstation cranes helps to make the production and assembly easy and fast while also ensuring crane operation safety, reliability, and stability.

Main parameters and specifications of rigid rail ceiling mounted crane

  • Lifting capacity of workstation ceiling crane : 125Kg-2000Kg,
  • Maximum span of ceiling mounted workstation crane : 3-10m,
  • Fixed rail support spacing up to 9 meters
  • Working class of suspension workstation ceiling crane: A3

The rigid kbk rail ceiling mounted workstation cranes are available with process crane designs to meet your particular applications. The general modular workstation crane are presented as the following crane picture for your reference. Contact us to get free rigid kbk workstation cranes drawing and crane price.

rigid ceiling mounted workstation crane system
Applications of ceiling crane system

  • Applications with lighter loads (less than 2000 Kg.)
  • Parts Assembly
  • Machining
  • Palletizing loads
  • Injection Molding
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Truck Service Centers

Features of rigid ceiling mounted workstation cranes

  • Enclosed track / simple movement / long life
  • Rigid runways / superior load positioning - no bridge movement or "crabwalking."
  • There is no support structure on the floor, so work areas are free of obstruction.
  • Smoother rolling surface / Easier bridge and trolley movement
  • A shorter runway profile helps to center the wheels in the track and keeps debris and dust off the rolling surface.
  • Low track profile weight reduces operator push-pull forces.
  • Truss girder workstation crane

Ceiling mounted bridge cranes

The ceiling mounted bridge crane is an under running overhead cranes, which has the beam or girder supported in a position underneath the crane's travelling rails. .In contrast , the general use top running overhead cranes have main girder and end carriages that run on top of crane runway.

They heavy duty ceiling mounted crane is used for material handling with capacity up to 10 ton.

Due to different design style and configurations, the ceiling mounted bridge cranes can be classed into European style & Chinese style, which will be presented in the following for your reference.

Nlx ceiling mounted bridge crane

Nlx ceiling mounted bridge crane

Advanced single girder ceiling mounted bridge crane with European design

Low headroom box girder under running overhead , equipped with fem hoist, for material handling with capacity of 1 ton -10 ton. The ceiling mounted bridge crane is with light single girder overhead crane design, suspended on overhead roof, free floor space, advanced and cost-effective underhung crane.

Lx ceiling mounted bridge crane

Lx ceiling mounted bridge crane

Economical single girder ceiling mounted bridge crane with Chinese style girder + i beam

Ceiling mounted single girder under running crane design, equipped with chain hoist & wire rope hoists, with capacity of 1 ton, 3 ton, 5 ton 10 ton. The economical underhung & under running single girder crane direct sale from Chinese crane factory.

The ceiling mounted bridge cranes are commonly used in applications where headroom is limited to maximize the total height of the crane. The crane rails of an underhung bridge cranes can be suspended from a building's ceiling or mounted on existing or specially designed columns. Contact us to get your customized ceiling mounted bridge cranes.

Design Your Customized Ceiling Mounted Workstation Crane

Basic Questions You Should Ask Before Selecting an Overhead Crane System:

  • What are the dimensions and shape of the work area you want to cover?
  • Work Station Cranes offer square, length and width.
  • What kind and extent of structural support is available?
  • Floor supported, ceiling supported, or wall/column supported.
  • Do you require a manual or motorized crane?
  • If the load weight is heavy or the operation frequency is high, a motorized crane will be more useful.
  • How will the crane be used on a daily basis?
  • How to inspect the crane before use and strictly follow the instructions.
  • What is the load's capacity?
  • Never overload; a little more capacity than usual use is preferable.
  • What is the crane's environment?
  • The temperature, whether indoors or outdoors, any explosive gases, or a clean room?
