Electric friction winch
Friction winch of JMM electric winch series, large rope capacity, slow & stable friction winch for long distance hoisting & pulling. Friction winch design services.
| Model | JKL |
| Loading Capacity | 0.5 ton ~80 ton |
| Rope Capacity | 20~5000 m |
| Working Speed | 5~20 m/min |
| Power Supply | 220-690V,50/60HZ,3Phase |
Category: Winch
Your Trusted Electric Friction Winches Manufacturer & Supplier
Electric Friction Winches for Sale
JMM Electric Friction Winches – Heavy Loads, Long Distances, Smooth Control
Friction Winch, JMM series of electric winches
Friction winch is a special type of electric winch, processed with two friction drums along with a wire drum for storage,providing constant working speed and stable operation, featured as large rope capacity, slow and stable running speed and steady hoisting and pulling , etc.
The motor driven friction winch are frequently adopted for long-distance towing and long stroke handling of large and heavy loads such as concrete structures, steel structures, steel cables and other objects and items in various industrial sectors, especially in infrastructure of road and bridge, building construction, and other industrial sectors to ensure material handling safety and efficiency.
JMM Friction winch
- Electric winch type: JMM electric friction winch, low speed electric winch
- Loading capacity of low speed friction winch: 0.5~80 t
- Wire rope capacity of low speed friction winch:20~5000 m
- Working speed of low speed friction winch:5~20 m/min
- Power supply of low speed friction winch: 220-690V,50/60HZ,3Phase
Friction winch is a cost-effective solution which are processed to meet your requirements of hoisting and pulling satisfactorily. The friction winch with motor drive requires lower operational cost, compared with a hydraulic driven winch. Remote control is optional for the friction winch to ensure a much safer winching operation.According to your work applications and lifting requirements, the tailored electric winch solution will be provided at cost-effective price.

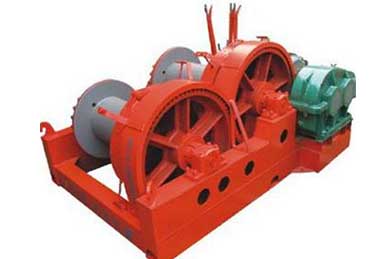

Friction winch of electric winch series

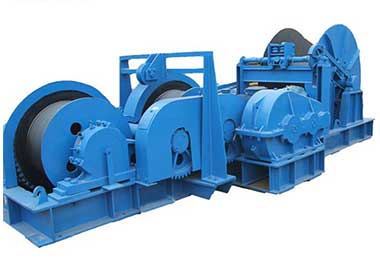

Friction winch of electric winch series

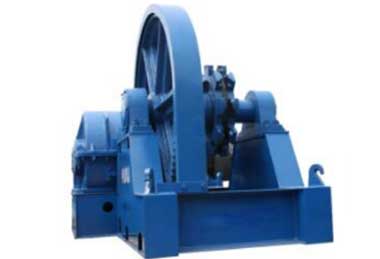

Friction winch of electric winch series
Features of friction winch
The electric driven friction winches are frequently used for long distance towing and hoisting of heavy and large loads and objects with the constant working speed and smooth and stable operation. The general features of electric friction winches are as following:
- Easy winch operate, convenient to move.
- Large amount of wire rope drum capacity, neatly and orderly arranged wire ropes
- Safe and reliable hoisting, stable and constant operation speed.
- High efficiency and labor cost
Main components of electric friction Winch
Gearbox System
The gearbox is the core of the electric friction winch, converting motor speed into controlled torque for smooth friction-driven operation. It uses hardened precision gears to handle high loads reliably.
Benefits: Provides stable torque, ensures smooth pulling, enhances energy efficiency, and prolongs the winch lifespan in applications such as mining, construction, and material transport.
Friction Drum
The friction drum provides controlled contact for pulling loads without direct rope winding. Its surface ensures consistent friction, minimizing rope damage and enabling long-distance operation.
Benefits: Reduces rope wear, allows continuous long-distance pulling, improves load control, and supports heavy-duty industrial and marine applications.
Electric Motor
The electric motor drives the friction mechanism, enabling variable-speed control for precise load handling. Designed for continuous duty, it ensures reliable performance in demanding environments.
Benefits: Supports adjustable speed, high operational efficiency, low energy consumption, and precise control for industrial, offshore, and mining operations.
Control System
The control system integrates inverters, relays, and safety devices to regulate friction force and speed. Remote or automated control ensures precise operation.
Benefits: Enhances safety, allows precise speed regulation, reduces operator error, and improves automation for repetitive industrial tasks.
Winch Frame
The winch frame provides structural support for the friction mechanism and motor, ensuring alignment and stability during operation.
Benefits: High rigidity, reduces vibration, supports heavy loads, and extends service life for industrial and marine applications.
Brake System
The brake system ensures safe stopping and holding of loads in friction winch operations. Electromagnetic or hydraulic brakes provide reliable load control.
Benefits: Enhances operational safety, prevents slipping, allows precise load positioning, and supports emergency stopping in heavy-duty pulling tasks.
Wire Rope Guide
The rope guide ensures the rope maintains proper contact with the friction drum, preventing tangling and uneven wear.
Benefits: Reduces rope damage, ensures smooth operation, increases rope life, and maintains consistent pulling performance.
Electric Friction Winch
The electric friction winch uses a friction drive to pull loads over long distances, offering continuous operation without direct drum winding.
Benefits: Ideal for mining, marine towing, construction hauling, and heavy industrial transport. Provides high efficiency, reduced rope wear, and reliable long-distance performance.
With process winch design, various optional features can be added to tailor the friction winch for your applications, such as, Electric or hydraulic drive, Optional warping head, Band brake, Clutch, rope guide, Drum guard, etc. As for the control of the electric winch, there are various control options, such as PLC, frequency converter, remote control, rope arranging device, limiter, encoder, etc
Typical Industries & Applications of Electric Friction Winches
Electric friction winches are widely used for long-distance pulling, hoisting, and towing of heavy loads across various industries. Their friction drive system ensures smooth, stable operation with continuous duty performance, making them ideal for oversized objects and demanding conditions.
The friction electric winches are frequently used for long distance towing and hoisting of heavy and large loads and objects with the constant working speed and smooth and stable operation.With process design , the electric friction winch can be used widely in road and bridge construction, large factory and building construction , power engineering equipment installation, port and dock engineering,shipyard slipway,forestry, mining,and other,etc.
Construction & Civil Engineering
Typical Capacity: 10–100 tons
Typical Loads/Objects: Steel girders, concrete segments, prefabricated structural modules, cranes, heavy machinery components.
Applications: Road and bridge construction, high-rise building assembly, and power plant equipment installation. Used for lifting steel beams, moving pre-cast concrete elements over long distances, and positioning structural components at elevated heights. Continuous-duty operation ensures stable and precise control.
Ports, Docks & Marine Operations
Typical Capacity: 20–150 tons
Typical Loads/Objects: Shipping containers, vessels, cranes, large mooring anchors, port machinery.
Applications: Container handling, cargo loading/unloading, ship launching, and dockside crane positioning. Ideal for towing large vessels and moving heavy maritime components with controlled speed and torque for safe operation in wet or inclined environments.
Shipyards & Offshore Operations
Typical Capacity: 50–200+ tons
Typical Loads/Objects: Ship hull sections, offshore platform modules, large marine machinery.
Applications: Moving vessels on slipways and dry docks, lifting heavy marine equipment, installing offshore platform components. Continuous operation under harsh marine conditions is supported for long periods.
Mining & Forestry
Typical Capacity: 10–120 tons
Typical Loads/Objects: Ore carts, timber logs, heavy machinery, conveyor modules.
Applications: Long-distance hauling of ore, timber, and equipment across rugged terrain or steep inclines. Friction winches maintain high pulling efficiency with minimal rope wear, ensuring precise load control in remote or uneven locations.
Industrial & Manufacturing Plants
Typical Capacity: 5–80 tons
Typical Loads/Objects: Transformers, turbines, presses, heavy assembly components.
Applications: Material transport, assembly line support, and positioning heavy equipment in factories. Provides smooth, stable operation for moving large components without disrupting production processes.
Other Heavy Industries
Typical Capacity: 20–200+ tons
Typical Loads/Objects: Steel coils, bulk material containers, energy project modules, large industrial machinery.
Applications: High-capacity pulling or lifting over long distances for energy projects, steel mills, bulk storage facilities, and other heavy industries. Friction winches provide consistent torque and stable speed for safe, efficient operation of heavy loads.
Process design of friction winch
The pulling and hoisting winches can be processed with various special features to suite your specific setup and application requirements. Contact us get free consultation on how to select the right winch for your application.
Factors define your winch design
- Working load limit - The maximum load capacity or pulling force , and working length of the wire rope on the winch drum should be designed and fabrications according to your requirements.
- Driven power - Electric motor driven winch and hydraulically driven winch are available for your selection based on your power supply reference and financial factors.
- Winch drum- Two friction drums are adopted on the friction winch and the size of the winch drum is largely determined by the winch capacity requested.
- Line speed - The speed of the friction winch are defined by the usage of your cable winch, which are optional with single speed, two speed motor and variable speed, etc.
- Braking system-The process winch can be configured with motor brake, transmission brake and band brake to ensure the operation safety with a fail-safe braking system.Motor brake is re-commanded for accurate positioning with high safety and the band brake is an extra brake equipped on winch drum, which can be operated manually or hydraulically as your requirements.
- Winch controls- A pushbutton control and remote control are optional for electric winch. The pushbutton winch control box in installed on or near the electric winch to control the rotation of winch drum and the remote control either by a control pendant or wireless remote control to enable the long distance control of electric winch possible and improve operator safety. For hydraulic winch, hydraulic power units (HPU) of tailored design is required to operate the hydraulic winch.
- Winch options - Additional features can be added to meet particular requirements by adopting various options and accessories such as, pressure roller, spindle limit switch, winch drum guard, wire rope guide, winch band brake, clutch, additional wire rope anchor and manual emergency crank,etc.
Electric friction winch FAQ
Answers to the most frequently asked questions about electric friction winches, covering capacities, typical loads, installation environments, and industrial applications for construction, marine, mining, forestry, and manufacturing.
What is an electric friction winch and how does it differ from a standard drum winch?
An electric friction winch uses a friction drive instead of a drum, enabling smooth, continuous operation over long distances.
- Provides continuous duty performance for heavy industrial tasks.
- Minimizes rope and drum wear compared to traditional winches.
- Ideal for long-distance towing, hoisting, and positioning oversized loads in construction, ports, and shipyards.
What typical loads can an electric friction winch handle?
Electric friction winches can handle loads ranging from 5 tons up to over 200 tons depending on model and application.
- Construction: steel beams, concrete segments, prefabricated modules.
- Ports & Shipyards: vessels, container units, large cranes.
- Mining & Forestry: timber logs, ore carts, heavy machinery.
- Industrial plants: turbines, presses, heavy assembly components.
What are the typical applications of electric friction winches in industrial workshops?
They are used for lifting, pulling, and moving heavy materials safely and efficiently across factories, warehouses, and assembly lines.
- Material handling of large components without production disruption.
- Positioning machinery and equipment with precise control.
- Moving oversized or delicate loads with controlled torque and stable speed.
Can electric friction winches operate continuously in harsh environments?
Yes, they are designed for long-term continuous duty in demanding conditions.
- Suitable for outdoor construction sites, marine docks, and rugged mining or forestry terrains.
- Operate under high loads and over extended distances without overheating.
- Resistant to mechanical wear thanks to smooth friction engagement.
How is the winch installed in different industrial environments?
Electric friction winches are flexible and can be installed on flat, inclined, or uneven surfaces in various industrial sectors.
- Mountable in factories, shipyards, offshore platforms, and construction sites.
- Supports heavy-duty pulling, hoisting, and material transport.
- Installation ensures stability, safety, and optimal load control.
How does an electric friction winch improve safety during lifting and towing operations?
Friction drive ensures stable speed, controlled torque, and precise positioning, reducing the risk of load slipping.
- Enables emergency stops without load loss.
- Reduces rope wear and equipment fatigue for safer long-term operation.
- Suitable for sensitive or oversized loads, such as ship sections or heavy machinery.
What are the key benefits of using an electric friction winch in ports and marine operations?
It allows safe handling of vessels, containers, and maritime equipment over long distances with minimal downtime.
- Handles heavy-duty tasks like ship launching, dockside crane positioning, and container towing.
- Maintains smooth and controlled motion even on wet, inclined, or slippery surfaces.
- Reduces manual labor and improves operational efficiency in marine environments.
How do electric friction winches perform in construction and civil engineering projects?
They provide reliable long-distance lifting and precise load control for structural assembly and heavy equipment installation.
- Ideal for road, bridge, and high-rise building construction.
- Lifts steel girders, concrete segments, and prefabricated modules efficiently.
- Maintains constant speed for safe installation at elevated or extended positions.
Are electric friction winches suitable for mining and forestry operations?
Yes, they are highly effective for hauling timber, ore, and heavy machinery over rugged and uneven terrain.
- Operate over steep inclines and rough surfaces with minimal rope wear.
- Support long-distance material transport in remote or large-scale mining areas.
- Reduce downtime and maintenance costs due to continuous-duty performance.
What is the typical lifespan and maintenance requirement of an electric friction winch?
With proper use, they offer long service life and low maintenance due to reduced wear on ropes and friction components.
- Requires periodic inspection of friction surfaces, ropes, and control systems.
- Continuous-duty design minimizes heat buildup and mechanical stress.
- Suitable for high-frequency lifting and towing tasks in industrial environments.
Customized friction winch, cost-effective electric winch design
To meet the various industrial needs and your particular application, the tailored electric winch design and fabrication services are available. To provide your the specific friction winch, please help us to confirm the following information of the electric friction winch you need, which including the following;
- Loading capacity of electric friction winch : _____________?(Ton/kN)
- Working speed of electric friction winch : _____________?(m/min)
- Wire rope length of electric friction winch : _____________?(m)
- Power supply of electric friction winch : _____________?
- Optional power supply of electric winch including 220V/230V/380V/400V/415V/440V,single or three phase, or customized.
- Functions or usages of electric friction winch : _____________? For horizontally pulling or vertically hoisting?
- Specialized requirements to get tailored electric friction winch design.
Send us a inquiry to get your tailored electric friction winch design and price.
