Slow speed rope winch,large capacity wire rope winch design

Slow speed rope winch

Slow speed winch of JM electric winch series, slow speed & large tonnages wire rope winch, Tailored slow speed winch & electric wire rope winch for sale.


Model of electric winch	JM1
Rated load of electric winch	0.5-100ton
Rated speedof electric winch	15 m/min
Rope capacity	100 m
Rope diameter	9.3 mm

Ask for Quotation

Category: Winch

Details
Projects

Your Trusted Hoisting & Pulling WInch Manufacturer & Supplier

Heavy Electric Winch for Large Tonnages
Slow Speed Wire Rope Winch

The slow speed winch is a type of electric winch which is an very important hoisting and pulling equipment which not only can be used independently for heavy materials or loads hoisting, pulling and towing , but also can be applied as a component of process cranes, road construction equipment, and mining hoist machine, etc.

JM series slow speed electric winch is a type of wire rope winch with the structural characteristic of wire rope orderly arranged around the winch drum, with the features of simple and convenient operation, large rope capacity, easy relocation, high safety, reliable, durable, and low noise,etc. The slow speed winch can be used widely for vertical hoisting , horizontal or slop pulling or towing heavy cargos, such as large concrete, steel structure, mechanical equipment in various industries such as, ports, docks and other road and bridge construction projects and large-scale factories and mines, etc.

JM Wire Rope Pulling Electric Winch

JM type wire rope electric winch is an necessary equipment which are used widely in construction site, plant, mine, and ports, etc. The main parameters and specifications of slow speed electric winch are as following for your reference.

Winch type: JM1 slow speed winch
Rated load of electric winch : 0.5-100ton
Rated speed of electric winch : 15 m/min
Rope capacity of electric winch :100 m
Rope diameter of electric winch : 9.3 mm
Process electric wire rope winch are available to meet your specific applications.

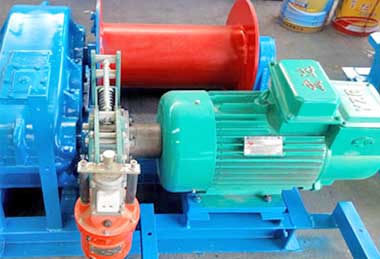

Electric slow speed wire rope winch

Advantages of slow speed winch

Reasonable design,compact structure, easy installation and convenient to relocate
Easy to operate, low noise, good performance, . working duty up to M5
Large rope capacity, 60m/100m, 100m/200m, 200m/300m, and more options processed according to requirements,
Three-phase power supply,of 220V/380V/440V and Dual voltage of 330V/380V, 220V/440V and others are available.
High enclosure class IP55 for complete machine to ensure safety in the outdoor application
Solid and ergonomic design pendant control as standard.With IP65 protection and Emergency-Stop button for safety. Wireless remote control are available based on requirements.
Simple structure, convenient to access,easy to repair and maintain

Structures & components of slow speed electric winch

The slow speed electric winch is mainly composed by rope drum, electric motor, hydraulic brake, reducer, wire rope, foundation frame, optional rope spooling device, etc. Tailored wire rope winch are available with additional features based on requirements, etc. Contact us to get more information on slow speed and large capacity wire rope electric winch.

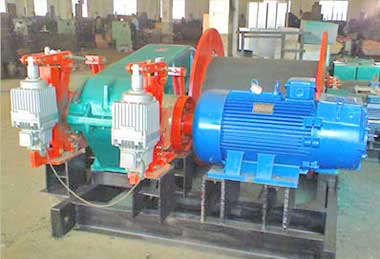

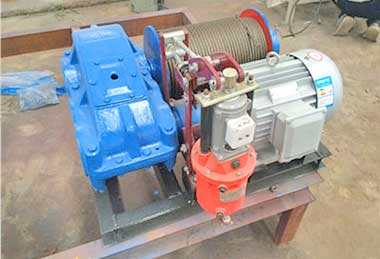

Electric slow speed wire rope winch

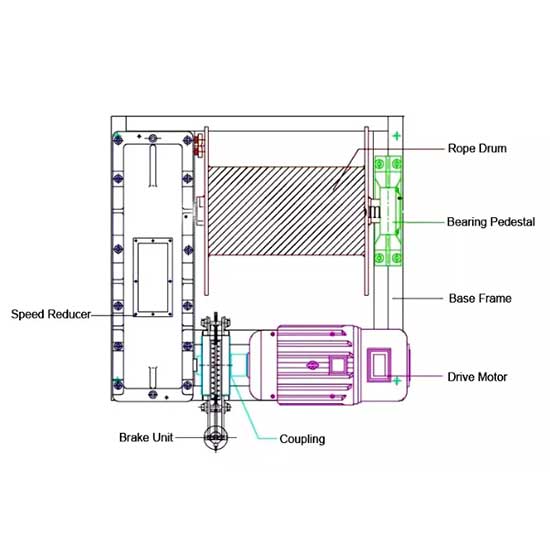

Electric slow speed wire rope winch drawing

Enlarged drum-The wire rope drum of electric winch is made of fine thick and strong steel to ensure stable performance and well shapes with long working life.
Four-axis reducer- The reducer of electric winch are with large output torque, and the deceleration reduces the inertia of the load.
National standard of motor-The speed of YZR electric motor, CAM switch and resistance box can be adjusted from 3 to 9 meters.
Control cabinet- The control cabinet of electric winch can be processed with wireless remote control, which can be operated within 800 meters.

Reducer of electric slow speed wire rope winch

Drum of electric slow speed wire rope winch

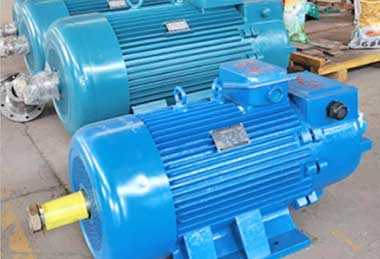

Motor of electric slow speed wire rope winch

Control box of electric slow speed wire rope winch

Application of Low Speed Electric Winch

The electric winch not only can be used independently for hoisting, pulling and towing but also can be used as a hoisting components of process cranes, road construction equipment, and mining hoist machine, etc.

With the features of high versatility, compact structure, small volume, light weight, heavy weight, easy to use and transfer,the slow speed electric winch are widely used in construction, water conservancy projects, forestry, mining, wharf and other material lifting or towing and other various industrial applications,etc.

Metal Processing Industrial
Iron, steel, aluminum & basic metal processing industry cranes. Industry cranes for metal process- EAF charging & ladle crane, forging crane, finished product crane & scrap crane - for metallurgy harsh conditions, safe overhead travelling crane.

Industrial cranes for general manufacturing

General Manufacturing
Types of industrial hoist & cranes for general manufacturing- Various types of industrial overhead crane systems for multiple sectors of manufacturing, integrated solution, maximum productivity, cost-effective price.

Mining Industry
Mining industry cranes, Coal mine crane systems - Safe industrial overhead crane & industrial gantry crane system for ore, limestone, coke, coal, slag, loose clay handling, explosion proof and durable.

Energy Industry
Energy generation|Industrial cranes for types of power plants - Industrial cranes & hoists systematic solutions for various power plants,i.e, traditional fuel power & waste renewable energy, wind power, hydroelectric, biomass energy, etc.

Industrial cranes for machinery and equipment maintainence

Machinery and Equipment
Industrial material handling cranes for mechanical engineering- Material handling cranes for mechanical engineering industry - overhead industrial crane solution for manufacturing of light & heavy machinery & equipment.

Industrial cranes for pulp and paper making

Pulp & Paper Industry
Pulp & paper| Industrial crane systems for paper making - Industrial overhead crane system for pulp & paper industry , full overhead travelling crane services, cost-effective paper making cranes for your paper mills.

Waste Management Industry
Waste management|Waste recycle & sorting industry cranes - Industrial overhead cranes for waste sorting&recycling. Types of industrial cranes in incinerator for mixing, stacking, handling and stirring of the waste materials, etc.

Industrial cranes for wood, timer and furniture

Wood , Timber & Furniture
Industrial cranes and hoists systems for timber & wood processing. Diverse overhead crane & hoists designs for material handling in sawmills or furniture plants, etc.

Shipbuilding & Boat Making
Industry crane systems for shipyard material handling, i.e, components assembly, boats & yachts lifting, etc. Reliable & safety industry crane system.

Industrial cranes for plastic and rubber processing

Plastic & Rubber
Industrial hoist and crane solution for plastic & rubber industry- Injection mould installation & Die exchanging- Efficient & Accurate heavy lifting systems.

Industrial cranes for construction and infrastructure

Construction and Infrastructure
Industrial material lift for construction & infrastructure- types of industry overhead travelling cranes, gantry & hoist crane system- Reliable & cost-effective.

Industrial cranes for explosion proof application checmial industries

Chemical Industry
Industry cranes for chemical & petrochemical material handling, explosion proof overhead crane & hoist system for hazardous environment.

Industrial cranes for automobile industry

Automobile Industry
Automotive | Industrial overhead crane & hoist for automobile - Industrial cranes for automotive industry from press & assembly lines to workstations & warehouses, i.e., open winch crane & Light kbk, jib crane & chain hoists,etc.

Customized double drum winch, cost-effective electric winch design

To meet the various industrial needs and your particular application, the tailored electric winch design and fabrication services are available. To provide your the specific electric slow speed winch, please help us to confirm the following information of the electric slow speed winch you need, which including the following;

Loading capacity of electric slow speed winch : _____________?(Ton/kN)
Working speed of electric slow speed winch : _____________?(m/min)
Wire rope length of electric slow speed winch : _____________?(m)
Power supply of electric slow speed winch : _____________?
Optional power supply of electric winch including 220V/230V/380V/400V/415V/440V,single or three phase, or customized.
Functions or usages of electric slow speed winch : _____________? For horizontally pulling or vertically hoisting?
Specialized requirements to get tailored electric slow speed winch design.

Send us a inquiry to get your tailored electric slow speed winch design and electric winch price.
