Large capacity, wide use, electric wire rope hoists for sale. Tailored industrial crane hoist design be your cost-effective industrial hoist solution!

Electric wire rope hoists with various designs and configurations are one of the most frequently used electric hoists & cranes hoists for light duty and moderate duty material handling with standard capacity of 500kg to 32 ton and maximum lifting up to 100 meters. Electric cable hoists and electric wire hoists are very flexible and versatile which can be installed on a single girder hoist crane, monorails, linear curve beams or be used as the hoisting systems on double beam crane, gantry hoist crane, overhead hoist crane, cantilever jib hoist cranes, etc. Electric wire rope hoists are widely used in industrial and mining enterprises, workshops, terminals and other places because of small volume, light weight& simple operation, etc.

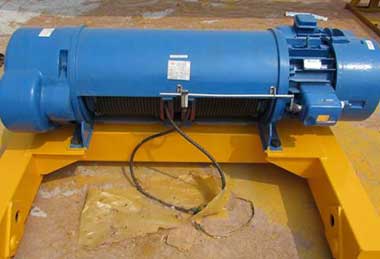

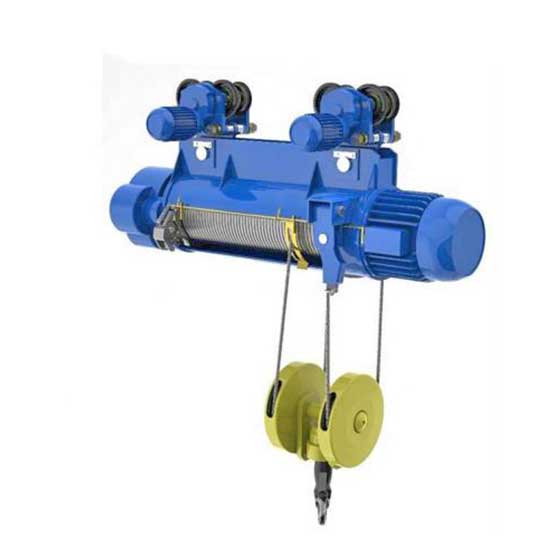

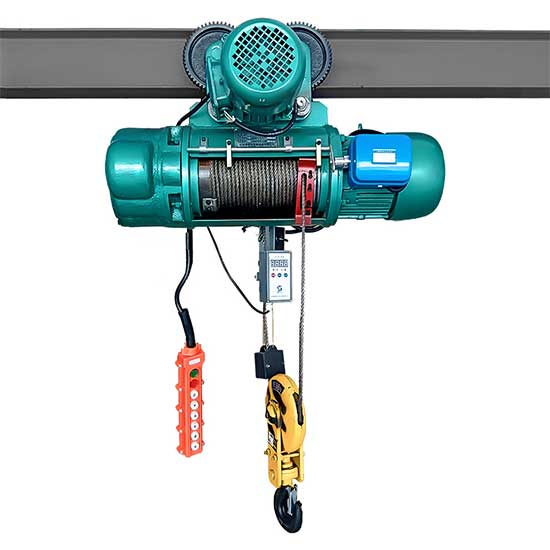

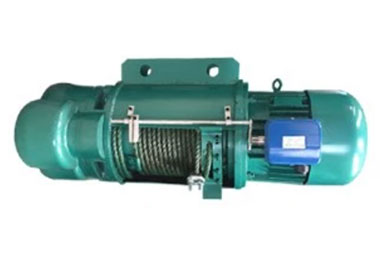

Basic type of electric wire rope hoists

Basic type of wire rope hoists are often consisted of the engine, transmission mechanism, rolling drum, hooks, and wire ropes, etc. The electric wire rope hoist can be designed with single lifting speed or double lifting speed which are the CD type rope hoist and MD type rope hoist, one of the most frequent used crane hoists . Single speed hoist has a normal speed of 8 m/min, which is used for general material handing in most occasions. Double speed hoist has two separately speeds: 8 m/min and 0.8 m/min. At the speed of 0.8 m/min, the electric wire hoists can be used to hoist the fragile objects slowly and carefully and also the electric rope hoist can be used for handling loads required high precision such as the installation and changing of molds in foundry factory and plastic processing factories,etc.

With advanced crane design concept and developed crane & hoist processing tectonics, the wire rope hoist is featured as compact structure,light-weight, smooth operation, greater lifting height, and energy saving, all of which makes the application of wire rope hoists able to reduce the crane costs on construction and operation and improve the overall quality and performance of the overhead electric hoist cranes.

Main parameters of basic wire rope hoist

The basic parameters of the electric wire hoist are as following for your reference. As for the specifications and parameters of customized electric wire hoists, please feel free to contact us to get free consultation.

• Electric hoist type: Basic CD/ MD wire rope hoist with single or double lifting speed.
• Standard capacity of rope hoist: 0.5 ton to 32 ton- 0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton,10 ton, 16ton, 20ton,up 32 ton, etc.
• Lifting height of rope hoist: 6m to 100m - 6m, 9m, 12m, 18m, 24m, 30m, and Max.100m.
• Lifting speed of electric wire rope hoist: 3.5m/min to 8m/min
• Working class of electric wire rope hoist: M3, M4
• Ambient temperature of electric rope hoist: -20℃ to 40℃
• Custom designed wire rope hoists are available ahead of standard electric cable hoists.

Generally , the wire rope single speed hoist and double speed hoist has the advantages of compact structure, small and lighted weight, various configurations with larger lifting capacity for wide application, easy operation, high safety and reliability, high efficiency and long working life. If you need an electric hoists for your crane hoists, the electric wire rope hoists will be a option at cost-effective price.

Wire rope hoists designed with special features

Based on CD/ MD electric wire rope hoists, several series of electric wire rope hoists are developed with features of low headroom or low profile hoist design, explosion proof hoist design, or heavy duty metallurgical wire rope hoist design with capacity up to 100 ton, and wire rope hoists with double hooks for loads with long lifting points, etc. With the featured hoist designs, the wire rope hoists are able to meet all your material handling requirements of various overhead travelling hoists cranes for industrial applications with high safety and efficiency.

The featured electric wire rope hoists are shown for your reference in the following:

• Low headroom wire rope hoist- With low headroom & low profile hoist design, the electric wire rope hoists will be an excellent and economical hoisting equipment for workshops with limited working space or with capacity of 32 ton and lifting height up to 60 meters.
• Explosion proof wire rope hoist -With featured of explosion proof , spark proof or spark resistant, the modified wire rope hoist are ideal for application in Zone 1 and 2 where high security are required for the hoist cranes.
• Wire rope metallurgical hoist- Specially designed single girder wire rope hoists for metallurgical use , with hot temperature resistant, with capacity up to 10 ton, which are widely applied for hot metal or ladle handling in the melting metal sites of metallurgy & casting plants,etc.
• Double hook rope hoist- The double hook wire rope hoists are series of customized electric wire rope hoists, which are designed on the basis of basic CD/ MD wire rope hoists developed for long loads handling with the high stability and efficiency.

Offering of Electric Wire Rope Hoists

Tailored industrial electric wire rope hoist design be your cost-effective industrial electric wire rope hoist crane solution!

How much does an electric wire rope hoist cost to buy? How much is the industrial electric wire rope hoist price and electric rope hoist rates for your application? As a hi-tech & innovation oriented electric hoist manufacturer and supplier, we have supplied various electric cable hoist solutions for multiple industrial sectors with full electric wire rope hoist services to save your money, time and energy.

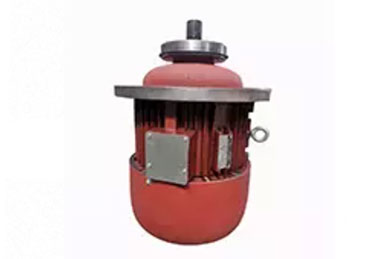

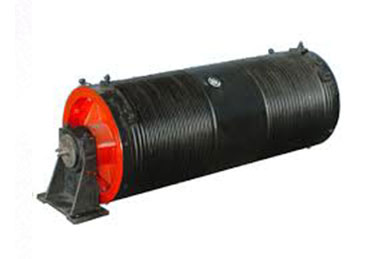

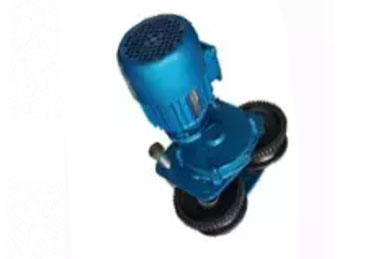

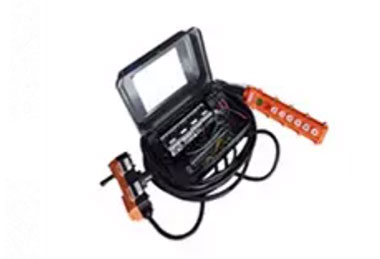

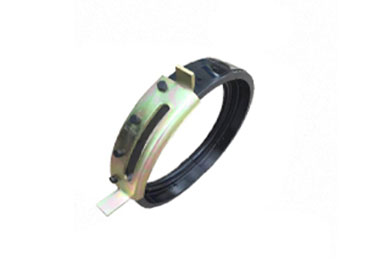

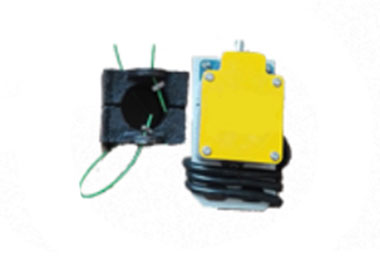

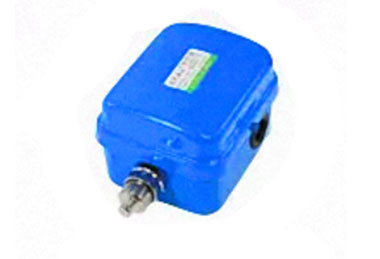

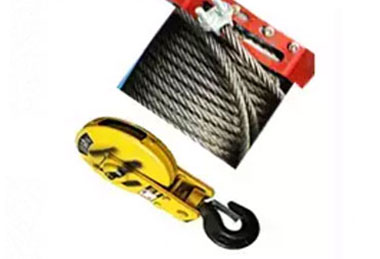

Main hoist parts and components

With advanced crane design concept and developed hoist processing tectonics, the wire rope hoist is able to reduce the hoist costs on construction and operation and improve the overall quality and performance of the overhead electric hoist cranes . And the general features of electric wire rope hoist are for your reference.

Applications

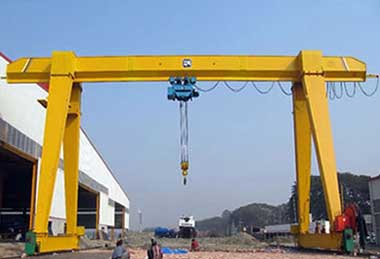

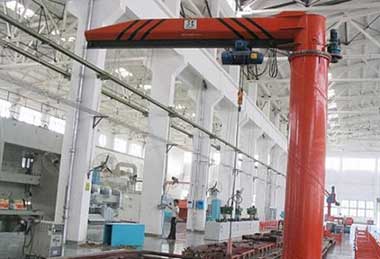

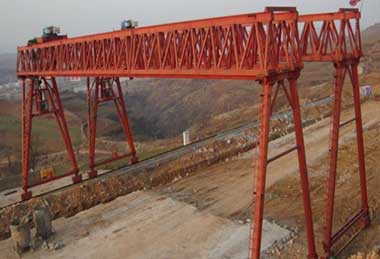

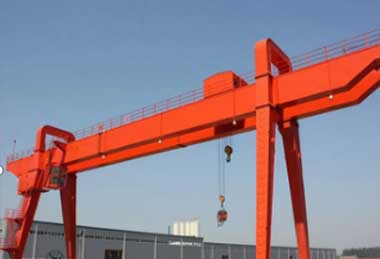

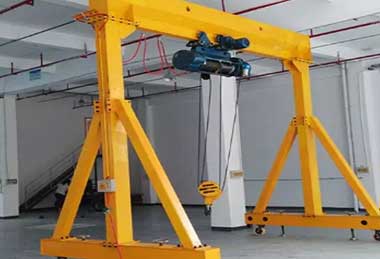

The electric wire rope hoists are widely used on overhead bridge crane, gantry crane, and jib cranes either in the configuration of single girder crane design or double girder crane design and also the electric wire hoists can be hung on H beam or i beam girder or liner curved beams for loads or products handling in various industrial applications such as in factories, warehouse, workshops, workstations, factories, wharf, mines, fright yards and others, etc.

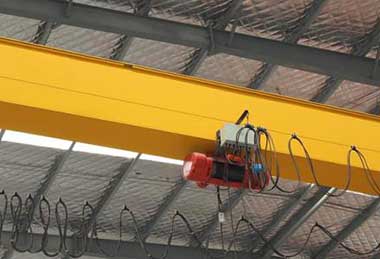

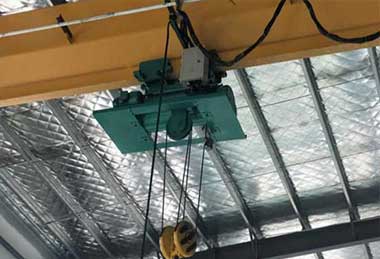

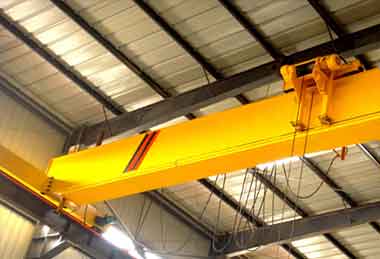

Electric wire rope hoist for single girder hoist cranes

The standard wire rope hoists is a typical single girder hoists which are widely used on H beam or i beam girder or liner curved beams or installed on single girder overhead crane, single girder gantry crane and single girder jib cranes for light and moderate material handling.

The single girder wire rope hoists are typically used on single girder overhead hoist crane systems. With the monorail hoist trolley, the single girder wire rope hoists are attached and move along the bottom beam girder flange. The standard wire rope single girder hoists are normally adopted in the applications where there is no working height restrictions under the beam. For low headroom application, the low headroom wire rope hoists will be a better selection.

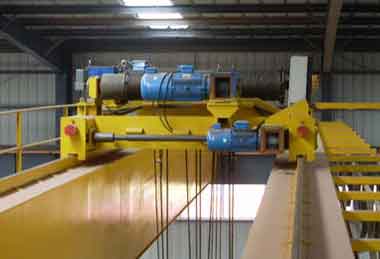

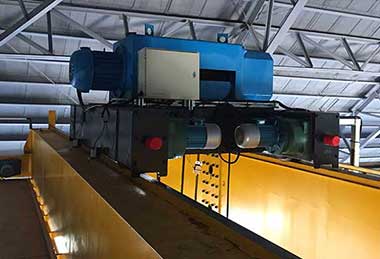

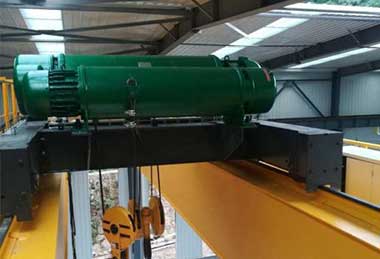

Electric wire rope hoists for double girder hoist cranes

Double girder hoist is developed on the basic of single speed & double speed electric wire rope hoist, which is consisted of electric wire hoist, rope hoist trolley, hoist trolley motor, hoist trolley wheel,and hoist trolley frame,etc. With double girder hoist design, the electric cable hoists can be used on double beam overhead cranes and double girder gantry cranes for general material handling.

The hoist trolleys also called hoist crabs are designed for double girder cranes which are good hoisting solutions for heavy duty overhead material handling with higher safe working loads . A hoist crab rides on the two crane girders and runs along the top edge, with the rope with hook moving up and down between the two girders to attach to the load. The double girder hoist crab system enables the maximum possible height of lift under the crane beam, however, because the double girder hoist crab trolley sits on top of the beam, more height will be required above the crane beam girders, up into the roof space.A double girder wire rope hoist is typically used in areas where heavy duty lifting equipment is needed such as heavy foundries, large factories and manufacturing plants.

Get your wire rope hoists

Electric cable hoists and electric wire hoists are very flexible and versatile which can be installed on a single girder hoist crane, monorails, linear curve beams or be used as the hoisting systems on double beam crane, gantry hoist crane, overhead hoist crane, cantilever jib hoist cranes, etc. Electric wire rope hoists are widely used in industrial and mining enterprises, workshops, terminals and other places because of small volume, light weight& simple operation, etc.

Tailored wire rope hoists are available with customized lifting capacity, hook height, and travelling speed. Please feel free to contact us to get your customized electric wire rope hoists.
