Comprehensive Guide to Overhead Cranes: From Types to Buying in China

When it comes to lifting and transporting heavy loads within industrial settings, nothing quite matches the efficiency and versatility of overhead cranes. These powerful machines play a pivotal role across a myriad of industries, revolutionizing the way heavy materials are handled and moved.

At its core, an overhead crane, often referred to as a bridge crane or a suspended crane, is a sophisticated piece of machinery designed to lift, move, and position heavy loads horizontally and vertically. Unlike conventional cranes that operate on the ground, overhead cranes are mounted on a runway system, allowing them to traverse along the length of a facility while offering precise control over load placement.

Importance in Various Industries

The importance of overhead cranes cannot be overstated, as they serve as the backbone of various industries, facilitating efficient and safe material handling operations. These industries include but are not limited to:

• Manufacturing: Overhead cranes are instrumental in assembly lines and material processing, reducing manual labor and enhancing production rates.




• Construction: Construction sites rely on overhead cranes to move heavy building materials, equipment, and structures safely and efficiently.
• Warehousing and Logistics: In warehousing facilities, overhead cranes are used for loading and unloading cargo, optimizing storage space, and streamlining inventory management.
• Shipbuilding: Large components and sections of ships are hoisted and precisely positioned with the help of massive gantry cranes.
• Mining: The mining industry employs robust overhead cranes to handle and transport hefty loads of minerals and ores.
• Agriculture: Overhead cranes are utilized in grain handling facilities and large-scale farming operations for the efficient movement of crops and machinery.

Overview of Electric Overhead Crane Types

Overhead cranes come in various types and configurations, each tailored to specific industrial needs and applications. Some of the most common types include:

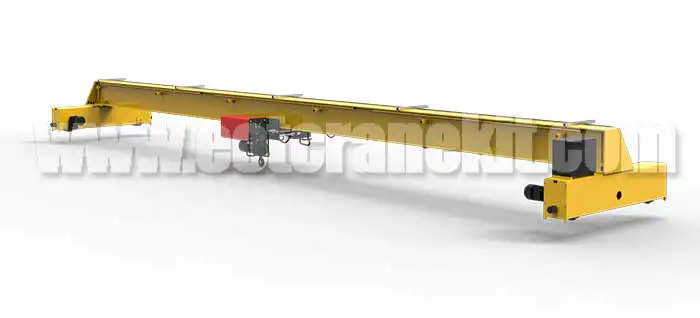

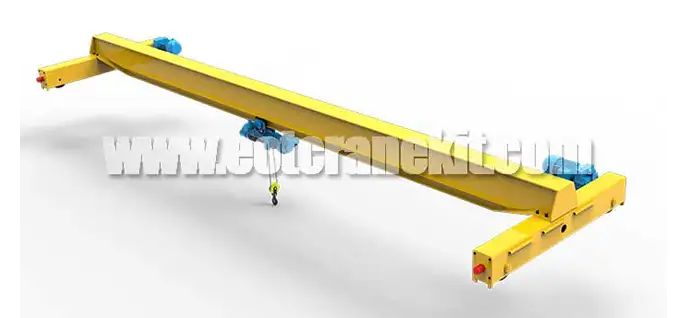

• Single Girder Overhead Cranes: These cranes have a single horizontal beam and are ideal for lighter loads and shorter spans.

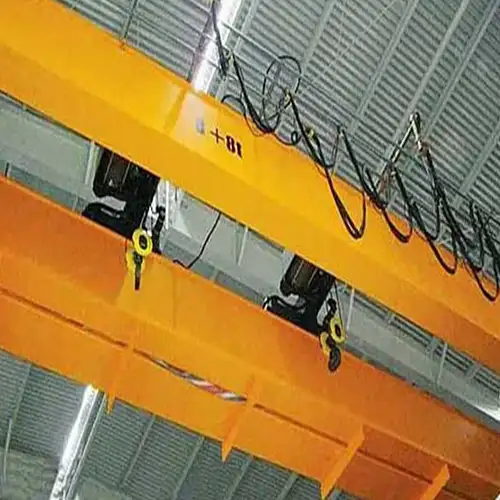

• Double Girder Overhead Cranes: Featuring two horizontal beams, double girder cranes are designed for heavy-duty lifting tasks and longer spans.
• Bridge Cranes: Bridge cranes are versatile and run on elevated runways, making them suitable for a wide range of applications.
• Gantry Cranes: Gantry cranes have legs that support the crane, making them suitable for outdoor applications, such as loading and unloading shipping containers.

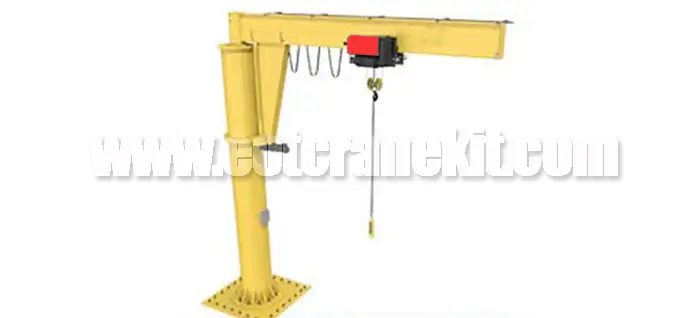

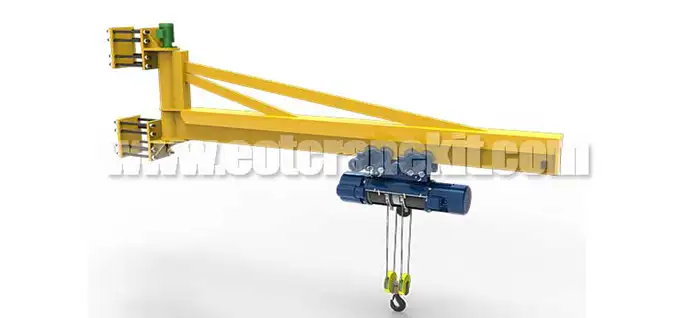

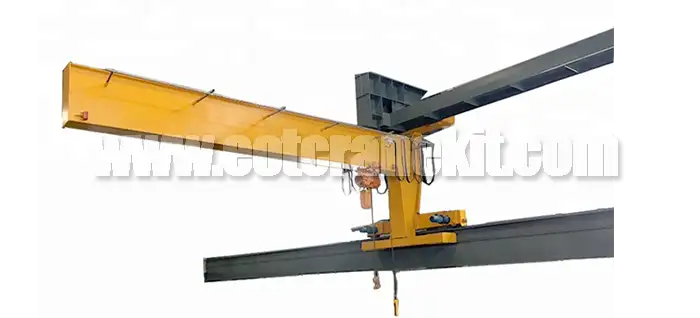

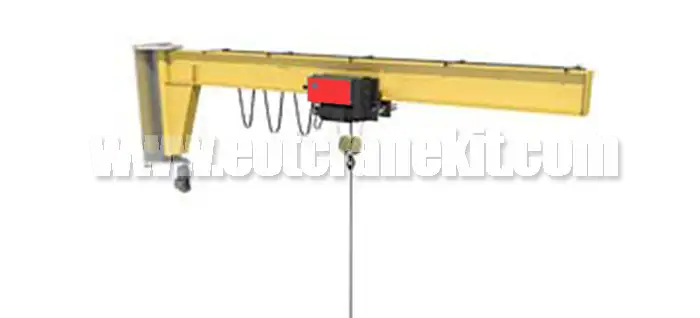

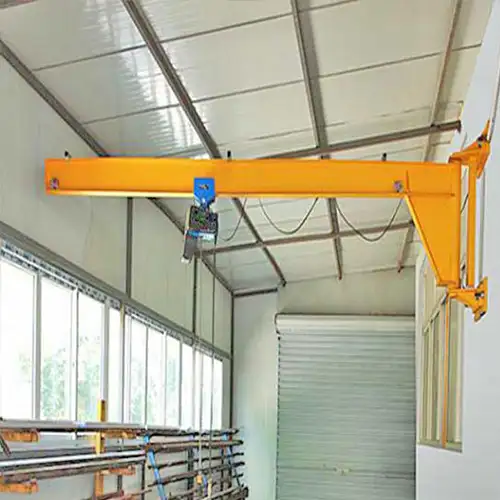

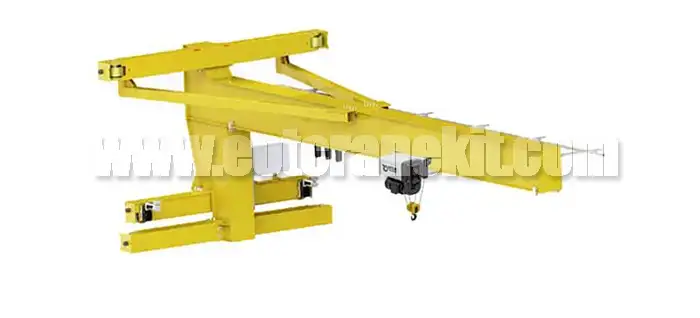

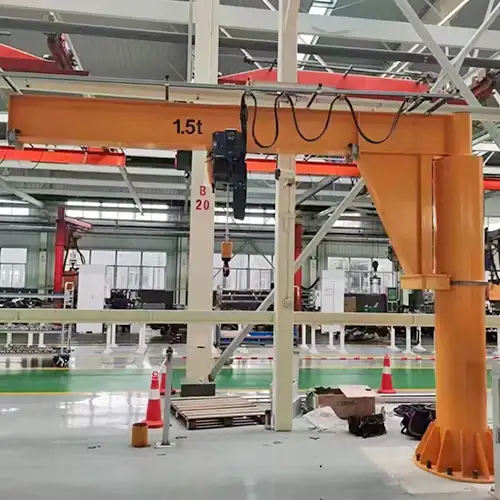

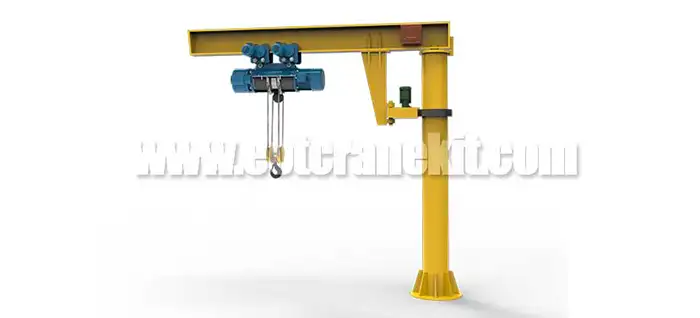

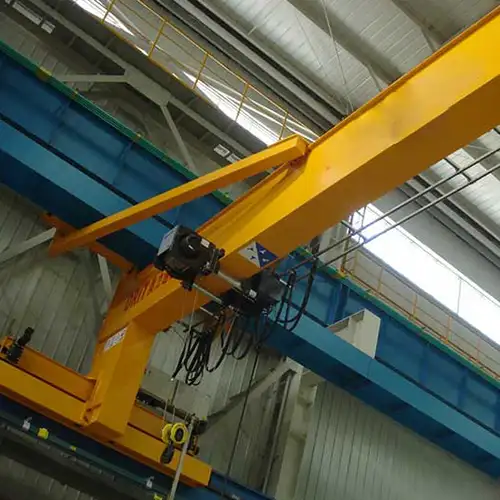

• Jib Cranes: Jib cranes are mounted on a vertical pillar or wall and are ideal for tasks requiring precise load positioning.

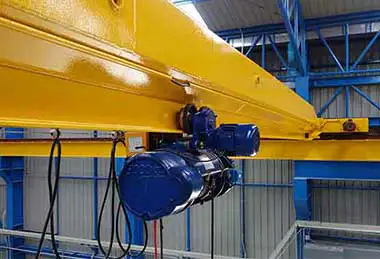

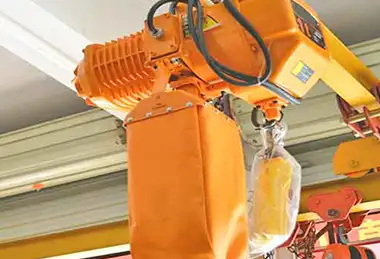

• Electric Hoists: While not strictly overhead cranes, electric hoists are often used in conjunction with overhead crane systems for lifting and handling operations.

European style overhead crane s with advanced designed electric hoists, smart featuress

Traditional style overhead cranes with economical  cd/md wire rope hoists and crab trolley, open winch trolleys

In this comprehensive guide, we will delve deeper into each of these crane types, exploring their features, applications, and how to select the right one for your specific needs. Whether you're a seasoned professional or just beginning to explore the world of overhead cranes, this guide will equip you with the knowledge and insights necessary for a successful crane acquisition, particularly when considering the thriving market for overhead cranes in China.

Types and Designs of Overhead Cranes

Bridge cranes, also known as overhead bridge cranes, are versatile lifting solutions that run on elevated runways, often positioned along the length of a facility. They can be configured with single or double girders and are known for their adaptability and efficient load movement.

Bridge cranes are found in diverse industries, from construction and manufacturing to logistics and agriculture. They are used for tasks such as material handling, loading/unloading, and equipment maintenance.

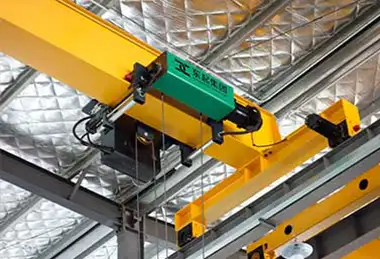

Single Girder Overhead Cranes

Single girder overhead cranes are a common sight in manufacturing and warehouse environments. They feature a single horizontal beam, known as the girder, which supports the hoist and trolley. These cranes are known for their simplicity, cost-effectiveness, and suitability for lighter loads and shorter spans.

Single girder overhead cranes find applications in industries where precision is key, such as automobile manufacturing, metalworking, and assembly lines. They are ideal for tasks like moving components along a production line or transferring materials within a limited workspace.

Top running single girder overhead crane with cd/md electric hoist 1 ton to 20 ton, 3 ton, 5 ton, 10 ton, 15 ton hot sale

Top running single girder overhead crane with European style electric hoist

Underhung single girder overhead crane with cd/md electric hoist 2 ton, 3 ton, 5 ton, 10 ton

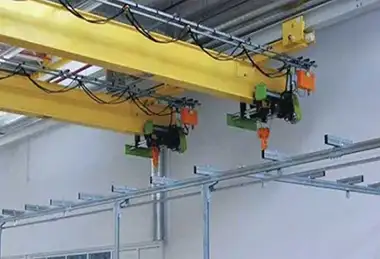

Under running single girder overhead crane with cd/md electric hoist 1 ton, 2 ton, 3 ton, 4 ton, 5 ton, 10 ton

Hot Sale Single Girder Overhead Crane Specifications

LD Electric Single Girder Overhead Crane for Sale in China

LD model single girder overhead crane is the most common type of overhead cranes used for small to moderate lifting applications. It is extensively applied in workshops of manufacturing, repairing and assembly lines, warehouses and storage yards to carry out different lifting tasks. This typical single beam overhead crane cannot be used in flammable, explosive or corrosive environments.

LD single girder overhead crane parameters:

• Load capacity: 1-20t
• Span: 7.5-31.5m
• Lifting height: 6-30m
• Lifting speed: 0.3-8m/min
• Hoist running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Ask for overhead crane price for sale in China

HD Electric Single Girder Bridge Crane for Sale in China

HD electric single girder bridge crane represents a high-level lifting equipment that adopts unique design concept and the latest technology. This advanced overhead crane can be applied in mechanical manufacturing, metallurgy, power plant and other industries to handle large and heavy materials, especially suitable for occasions that require accurate positioning or precision assembly for large parts.

The European standard single girder crane is equipped with ND wire rope hoist to lift a large amount of weight, usually in a range of 1 ton to 20 ton. The bridge crane design conforms to international standards including DIN, FEM and ISO.

HD European single girder bridge crane parameters:

• Load capacity: 1-20t
• Span: 7.5-28.5m
• Lifting height: 6-18m
• Lifting speed: 0.8/5m/min
• Hoist running speed: 2-20m/min
• Crane running speed: 3-30m/min
• Work duty: A5

Ask for overhead crane price for sale in China

LB Explosion Proof Overhead Crane, hot sale 3 Ton, 5 Ton, 10 Ton, 15 Ton

LB model explosion proof overhead crane is a kind of single girder crane specifically designed for hazardous lifting environments, usually equipped with HB explosion proof electric hoist. The motor and electrical devices of this crane are also explosion-proof type to ensure a high level of safety required for explosive atmospheres.

The single girder explosion proof crane is widely applied in power plant, chemical plant, sewage treatment plant and other industries to load, unload and transfer heavy items. It can lift a large amount of weight, ranging from 1 ton to 20 ton, and the working class is A3, A4.

LB explosion proof overhead crane parameters:

• Load capacity: 1-20t
• Span: 7.5-31.5m
• Lifting height: 6-30m
• Lifting speed: 0.33-8m/min
• Hoist running speed: 20m/min
• Crane running speed: 20m/min
• Explosion-proof grade: ExdⅡBT4、ExdⅡCT4
• Work duty: A3, A4

Ask for overhead crane price for sale in China

LX Single Girder Suspension Crane Hot Sale 3 Ton, 5 Ton in China

Suspension crane is a kind of small and lightweight underhung overhead crane, also known as under running crane or underhung crane. It is widely applied in workshop of production and assembly lines, warehouse and other places to lift and move heavy loads. The underhung crane, as its name implies, is suspended from building roof structure and runs at the bottom flange of runway beam.

Single girder suspension crane is designed and manufactured in strict accordance with industrial standard JB2603-94, usually equipped with CD and MD electric hoists. Due to its distinct structure, the under running overhead crane usually comes in single girder design, thus it cannot lift a considerable amount of weight. The capacity ranges from 0.5 ton to 10 ton, the span of is 3-22.5m, working classification is A3-A4.

LX suspension crane parameters:

• Load capacity: 0.5-10t
• Span: 3-22.5m
• Lifting height: 6-30m
• Lifting speed: 0.7-8m/min
• Hoist running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Ask for overhead crane price for sale in China

LDY Single Girder Foundry Crane 10 Ton Hot Sale in China

LDY model electric single girder foundry crane is specially designed for lifting and transferring molten metal in metallurgy and casting places. It can also be used for handling molten non-metallic materials and hot solid metal. The overhead crane is generally outfitted with YH type metallurgical electric hoist, and its lifting capacity is not more than 10 tons. This crane is designed according to JB/T 1306-2008 standards.

LDY single girder foundry crane parameters:

• Load capacity: 1-10t
• Span: 7.5-31.5m
• Lifting height: 6-20m
• Lifting speed: 1.75-8m/min
• Hoist running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A6

Ask for overhead crane price for sale in China

LDZ Single Girder Grab Crane 10 Ton China

LDZ single girder grab crane is generally the same with LD electric single girder crane except for its grabbing mechanism. Equipped with grab hoist trolley, the crane is suitable for handling almost all kinds of loose and bulk materials, such as garbage, industrial materials and sand. The lifting capacity of overhead crane ranges from 2 ton to 10 ton, and the working class is A4. This crane cannot be used in flammable, explosive or corrosive atmosphere.

The crane system is usually controlled by an operator from the ground or by a driver sitting in the cabin to realize a safe and easy lifting operation. This bridge crane features high working efficiency, wide application, sturdy construction and reliable performance, making it perfect for lifting in mining, garbage disposal plant, steel plant and power plant.

LDZ single girder grab crane parameters:

• Load capacity: 2-10t
• Span: 4.5-28.5m
• Lifting height: 6-16m
• Lifting speed: 14-16m/min
• Hoist running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Ask for overhead crane price for sale in China

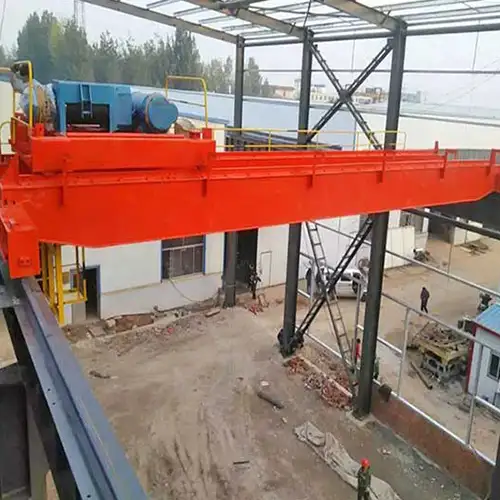

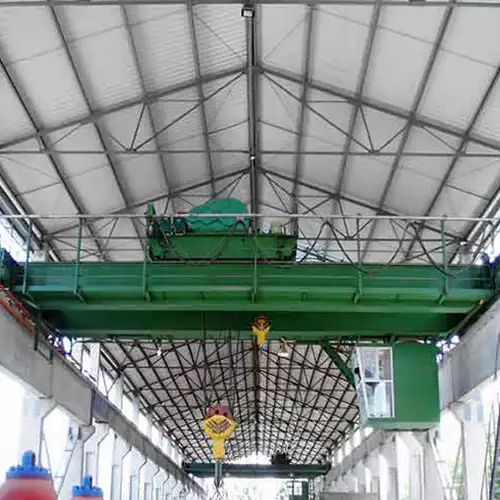

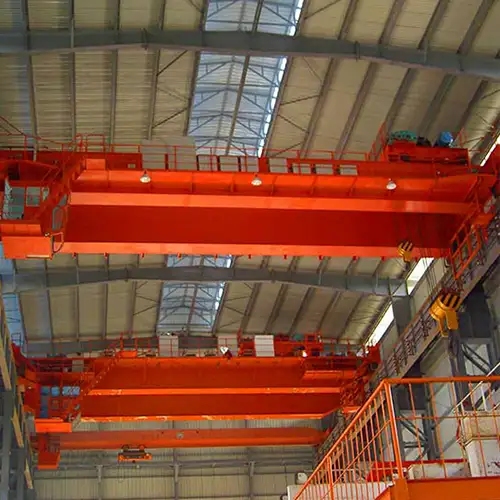

Double Girder Overhead Cranes

Double girder overhead cranes, as the name suggests, incorporate two horizontal girders instead of one. These cranes are designed to handle heavier loads and longer spans. Their robust construction and higher load capacity make them indispensable in heavy industries like steel production and shipbuilding.

Double girder cranes excel in heavy-duty applications, such as lifting steel coils, large machinery, and shipping containers. They are commonly used in environments where precision and strength are paramount.

Double girder overhead crane with electric crab hoist traditional type 3 ton to 63 ton, cheaper crane solution in China

Double girder overhead crane with low headroom electric crab hoist European style 1 ton to 80 ton for sale in China

Double girder overhead crane with builtup hoist traditional type hot sale in China 3 ton to 550 ton

Double girder overhead crane with builtup hoist European style, hot sale 3 ton to 350 ton

Hot Sale Double Girder Overhead Crane Specifications

QD Hook Double Girder Overhead Crane China

QD type double girder overhead crane is a large and powerful heavy duty lifting equipment used for various fields and sectors, such as workshop of manufacturing and assembly lines, chemical plant and freight yard. The double beam overhead crane with hook can handle a considerable amount of weight within your facilities, ranging from 5 ton to 550 ton. To meet your heavier lifting applications or special requirements, the double girder crane can be custom designed and built.

Double girder crane can realize a greater lifting height, speed and work duty than single girder overhead crane, thus it can be employed for a variety of usage from intermittent use to frequent service. With regard to heavy duty overhead crane, the lifting operation is typically controlled within the cabin, whereas wireless remote control is a cost-effective option for lightweight lifting operations.

QD hook double girder overhead crane parameters:

• Load capacity: 5-450t
• Span: 10.5-31.5m
• Lifting height: 6-24m
• Lifting speed: 2.1-11.5m/min
• Trolley running speed: 27-40m/min
• Crane running speed: 42-75m/min
• Work duty: A3-A7

Ask for overhead crane price for sale in China

LH Electric Hoist Overhead Crane Hot Sale in Chia 10 Ton 20 Ton 30 Ton 50 Ton

The LH electric hoist overhead crane is a sort of double girder crane primarily used in mechanical processing workshops, metallurgical plants, warehouses, storage yards and power stations to fulfill a variety of lifting requirements, such as assembly, loading, unloading, overhaul and transferring operations. The overhead crane can also replace a conventional double girder bridge crane for workshops of textile industry and food industry.

LH type overhead crane is able to handle loads that range from 5 ton to 50 ton, and it is specifically designed for light and moderate service. The cranes cannot be used in flammable, explosive or corrosive environments.

LH electric hoist overhead crane parameters:

• Load capacity: 5-50t
• Span: 10.5-31.5 m
• Lifting height: 6-30m
• Lifting speed: 0.18-8m/min
• Trolley running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Ask for overhead crane price for sale in China

NLH European Double Girder Bridge Crane 3 Ton to 80 Ton, Hot Sale 10 Ton, 50 Ton in China

NLH double girder bridge crane is an European standard overhead lifting equipment. It is distinct from other conventional double girder cranes as it has low headroom, compact structure and delicate appearance. The European standard double girder overhead crane adopts advanced technology and design concept, making it a perfect option for lifting occasions where they require a high-level efficiency and reliability.

The advanced double girder bridge crane can lift 5 ton to 80 ton weight, and the working duty is A5. It is equipped ND type wire rope electric hoist. According to your special requirement, we provide custom design.

NLH European double girder bridge crane parameters:

• Load capacity: 5-80t
• Span: 10.5-31.5m
• Lifting height: 6-18m
• Lifting speed: 0.4-5m/min
• Trolley running speed: 2-20m/min
• Crane running speed: 3-30m/min
• Work duty: A5

Ask for overhead crane price for sale in China

European standard 320 Ton overhead cranes China

QDX European 320ton bridge crane parameters:

• Span: 10.5-31.5 m
• Lifting height: 6-24m
• Lifting speed: 0.2-10.7m/min
• Trolley running speed: 2.4-33m/min
• Crane running speed: 4.2-68m/min
• Work duty: A3-A5

Ask for overhead crane price for sale in China

QB Double Girder Explosion Proof Crane 5 Ton to 75 Ton for Sale in China

QB type double girder explosion proof crane is designed for general hoisting operations in explosive or flammable atmospheres, usually equipped with explosion-proof hoist and motor. It is widely used in chemical workshop, petrochemical plant, wastewater treatment plant, gas power plant and other industrial plants for light duty to moderate service. The lifting capacity of this particular double girder crane is generally in a range of 5 ton to 75 ton, and the work duty is A3-A4.

The design and explosion-proof performance of the entire crane are in line with JB/T5897-2006 standard, and that of all motors and electrical devices are in conformity with GB3836.2-2000 standard. The explosion proof signs on the lifting equipment are ExdII BT4 and ExdII CT4.

QB explosion proof crane parameters:

• Load capacity: 5-75t
• Span: 10.5-31.5 m
• Lifting height: 6-20m
• Lifting speed: 1.9-5m/min
• Trolley running speed: 10.5-20.5m/min
• Crane running speed: 15.4-22.3m/min
• Explosion-proof grade: ExdⅡBT4、ExdⅡCT4
• Work duty: A3-A4

Ask for overhead crane price for sale in China

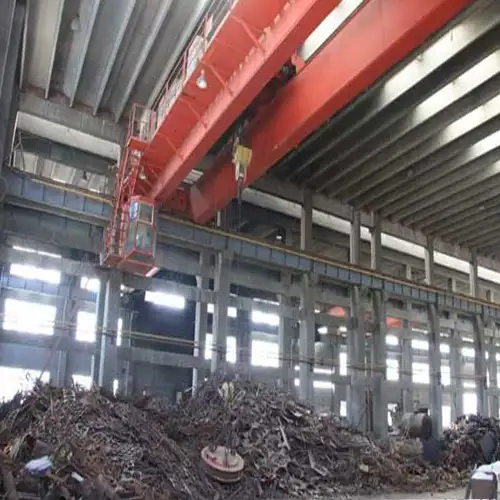

QC Double Girder Magnetic Overhead Crane Hot Sale 5 Ton to 32 Ton in China

QC magnetic overhead crane is a sort of double girder crane specifically designed to handle metal sheets, scraps and other metallic materials since it is able to generate powerful magnetic forces by utilizing a detachable electromagnetic chuck. The crane is designed for heavy duty service that can lift loads with large capacity, typically in a range of 5 ton to 50 ton.

QC magnetic overhead crane parameters:

• Load capacity: 5-50t
• Span: 10.5-31.5 m
• Lifting height: 6-16m
• Lifting speed: 7.8-15.5m/min
• Trolley running speed: 31.3-40.1m/min
• Crane running speed: 58.5-70.6m/min
• Work duty: A5-A7

Ask for overhead crane price for sale in China

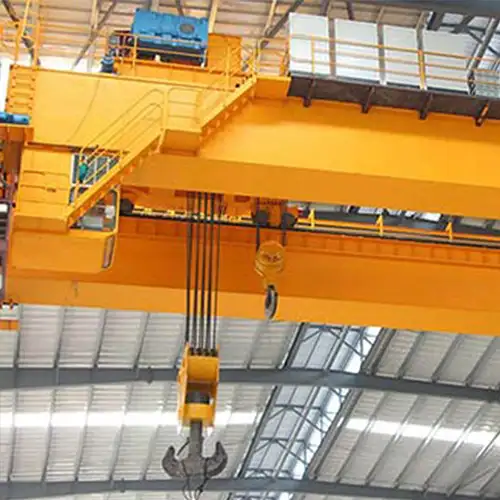

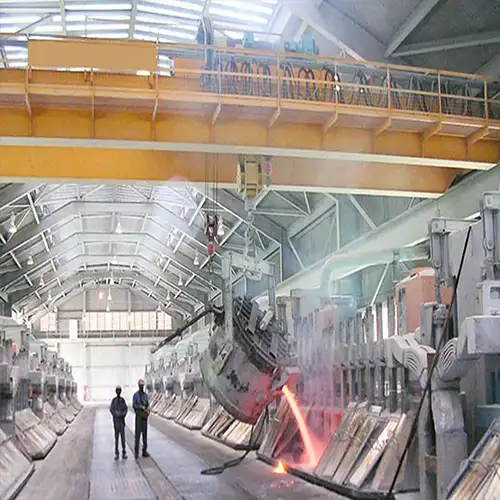

YZ Double Girder Overhead Casting Crane, Star Steel Mill Crane in China

YZ type double girder casting crane is the main overhead lifting equipment used for steelmaking and continuous casting process. The crane offers great protection and high-level efficiency in areas where the high temperature and dust present. It can lift and transport liquid steel ladle in a greater speed and efficiency than its single girder counterpart, making it ideal for heavy duty or severe lifting requirements.

The crane is capable of lifting a substantial amount of weight, usually is a range of 5 tons to 320 tons, and the work duty is A6-A8. Thus the double girder casting crane can adapt to a much worse working environment.

YZ overhead casting crane parameters:

• Load capacity: 5-320t
• Span: 10.5-31.5 m
• Lifting height: 6-24m
• Lifting speed: 6-13m/min
• Trolley running speed: 36-45.9m/min
• Crane running speed: 63-118.6m/min
• Work duty: A6-A8

Ask for overhead crane price for sale in China

QE Double Trolley Overhead Crane

The QE type double trolley overhead crane, as the name implies, is equipped with two hoist trolleys of equal lifting capacity, both of which can be used independently and simultaneously. The trolley overhead crane is capable of lifting hundreds of tons, and it performs the lifting work more efficiently and safely. The overhead trolley crane design is in line with GB / T3811 standard.

QE double trolley overhead crane parameters:

• Load capacity: 5+5t-320+320t
• Span: 10.5-34m
• Lifting height: 6-24m
• Lifting speed: 2.3-11.5m/min
• Trolley running speed: 22.5-40.1m/min
• Crane running speed: 40-75.1m/min
• Work duty: A3-A7

Ask for overhead crane price for sale in China

Gantry Cranes

Gantry cranes are a type of overhead crane with legs that support the crane structure. Unlike bridge cranes, gantry cranes can be used outdoors, making them suitable for various applications in open yards, construction sites, and port facilities.

Gantry cranes are commonly used in settings where outdoor lifting is required. They excel in tasks like loading and unloading shipping containers, handling construction materials, and moving heavy equipment.

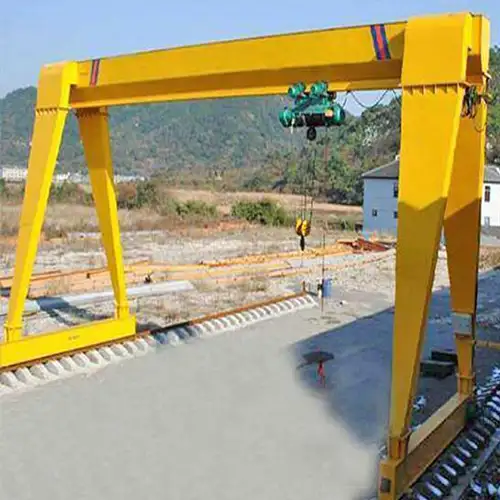

single girder gantry crane 1 ton to 20 ton with economical price

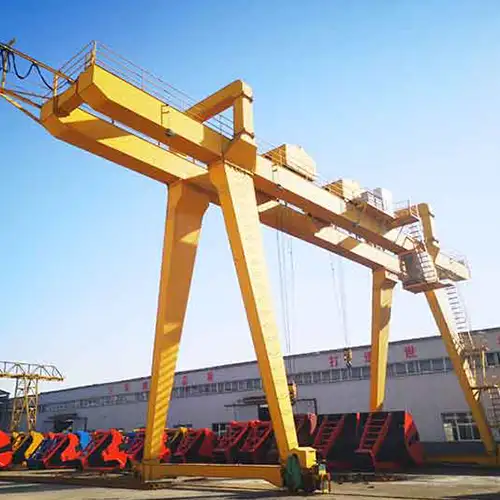

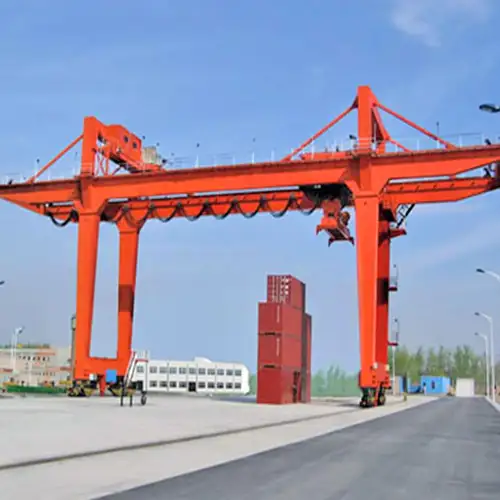

double girder gantry crane 3 ton to 550 ton, hot sale in China

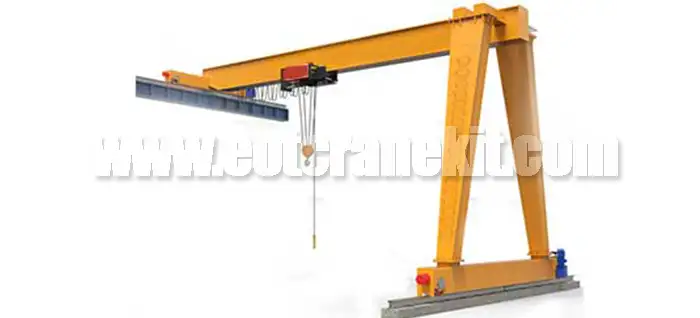

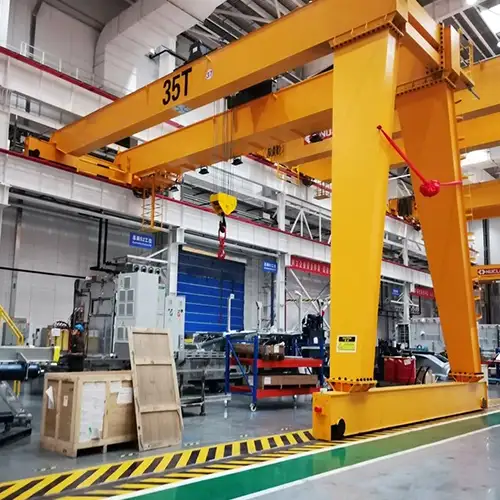

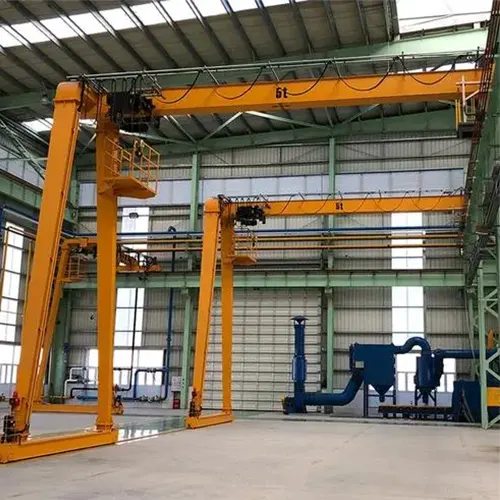

semi gantry crane, good price for sale in China

single girder gantry crane with European style electric hoist

double girder gantry crane with European style electric hoist

semi gantry crane with European style electric hoist

Hot Sale Single Girder Gantyr Crane Specifications

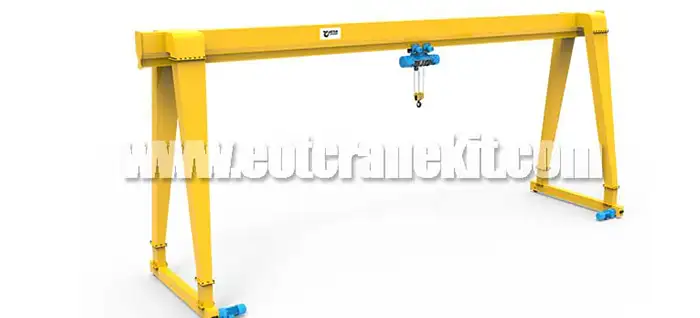

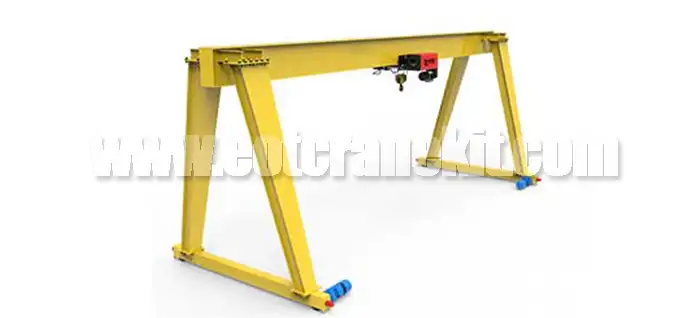

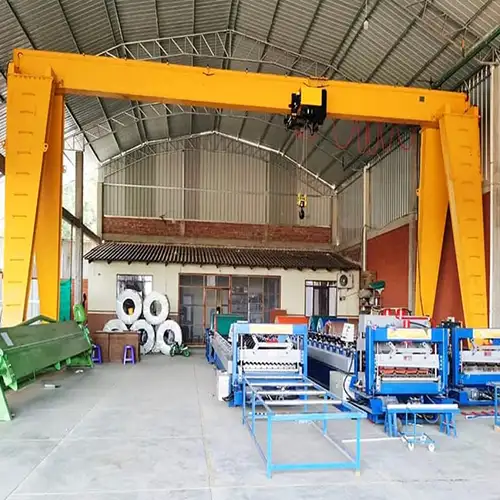

MH Single Girder Gantry Crane

MH single girder gantry crane is a typical gantry lifting equipment used for light duty to moderate services. It is adaptable to a variety of fields and sectors, such as workshop, freight yard, construction site, railroad, port and shipyard. The single beam gantry crane is generally outfitted with CD1 and MD1 electric hoist, and the capacity is in a range of 3 tons to 20 tons.

MH single girder gantry crane  for sale in China:

• Load capacity: 3-20t
• Span: 8-35m
• Lifting height: 6-18m
• Lifting speed: 0.33-8m/min
• Trolley running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Ask for overhead gantry crane price for sale in China

NMH European Single Girder Gantry Crane

• Load capacity: 3.2-20t
• Span: 8-35m
• Lifting height: 6-12m
• Lifting speed: 0.66-5m/min
• Trolley running speed: 2-20m/min
• Crane running speed: 3-30m/min
• Work duty: A5

Ask for overhead gantry crane price for sale in China

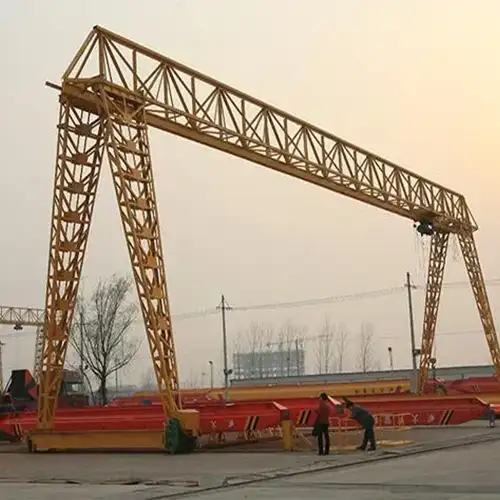

Truss Gantry Crane

Truss gantry crane can be extensively found in a variety of fields and sectors to accomplish small to heavy duty lifting work. It is distinguished by the fact that it is built with truss girder so as to prevent the attack of strong winds and storms. According to the girder construction, the crane can be classified into single girder and double girder. Each type has its own advantages and disadvantages with respect to the crane capacity, lifting speed and working efficiency.

Single girder truss gantry crane parameters:

• Load capacity: 3-20t
• Span: 8-35m
• Lifting height: 6-18m
• Lifting speed: 0.33-8m/min
• Trolley running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Ask for truss gantry crane price for sale in China

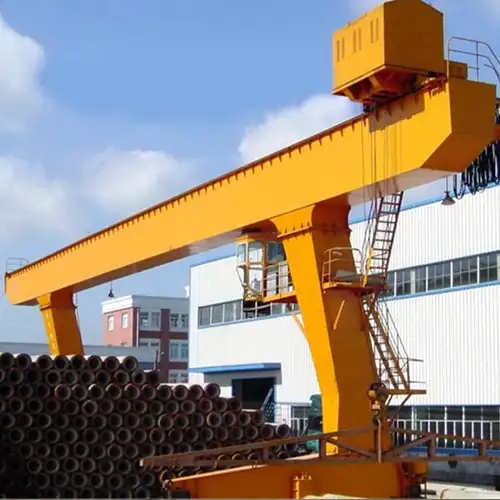

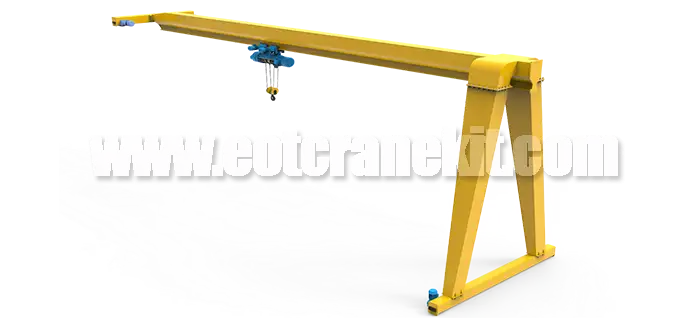

L Type Single Beam Gantry Crane 5 Ton to 50 Ton for Sale in China

L type single beam gantry crane is distinguished by its unique structure, L-shaped support legs, which makes it perfect for handling long pieces of items. The L-type gantry crane is capable of lifting and moving heavy loads in a range of 5 tons to 50 tons, widely used in open freight yard, railroad terminals, factories and warehouses. This type of single girder gantry crane is an essential tool for increasing working efficiency, safety and productivity of lifting operations.

Single girder L type gantry crane parameters:

• Load capacity: 5-50t
• Span: 18-35m
• Lifting height: 6-12m
• Lifting speed: 5.9-11.2m/min
• Trolley running speed: 36.6-39.7m/min
• Crane running speed: 39.7-46.2m/min
• Work duty: A3-A5

Ask for goliath gantry crane price for sale in China

Semi Gantry Crane For Sale

Semi gantry crane is a piece of gantry lifting equipment used indoors and outdoors, such as machine shop, warehouse and freight yard. It is also regarded as a combination of half overhead crane and half gantry crane in that it is mounted to a carriage that travels on an overhead runway on one side and supported by a leg that travels along rails on the ground on the other side.

Designed for general purpose, this type of crane can be used for small to heavy duty lifting work in manufacturing and material handling industries. The cranes supplied by our company are also available in custom design to meet your special requirements.

BMH single girder semi gantry crane parameters:

• Load capacity: 3-20t
• Span: 8-30m
• Lifting height: 6-18m
• Lifting speed: 0.33-8m/min
• Trolley running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3-A4

Ask for semi gantry crane price for sale in China

BMG double girder semi gantry crane parameters:

• Load capacity: 5-32t
• Span: 12-30m
• Lifting height: 6-12m
• Lifting speed: 6-11.5m/min
• Trolley running speed: 37-40.1m/min
• Crane running speed: 37.7-40.1m/min
• Work duty: A3-A6

Ask for double girder gantry crane price for sale in China

MG Double Girder Gantry Crane

MG double girder gantry crane is a typical A frame crane designed for general lifting purposes. It can be employed for outdoor heavy duty lifting applications, such as freight yard, construction site, railroad terminals, shipyard and port. The crane can also be used inside your facilities when it is not suitable to incorporate an overhead crane system.

The MG type gantry crane is the most commonly used gantry lifting equipment for its high utilization, wide application, great adaptability and strong versatility. The rated lifting capacity ranges from 5 tons to 500 tons.

MG double girder gantry crane parameters:

• Load capacity: 5-500t
• Span: 18-35m
• Lifting height: 6-18m
• Lifting speed: 1.5-11.5m/min
• Trolley running speed: 10-40.1m/min
• Crane running speed: 16-50m/min
• Work duty: A3-A7

Ask for open winch double grider gantry crane price for sale in China

U Type Double Girder Gantry Crane

U-type double girder gantry crane is a sort of heavy duty lifting equipment distinguished by the fact that it has larger space between legs than A-frame gantry crane, which enables it to lift and move large-sized goods like containers. The name, as you might have guessed, comes from the U-shape of side profile. The U-frame gantry crane is widely applied in open freight yards, railroad terminals, shipyards and ports, and the work duty is A5, A6.

U type gantry crane parameters:

• Load capacity: 10-50t
• Span: 18-35m
• Lifting height: 6-18m
• Lifting speed: 5.9-13.3m/min
• Trolley running speed: 31.3-40.1m/min
• Crane running speed: 40.1-44m/min
• Work duty: A5-A6

Ask for U frame gantry crane price for sale in China

Jib Cranes

Jib cranes are mounted on a vertical pillar or wall, and they have a horizontal arm, or jib, that can rotate. These cranes offer precise load positioning within a limited radius, making them valuable in workstations and manufacturing cells.

Jib cranes are favored for tasks that demand pinpoint accuracy, such as lifting and positioning tools or materials in machining and assembly operations. Based on design style, there are Europeans style jib cranes and traditional jib hoist cranes.

pillar jib crane for sale 1 ton to 16 ton, hot sale 3 ton, 5 ton 10 ton in China

wall mounted jib crane hot sale 1 ton, 2 ton, 3 ton,

wall travelling jib crane hot sale in China 1 ton, 2 ton, 3 ton,

pillar jib crane for sale, hot sale in China 2 ton, 3 ton, 5 ton, 10 ton

wall mounted jib crane 500kg, 1000kg, 2000kg, 3000kg

wall travelling jib crane 1 ton to 3 ton, hot sale 500kg, 1 ton, 2 ton

Hot Sale Jib Crane Specifications

Floor Mounted Jib Crane China

Floor mounted jib crane consists of top column, low column, main girder, electric hoist, rotation mechanism and electrical system, etc. The base of column is fixed on the concrete foundation with anchor bolt. Cantilever rotary drive by cycloidal pinwheel reducer. Electric hoist on the cantilever beams runs in straight line from left to right, and lift heavy objects. Jib crane has the character of hollow steel structure, light weight, big span, large lifting weight, economy and durable.

AQ-BZ floor mounted jib crane parameters:

• Load capacity: 0.5-20t
• Valid radius: 3m-12m
• Lifting height: 3m-8m
• Slewing angle: 0-360°
• Lifting speed: 8(0.8/8)m/min
• Running speed: 10(20)m/min
• Slewing speed: 0.5-1r/min
• Work duty: A3, A4

Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production. In addition, jib Crane adopts West Germany technology , has the features of reasonable structure, easy operating and high efficiency, etc . It is widely used in mines, workshop, warehouse , wharf.

Ask for floor jib crane price for sale in China

Wall Mounted Jib Crane China

Wall mounted jib crane is reasonable and safe in operation. It is suitable for machining workshop, assembling workshop, foundry, heat treatment plant. transportation, loading and unloading, spare parts to flip homework. Also, it"s with remote control device, so workman can operate from a long distance, it's a safe and ideal modern rigger materials and equipment.

AQ-BX wall mounted jib crane parameters:

• Load capacity: 0.5-10t
• Valid radius: 3m-8m
• Lifting height: 6m-30m
• Slewing angle: 0-180°
• Lifting speed: 0.7-8m/min
• Running speed: 10m/min
• Slewing speed: 0.4-1r/min
• Work duty: A3, A4

Ask for wall mounted jib crane price for sale in China

Wall Travelling Jib Cranes China

Wall travelling jib cranes can travel lateral to handling goods without taking up floor space or interfering with large overhead cranes. Wall travelling jib cranes can serve for several work stations that lined up at the same time with the capacities up to 5 tons and arm length up to 10 m. The runway length has no limitation. As wall travelling jib cranes manufacture, we can help you choose the most suitable cranes according your working conditions.

AQ-BB wall travelling jib crane parameters:

• Load capacity: 0.5-16t
• Valid radius: 5m-12.5m
• Lifting height: 6m-30m
• Lifting speed: 0.35-8m/min
• Hoist speed: 10m/min
• Crane speed: 20m/min
• Work duty: A3, A4

On many situations, it undoubted will be the most cost-effective. Overall plant productivity can be increased by quickly handling smaller lifts. The operation is easy, accurate, swift and efficient. We can also provide custom engineered solutions that are specifically designed to meet your production needs and building specifications.

Ask for overhead crane price for sale in China

Electric Hoists

While not standalone overhead cranes, electric hoists are often integrated into overhead crane systems. They are compact lifting devices that use wire ropes or chains to raise and lower loads.

Electric hoists are versatile and can be found in a wide range of industries, including construction, warehouses, and small manufacturing operations. They are used for tasks like material handling, equipment maintenance, and assembly.

Electric wire rope hoist

Chain hoist

explosion proof hoist

Low headroom electric wire rope hoist

european style electric hoist

European style explosion proof electirc wire rope hoist

Specialized Crane Configurations

Specialized overhead cranes are designed to meet unique industry requirements. These configurations include magnetic overhead cranes for handling ferrous materials, explosion-proof cranes for hazardous environments, and automated cranes for high-efficiency operations.

These specialized cranes cater to specific industries, including steel and metal processing, chemical manufacturing, and logistics, where safety, precision, and efficiency are paramount.

Advancements in Crane Design and Technology

Advancements in crane design and technology have led to the integration of automation, remote control, and advanced safety features. Modern overhead cranes are equipped with sophisticated control systems for enhanced efficiency and safety.

These cutting-edge cranes find applications in industries that require high levels of automation, such as automotive manufacturing, aerospace, and high-tech production facilities.

Pricing Factors and Considerations

Understanding the costs associated with overhead cranes is crucial for making informed purchasing decisions. In this section, we'll explore the factors that influence crane prices, how to conduct cost analysis and budgeting, and the price ranges for different crane types. Additionally, we'll discuss the delicate balance between quality and cost.

Factors Influencing Crane Prices

Several factors can significantly impact the pricing of overhead cranes. These factors include:

• Load Capacity: The crane's load capacity is a fundamental determinant of its cost. Higher load capacities typically result in larger and more robust crane structures, which can drive up the price.
• Span Length: The span length, or the distance between the crane's runway supports, affects the size and complexity of the crane. Longer spans require larger girders and more robust components, contributing to higher costs.
• Hoist Type: The type of hoist used, such as wire rope or chain hoists, can influence costs. Electric hoists, for example, are generally more expensive than manual ones due to their automation capabilities.
• Customizations: Custom features, such as specialized hooks, control systems, or automation, can add to the overall cost. The level of customization required for your specific application will impact the price.
• Manufacturer and Region: The manufacturer's reputation, location, and manufacturing processes play a role in pricing. Renowned manufacturers may charge a premium for their products, while regions with lower production costs can offer competitive prices.
• Quality and Safety Features: Cranes designed with advanced safety features and adherence to international quality standards may come at a higher price but offer long-term reliability and safety benefits.

Cost Analysis and Budgeting

Before purchasing an overhead crane, it's essential to conduct a thorough cost analysis and establish a realistic budget. Consider the following steps:

• Initial Cost: Calculate the initial purchase cost, including the crane, accessories, and any customizations. Request detailed quotes from manufacturers that outline all expenses.
• Operating Costs: Factor in ongoing operating costs, such as electricity, maintenance, and inspections. These costs can vary depending on crane type and usage.
• Installation and Commissioning: Include expenses related to crane installation and commissioning. This may involve hiring professionals and obtaining necessary permits.
• Spare Parts and Repairs: Budget for spare parts and repairs, as overhead cranes may require periodic maintenance and component replacements.
• Downtime Costs: Consider the potential costs associated with crane downtime, especially in critical industrial processes. Investing in reliable equipment can minimize these costs.
• Resale Value: Assess the potential resale value of the crane in the future, which can offset initial costs.

Price Ranges for Different Crane Types

Overhead cranes come in various types, each with its price range:

• Single Girder Overhead Cranes: Typically, single girder cranes are more affordable and fall within the lower to mid-price range, making them accessible for small and medium-sized businesses.
• Double Girder Overhead Cranes: Double girder cranes, known for their robustness, tend to fall within the mid to high-price range due to their higher load capacity and complex design.
• Bridge Cranes: Bridge cranes offer a broad price spectrum, from economical options for basic applications to premium solutions with advanced features.
• Gantry Cranes: Gantry cranes vary in price, with portable and smaller models generally being more affordable than large, heavy-duty gantry cranes.
• Jib Cranes: Jib cranes are cost-effective and budget-friendly, suitable for smaller workstations and tasks.
• Electric Hoists: Electric hoists are versatile and come in various price ranges, allowing businesses to select options that match their budget and requirements.

Balancing Quality and Cost

While it's essential to consider costs, it's equally crucial to strike a balance between price and quality. Opting for the lowest-priced crane may lead to reliability and safety issues, resulting in higher long-term costs. Here are some tips for achieving the right balance:

• Prioritize Safety: Invest in a crane that meets safety standards and includes advanced safety features to avoid accidents and costly incidents.
• Quality Assurance: Choose reputable manufacturers known for producing high-quality cranes, even if they come with a slightly higher price tag.
• Long-Term Reliability: Consider the durability and reliability of the crane. A well-built crane may have a higher initial cost but can yield cost savings over its operational life.
• Total Cost of Ownership (TCO): Evaluate the TCO, which includes initial cost, operating expenses, maintenance, and potential downtime costs, to make an informed decision.
• Customization Benefits: Customizations that enhance efficiency or meet specific needs may justify a higher upfront cost.

Manufacturing and Supply of Overhead Cranes in China

China has emerged as a global hub for the manufacturing and supply of overhead cranes. In this section, we'll delve into the Chinese crane industry, prominent manufacturing regions, factory tours, quality control processes, customization options, international standards compliance, and the rigorous quality assurance and testing procedures followed by Chinese crane manufacturers.

Overview of the Chinese Crane Industry

Chinese Crane Manufacturing: The Chinese crane industry has witnessed rapid growth and development over the years, making China a leading global supplier of overhead cranes. Chinese manufacturers offer a wide range of crane types and configurations to meet diverse industrial needs.

Competitive Pricing: One of the significant advantages of sourcing overhead cranes from China is competitive pricing. Due to lower labor and production costs, Chinese cranes often provide cost-effective solutions for businesses worldwide.

Prominent Crane Manufacturing Regions in China

China boasts several prominent regions known for crane manufacturing, each with its specialization:

• Henan Province: Located in central China, Henan Province, with Zhengzhou as its hub, is renowned for overhead crane production. It houses numerous crane manufacturers offering a wide range of crane types and capacities.
• Jiangsu Province: Cities like Suzhou, Changzhou, and Wuxi in Jiangsu Province are key players in crane manufacturing. Their proximity to major industrial centers ensures a steady supply of cranes.
• Shandong Province: Qingdao in Shandong Province is known for producing gantry cranes and other heavy machinery, including overhead cranes.
• Zhejiang Province: Ningbo in Zhejiang Province serves as a significant manufacturing hub for various crane types, including single and double girder overhead cranes.
• Shanghai: As a major international trade and manufacturing center, Shanghai hosts several crane manufacturers offering a wide array of products.

Factory Tours and Quality Control

Factory Tours: Many Chinese crane manufacturers welcome potential buyers to visit their facilities. Factory tours provide invaluable insights into production processes, quality control measures, and the manufacturing capabilities of suppliers.

Quality Control: Chinese crane manufacturers often employ strict quality control processes to ensure the reliability and safety of their products. These processes encompass material selection, component inspection, and adherence to design specifications.

Customization Options and Features

Chinese crane manufacturers are known for their flexibility in customizing cranes to meet specific customer requirements. Customization options include:

• Control Systems: Tailored control systems to enhance precision and automation.
• Hoists and Hooks: Customized hoists and hooks to match load requirements.
• Automation: Integration of automation and smart technologies for efficient operation.
• Safety Features: Additional safety features and redundancies as needed.

Compliance with International Standards

Reputable Chinese crane manufacturers understand the importance of compliance with international quality and safety standards. Some of the relevant standards include:

• ISO 9001: Quality management systems.
• ISO 14001: Environmental management systems.
• CE Certification: Compliance with European Union safety standards.
• ASME B30.2: Safety standards for overhead and gantry cranes.
• OHSAS 18001: Occupational health and safety management systems.

Quality Assurance and Testing

• Quality assurance is a top priority for Chinese crane manufacturers. They typically conduct comprehensive testing and quality checks, which may include:
• Load Testing: Ensuring that cranes can safely lift and carry their rated loads.
• Functional Testing: Checking all crane functions, including hoisting, trolley movement, and bridge motion.
• Safety Testing: Validating the functionality of safety features and emergency stop systems.

In the upcoming sections of this guide, we will explore how to navigate the Chinese market for overhead cranes, including considerations for choosing the right manufacturer, understanding taxation and import policies, and establishing effective communication.

Overhead Crane Production Zones in China

China's vast landscape encompasses several regions renowned for their overhead crane production. Each of these regions has unique strengths and specializations within the crane industry. In this section, we will explore these production zones, notable manufacturers in each region, and the specializations and unique offerings they bring to the market.

Henan Province

Located in central China, Henan Province is a prominent hub for overhead crane manufacturing. Its capital city, Zhengzhou, is a focal point for crane production and innovation.

Notable Manufacturers: Some notable crane manufacturers in Henan Province include Nucleon Crane Group, Weihua Group, and Konecranes (China).

Specializations and Unique Offerings: Henan Province specializes in producing a wide range of overhead crane types, including single girder, double girder, and gantry cranes. The region is known for its advanced manufacturing processes and high-quality products.

Jiangsu Province

Jiangsu Province, situated on the eastern coast of China, boasts a robust industrial landscape. Cities like Suzhou, Changzhou, and Wuxi are known for their crane manufacturing facilities.

Notable Manufacturers: Jiangsu Province hosts several reputable crane manufacturers, including SANY Heavy Industry, Jiangsu Shenxi Construction Machinery, and ZPMC (Zhenhua Port Machinery Company).

Specializations and Unique Offerings: Jiangsu is recognized for producing bridge cranes and container handling equipment. Its manufacturers often incorporate cutting-edge technologies into their crane designs, making them suitable for a wide range of applications.

Shandong Province

Shandong Province, located along the eastern coast of China, is a key player in the crane industry. Qingdao, a coastal city, is notable for its crane production.

Notable Manufacturers: Some well-known crane manufacturers in Shandong Province include Nucleon (Qingdao) Crane Co., Ltd., and Henan Mine Crane Co., Ltd.

Specializations and Unique Offerings: Shandong Province specializes in the production of gantry cranes, especially those used in shipyards for shipbuilding and maintenance. These cranes are renowned for their robustness and reliability.

Zhejiang Province

Zhejiang Province, situated on the southeastern coast of China, is home to a vibrant manufacturing sector. The city of Ningbo is particularly known for its crane production.

Notable Manufacturers: Zhejiang Province hosts prominent crane manufacturers like Zhejiang Kaidao Hoisting Machinery Co., Ltd., and Zhejiang Guanlin Cranes Co., Ltd.

Specializations and Unique Offerings: Zhejiang is recognized for producing a variety of crane types, including single girder, double girder, and electric hoist cranes. Manufacturers in this region often offer customization options to meet specific customer requirements.

Shanghai

As a major international trade and manufacturing center, Shanghai plays a crucial role in the crane industry. It hosts a diverse range of manufacturers catering to domestic and international markets.

Notable Manufacturers: Some notable crane manufacturers in Shanghai include Shanghai Zhenhua Heavy Industries Co., Ltd. (ZPMC), and Shanghai Bangding Machinery Equipment Co., Ltd.

Specializations and Unique Offerings: Shanghai is known for producing advanced and technologically sophisticated cranes. The city's manufacturers often focus on innovations, automation, and high-performance cranes for various industries.

Notable Manufacturers in Each Region

While these regions have their specialties, it's important to note that many Chinese crane manufacturers have a nationwide and even global presence. Therefore, you may find manufacturers from different regions offering a wide range of crane types and configurations.

Specializations and Unique Offerings

Chinese crane manufacturers continually innovate to meet evolving industry needs. Some unique offerings and specializations within the Chinese crane market include:

• Automation: Chinese manufacturers are at the forefront of incorporating automation and smart technologies into crane designs, enhancing efficiency and safety.
• Cost-Effective Solutions: China is known for providing cost-effective crane solutions without compromising on quality, making it an attractive option for businesses worldwide.
• Global Presence: Many Chinese crane manufacturers have expanded their reach to international markets, ensuring accessibility and support for customers worldwide.

Navigating Taxes, Import Policies, and Regulations

Acquiring overhead cranes from China involves navigating a complex landscape of taxes, import policies, and regulations. In this section, we will explore the key considerations, including import duties and taxes, compliance with local and international regulations, import documentation and permits, customs procedures, and the role of trade agreements.

Import Duties and Taxes

• Import Costs: When importing overhead cranes from China, it's crucial to account for import duties and taxes. These costs can vary significantly depending on the crane's value, origin, and destination.
• Tariffs: Tariffs are taxes imposed by a country on imported goods. The tariff rates for overhead cranes can differ from one country to another and may be influenced by trade agreements.
• Value-Added Tax (VAT): Many countries impose VAT on imported goods, including cranes. The VAT rate can vary, and businesses should be prepared to pay this tax upon import.

Compliance with Local and International Regulations

Safety and Quality Standards: Ensure that the overhead cranes you import comply with both local and international safety and quality standards. This may include adherence to ISO standards, ASME codes, and CE certification.

Local Regulations: Familiarize yourself with the specific regulations and requirements of your country regarding the importation and operation of overhead cranes. Compliance is essential to avoid legal issues and ensure safety.

Import Documentation and Permits

Required Documentation: Importing overhead cranes necessitates a range of documentation, such as invoices, packing lists, bills of lading, and certificates of origin. Make sure you have all the necessary paperwork in order.

Import Permits: Some countries require import permits or licenses for certain types of machinery, including cranes. Ensure that you have obtained the required permits before the importation process.

Handling Customs Procedures

Customs Declarations: Accurate and complete customs declarations are vital. Work closely with a customs broker or a logistics expert who can assist with the paperwork and customs procedures.

Customs Valuation: Determine the correct customs valuation method for your cranes. Valuation methods may include the transaction value method, the transaction value of identical goods, or other acceptable methods based on international customs standards.

Understanding Trade Agreements

Benefiting from Trade Agreements: Some countries have bilateral or multilateral trade agreements with China that can affect import duties and taxes. Explore whether your country has such agreements in place and how they might impact your overhead crane import costs.

Free Trade Zones: Consider whether your country has designated free trade zones where different customs rules and import policies may apply. These zones can offer cost advantages for certain imports.

Effective Communication and Bridge-Building

Effective communication is paramount when acquiring overhead cranes from China. In this section, we will explore the essential aspects of communication, including language and cultural considerations, communication channels with Chinese manufacturers, negotiation strategies, and clearing communication barriers.

Language and Cultural Considerations

Language: Language can be a significant barrier when dealing with Chinese manufacturers. While English is often used in international business, it's beneficial to have a basic understanding of Mandarin Chinese or work with translators who can facilitate communication.

Cultural Awareness: Understanding Chinese cultural norms and business etiquette can foster positive relationships. This includes showing respect, being patient, and addressing individuals by their titles or last names.

Communication Channels with Chinese Manufacturers

Direct Communication:

Email: This is one of the most common and convenient methods of communication. Ensure that you have the correct email addresses of relevant contacts within the manufacturing company.
Phone Calls: Direct phone calls allow for immediate communication and clarification of details. It's essential to have a reliable phone number and to consider time zone differences when scheduling calls.
Video Conferences: Platforms like Zoom, Skype, or WeChat can facilitate face-to-face communication even when you're physically distant. Video conferences are valuable for discussing complex issues, demonstrating products, or conducting virtual inspections.

Local Representation:

Local Agents or Representatives: Hiring a local agent or representative in China can be invaluable. They possess local knowledge, language skills, and cultural understanding that can help bridge communication gaps. They can also assist with negotiations, quality control, and logistics.
Interpreters: If you're communicating directly with the manufacturer but language is a barrier, hiring an interpreter can facilitate smooth communication. They can ensure that both parties understand each other accurately.

Manufacturer's Agents:

International Agents or Offices: Some Chinese manufacturers have established international agents or offices in various countries. These agents are familiar with your language and timezone, making communication more convenient. They can act as intermediaries between you and the manufacturer, streamlining the process and reducing misunderstandings.
Communication Platforms: Manufacturers may also utilize communication platforms or software that enable real-time collaboration and document sharing. Familiarize yourself with these platforms to ensure efficient communication.

Each of these communication channels has its advantages and may be suitable depending on factors such as the complexity of the project, your familiarity with the Chinese market, language barriers, and the level of support required during the manufacturing process. It's often beneficial to utilize a combination of these channels to ensure effective communication and successful collaboration with Chinese manufacturers.

Negotiation Strategies

• Preparation: Prior to negotiations, conduct thorough research on the crane market, including pricing, specifications, and competitors. This information will empower you during negotiations.
• Price Transparency: Be clear about your budget and pricing expectations from the outset. Transparency can help prevent misunderstandings and ensure that both parties are on the same page.
• Quality vs. Cost: When negotiating, focus on the quality and features of the crane rather than solely on price. Emphasize the importance of meeting international safety and quality standards.
• Face-to-Face Meetings: Whenever possible, arrange face-to-face meetings with Chinese manufacturers. Building personal relationships can foster trust and facilitate smoother negotiations.

Clearing Communication Barriers

• Clarify Specifications: Ensure that all technical specifications and requirements are clearly defined in written agreements. Avoid assumptions and seek clarification when necessary.
• Language Support: Use written communication to confirm verbal agreements. Email or written documentation can help avoid misunderstandings.
• Cultural Sensitivity: Be mindful of cultural nuances and differences in communication styles. Patience and respect can go a long way in building trust.
• Ask Questions: Don't hesitate to ask questions if something is unclear. Miscommunication can lead to costly errors or delays.

Personality Traits and Reputation of Crane Manufacturers

When selecting a crane manufacturer, evaluating their personality traits and reputation is essential to ensure a successful partnership. In this section, we will explore the characteristics of reputable crane manufacturers, the value of case studies and client testimonials, and how to evaluate manufacturers' track records.

Characteristics of Reputable Crane Manufacturers

• Quality Focus: Reputable crane manufacturers prioritize quality at every stage of production. They use high-quality materials, adhere to safety standards, and invest in quality control processes.
• Innovation: Leading manufacturers stay at the forefront of technological advancements, incorporating automation, smart features, and efficiency improvements into their crane designs.
• Experience: Experience in the industry matters. Established manufacturers have a track record of delivering reliable solutions across various industries.
• Customization Expertise: Reputable manufacturers offer customization options, tailoring cranes to suit unique customer requirements.
• Compliance: They ensure their cranes meet local and international safety and quality standards, providing certifications as proof of compliance.
• Transparency: Honest and transparent communication is a hallmark of reputable manufacturers. They provide detailed information, including pricing, specifications, and lead times.

Evaluating Manufacturers' Track Records

• History and Longevity: Consider how long the manufacturer has been in business. A long history can be indicative of stability and reliability.
• Past Projects: Review the manufacturer's portfolio of past projects. Have they successfully delivered similar crane solutions to other clients?
• Awards and Recognitions: Manufacturers with industry awards and recognitions often stand out for their exceptional quality and performance.
• References: Request references from the manufacturer and speak with previous clients to gather insights into their experiences.
• Online Reviews: Search for online reviews and feedback about the manufacturer. Real user experiences can offer valuable insights.
• Complaints and Resolutions: Investigate any complaints or issues that may have arisen in the past. What steps did the manufacturer take to resolve them?

By carefully evaluating the personality traits and reputation of crane manufacturers, you can make informed decisions when choosing a partner for your overhead crane acquisition. In the upcoming sections of this guide, we will explore the intricacies of transportation and logistics, understanding taxes and import policies, and addressing maintenance and after-sales support.

Transportation and Logistics

The successful acquisition of overhead cranes from China also depends on efficient transportation and logistics management. In this section, we will explore considerations for choosing transportation methods, shipping routes and options, packaging and securing cranes for transport, and the crucial steps of installation and commissioning.

Choosing Transportation Methods

• Ocean Freight: Ocean freight is the most common method for transporting overhead cranes from China. It offers a cost-effective solution for shipping heavy and oversized equipment.
• Air Freight: Air freight is the fastest but most expensive option. It is suitable for urgent deliveries or when cranes need to be transported over long distances within a short timeframe.
• Rail and Road Transport: In some cases, cranes may be transported via rail or road to reach their final destination. This is more common for inland regions.
• Intermodal Transportation: Combining multiple transportation methods (e.g., ocean freight and road transport) can be a practical solution to reach landlocked or remote areas.

Shipping Routes and Options

• Port Selection: Choose the appropriate departure and arrival ports based on your location and logistical requirements. Major Chinese ports like Shanghai, Qingdao, and Ningbo offer extensive shipping options.
• Containerized vs. Break-Bulk: Decide whether to transport the crane as a containerized shipment or as break-bulk cargo. Containerization offers additional protection but may not be feasible for larger cranes.
• Shipping Options: Explore different shipping options, such as full container load (FCL), less than container load (LCL), or roll-on/roll-off (Ro-Ro) vessels, depending on the size and quantity of cranes.

Packaging and Securing Cranes for Transport

• Custom Packaging: Ensure that the cranes are securely packaged to prevent damage during transit. Custom packaging solutions should account for the crane's size, weight, and components.
• Bracing and Securing: Cranes should be properly braced and secured within their packaging to prevent movement and shifting during transport. This is critical for avoiding damage.
• Protection from Environmental Factors: Consider protection from environmental factors, such as moisture, salt, and temperature fluctuations, especially for ocean shipments.

Installation and Commissioning

• Professional Installation: Engage qualified professionals to install and commission the crane at its destination. This ensures proper setup and adherence to safety standards.
• Site Preparation: Prepare the installation site by ensuring it can support the crane's weight and dimensions. This may involve structural modifications and the installation of runway beams.
• Testing and Certification: After installation, conduct thorough testing and certification to confirm that the crane operates safely and efficiently. This includes load testing and functionality checks.
• Operator Training: Provide training for crane operators to ensure safe and efficient use of the equipment. Training is essential for preventing accidents and maximizing crane performance.

By carefully managing transportation and logistics, you can ensure that your newly acquired overhead cranes from China reach their destination safely and are installed and commissioned correctly. In the final section of this guide, we will discuss the importance of ongoing maintenance and after-sales support for your crane investment.

Maintenance, After-Sales Support, and Warranty

Once you've acquired overhead cranes from China, ensuring their long-term reliability and performance requires attention to maintenance, after-sales support, and warranty considerations. In this section, we will explore the importance of understanding warranty terms and coverage, the availability of spare parts, routine maintenance requirements, and access to technical support.

Understanding Warranty Terms and Coverage

• Warranty Duration: Carefully review the warranty terms offered by the crane manufacturer. Typical warranties may range from one to several years. Understand what is covered and for how long.
• Components Covered: Verify which crane components are covered by the warranty. This may include the crane structure, electrical components, and the hoist.
• Exclusions: Pay attention to any exclusions or conditions that could void the warranty. Non-compliance with maintenance schedules, unauthorized modifications, or improper use may impact warranty coverage.
• Warranty Claim Process: Familiarize yourself with the procedure for making warranty claims. Understand how issues are reported, assessed, and resolved by the manufacturer or their authorized representatives.

Availability of Spare Parts

• Spare Parts Inventory: Inquire about the availability of spare parts for the crane you've purchased. Ensure that essential components can be readily sourced to minimize downtime in case of breakdowns.
• Lead Times: Understand the lead times for acquiring spare parts. Longer lead times could impact your operations, so plan accordingly.
• Local Support: If possible, work with a manufacturer or supplier that has a local presence or partners with distributors in your region. This can expedite spare parts delivery and on-site support.

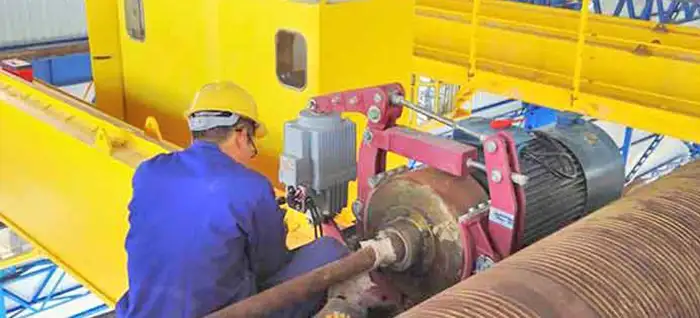

Routine Maintenance Requirements

• Scheduled Maintenance: Establish a routine maintenance schedule for your overhead crane. Regular inspections, lubrication, and minor repairs can prevent major issues and prolong the crane's lifespan.
• Qualified Maintenance Personnel: Ensure that maintenance tasks are performed by qualified and trained personnel who understand the crane's specific requirements.
• Documentation: Maintain comprehensive records of maintenance activities, inspections, and repairs. This documentation is valuable for warranty claims and tracking crane performance.

Access to Technical Support

• Technical Support Channels: Know how to access technical support when needed. Whether it's a local service team, a hotline, or online resources, having reliable technical support is crucial.
• Training and Assistance: Manufacturers often offer training programs for crane operators and maintenance personnel. Consider enrolling your team to enhance their skills and knowledge.
• Emergency Support: Understand the manufacturer's provisions for emergency support in case of critical issues that require immediate attention.

Documenting the Buying Process

Documenting the entire buying process for overhead cranes is crucial for transparency, legal protection, and effective management. In this section, we will discuss the importance of keeping detailed records, contracts and legal agreements, managing financial transactions, and strategies for dispute resolution and conflict avoidance.

Keeping Detailed Records

• Record Keeping: Maintain detailed records of all communications, transactions, and interactions related to the purchase of overhead cranes. This includes emails, meeting notes, and any documentation exchanged with the manufacturer.
• Documentation of Specifications: Keep a clear record of the crane specifications, including technical drawings, load capacities, and customization requirements. These documents serve as a reference point throughout the project.
• Supplier Correspondence: Archive all correspondence with the crane manufacturer or supplier, including quotations, proposals, and responses to inquiries.

Contracts and Legal Agreements

• Written Contracts: Always formalize your agreements with the crane manufacturer through written contracts. Contracts should outline key terms and conditions, including pricing, delivery schedules, warranties, and dispute resolution mechanisms.
• Legal Review: Consider having legal counsel review contracts to ensure they protect your interests and align with local laws and regulations.
• Translations: If contracts are in a language you do not fully understand, have them professionally translated to avoid misunderstandings.

Managing Financial Transactions

• Payment Records: Keep clear records of all financial transactions, including invoices, payment receipts, and bank statements related to the crane purchase.
• Payment Schedules: Ensure that payment schedules are clearly defined in contracts, and make payments on time according to the agreed-upon terms.
• Currency Exchange: If dealing with currency exchange, maintain records of exchange rates and transactions to track costs accurately.

Dispute Resolution and Conflict Avoidance

• Dispute Resolution Mechanisms: Contracts should include provisions for dispute resolution. Consider methods such as arbitration or mediation to resolve disputes without resorting to lengthy legal proceedings.
• Open Communication: Maintain open and constructive communication with the crane manufacturer. Address issues promptly to prevent conflicts from escalating.
• Quality Assurance: Prioritize quality assurance and inspections to detect and resolve potential issues early in the process.
• Escalation Paths: Establish clear escalation paths within your organization for handling disputes or disagreements with the manufacturer. This can help ensure timely and effective resolution.

By documenting the buying process comprehensively, you can minimize risks, protect your interests, and maintain a smooth and transparent relationship with the crane manufacturer. This concludes our guide on acquiring overhead cranes from China. We hope this comprehensive resource has equipped you with the knowledge and insights needed to make informed decisions and successfully procure and operate overhead cranes for your business. If you have any further questions or require additional assistance, feel free to reach out to industry experts or consultants with expertise in crane acquisition and management.

Recognition of Chinese Overhead Cranes Worldwide

• Global Recognition of Chinese Overhead Cranes :Global Presence: Chinese overhead cranes have gained recognition worldwide for their quality, versatility, and competitive pricing. They have become a staple in various industries and have earned a reputation for reliability.
• Exporting to International Markets :Exporting Success: Chinese manufacturers have successfully expanded their reach to international markets, supplying overhead cranes to industries in countries around the world.
• Adoption in Diverse Industries :Diverse Chinese overhead cranes are recognized for their ability to serve a wide range of industries, from manufacturing and construction to logistics, shipping, and more.
• Compliance with International Standards :Quality Assurance: To maintain their global reputation, Chinese manufacturers ensure that their overhead cranes comply with international safety and quality standards.
• Positive Feedback and Testimonials :Client Satisfaction: Chinese crane manufacturers often receive positive feedback and testimonials from satisfied clients around the world, reinforcing their reputation for excellence.
• Contributing to Infrastructure Development :Infrastructure Support: Chinese overhead cranes have played a pivotal role in supporting infrastructure development projects worldwide, earning recognition for their role in progress and growth.

Top 10 Chinese Overhead Crane Market around World

Chinese overhead cranes have become synonymous with quality, innovation, and value for money on the global stage. Their widespread recognition and adoption in diverse industries are a testament to their excellence and performance.

• United States: The United States is one of the largest importers of overhead cranes from China. They import a wide range of crane types, including bridge cranes, gantry cranes, and hoists.
• India: India has a growing demand for overhead cranes in industries such as manufacturing, construction, and logistics. The types of cranes imported often include gantry cranes and jib cranes.
• Germany: Germany, known for its manufacturing and industrial sector, imports various types of overhead cranes, including bridge cranes and gantry cranes, to support its industries.
• Brazil: Brazil imports overhead cranes for applications in construction, shipping, and manufacturing. The types imported typically include bridge cranes and gantry cranes.
• Australia: Australia imports overhead cranes for use in construction, mining, and manufacturing. They often import gantry cranes and jib cranes.
• Canada: Canada imports overhead cranes to support its construction and manufacturing sectors. Bridge cranes and gantry cranes are among the commonly imported types.
• Russia: Russia imports overhead cranes, especially for applications in heavy industries such as mining and oil. Bridge cranes and gantry cranes are commonly imported.
• United Kingdom: The UK imports overhead cranes for various industrial applications. Bridge cranes and gantry cranes are among the types they import.
• Saudi Arabia: Saudi Arabia imports overhead cranes for use in the construction and oil industries. Gantry cranes and bridge cranes are commonly imported.
• South Africa: South Africa imports overhead cranes to support its mining and manufacturing sectors. Bridge cranes and gantry cranes are frequently imported.

It's important to note that the types of overhead cranes imported can vary depending on the specific needs of each country's industries. While bridge cranes, gantry cranes, and jib cranes are commonly imported types, the exact mix may differ from one country to another based on their industrial requirements and infrastructure development projects. Additionally, trade dynamics can change over time, so it's advisable to consult the most recent trade data for up-to-date information on importing countries and crane types.

Conclusion and Final Considerations

In this comprehensive guide, we have explored every facet of acquiring overhead cranes, from understanding various types and designs to navigating taxes, communication, transportation, and post-purchase support. Let's summarize the key takeaways and prepare for a successful overhead crane acquisition from China.

Summarizing Key Takeaways

• Types and Designs: Overhead cranes come in various types, including single girder, double girder, bridge, gantry, and jib cranes, each with unique features and applications.
• Pricing and Budgeting: Factors influencing crane prices include capacity, span, features, and customization. Balancing quality and cost is essential.
• Chinese Manufacturing Zones: China has several crane manufacturing hubs, such as Henan, Jiangsu, Shandong, Zhejiang, and Shanghai, each with its specializations.
• Taxes and Import Policies: Understanding import duties, taxes, and regulations is critical for a smooth import process.
• Effective Communication: Overcoming language and cultural barriers and building strong communication channels with manufacturers is crucial.
• Manufacturer Reputation: Evaluating the personality and reputation of crane manufacturers helps ensure a reliable partnership.
• Transportation and Logistics: Properly planning and managing transportation, packaging, and installation are vital for crane delivery.
• Maintenance and After-Sales Support: Prioritizing routine maintenance, technical support, and warranty coverage ensures the longevity of your cranes.
• Documentation: Keeping detailed records, formalizing contracts, and managing financial transactions are essential for transparency and legal protection.
• Dispute Resolution: Establishing dispute resolution mechanisms and fostering open communication can prevent conflicts.

Preparing for Successful Overhead Crane Buying from China

As you embark on the journey of acquiring overhead cranes from China, remember these key considerations:

• Thoroughly research and define your crane specifications and requirements.
• Carefully select a reputable manufacturer with a track record of quality and compliance.
• Ensure your budget aligns with the type and features of the crane you need.
• Familiarize yourself with import duties, taxes, and regulations in your country.
• Establish clear and effective communication channels with the manufacturer.
• Prioritize safety, quality, and compliance throughout the buying process.
• Keep detailed records and formalize agreements through written contracts.
• Prepare for transportation, installation, and ongoing maintenance and support.

If you have any need of overhead cranes, please feel free to contact us. Contact us now to check what we can do to save your overhead crane cost in China.
