Single girder overhead travelling cranes with Chinese underslung crane designs are a typical type of Chinese type single girder overhead travelling with the benefits of high safety, robust and reliable quality, good performance, and durable working life. The single girder underslung overhead crane are designed for the light duty material handling based on the international standards. With underslung crane design, the end trucks or end carriages of the single girder overhead crane moving on the suspended track, equipped with CD or MD electric wire rope hoist.

The single girder underslung cranes are usually attached and supported by the roof supporting structure, with no requirement of extra floor columns to support the runway. In this way, the underslung eot cranes are a good solution for workshops with limited floor space and also they can be installed in workshops with sloped ceilings or with multiple crane systems.

LX type single girder underslung crane

LX type single girder overhead crane with Chinese underslung crane designs is featured as reasonable structure and higher strength steel as a whole.The Chinese type underslung eot cranes are usually adopted the CD1 & MD1model electric wire rope hoist as the lifting system with the capacity of 1 ton, 2 ton, 3 ton, 5 ton and up to 10 tons.

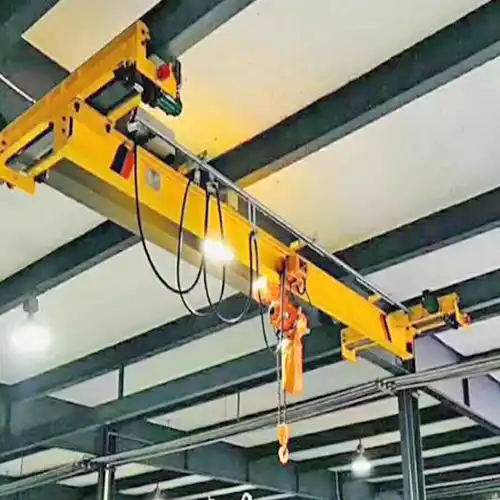

Underhung single girder overhead crane

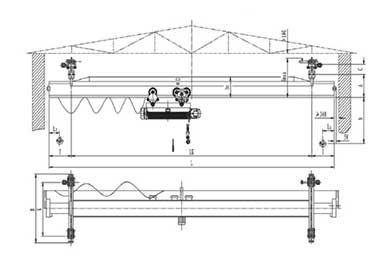

Underhung bridge crane design drawing

Technical data of LX Underslung Overhead Crane

The main parameters of the single girder underhung cranes are as following:

• Overhead travelling crane types: LX single girder overhead travelling crane with underslung crane design
• Crane capacity of single girder underslung crane:0.5-10 tons
• Span of single girder underslung crane: 3-16m
• Lifting height of single girder underslung crane: 6-30m
• Working class of single girder underslung crane: A3/A5
• Working temperature between -25C to 40C
• Hoist system of of single girder underslung crane: CD or MD wire rope hoists
• Crane control of underslung overhead crane: ground pendent control or remote crane control.

Single girder underslung crane with process crane design are available to meet your specific application conditions and lifting requirements to ensure safety and improve efficiency. Contact us to get free underslung crane beam design, underslung crane drawing, and underslung crane catalogue.

Basic Structure & components

The Chinese style LX single girder underslung crane is consisted of main girder, end carriages / end trucks, CD/MD electric wire rope hoist, electrical components, lifting equipment and so on. With underslung crane design, the end trucks or end carriages of the single girder overhead crane moving on the suspended track, equipped with CD or MD electric wire rope hoist. The single girder underslung cranes are usually attached and supported by the roof supporting structure, with no requirement of extra floor columns to support the runway.

Crane main girder
Single girder underhung bridge crane parts and components

Crane control
Single girder underhung bridge crane parts and components

Electric chain hoists
Single girder underhung bridge crane parts and components

CD/MD Electric wire rope hoists
Single girder underhung bridge crane parts and components

Features of single girder underslung crane

The general features of single girder underslung cranes are presented for your reference. Process crane features are also available, contact us to see the underslung crane details.

• Main girder of underslung crane can be designed according, crane design with I-beam girder is for small tonnageloads handling while crane girder design with U shaped steel structure and I- beam is for large tonnage loads handling with capacity up to 10 ton.
• All the movement of monorail trolley hoists and overhead bridge are independent which can travel separately and simultaneously.
• Various monorail trolley hoists are optional which are applicable to manual underslung crane and electric underslung crane,etc.
• Ground control method: pendant and remote control.

Safety of single girder underslung overhead crane

Safety is always the the top concerns of the all the crane manufacturer and crane supplier. Various safety devices and protection measures are adopted to ensure the crane safety during operation which are includes the following:

• limit switches for crane travelling, hoist lifting
• Weight overload protection device.
• Voltage lower protection function. Phase sequence protection function.
• Rain cover for outside applications to protect crane hoist, driving units, electric cubicle.
• Warning indicator: flashing lights and warning sounds.
• Wireless infra-detector for anti-collusion.
• Emergency stop function.

Various process safety devices are available for your selection. Contact us to get more information on process crane design for your particular applications and lifting requirements. Free single girder underlung crane design and crane drawings are available for honest clients and customers.

Chinese types Single girder underlusng crane

European standard single girder underhung bridge crane

Advantages of single girder underslung crane

With unique underslung crane design, the Chinese type single girder overhead travelling cranes are with advantages of reliable quality, simple assembley, safe and stable and reliable performance, cost-effective crane price, etc.

Robust structure, reliable quality, simple assembly

The under running overhead travelling crane kit are processed with quality steel materials with high strength and rigidity which can meet the requirements of any type of underslung crane design , underhung crane design, suspension crane design, and monorail crane system design, etc. The end track or end carriages can be bolted reliably , quickly and precisely by hand as a "do-it-yourself" kit.

Safe, stable & durable crane performance

The single girder underslung cranes can be easily moved because of their low deadweight and smooth-running trolleys. With robust and durable crane design, they can lift and transport the heavy and awkward work pieces up to 10 tons safely and reliably.

Single girder underslung crane design, Cost-effective overhead travelling eot crane solution

With single girder underslung crane design, the overhead travelling cranes can be attached and supported by the building roof or superstructur without additional supports for the crane which is cost-effective due to the reduced production cost, transportation cost, and construction cost of crane runway, etc. Contact us to see the chance what we can do to save your money.

Application of single girder suspension crane

The LX single girder overhead crane with Chinese underlusng crane designs are designed for light duty material handling with lifting capacity of 1 ton, 2 ton 3 ton , 5 ton up to 10 tons, which are widely used in workshops and warehouses of general manufacturing, equipment assembly, machinery maintenance, parts exchanging,die handling, and other various material loading and unloading, etc.

3 ton single girder underslung crane

2 ton single girder underslung crane

Underslung crane with chain hoist

Undesluing crane with electric wire rope hoists

The general use single girder suspension crane is not supposed to be used in workshops or warehouse where the inflammable, explosive or corrosive substances or media may have the potential to occur. If you need process crane design, please feel free to contact us to get free crane design and drawing.
