5 Ton Rubber-Tired Gantry Crane Drawing | 17m Span A5
5 ton RTG crane drawing with 17m span, 8.5m lifting height, 9.8m total height, cable reel power supply, 360° steering and A5 duty.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: RTG Crane Drawing
Tags: RTGGantryCraneDrawing
Project Overview:
This professional engineering drawing was meticulously developed by Yuantai Cranes, designated as model RTG5t-17m Rubber-Tired Gantry Crane (RTG) (Drawing No.: RTG5-17 A5). The comprehensive structure provides a wide total span of 17.0 meters and a total height of 9.8 meters, delivering an ample under-hook lifting height of 8.5 meters. It is tailor-made for expansive open-air storage yards, heavy industrial loading bays, and large logistics transfer hubs that demand broad coverage and exceptional mobility.
Yuantai 5-Ton Wide-Span Rubber-Tired Gantry (RTG) Crane Custom Solution: Total span 17.0 meters, total height 9.8 meters, rated lifting capacity 5t. Specially engineered for wide outdoor yards, material stacking zones, and precast concrete manufacturing facilities requiring extended coverage without fixed rail installations. The gantry travel mechanism features a 4.5-meter wheel base supported by robust rubber tires, equipped with advanced cable drum power supply systems and 360° full-rotational steering capabilities for ultimate yard navigation. Featuring an extended lifting height of 8.5 meters, powered by a high-performance NR5t electric hoist with hoisting speeds of 0.8/5.0 m/min and travel speeds of 1.0~10 m/min under ISO A5 duty class.

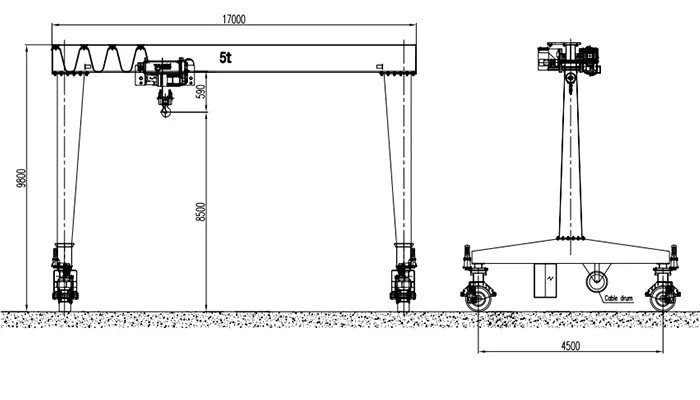

Yuantai Crane 5t Rubber-Tired Gantry Crane Drawing and Technical Specification (Model: RTG5t-17m A5, Drawing No.: RTG5-17 A5, Total Span: 17.0m, Total Height: 9.8m, Lifting Height: 8.5m, Wheel Base: 4.5m, ISO A5 Duty Class)
The standout innovations of this specific configuration include its wide-span structural framework combined with a 4.5-meter wheel base, an integrated motorized cable drum power supply system, and precision 360-degree all-directional steering. The hoisting system relies on the trusted NR5t electric hoist running on standard 3-phase 380V 50Hz power, achieving an ISO A5 medium-heavy duty classification for reliable, high-endurance performance.
Project & Technical Summary
- Equipment Type: Rubber-Tired Gantry Crane (RTG)
- Product Model: RTG5t-17m A5
- Drawing Number: RTG5-17 A5
- Manufacturer: Yuantai Cranes
- Duty Class: ISO A5
- Rated Capacity: 5.0 Tons
- Total Span: 17.0 Meters
- Total Height: 9.8 Meters
- Lifting Height: 8.5 Meters
- Tire Wheel Base: 4.5 Meters
- Power Feeding System: Motorized Cable Drum
- Steering & Mobility: Four-Wheel System with 360° Full-Rotational Steering
- Operating Speeds: Hoist Hoisting 0.8/5.0 m/min, Hoist Travel 1.0~10 m/min, Gantry Travel 1.0~10 m/min
- Power Supply: 3P 380V 50Hz
- Total Crane Weight: 8.21 Tons
- PDF Drawing :5 ton RTG crane drawing with 17m span, 8.5m lifting height, 9.8m total height, cable reel power supply, 360° steering and A5 duty.
Electric Hoist Technical Parameters Table (NR5t)
| Technical Parameter Item | Specification Description |
|---|---|
| Hoist Model | NR5t (Matched with LH5T Crane) |
| Rated Lifting Capacity | 5.0 Tons |
| Lifting Height | 8.5 Meters |
| Hoisting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Traveling Speed | 1.0 ~ 10 m/min |
| Hoisting Motor Power | 0.8 / 4.9 kW (Rotation Speed: 1440 r/min, 3-Phase, 380V, 50Hz) |
| Traveling Motor Power | 0.45 kW (Rotation Speed: 1440 r/min, 3-Phase, 380V, 50Hz) |
Crane Traveling & Comprehensive Technical Parameters
| System & Mechanism Item | Parameter Specification |
|---|---|
| Crane Model | LH5T / RTG5t-17m A5 |
| Gantry Traveling Speed | 1.0 ~ 10 m/min |
| Gantry Traveling Motor Power | 2 * 1.5 kW (Dual-motor drive setup, Rotation Speed: 1440 r/min, 3-Phase, 380V, 50Hz) |
| Tire Wheel Base & Dimensions | Tire Wheel Base: 4.5 Meters (Total Span 17.0m, Total Height 9.8m) |
| Power Management System | Equipped with integrated Cable Drum for safe, continuous power transmission |
| Steering & Mobility Feature | Four-wheel assembly supporting 360° Full-Rotational Steering |
| Total Crane Weight | 8.21 Tons |
Drawing Bill of Materials & Basic Project Information
| Project Attribute | Detailed Record |
|---|---|
| Design & Manufacturing Standards | ISO A5 Duty Class, built in accordance with international heavy-duty crane engineering standards |
| Drive & Steering Configuration | Four-wheel rubber tired configuration with 360° omni-directional steering and cable reel system |
| Drawing Number | RTG5-17 A5 (Sheet 1 of 1) |
| Drafting & Checking | Standardized and verified by Yuantai Crane Machinery Engineering Department |
How to Obtain Your Customized Yuantai Wide-Span RTG Crane Solution?
This technical drawing details a wide 17m span rubber-tired gantry crane featuring an 8.5m lifting height, 4.5m wheel base, cable drum power feeder, and 360-degree full-rotational steering. Yuantai Crane specializes in tailoring heavy-duty movable gantry systems to match exact site footprints.
| Customization Steps | Detailed Process Description |
|---|---|
| Step 1: Define Yard Span & Lift Height | Provide your site dimensions, required span (e.g., 17m), and clear lifting height (e.g., 8.5m). |
| Step 2: Custom Engineering & CAD Design | Yuantai engineers formulate structural layout, wheel load calculations, and cable management options. |
| Step 3: Protocol & Power Confirmation | Confirm electrical parameters (380V/50Hz), cable reel capacity, and steering mechanism preferences. |
| Step 4: Fabrication & Global Export Support | Precision manufacturing under ISO A5 quality control, accompanied by complete installation documentation. |
Frequently Asked Questions (RTG5t-17m Drawing Technical Analysis)
Professional insights regarding the 17m wide span, 8.5m lifting height, cable drum power system, and 360° steering capabilities.
1. What are the operational benefits of a 17m wide span in an outdoor storage yard?
A 17-meter wide span provides a substantially larger coverage area for stacking materials, loading trucks, and staging components without requiring frequent repositioning of the gantry legs, maximizing operational throughput.
2. How does the 360° full-rotational steering system enhance crane maneuverability?
Unlike standard cranes restricted to linear travel, the four-wheel 360° steering system allows the rubber-tired gantry to pivot, crab-walk, and maneuver effortlessly around tight corners or complex obstacle layouts in busy yards.
3. What is the function of the onboard cable drum?
The motorized cable drum automatically manages, winds, and unwinds the power cable as the crane travels across the 17m span, ensuring a continuous, tangle-free power supply for long-distance travel.
4. How does the 8.5m lifting height benefit high-stacking operations?
An 8.5-meter hook height provides ample vertical clearance to stack bulky materials or containers in multiple tiers, fully utilizing vertical storage space in outdoor yards.
Need a Wide-Span RTG Crane Solution and Quotation Customized to Your Facility?
Share your exact yard dimensions, hook height requirements, and power availability with us. Yuantai Crane international engineering consultants will deliver a custom CAD layout and precise quotation within 24 hours.
Yuantai Rubber-Tired Gantry Crane Full Series Solutions
Yuantai Crane offers global clients customized RTG series Rubber-Tired Gantry Crane Solutions, engineered for demanding outdoor yards, precast manufacturing, and logistics hubs. Every system can be tailored to your specific span, lifting height, steering type, and power configuration.
Typical Technical Specification Ranges:
- Rated Capacity: 3.0 – 50.0 Tons (Project Model: 5.0 Tons)
- Total Span: 5.0 – 30.0 Meters (Project Model: 17.0 Meters)
- Lifting Height: 3.0 – 20.0 Meters (Project Model: 8.5 Meters)
- Duty Class: ISO A3 / A4 / A5 (Project Model: ISO A5 Medium-Heavy Duty)
- Key Features: Cable Drum Power Feed, 360° All-Directional Steering, 4.5m Wheel Base, 8.21t Self-Weight
- Application Scenarios: Wide Outdoor Stockyards, Logistics Centers, Precast Concrete Yards, Heavy Assembly Areas
Yuantai is dedicated to delivering turnkey engineering design, robust non-standard manufacturing, pre-shipment factory testing, complete export documentation, and expert overseas installation supervision.
In-Depth Engineering Strength & Customization Advantages
By integrating a 5t capacity, 17m wide span, 8.5m hook height, cable drum power system, and 360° steering mechanism, Yuantai Crane sets a benchmark for flexible, high-coverage material handling equipment.
| Customer Engineering Challenge | Yuantai Customized Solution | Core Reference Parameters |
|---|---|---|
| Wide Working Area Coverage Needed The storage yard is expansive and requires a broad operating span without fixed rail tracks. | Engineered a wide 17m span frame supported by rubber tires, providing massive workspace coverage and trackless mobility. | Span: 17m | Drive: Rubber Tires |
| Complex Turning & Navigating Requirements The yard layout has tight corners and requires flexible omni-directional movement. | Equipped with a 4.5m wheel base and 4-wheel assembly featuring 360° full-rotational steering for maximum agility. | Steering: 360° Full-Rotational | Wheel Base: 4.5m |
| Continuous Power Supply for Long Travel Long-distance traversing across a 17m span requires reliable, tangle-free power delivery. | Integrated an automatic motorized cable drum system to safely manage power transmission during travel. | Power System: Cable Drum |
How to Evaluate Whether This Solution Fits Your Project?
- 17m Wide Span & 8.5m Lifting Height: Maximizes horizontal and vertical storage capacity.
- 360° Full-Rotational Steering: Delivers unmatched maneuverability in congested yards.
- Cable Drum Power Supply: Ensures uninterrupted, safe electrical feeding during long travels.
- ISO A5 Duty Class: Built for dependable, medium-heavy industrial workloads.
