5 Ton Rubber-Tired Gantry Crane Drawing | 5m Span A3
5 ton RTG crane drawing with 5m inner span, 5m total height, A3 duty, CH5t electric chain hoist, cable drum power supply and 3m wheel base.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: RTG Crane Drawing
Tags: RTGGantryCraneDrawing
Project Overview & Container Loading Specialized Design:
This technical drawing was offered by Yuantai Crane Machinery, designated as model RTG5t-5m Rubber-Tired Gantry Crane (RTG) (Drawing No.: RTG5-5 A5). The overall structural design is exceptionally compact, featuring an inner span width of 5.0 meters, a total height controlled at 5.0 meters, and a lifting height of 3.3 meters. This special "low-profile wide-span" low-headroom structure was engineered to perfectly solve industry challenges regarding site height and width restrictions, specifically for efficiently loading large panels/components measuring 2.5m × 3.5m × 0.2m into 40ft High Cube Containers (40ft HC).
Yuantai 5-Ton Compact Low-Headroom Rubber-Tired Gantry (RTG) Crane Custom Solution: Inner span width 5.0 meters, total height 5.0 meters, rated lifting capacity 5t. This drawing project is tailored specifically for specialized logistics and exhibition scenarios, with the core purpose of precisely and safely lifting oversized flat cargo measuring 2.5m x 3.5m x 0.2m and loading it into 40ft High Cube Containers, while also perfectly matching the strict display and hoisting requirements of international trade shows like the Canton Fair. The gantry travel mechanism is upgraded with high-quality, wear-resistant industrial rubber tires, featuring a 3.0-meter wheel base for smooth movement. The hoisting mechanism utilizes an efficient CH5t electric chain hoist with a lifting height of 3.3 meters and a lifting speed of 2.7 m/min. Both travel and hoisting run smoothly, while the electrical system features a 3P 220V 60Hz configuration under ISO A3 duty class.

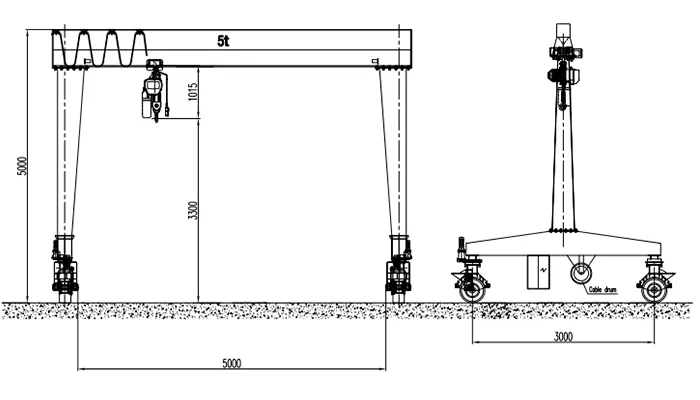

Yuantai Crane 5t Rubber-Tired Gantry Crane Drawing and Technical Specification (Model: RTG5t-5m A5/A3, Drawing No.: RTG5-5 A5, Inner Span: 5.0m, Total Height: 5.0m, Wheel Base: 3.0m, Rated Capacity: 5t)
Another major innovative highlight of this project is the comprehensive upgrade of its mobility: traditionally styled crane wheels have been completely replaced with high-quality, high-grip, wear-resistant rubber tires, which not only significantly improve ground adaptability but also provide excellent shock absorption and floor protection. Furthermore, this equipment is well-suited as a high-end heavy industrial physical display and lightweight hoisting demonstration model at premier international trade events like the Canton Fair, combining exceptional practical value with visual impact.
Project & Technical Summary
- Equipment Type: Rubber-Tired Gantry Crane (RTG / Rubber-Tired Single Girder Gantry Crane)
- Product Model: RTG5t-5m A5 (Actual duty class rated ISO A3)
- Drawing Number: RTG5-5 A5
- Manufacturer: Yuantai Crane Machinery
- Duty Class: ISO A3
- Rated Capacity: 5.0 Tons
- Inner Span Width: 5.0 Meters
- Total Crane Height: 5.0 Meters
- Lifting Height: 3.3 Meters
- Tire Wheel Base: 3.0 Meters
- Power Supply & Transmission: Equipped with motorized electric cable drum
- Operating Speeds: Chain hoist lifting 2.7 m/min, hoist travel 11 m/min, gantry travel 10 m/min
- Special Power Configuration: 3-Phase 220V 60Hz (Customized for specific overseas power standards)
- Total Crane Weight: 4.21 Tons
- PDF Drawing : RTG5t-5m A5/A3, Drawing No.: RTG5-5 A5, Inner Span: 5.0m, Total Height: 5.0m, Wheel Base: 3.0m, Rated Capacity: 5
Electric Chain Hoist Technical Parameters Table (CH5t)
| Technical Parameter Item | Specification Description |
|---|---|
| Hoist Type | CH5t Electric Chain Hoist |
| Rated Lifting Capacity | 5.0 Tons |
| Lifting Height | 3.3 Meters |
| Lifting Speed | 2.7 m/min |
| Electric Traveling Speed | 11 m/min |
| Hoisting Motor Power | 3.0 kW (Rotation Speed: 1440 r/min, 3-Phase, 220V, 60Hz) |
| Traveling Motor Power | 0.75 kW (Rotation Speed: 1440 r/min, 3-Phase, 220V, 60Hz) |
Crane Traveling & Comprehensive Technical Parameters
| System & Mechanism Item | Parameter Specification |
|---|---|
| Crane Model | LH5T / RTG5t-5m A3 |
| Gantry Traveling Speed | 10 m/min |
| Gantry Traveling Motor Power | 2 * 0.75 kW (Dual independent side drive, Rotation Speed: 1440 r/min, 3-Phase, 220V, 60Hz) |
| Travel Wheel Upgrade Feature | Conventional wheels completely replaced with high-quality, wear-resistant rubber tire wheels for smooth transitions and floor protection |
| Power Management System | Equipped with integrated Cable Drum for safe and reliable mobile power delivery |
| Total Crane Weight | 4.21 Tons |
Drawing Bill of Materials & Basic Project Information
| Project Attribute | Detailed Record |
|---|---|
| Design & Manufacturing Standards | ISO A3 Duty Class, strictly complying with international light-to-medium material handling standards |
| Special Application Scenarios | Loading 2.5mx3.5mx0.2m large cargo into 40ft High Cube containers, Canton Fair site display and lightweight hoisting |
| Drawing Number | RTG5-5 A5 (Sheet 1 of 1) |
| Drafting & Checking | Standardized and drawn by Yuantai Crane Machinery Engineering Technical Department |
Yuantai Innovation: How to Perfectly Achieve Loading 2.5mx3.5mx0.2m Cargo into a 40ft High Cube Container?
In international trade and heavy logistics, safely and rapidly loading large-sized yet thin panels, glass, or precast components (such as 2.5m × 3.5m × 0.2m specifications) into 40ft High Cube Containers has always been an industry bottleneck. Yuantai Crane provides an automated solution through this 5m span, 5m total height rubber-tired gantry crane:
| Container Loading Engineering Step | Yuantai Customized Solution | Core Technical Advantages |
|---|---|---|
| Height & Space Matching 40ft container door height is restricted; standard cranes cannot reach inside. | Precisely engineered 5.0m total height and 3.3m lifting height clear the container rear frame while providing ample vertical lifting space. | Total Height 5m | Perfect for High Cube Operations |
| Stable Handling of Large Thin Panels 2.5m x 3.5m wide area with only 0.2m thickness is prone to swaying. | Utilizes a CH5t electric chain hoist for smooth operation and superior verticality, paired with multi-point flexible rigging to prevent component deformation. | CH5t Chain Hoist | Stable Movement |
| Trackless Flexible Shifting & Ground Protection Requires frequent movement on container yard concrete surfaces. | Travel wheels upgraded to high-quality wear-resistant rubber tire wheels with strong traction that do not damage floors, paired with an automatic motorized cable drum. | Quality Rubber Tires | Cable Drum Power Supply |
Frequently Asked Questions (RTG5t-5m Drawing Technical Analysis)
Professional insights addressing core highlights including the 5m span, 5m total height, electric chain hoist, high-quality rubber tires, and 40ft container loading.
1. Why is this model particularly suited for loading 2.5mx3.5mx0.2m cargo into 40ft High Cube containers?
The 5-meter total height and 5-meter inner span of this crane are precision-engineered via geometry to span over the container rear in outdoor or warehouse yards. Combined with precise electric chain hoist control, it smoothly guides large, thin components horizontally into the container interior, saving immense manual labor.
2. What are the practical benefits of replacing crane wheels with "high-quality wear-resistant rubber tire wheels"?
Compared to standard steel wheels or low-grade plastic wheels, high-quality wear-resistant rubber tires offer excellent shock absorption, superior ground traction, and extended service life. They are especially ideal for flexible relocations on port, yard, or asphalt surfaces without damaging the pavement.
3. Why choose a CH5t electric chain hoist instead of a wire rope hoist?
Electric chain hoists exhibit virtually no lateral sway during vertical lifting (delivering better hook verticality). For compact spaces requiring precise positioning during container loading of 2.5m × 3.5m large cargo, chain hoists offer enhanced safety stability and precision.
4. What is the reasoning behind the 3P 220V 60Hz electrical system?
This power configuration is custom-built for specific overseas regional power grids (such as the Americas, parts of the Caribbean, or specific Asian industrial standards), ensuring the equipment can plug directly into local power grids and run stably upon arrival without external transformers.
Need a Customized RTG Crane Solution for Container Loading or Canton Fair Display?
Whether you need to solve container loading bottlenecks for unique cargo sizes or search for a lightweight gantry crane for physical exhibition displays, Yuantai Crane international engineering consultants can provide free CAD general arrangement layouts and precise quotations within 24 hours.
Yuantai Rubber-Tired Gantry Crane Full Series Solutions
Yuantai Crane offers global clients customized RTG series Rubber-Tired Gantry Crane Solutions, widely applied in outdoor stockyards, container stuffing, exhibition demonstrations, and trackless logistics centers. All systems can be exclusively designed according to your exact span, net height, power supply, and container loading requirements.
Typical Technical Specification Ranges:
- Rated Capacity: 1.0 – 50.0 Tons (Project Model: 5.0 Tons)
- Inner Span Width: 3.0 – 30.0 Meters (Project Model: 5.0 Meters)
- Total Height: 3.0 – 20.0 Meters (Project Model: 5.0 Meters)
- Duty Class: ISO A3 / A4 / A5 (Project Model: ISO A3 Light-to-Medium Duty)
- Key Highlights: 40ft High Cube Container Loading Specialization, High-Quality Wear-Resistant Rubber Tires, Cable Drum Power Supply, 3P 220V 60Hz
- Application Scenarios: Container Yards, Large Cargo Loading Logistics, Canton Fair and Trade Exhibition Equipment Displays, Small Machinery Workshops
Yuantai is committed to providing global clients with comprehensive engineering design, non-standard customization, factory pre-assembly testing, professional export documentation support, and senior engineer overseas installation guidance services.
In-Depth Engineering Strength & Customization Advantages
By skillfully integrating a 5t capacity, 5m inner span, 5m total height, high-quality rubber tire wheels, electric chain hoist, and overseas-specific 220V/60Hz electrical system, Yuantai Crane once again demonstrates outstanding engineering innovation and rapid response to complex logistics challenges such as 40ft container loading.
| Customer Engineering Challenge | Yuantai Customized Solution | Core Reference Parameters |
|---|---|---|
| Difficulty Loading Large Cargo into 40ft High Cube Containers 2.5m x 3.5m wide thin plate cargo is difficult to safely and smoothly load through container doors. | Customized 5m span and 5m total height low-headroom structure, paired with an electric chain hoist for precise container loading positioning. | Inner Span: 5m | Total Height: 5m | Chain Hoist |
| Frequent Relocation & Floor Protection Requirements Yard cement flooring must avoid crane wheel damage while maintaining mobility. | Gantry standardly equipped with high-quality, wear-resistant rubber tire wheels combined with cable drum power supply, balancing mobility and safety. | Wear-Resistant Rubber Tires | Cable Drum |
| Special Overseas Power & Exhibition Standards Equipment must operate in specific 220V/60Hz regions and feature stellar appearance for Canton Fair display. | Customized 3P 220V 60Hz electrical system with premium factory coating and pre-assembly, offering both utility and exhibition-grade quality. | Power: 3P 220V 60Hz | Canton Fair Display Grade |
How to Evaluate Whether This Solution Fits Your Project?
- 5m Span & 5m Total Height: Specially designed for 40ft High Cube container loading and height-restricted yards.
- High-Quality Wear-Resistant Rubber Tires: Protects flooring and provides smooth trackless relocation capability.
- CH5t Electric Chain Hoist: High verticality and smooth operation, ideal for precision lifting.
- Cable Drum & 220V/60Hz: Meets specific overseas power grids and long-distance mobile power requirements.
Do you have oversized cargo container loading or special exhibition crane requirements?
Send us your cargo dimensions (e.g., 2.5m×3.5m), container type, and site conditions right away. Yuantai Crane engineering experts will provide a free customized CAD general arrangement plan, engineering evaluation, and precise quotation within 24 hours!
