When to Choose Cantilever Gantry vs Extending Rails
When to Choose a Cantilever Gantry Crane vs Extending Rails – Cost-Benefit Comparison for Buyers
Gantry cranes are a common sight in industrial facilities, workshops, and outdoor yards. They are designed to lift, move, and place heavy materials with efficiency and safety. But not all gantry cranes are the same. Depending on the type of operation, layout, and workflow, the choice between a cantilever gantry crane and a crane running on extended rails can make a big difference in productivity and cost.
Choosing the right solution isn’t just about picking the crane with the highest lifting capacity. Buyers need to weigh several factors to ensure the investment pays off in the long run. This guide focuses on practical considerations to help you make a clear, informed choice.
Key considerations for buyers include:
- Operational efficiency: Will the crane reach all areas where materials need to be handled? How smoothly can it travel between work points?
- Budget constraints: Initial purchase costs, installation expenses, and ongoing maintenance all affect the total investment.
- Installation requirements: Some solutions need extensive civil work or rail alignment, while others can be installed quickly on uneven or existing groun
The Options
When it comes to choosing a gantry crane system, buyers usually face two main options: cantilever gantry cranes or cranes with extending rail systems. Each has its strengths and limitations, depending on the site layout, load type, and operational needs. Let’s break them down.
Cantilever Gantry Cranes

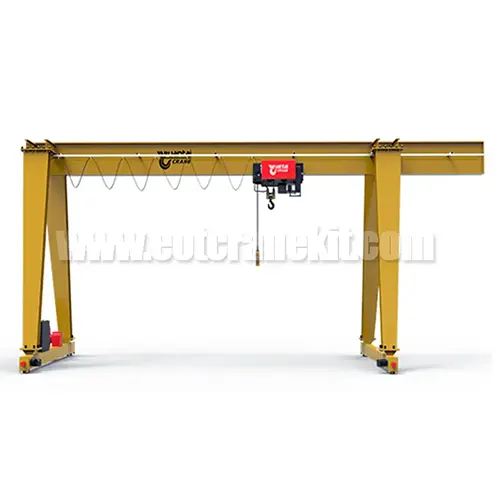

Cantilever gantry cranes are designed with an extended beam that projects beyond the main support columns. This design allows the crane to reach areas where a standard crane might not fit, making it a popular choice for uneven or open yard spaces.

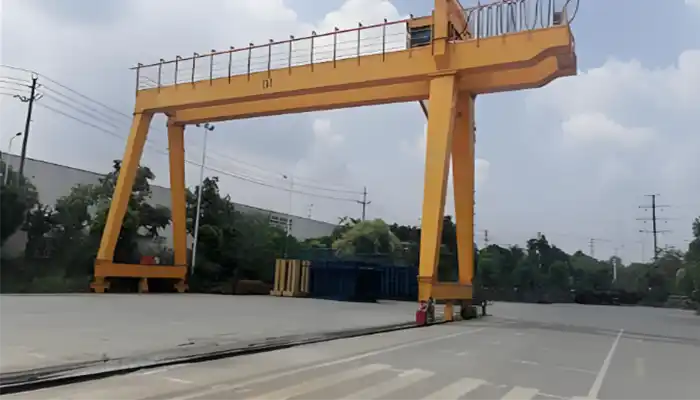

double cantilever gantry craneTypical use cases:
- Outdoor storage yards where materials are spread over a wide or irregular are
- Handling heavy or awkward loads that need to be lifted beyond the edge of a fixed runway.
- Temporary or changing work sites where flexibility is needed without laying new rails.
Key features and practical benefits:
- Extended reach: Can operate beyond the support structure, which is great when you need extra working space.
- Minimal rail modification: Often, you don’t need to adjust existing rails or build new runways.
- Flexible loading/unloading: Easy to move materials to multiple points without relocating the entire crane system.
A cantilever crane is especially useful when your yard layout changes frequently or when you need to lift loads from multiple positions along the crane’s reach. It saves both time and civil work costs.
Extending Rail Systems
Extending rail systems are essentially a way to expand the working area of an existing crane without installing a completely new crane. Rails can be added modularly to increase the travel length, allowing cranes to cover longer paths in workshops or yard spaces with predictable layouts.
Typical use cases:
- Workshops where materials follow a fixed path between workstations.
- Yards where the workflow is repetitive, and cranes need to cover a defined travel route.
- Situations where you already have a crane and want to increase its reach without replacing it entirely.
Key features and practical benefits:
- Expandable working area: You can increase the crane’s operational length by adding rail sections.
- Modular track systems: Rails can be extended incrementally as neede
- Compatibility with existing cranes: Works with most standard overhead cranes, making upgrades simpler and cost-effective.
Extending rails are ideal if your workflow is steady and predictable, and you want to get more coverage from your current crane investment. They minimize the need for extra cranes while keeping installation fairly straightforward.
Cost Considerations: Cantilever Gantry Crane vs. Extending Rails
Choosing between a cantilever gantry crane and extending rails involves more than just the purchase price. Installation, maintenance, and ROI all play a role.
Initial Investment
Upfront costs vary between options but should be weighed against yard modifications.
- Cantilever gantry cranes: Higher structural cost due to extended beams and reinforced supports. Higher initial investment, but may avoid the cost of laying new rails.
- Extending rail systems: Moderate cost, mostly adding rail segments and minor supports. Lower upfront investment but may involve yard adjustments.
Installation Costs
Operational constraints show up most clearly during installation.
- Cantilever cranes: Minimal civil work, can use existing foundations, faster deployment, less disruption.
- Extending rails: More labor-intensive, precise alignment and leveling required, sometimes reinforced foundations needed.
Maintenance Costs
Long-term costs depend on complexity and upkeep requirements.
- Cantilever cranes: Straightforward maintenance—regular structural checks and lubrication. Fewer wear-prone components reduce downtime.
- Extending rails: Rails require inspection and occasional realignment. Additional supports may need maintenance, adding complexity and cost.
Long-Term ROI
Consider operational efficiency alongside financial costs.
- Cantilever cranes offer flexibility in changing or irregular layouts, reducing workflow interruptions.
- Extending rails maximize coverage with existing cranes but are less adaptable to layout changes or workflow variations.
Overall, slightly higher upfront investment in a cantilever crane can pay off through reduced installation, simpler maintenance, and smoother operations.
Operational Considerations
Beyond cost, operational factors often determine which solution will work best in a real-world setting. Understanding how your materials move, the layout of your yard or workshop, and how much flexibility you need is key to making the right choice.
Load Types and Capacity
One of the first questions to ask is: what are you lifting, and how often?
- Weight and size of typical loads: If you regularly handle heavy or oversized items, the crane must be designed to carry those loads safely without excessive deflection or strain.
- Relevance to crane design: Cantilever cranes must have a span and beam design that can support the loads at the extended reach. Too long a cantilever without proper reinforcement can lead to sagging or reduced safety margins.
- Practical tip: Always calculate the maximum expected load—including any bundles or irregularly shaped items—plus a safety margin of at least 20–30%. This ensures the crane can handle unexpected variations without compromising safety.
Yard/Workshop Layout
The physical space where the crane will operate directly affects the choice of system.
- Space availability: Narrow aisles, overhead obstacles, or uneven ground may limit the type of crane you can install.
- Obstructions: Pipes, columns, or other equipment can interfere with crane movement. Cantilever cranes can often "reach around" these obstacles, whereas rail systems require clear, continuous tracks.
- Workflow paths: Frequent changes in workflow or material locations favor cantilever cranes, as they can handle varying lift points without moving rails.
In short, the more irregular your yard or workshop layout, the more advantage a cantilever crane provides.
Flexibility and Adaptability
How adaptable your crane needs to be can make a big difference over time.
- Cantilever cranes: Ideal for yards or workshops that expand, reconfigure, or handle loads at multiple positions. They give you extended reach without the need to move or add tracks.
- Extending rails: Better suited for fixed, predictable operations. If materials follow a set path day after day, rails ensure the crane can cover long distances efficiently.
Flexibility often comes at a cost, but in environments where layouts or lifting points change frequently, cantilever cranes usually save both time and operational headaches in the long run.
Safety and Compliance
Safety is non-negotiable when operating cranes. Proper precautions, structural checks, and regulatory compliance prevent accidents, protect personnel, and ensure smooth operations.
Structural Safety
- Cantilever cranes: The extended beam must support the maximum load without sagging or deflection. Always verify the cantilever length matches the expected load.
- Practical tip: Request detailed structural calculations and safety factors from your supplier. A well-engineered cantilever design should handle 20–30% more than the maximum expected weight.
- Extending rail systems: Rails must withstand repeated heavy crane travel. Proper anchoring and alignment are critical to maintaining stability and minimizing vibration.
Rail Wear and Alignment
- Rail wear: Uneven rails can cause bumps, jerky motion, and additional stress on wheels and bearings.
- Alignment issues: Misaligned rails increase the risk of derailment and lead to uneven load distribution.
- Practical tip: Conduct inspections quarterly—or more frequently for heavy-duty operations—to check rail wear, alignment, and base integrity.
Regulatory and Inspection Requirements
- Both cantilever cranes and extended rail systems must comply with national and international safety standards such as OSHA, ISO, or relevant local regulations.
Inspection requirements:
- Periodic structural checks and load testing.
- Electrical system inspections for powered cranes.
- Operator certification according to local standards.
Documentation: Maintain detailed inspection and maintenance logs to ensure compliance and detect early warning signs of wear or structural fatigue before they lead to failure.
Prioritizing safety and compliance protects personnel and equipment, reduces downtime, and ensures your crane system remains reliable and efficient over the long term.
Case Studies / Examples
Sometimes, the best way to understand the differences between cantilever gantry cranes and extending rail systems is to see them in action. Below are a few real-world scenarios that illustrate how each solution performs, including costs, operational benefits, and challenges.
Cantilever Gantry Crane – Outdoor Steel Yard
Scenario: A mid-sized steel fabrication yard needed to lift heavy plates from stacks and move them to multiple processing stations. The yard layout was irregular, with limited space for new rail installation.
Solution: A cantilever gantry crane with a 6-meter extended beam was installed.
Results and benefits:
- Minimal civil work required; the crane was installed on existing foundations.
- Operators could lift and move plates across multiple positions without repositioning rails.
- Reduced installation time and upfront costs compared to laying new rails.
Challenges faced:
- Required careful planning to ensure the cantilever beam could handle maximum loa
- Periodic structural inspections were critical to maintain safety over time.
Extending Rail System – Workshop Production Line
Scenario: A manufacturing workshop needed to move large assemblies along a fixed production line, covering 40 meters of travel. The workflow was predictable and repeated daily.
Solution: Existing overhead cranes were fitted with an extending rail system to cover the full length of the line.
Results and benefits:
- Extended coverage without purchasing additional cranes.
- Smooth, predictable operation along the fixed path.
- Lower upfront cost compared to building a new cantilever crane for the same coverage.
Challenges faced:
- Rail installation required precise leveling and alignment, which took additional time.
- Regular maintenance was necessary to prevent wear and ensure smooth crane travel.
Practical Takeaways for Buyers
- Cantilever cranes excel in irregular layouts or yards where flexibility is needeThey reduce civil work and allow multi-point handling without extensive groundwork.
- Extending rails work best in structured, repeatable workflows where maximizing coverage from existing cranes is a priority. They are cost-effective but require careful installation and ongoing rail maintenance.
- Evaluating your yard layout, load types, workflow, and maintenance capacity before deciding can save both money and operational headaches in the long term.
Decision-Making Framework for Buyers
Choosing the right crane solution can feel overwhelming, but breaking it down into key questions and practical comparisons makes the decision much easier. This framework focuses on what matters most for daily operations, safety, and cost efficiency.
Key Questions for Buyers
Before deciding between a cantilever gantry crane and an extending rail system, consider these questions:
- What is the maximum load and frequency of lifting?
Understanding your heaviest loads and how often they are handled will help determine the crane’s capacity and span requirements. - How flexible does the crane need to be?
If the yard or workshop layout changes frequently, or if multiple lift points are needed, flexibility is a priority. - Are there existing rails or obstructions?
The presence of existing rail systems, columns, pipes, or uneven surfaces may favor one solution over the other. - What is the long-term budget versus operational benefit?
Consider installation, maintenance, and downtime costs alongside upfront investment. Sometimes paying a bit more upfront saves significantly over time.
Cantilever vs Extending Rails – Practical Comparison
| Feature | Cantilever Gantry Crane | Extending Rail System |
|---|---|---|
| Cost | Higher initial structural cost; may reduce civil work costs | Moderate initial cost; uses existing cranes but requires rail installation |
| Installation | Minimal civil work; easier on uneven surfaces | Requires precise rail alignment and sometimes reinforced foundations |
| Flexibility | High; can handle irregular layouts and multiple lift points | Moderate; best for predictable, fixed paths |
| Maintenance | Regular structural inspections; fewer moving parts | Rail alignment and wear monitoring needed; more complex over time |
| Operational Efficiency | Excellent in dynamic layouts or outdoor yards | Excellent for fixed, repeatable workflows |
| Best For | Yards or sites with changing layouts, irregular lifting points | Workshops or yards with structured workflow and long travel paths |
This framework helps buyers quickly identify which solution fits their specific needs, budget, and operational environment. By answering the key questions and reviewing the comparison table, you can make a practical, informed choice and avoid costly mistakes.
Conclusion
Choosing the right gantry crane system is about more than just lifting capacity—it’s about matching the crane to your yard, workshop, and workflow. Both cantilever gantry cranes and extending rail systems have clear advantages, and understanding these can save time, money, and operational headaches.
Key Differences and Advantages
Cantilever Gantry Cranes:
- Best for irregular or expanding yard layouts.
- Offers extended reach without modifying rails.
- Minimal civil work required and easier installation on uneven ground.
- Simple maintenance with fewer moving parts.
Extending Rail Systems:
- Ideal for predictable, fixed workflows.
- Expands operational coverage using existing cranes.
- Moderate upfront cost but requires precise rail installation and ongoing alignment checks.
- Works well for long, straight travel paths where repeated tasks are performed.
Practical Advice for Buyers
- Align crane choice with operational needs, load types, and workflow patterns.
- Factor in installation, maintenance, and long-term ROI, not just the initial purchase cost.
- Consult with manufacturers or suppliers to get a tailored solution that meets your yard or workshop requirements.
Making the right decision ensures your crane system delivers reliable performance, reduces downtime, and supports smooth material handling for years to come.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
