5–10 Ton Gantry Crane with Single or Dual Hoists for Bamboo Handling in Vietnam

Bamboo is everywhere in Vietnam — from rural villages to industrial zones — and it's a backbone of furniture, construction, and handicraft industries. But handling it efficiently can be tricky. Bamboo bundles are long, flexible, and sometimes heavy, and manual lifting is slow, tiring, and can damage the material.

That's why gantry cranes are becoming common in small and medium bamboo processing yards. Typically, 5–10 ton single girder gantry cranes hit the sweet spot: strong enough for most bamboo bundles, yet compact for outdoor yards and semi-covered workshops.

Choosing Between Single and Dual Hoists

Vietnamese bamboo operators usually pick the hoist setup based on bundle length and weight:

Single Hoist Setup

Handles moderate-length bundles (around 6–7 meters).
Simple, cost-effective, and easy to operate.
Ideal for smaller workshops or limited yard space.

Dual Hoist Setup

Designed for long or heavy bundles (up to 10 meters).
Hoists can run synchronously to lift evenly and safely.
Perfect for industrial factories or export preparation yards with high throughput.

Why 5 Ton –10 Ton Gantry Cranes Are Popular

In Vietnam, 5–10 ton single girder gantry cranes are widely used because they fit the typical size and workflow of most bamboo operations. They aren't overbuilt, but they're strong enough to handle the most common lifting tasks efficiently.

Practical Advantages

Ideal for small-to-medium workshops: These cranes work well in bamboo furniture factories, construction material yards, and semi-covered processing areas.
Handles long or bundled bamboo: Lifting bamboo poles between 6–12 meters or bundled bamboo weighing several tons is manageable without strain or risk of bending.
Balanced capacity and cost: They provide enough lifting power while keeping installation and operating costs reasonable, which is important for smaller businesses.
Smooth material flow: The crane reduces manual labor, prevents material damage, and keeps the yard organized, so bundles move quickly from delivery trucks to curing tanks, drying racks, or storage areas.

In short, the 5 ton gantry crane and 10 ton gantry crane range hits the sweet spot for efficiency, safety, and practicality in Vietnam's bamboo industry. It's the crane size that most yards find most useful day-to-day.

Single Hoist vs Dual Hoist Options

In Vietnam's bamboo industry, the choice between a single hoist and dual hoist gantry crane depends largely on the size, weight, and length of bamboo bundles, as well as the yard layout. Picking the right configuration ensures safer operations, reduces manual labor, and protects the bamboo from bending or damage.

Single Hoist Gantry Crane

For smaller workshops or yards handling moderate-length bamboo bundles, the single hoist setup is often sufficient. It's a straightforward solution that balances cost, ease of use, and practicality.

Capacity: 5–10 tons
Bundle Type: Moderate-length, standard weight
Highlights:Simple and compact design.Easy operation and maintenance.Lower cost, ideal for smaller workshops
Limitation: Not ideal for very long or uneven bundles

Ask for gantry crane price

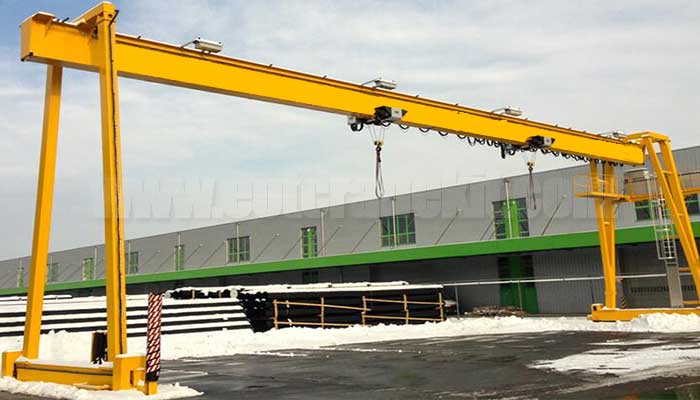

Dual Hoist Gantry Crane

When bamboo bundles are longer, heavier, or irregular, a dual hoist configuration becomes more practical. Two synchronized hoists allow even lifting, reducing the risk of bending or slippage during transport. This setup is common in industrial factories or export yards where efficiency and safety are critical.

Capacity: 5–10 tons per hoist (can combine for heavier loads)
Bundle Type: Long or awkward bamboo bundles
Highlights:Two hoists can be synchronized for balanced lifting.Handles heavier or longer bundles in a single move.Flexible operation; hoists can run independently or together

Ask for gantry crane price

Consideration: Slightly higher cost, requires trained operator

A single hoist crane works best for everyday moderate bundles, while a dual hoist setup is ideal for long, heavy, or awkward bamboo bundles. Choosing the right hoist configuration ensures efficient, safe, and damage-free handling in Vietnamese bamboo operations. Check more on double hoist gantry crane single girder design vs double girder design.

Typical Bamboo Bundle Dimensions and Information Needed for a Tailored Crane

To design a gantry crane that handles bamboo safely and efficiently, it's essential to provide accurate information about your bamboo bundles. Bundles differ in length, diameter, weight, and flexibility, and these factors directly affect hoist type, crane capacity, and lifting gear design.

Key Parameters for Crane Design

Length: 6–12 meters. Longer bundles may need dual hoists or adjustable spacing to lift evenly.
Diameter: 5–15 cm per pole, with bundled diameter around 30–50 cm. The lifting clamp or hook must match the bundle size for secure handling.
Weight per bundle: 0.5–2 tons. Depends on the number of poles, moisture content, and bundle density. Heavier bundles may require reinforced hoists or synchronized lifting.
Flexibility: Bamboo can bend or sway under its own weight. Requires careful selection of hoists, trolleys, and lifting gear to prevent damage or slipping.
Safety margin: Add 20–30% above the maximum weight to ensure safe operation. Protects both the crane and the bamboo during handling.

Providing these details allows the supplier to design a customized gantry crane that meets your yard's workflow, bundle sizes, and handling frequency. Accurate specifications help ensure efficient, safe, and smooth material handling. Contact us to get your tailored solution. WhatsApp； + 86 151 3871 1597.

Customization Parameters for Bamboo Handling Gantry Cranes

When ordering a gantry crane for bamboo, buyers should provide:

Lifting capacity required (5–10 tons typical)
Number of hoists (single or dual)
Crane span (distance between legs, based on yard layout)
Lifting height / hook travel (to accommodate racks, trucks, or drying areas)
Bundle dimensions and maximum weight
Ground / floor conditions (concrete, uneven ground, semi-paved)
Outdoor exposure (humidity, rainfall → anti-corrosion, rain covers)
Power supply details (voltage, cable length, festoon or reel system)
Operation frequency (low/medium lifting cycles per day)
Optional features: limit switches, overload protection, remote control, adjustable trolleys

Typical Applications in Vietnam

Gantry cranes play a vital role in Vietnam's bamboo industry, where bundles vary in length, weight, and handling requirements. Here's a detailed look at where and how single girder gantry cranes are used across the country.

Small Furniture Workshops

In smaller workshops producing bamboo chairs, tables, and decorative items, single hoist cranes are often sufficient. These cranes handle moderate-sized bundles, usually up to 6–7 meters in length and around 1 ton per bundle.

Move bamboo from storage racks to cutting or assembly areas.
Reduce reliance on manual lifting, improving worker safety.
Fit well in limited floor space, making them practical for compact workshops.
Simple operation allows small teams to manage loading, unloading, and stacking efficiently.

Medium Bamboo Factories

Larger factories producing laminated bamboo panels, furniture components, or medium-scale construction materials require more robust solutions. Dual hoist gantry cranes are ideal here for handling long bamboo poles or stacked laminated panels.

Hoists can operate synchronously, lifting bundles evenly to prevent bending.
Cranes move material between processing lines, from soaking tanks or drying racks to cutting and pressing stations.
Support higher throughput with minimal manual labor, maintaining a smooth workflow.
Adjustable lifting gear allows the same crane to handle different bundle sizes or panel thicknesses.

Construction Material Yards

Producers of treated bamboo poles, flooring bundles, or scaffolding materials rely on gantry cranes for both lifting and organizing raw and treated bamboo.

Move long or heavy bundles safely across the yard.
Load onto trucks for local distribution or site delivery.
Reduce handling damage, which is critical for treated or high-value bamboo.
Dual hoist configurations allow simultaneous lifting of multiple bundles, improving efficiency.

Export-Oriented Facilities Near Ports

Vietnam's major export hubs, such as Hai Phong in the north and Ho Chi Minh City in the south, use gantry cranes to streamline logistics for international shipment.

Efficiently load bamboo bundles into containers or onto trucks for export.
Handle a variety of bundle sizes, including extra-long poles or laminated panels.
Dual hoist cranes enable balanced lifting of heavier shipments, reducing the risk of damage during container loading.
Help maintain tight schedules for exporters, ensuring timely delivery to overseas customers.

Overall, single girder gantry cranes (5–10 tons) are versatile tools that adapt to small workshops, medium factories, construction yards, and export operations across Vietnam. Their flexibility, safety features, and dual hoist options make them a practical choice for the country's diverse bamboo handling needs.

Advantages of Buying from a Local or Chinese Supplier

When investing in a gantry crane for bamboo handling in Vietnam, choosing a trusted supplier can make all the difference. Many Vietnamese operators turn to certified Chinese manufacturers or local representatives for both quality and support.

CE & ISO Certified Cranes: Cranes meet international safety and quality standards, giving confidence in durability and performance.
Customization: Suppliers can adjust span, lifting height, hoist type, and trolley configuration to match your yard layout and bamboo bundle dimensions.
Quick Delivery & Installation Support: Many suppliers provide fast shipping to Vietnam and on-site installation assistance, reducing downtime.
After-Sales Service & Spare Parts: Ready access to replacement parts and technical support ensures minimal disruption and long-term reliability.

Working with a reputable supplier means the crane is built to fit your specific needs, operates safely, and stays in service longer — a practical advantage for any bamboo business.

Conclusion

For Vietnam's bamboo and light industrial sectors, 5–10 ton single girder gantry cranes, whether with single or dual hoists, offer a reliable, efficient, and safe lifting solution.

Improve workflow efficiency and reduce manual labor.
Protect bamboo bundles from bending or damage.
Adapt to different yard layouts and bundle sizes with tailored configurations.

If you're planning a new installation or upgrading an existing yard, it's wise to request a customized quotation, providing your yard dimensions, bundle weights, and lengths. This ensures you get a crane that fits your operation perfectly and delivers consistent, trouble-free performance.
