What is a double girder overhead crane? What are the double girder overhead crane specifications, types and below hook devices ? Read more on Double Girder Overhead Cranes.

What's a double girder overhead crane?With double girder overhead crane design, the overhead cranes adopts two girder beams to make up the crane travelling overhead which are supported by an end truck / end carriages on each side. Frequently, the double girder overhead crane are designed in top running crane configuration in which the hoist trolley or open winch trolley run on a rail or track installed on top of the overhead girders. With a double beam design, the double girder overhead cranes help to gain the depth of the cross girder if the hoist is placed between or on top of the cross girders.Double girder overhead cranes are widely recommended for heavy-duty material handling with heavier lifting capacities and longer spans. Because of this, the crane parts and components of the double girder overhead crane system, including the hoist trolley and open winch trolley, are more complex in design which makes double girder overhead cranes more expensive than a single girder overhead crane.

Main Specifications of Double Girder Overhead Crane

Double girder overhead cranes are designed for heavy material handling with capacity of more than 20 tons, thus, a double girder overhead overhead cranes also can be referred as a heavy duty overhead crane. Double girder overhead cranes can be designed with various top running crane configurations, including hoist trolley & open winch, equipped with various overhead crane attachments and below the hook lifting devices, such as grabs, tongs, magnets, spreader beams, C hook or other process lifting devices for heavy loads handling, featured as high safety, reliability, and durability, etc.

Double girder overhead crane kit

Double girder overhead crane kit

Double girder overhead crane specifications


  • Lifting capacity of double girder overhead crane: 5 ton ~ 320 ton,
  • Span of double girder overhead crane: 7.5m~35m,
  • Lifting height of double girder overhead crane : As your request,
  • Working Class of double girder overhead crane: A5,A8
  • Crane Hoisting System: Double girder hoist trolley or open winch
  • Customized double girder overhead crane can be up to 500 ton.

Various double girder overhead crane designs are available. Contact us to get process double girder overhead crane designs and specific crane specifications and crane dimensions or to download free double girder overhead crane pdf brochure.

Top running vs. Under hung double girder overhead cranes

Double girder overhead cranes can be designed either in top running crane or under running crane configurations. A top running double girder overhead crane will provide the most overhead room, as well as the greatest hook height. An under running double girder overhead cranes are mounted on a runway structure that has been integrated into the ceiling structure of the building which are an effective solutions for low headroom or tight headroom clearance applications.

Usually, the double girder underhung overhead cranes are difficult and expensive. For various conditions, the double girder overhead cranes usually are adopted the top running crane designs.

Double girder overhead cranes are the first choice for heavy duty material handling in workshops which needs a very large range of crane spans, hook height and travelling speed range. Generally, the double girder eot cranes are available with multiple hoisting systems including Hoist trolley system & Open winch trolley system, depending on the wight of lifting loads and lifting requirements.

Hoist trolley for double girder overhead cranes

Crane hoist trolleys are designed for double girder overhead crane and are widely used for heavy duty lifting operations with higher safety and stability. The hoist trolley are runs on along the top of edge of two girders and the wire rope with hook will descend between the two girders to handle the load, which enables the maximum possible height of lift under the beam girder, however, on the hand more roof space will be required above the crane beams or girder, due to it sits on the top of crane beam girders.

 Hoist Trolley double girder overhead crane

Double girder hoist trolley

Double girder hoist trolley for double girder overhead crane and gantry cranes

 Hoist trolley double girder overhead crane

Double girder hoist trolley

Double girder hoist trolley for double girder overhead cranes and gantry cranes with double hoists for hoisting and lifting .

 Electric chain hoist trolleydouble girder overhead crane

Electric chain hoist trolley

Electric chain hoist trolley for double girder overhead cranes and gantry cranes

Electric wire rope hosist trolley double girder overhead crane

Electric wire rope hosist trolley

Electric wire rope hosist trolley for double girder overhead cranes and double girder gantry cranes

Chinese style hoist trolley -The Chinese style hoist trolley adopts the CD/MD wire rope electric hoist trolley or electric chain hoist with frame as the lifting mechanism and lifting capacity is from 5 ton 32 ton,

European style hoist trolley -European standard FEM/ DIN standard low profile hoist trolley with lifting capacity are up to 80 ton. The European low profile hoists trolleys are used on double girder overhead cranes configurations, such as, types of overhead crane & A frame gantry cranes, etc.

Open winches for double girder overhead cranes

Build up open winch and electric winch trolleys are adopted on double girder overhead cranes as the lifting system for handling heavy loads with capacity from 5 ton 500 ton. According to different design style and features, the overhead open winch crane can be grouped in the following types:

 Open winch with European style design double girder overhead crane

Open winch with European style design

European style open winch for double girder overhead cranes with capacity up to 500 tons.

 Open winch with European style design double girder overhead crane

Open winch with European style design

European style open winch for FEM / DIN standard double girder overhead crane

 Open winch with Chinese traditional design double girder overhead crane

Open winch with Chinese traditional design with CE certificate

Chinese style open winch trolley for double girder overhead cranes system

 Open winch with Chinese traditional design double girder overhead crane

Open winch with Chinese traditional design with CE certificate

Chinese style double girder overhead crane with open winch hoisting system

Open winch with Chinese traditional design -These types of open winch and electric crane winch trolley are frequently adopted on the Chinese traditional heavy duty double girder overhead cranes with capacity from 5 ton to 500 ton,with the features of safe, flexible, powerful, reliable & stable.

European open winch crane design-European crane winch is a custom crane components for heavy duty double girder overhead cranes and overhead gantry cranes. The European winch trolleys are tailored to meet the specific requirements of your application and custom cranes. The process winch trolleys are vary versatile and applicable to a variety of industrial applications.

Below-the-hook devices for double girder overhead cranes

With various below the hook devices, the double girder eot cranes are widely used in various industrial applications. Among them, the hook double girder overhead crane is one of the mostly used heavy material handling crane equipment with the lifting capacity from 5 ton to 550 ton, working class up from A4 to A7.

Up to 550 ton double girder overhead cranes of various crane designs are for sale at cost- effective crane price. Types of double girder overhead cranes are available, such as, hook overhead crane, gab bucket overhead crane, electromagnetic overhead crane, lifting clamp overhead crane, and other overhead custom cranes, etc.

With custom crane designs, double girder overhead crane is an important lifting equipment in modern industry production and transportation to improve efficiency and safety. Double girder overhead cranes are widely used in various industrial applications such as in mining, iron and steel production, rail yards, and shipping ports, port and terminal, logistics and other departments and places.

  • Automotive Press Shops
  • Foundries
  • Power Stations and Heavy Maintenance
  • Ship Building and Heavy Fabrication Industries

double girder overhead cranes are featured for heavy duty working application with high performance and safety to ensure efficient productivity. For your heavy duty crane needs, please select us double girder overhead crane solutions to maximize your uptime and reduce downtime. Send us an inquiry on double girder overhead crane today.

Technical parameterof NLH European style double girder overhead crane with crab hoist trolley


Capacity
(t)

Span
(m)

Lifting height(m)

Lifting speed
(m/min)

Total power
(KW)

Total weight
(T)

5t

10.5-31.5

9

5/0.83

5.5-7.2

3.9-19.6

10t

10.5-31.5

9

5/0.83

10.5-12.2

5.8-20.8

16t

10.5-31.5

10

5/0.83

18.1-19.5

6.8-25.8

20t

10.5-31.5

10

5/0.83

21.1-24.9

7.4-28.3

25t

10.5-31.5

10

5/0.83

21.5-25.3

9.3-30.2

32t

10.5-31.5

9

4/0.67

29-30.4

10.2-32.8

40t

10.5-31.5

9

3.2/0.5

29-32.8

11-35.1

50t

10.5-31.5

9

2.5/0.4

31.2-33.6

12.9-42.6

63t

10.5-31.5

9

2.5/0.4

42-43.2

14.3-46.9

80t

10.5-31.5

9

2/0.3

42-43.2

17-50.3

The above double girder overhead crane specification is for your reference. As for customized crane design with your required specifications are available. Feel free to contact us. WhatsApp: + 86 151 3981 1597.

Types of Double Girder Overhead Cranes for Sale

The four overhead double girder crane designs listed below are commonly used for double girder overhead cranes. Our most popular double girder overhead cranes are the QD and LH. Our company also sells European overhead cranes such as the QDX and NLH overhead cranes. The European overhead crane structure is much more compact and beautiful, the dead weight is lighter, and the entire crane uses frequency conversion and double speed lifting, making it more stable for your use.

QDX series double girder overhead bridge crane

QDX series double girder overhead bridge crane,  advanced double girder overhead crane design with open winch trolley, with compact structure and advanced design, with capacity of 5 ton to 320 ton.

European style double girder crane with hoist trolley

The NLH overhead crane double girder series an advanced demag like double-girder overhead crane design with a hoist trolley, a compact structure, and a low headroom design, with European style, advanced design with capacity up to 80 ton.

Economical double girder overhad crane with open winch trolley with Chinese parts and components with capacity up 550 ton

The QD series overhead double girder crane is a economical double-girder overhead crane with an open winch trolley with the feature of large, heavy, and reliable. Made of Chinese parts and componenents with capacity from 3 ton to 550 ton .

 low-cost double-girder overhead crane with Chinese parts and components

The LH double girder overhead crane series is a low-cost double-girder overhead crane design with a cd/md double girder wire rope hoist trolley that can handle lighter loads, with capacity of 3 ton to 63 ton.

QZ double girder overhead crane with grab bucket

The QZ double girder overhead crane with grab bucket is a bulk handling crane, which is designed double-girder overhead crane with clamshell grab bucket or organge peel grab for bulk material handling with capacity of 5 ton to 20ton.Check more types of grab bucket crane designs now.

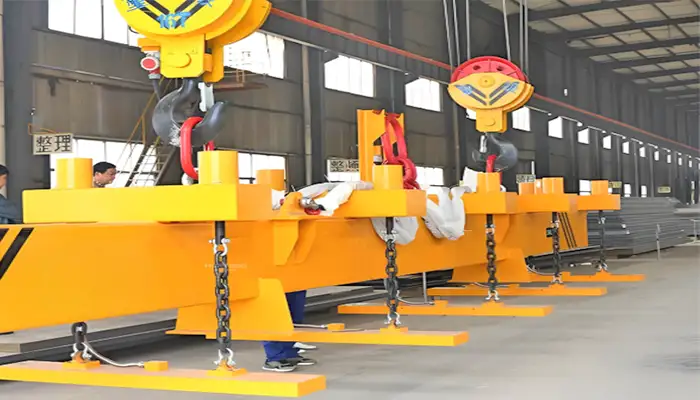

The QC magnetic double girder overhead crane series is a double-girder overhead crane, equipped with electromagnetic chucks & magnetic carrier beams for steel scraps,capacity of 3 ton to 32 ton. Check more types of magnetic cranes designs for various industrial sectors

Process designed double girder overhead cranes for special purpose

For different applications the double girder overhead cranes  can be designed for to meet the particular applications. Generally, the double girder cranes can be classified into the following types:

The main types and molds of bridge cranes made in China are marked as the following :

  • NlH — Double girder electric hoist overhead crane with European style design with capacity of 3 ton -80 ton, with lower profile than LH type.
  • LH— Double Girder electric hoist bridge crane with CD/MD wire rope hoist trolley, with capacity of 3 ton -63 ton, cheaper solution than NLH.
  • QDX — Double girder overhead crane with European style open winch trolley with capacity of 3 ton -320 ton lower headroom with QD type hook crane.
  • QD —Universal Double Girder Hook Overhead Crane for General Use with capacity from 3 ton to 550 ton
  • QDY —Casting bridge crane for hot ladle handling with capacity of 3 ton -74 ton
  • YZ — Double Girder Overhead Casting Crane with Capacity of 75 ton -320 ton
  • QZ— Grab bridge crane with double girder crane design with orange peel grab or clamshell grab bucket for bulk loads handling
  • QB— Explosion-proof bridge crane with explosion proof design for hazardous applications with capacity of 5 ~ 75 tons
  • QE— Double Girder bridge crane with Double Open Winch for Tandem Lifting with capacity of f (2.5+2.5)~(200+200) tons
  • QY— Insulated double girder bridge crane for smelting workshops of electrolyzing nonferrous metal, aluminum and magnesium with capacity of  1 ton -50 Ton
  • QC— Electromagnetic Bridge Crane for steel meta handling, used in steel mill or steel scrap yard for steel scrap handling
  • QG— Hanging girder bridge crane for long and awkward loads handling with lifting beam and lifting spreader
  • QL— Electromagnetic hanging beam bridge crane for long and heavy loads handling such as steel pipe, steel plate, etc.
  • SQ— Manual double girder crane for workshops or warehouse where is shor of electric power or explosion proof crane is required.

Select a proper double girder overhead crane is not easy task. If you have any need of double girder overhead crane, please feel free to contact us.

Double girder overhead crane 3d presentation

10 ton double girder overhead crane project feedback video for your reference.

5 Ton -320 Ton Double Girder Overhead Crane, Double Girder Overhead Crane Manufacturer

Types of Double Girder Overhead Crane Design for Your Setups
Heavy Duty, Safe & Efficient Double Girder Overhead Cranes

Various crane configurations & custom crane designs, the double girder overhead cranes are with the advantages of high stability and rigidity, cost-effective,high efficient and stable performance, etc.

  • Larger hook height – vertical lifting height of hoist hook above the ground.
  • No limits to maximum span or capacity
  • Ideal for heavy loads lifting and transportation.
  • Ideal for frequent handling of heavy loads

Added features can be added and supported by double girder overhead crane designs such as, walkways and maintenance platforms, driver's cabs, magnetic reels, and lights, etc. The main types of double girder overhead cranes offered are presented for your reference. If you can not find the crane solution, please feel free to contact us to get your customized double girder overhead cranes.
