Clamp Cranes Tailored for Your Industrial Use
The lifting clamp crane is a type of double girder overhead crane with processed crane designs which can be equipped with types of lifting clamps for handling heavy loads, such as, steel billets, slabs, ingots, blocks & section bars,etc. The lifting clamp cranes have a widely application indoors and outdoors such as in outdoor and indoor, such as, in steel mills, shipyards, ports, storage yards, and warehouses,etc.
Main parameters of clamp crane
- Overhead crane types: Overhead travelling crane with lifting clamp
- Capacity of overhead clamp crane: 35-65t
- Span of overhead clamp crane: 27.5-37m
- Lifting Height of overhead clamp crane: 12m
- Applications: steel mills, steel plants, shipyards, ports, storage yards, and warehouses,etc.
- Process cranes are available based on your industrial applications& lifting requirements.
The processed overhead cranes are a good solution for handling billets, slabs and ingots of different sizes with different lifting clamps designed and manufactured based on load weight and sizes ie,the thickness, length and the stack, etc.Also the customized speed regulation (1:10 or more) can be provided for each mechanism and the overload alarm, remote control, PLC control, malfunction detection and display system,etc.
Features of overhead clamp cranes
- Lifting stator regulation, frequency conversion operation, smooth lifting operation, small impact;
- Main electrical of clamp cranes are placed inside the main beam and equipped with industrial conditioner to ensure a good high heat resistance.
- Overall processing of steel structural parts of lifting clamp crane to ensure the accuracy of crane installation.
- Clamp cranes with process crane designs are for loads with normal temperature or with extreme temperature at around 650℃。
- The industrial used clamp crane can be customized for handling loads with different sizes based on the loads weight and sizes, ie, the thickness, length and the stack, etc.
- The heavy duty clamp cranes allows for versatility and easy swapping of lifting devices.
- The overhead slab clamp cranes can be used for material handling in various applications such as steel mills, steel plants, shipyards, ports, storage yards, and warehouses,etc.
Lifting clamp cranes with highest safety
The clamp overhead cranes with process crane designs can be used for outdoor and indoor applications such as, steel mills, shipyards, ports, storage yards, and warehouses for handling steel billets, slabs, ingots, blocks , section bar etc.

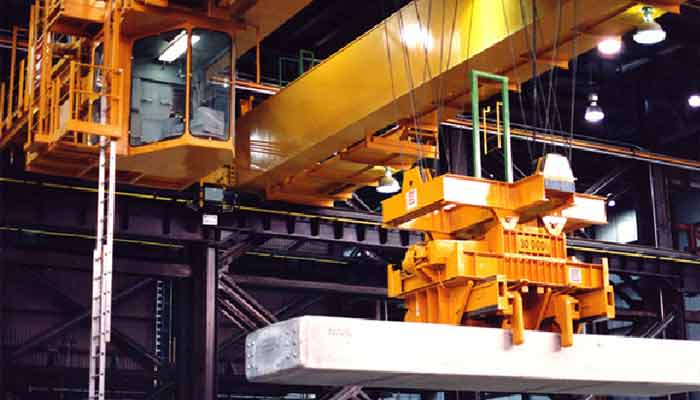

Overhead clamp crane for continuous casting workshops
In the steel mills and steel plants, the overhead lifting clamp cranes are widely used for the handling of hot billets, blooms or slabs of ferrous and non-ferrous metals. For the extreme hot temperature, the steel mill clamp cranes are required to lift and transport the hot heavy slabs from the casting area to a rolling mill or for take the room temperature steel slabs to the designated storage places for stacking, loading and unloading operation with high safety, reliability and efficiency.
Our lifting clamp cranes are able to handle slab or billet with the thickness more than 150mm, and with temperature at around 650 ℃. The heavy duty overhead crane are with high speed production lifting equipment, designed with the same concern for safety and reliability as our charging and ladle cranes.
Clamp Crane Applications
Clamp cranes, including overhead and gantry types, are specialized lifting systems used across multiple industries for secure handling of coils, slabs, rolls, plates, and other bundles. They ensure safety, minimize material damage, and improve operational efficiency.
Industrial applications of clamp cranes
With the multiple applications where lifting clamps can be used, it is without a doubt that they are an integral part of almost any industry. They make work easier and safer for operators and construction workers.

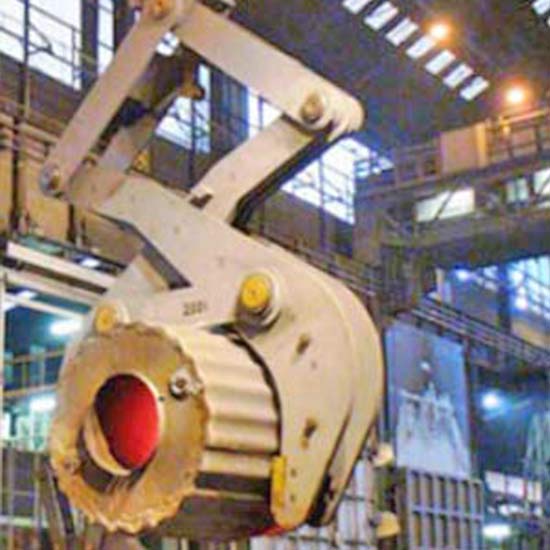

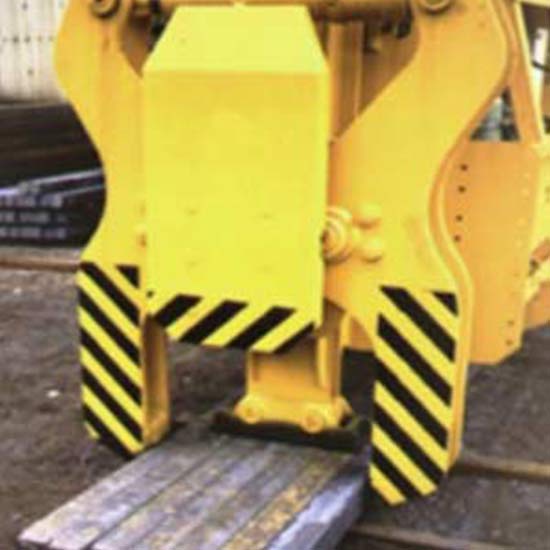

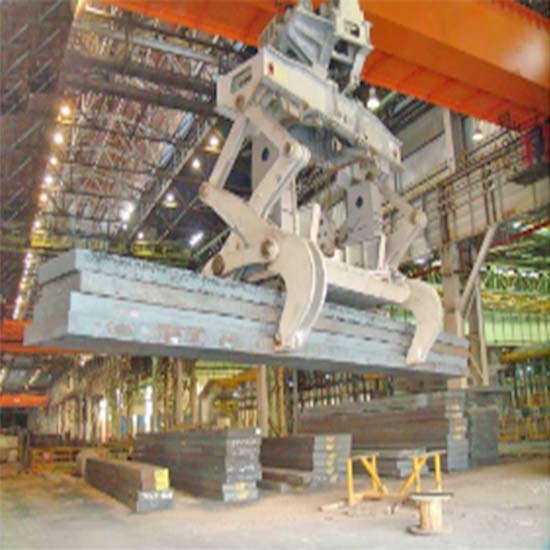

Lifting clamps for the overhead travelling cranes
Clamp cranes
Clamp cranes
Clamp cranes
Clamp cranes
Steel Industry Applications
Typical Loads: Steel slabs, plates, coils, billets
Crane Type: Overhead and Gantry Clamp Cranes
Capacity: 10–100 tons
Applications: Moving slabs from casting lines to cooling beds, transporting steel plates in fabrication shops, coil handling in rolling mills, loading/unloading slabs at storage yards.
Aluminum & Non-Ferrous Metals
Typical Loads: Aluminum ingots, coils, rolled sheets
Crane Type: Overhead cranes mainly; Gantry cranes for outdoor yards
Capacity: 5–50 tons
Applications: Handling aluminum coils in rolling mills, moving heavy sheets for pressing or packaging, loading/unloading from trucks or furnaces.
Paper & Pulp Industry
Typical Loads: Paper rolls, jumbo rolls, fiber bundles
Crane Type: Overhead cranes with soft-grip clamps
Capacity: 3–30 tons
Applications: Transporting large paper rolls to converting machines, loading finished rolls onto trucks, moving fiber bales in pulp processing areas.
Logistics & Warehousing
Typical Loads: Wooden/metal bundles, heavy boxes, pallets
Crane Type: Gantry cranes, mobile clamp cranes
Capacity: 2–40 tons
Applications: Stacking heavy bundles in storage yards, transferring large shipments from trucks to warehouses, handling industrial drums or containers.
Machinery & Equipment Manufacturing
Typical Loads: Large engine blocks, machine parts, castings
Crane Type: Overhead clamp cranes
Capacity: 5–50 tons
Applications: Moving machine parts between machining centers, positioning equipment during assembly, loading finished products for shipping.
Construction Materials & Heavy Industry
Typical Loads: Pipes, concrete slabs, steel beams
Crane Type: Gantry clamp cranes for outdoor flexibility
Capacity: 10–120 tons
Applications: Handling long steel beams or pre-cast slabs, transporting heavy pipes or tubing, loading/unloading raw materials in fabrication yards.
Clamp Crane FAQs
Frequently asked questions about clamp cranes, their applications, capacities, and industrial use cases, including steel, aluminum, paper, and logistics handling.
What is a clamp crane, and when should I use it?
A clamp crane is a specialized lifting crane designed to handle coils, slabs, rolls, and bundles securely using a clamping mechanism.
- Ideal for steel, aluminum, paper, and logistics industries where material integrity is critical.
- Prevents damage to sensitive loads like rolled metals or paper rolls.
- Can be configured as overhead or gantry cranes depending on space and mobility needs.
What are the typical load capacities of clamp cranes?
Clamp cranes usually range from 3 to 120 tons, depending on the crane type and industrial application.
- Small-capacity cranes (3–30 tons) are common in paper, pulp, and light manufacturing.
- Medium-capacity cranes (30–50 tons) serve aluminum, machinery, and fabrication workshops.
- Heavy-capacity cranes (50–120 tons) are used in steel plants, construction yards, and large-scale fabrication.
What are the main types of clamp cranes available?
The two main types are clamp overhead cranes and clamp gantry cranes, each suited for different industrial layouts.
- Overhead clamp cranes are ideal for indoor workshops with fixed rail systems.
- Gantry clamp cranes are flexible, often used in outdoor storage yards or large fabrication areas.
- Both types can handle coils, slabs, plates, and other bundled or rolled materials efficiently.
How do I choose the right clamp crane for my industrial application?
Selection depends on load type, weight, working environment, and available workspace.
- Consider the weight and dimensions of coils, slabs, or bundles being handled.
- Indoor workshops often require overhead clamp cranes for optimized floor space.
- Outdoor yards or flexible layouts benefit from gantry clamp cranes with mobility on rails or wheels.
- Safety and precision handling are crucial for high-value or fragile materials.
Can clamp cranes be used in steel mills and metal fabrication workshops?
Yes, clamp cranes are widely used in steel mills and metal fabrication for lifting slabs, coils, and plates.
- Slabs and plates are lifted from casting lines to storage or machining areas.
- Coils are transported safely without deformation during rolling or processing.
- Capacities range from 10 to 100 tons depending on material and operation frequency.
Are clamp cranes suitable for handling paper rolls or aluminum coils?
Absolutely, clamp cranes provide secure, damage-free handling for paper rolls, jumbo rolls, and aluminum coils.
- Soft-grip clamps protect delicate surfaces from scratches and dents.
- Ideal for pulp and paper production lines, coil processing, or rolling mills.
- Overhead designs maximize indoor space usage, while gantry types handle outdoor storage and transport.
What safety features do clamp cranes offer for industrial operations?
Clamp cranes include locking mechanisms, overload protection, and precise load positioning to enhance workplace safety.
- Mechanical or hydraulic locks prevent accidental load drops.
- Overload sensors protect both the crane and the operator.
- Smooth and controlled movement minimizes risks when handling heavy slabs or bundles.
How do clamp cranes improve operational efficiency?
Clamp cranes reduce handling time and material damage, optimizing workflow in heavy industry and manufacturing.
- Allows one-person operation for large, heavy, or awkward loads.
- Minimizes manual handling and potential workplace accidents.
- Supports continuous production in steel, aluminum, paper, and logistics sectors.
Get your customized overhead cranes
One-stop clamp crane services for your slab and billet handling. Commercial slab handling demands machines that provide both heavy-duty versatility and high-speed production performance.
On buying overhead crane, the following main parameters are needed:
- Types of overhead crane: Single girder or double girder overhead crane? Top running or underlusng crane?
- Lifting capacity of overhead crane : Ultimate load lifting capacity= ____tons.
- Span of overhead crane span: distance between the railway center = ____ meters.
- Lifting height of overhead crane : height of lifting from the ground to the lift center (Hook) = ____ meters.
- Crane track length of overhead crane _______m
- Crane track required (to be installed on existing supports): ØCrane track length _______m ,ØSupport spacing _______m
- Overhead crane use/application: ____________________________________
- Control methods of overhead crane : Remote control / Cabin control /Panel control
- Frequency = ____.
- Voltages = ____.
How much does an overhead crane cost to buy? Send us an inquiry via the below form to get an overhead crane solution to lift your loads and relief your burden! Send an overhead crane inquiry to get your latest eot crane price now!
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
