European style wire rope electric hoists for sale
Wire Rope Electric Hoist Specifications 1-20 Ton & 3 -80 Ton

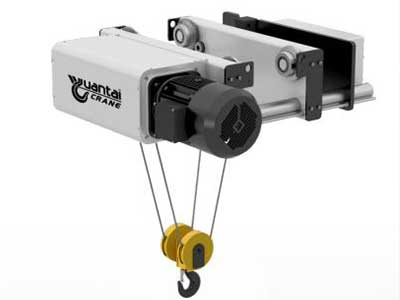

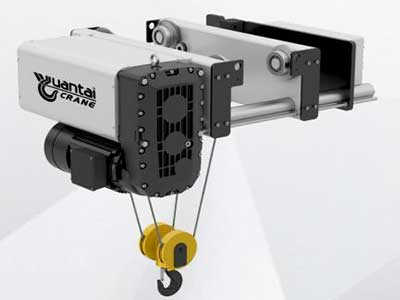

ND Style Wire Rope Electric Hoist for Single Girder Overhead Crane

ND model FEM standard European wire rope electric hoist is newly developed with advanced design technology according to the latest national standard GB/T3811 "Design specification for cranes" , and with reference to European FEM standard . The whole set of single girder crane hoist is energy-saving and environment-friendly. With its advanced technology and cost-efficient feature , it is the most popular among the similar products .

Supply Scope

• Lifting capacity: 1 ,000-20 ,000 Kg
• Lifting height: 6/9/ 12/ 15/ 18 m
• Voltage: 220-600V 50/60Hz 3Phase (Single phase is not available . )
• Ambient temperature: -20~ +40℃

Note : For non-standard specifications, please talk to your sales representative for consultant ion on customized product service.

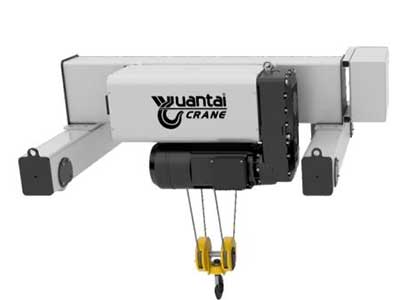

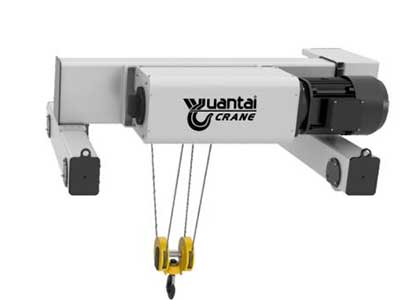

ND Model Wire Rope Electric Hoist with Trolley Frame for Double Girder Overhead Crane

FEM standard double girder crane hoist designed according to the latest nationalstandard GB/T3811 "Design specications for cranes" , and with reference to European FEM standard , has the features of lightweight , modular design , and advanced manufacturing process . It greatly reduces the user's crane construction costs and crane operating costs , and improves the crane's overall quality and performance .

Supply Scope

• Lifting capacity: 1 ,000-80 ,000 Kg
• Lifting height: 6/9/ 12/ 15/ 18 m
• Voltage: 220-600V 50/60Hz 3Phase (Single phase is not available . )
• Ambient temperature: -20~ +40C

Note: For non-standard speccations , please talk to your sales representative for consultation on customized product service .

Option A

• Independent Intellectual Property in hoisting mechanism with FEM standard design.
• Co-axial design of drum and lifting motor makes the structure compact and reasonable.
• Special structure design increases the lifting height, optimum utilization of the vertical space which will reduce the plant height.
• Planetary gear box inside the drum, maintenance free.î Synchronous driving wheels distributed on both sides, uniform and smooth running which reduces wearing and damage of wheels.

Option B

• Modular design of motor, drum and reducer, C-design structure, beautiful design.
• Compact C-design structure significantly increases the lifting height which effectively reduces the height of the plant.
• Side-mounted three-stage helical gear box,minimum left and right hook approach and maintenance-free.
• Synchronous driving wheels distributed on both sides, uniform and smooth running which reduces wearing and damage of wheels.

Advantages of fem single girder crane hoist 1 ton -20 ton

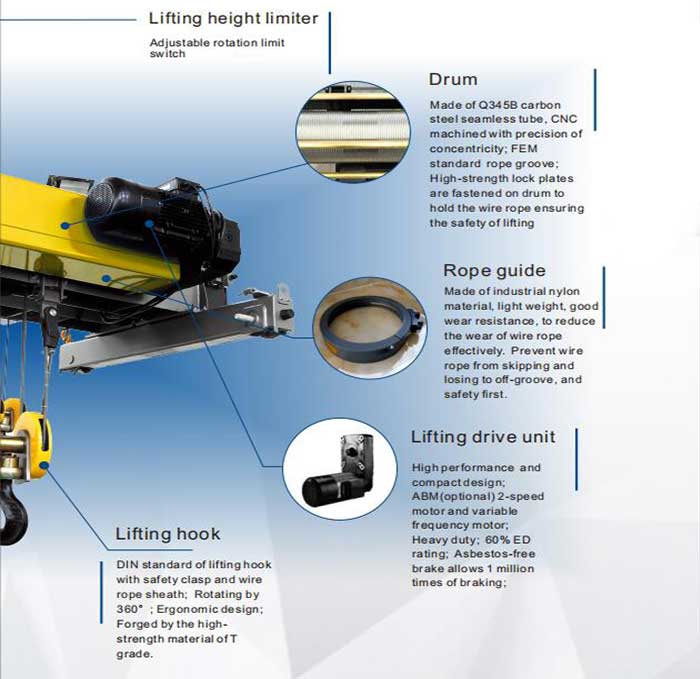

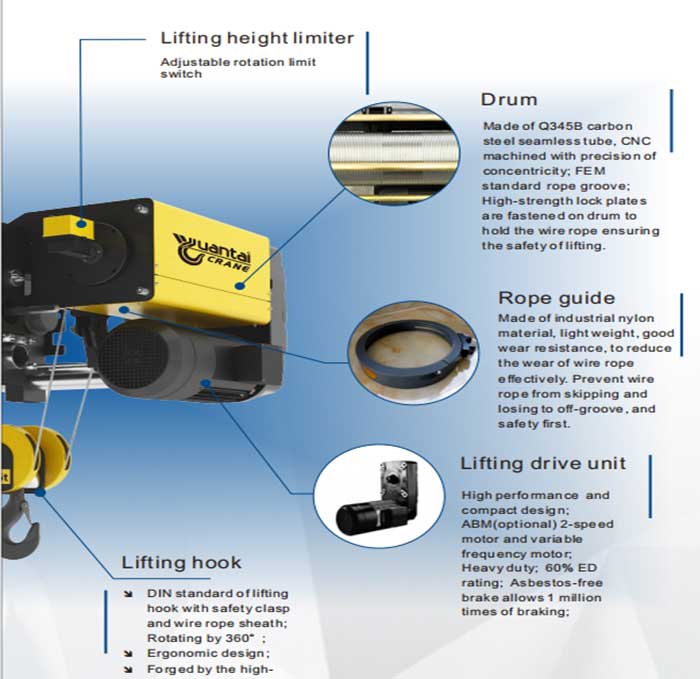

Main parts and components of fem style wire rope electric hoist

• Trolley frame made by rectangular hollow section steel , light weight and durable
• W heels made by alloyed steel material , high wear-and-tear- resistance feature
• Double driving motors distribute on both sides , smooth running along straight line
• Compact structure maximizes the effective three-dimensional space of the hook

• Independent Intellectual Property in hoisting mechanism with FEM standard design .
• Trolley frame made by rectangular hollow section steel , light weight and durable .
• W heels made by alloyed steel material ,î high wear-and-tear resistance feature .
• Double driving motors distribute on both sides , smooth running along straight line .
• Compact structure maximizes the effective three-dimensional travel of the hook .

Advantages of double girder crane hoist 1 ton -80 ton

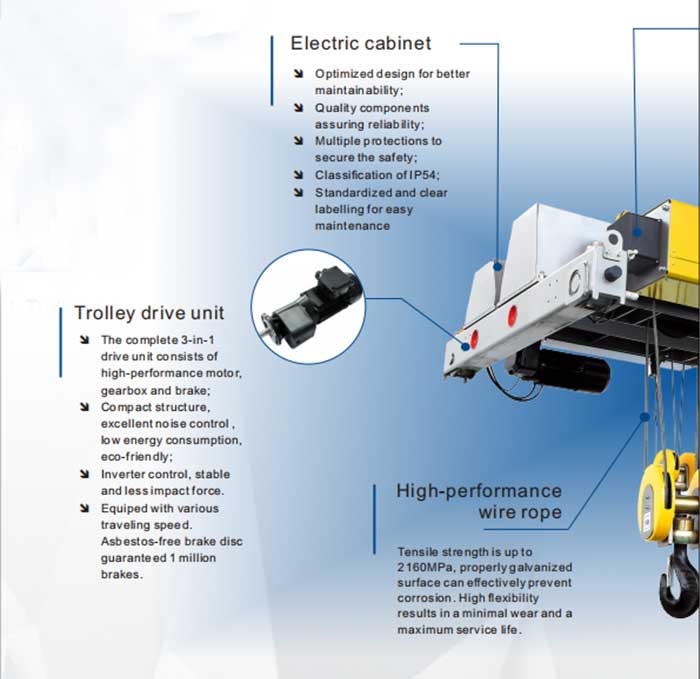

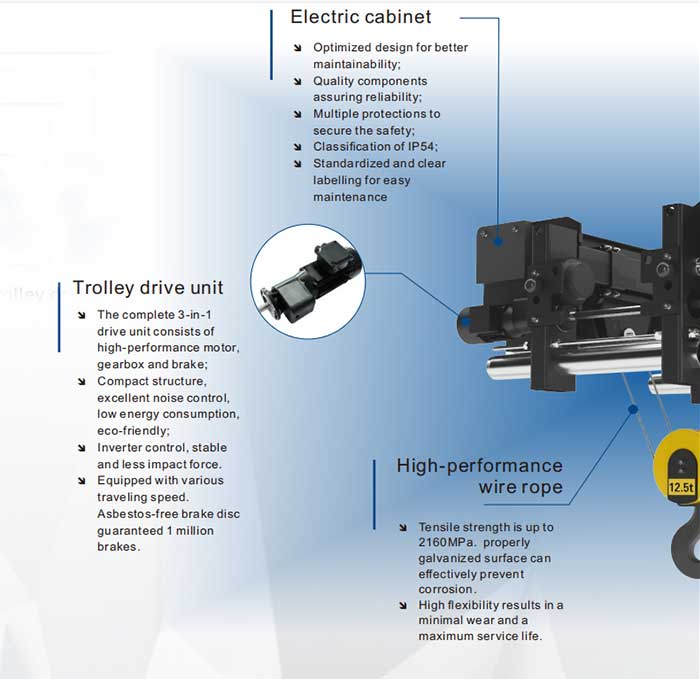

Main parts and components of fem standard wire rope electric hoist
