Project Overview:

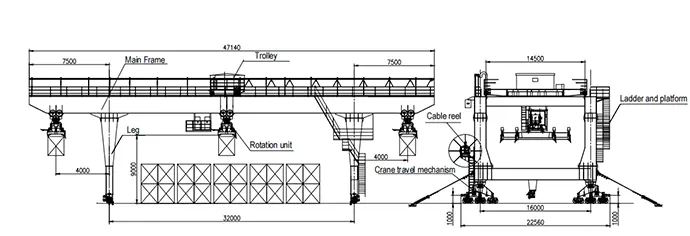

Yuantai Crane 50t Rail-Mounted Gantry Container Crane Drawing & Specification Package (Model: JZD50t 32m, Drawing No.: General Drawing Page One, 32.0m Span, 9.0m Lifting Height, Rotation Unit, 3P 380V 50Hz, ISO M7 Duty Class, Total Weight: 225t)
The equipment features an overall structural length of 47.14 meters, incorporating a wide 32.0-meter main span and 7.5-meter cantilevers on both sides, delivering an expansive operational footprint and maximized yard storage capacity.
The core engineering highlight of this model is the integration of a Rotation Unit on the lifting system, allowing precise rotational alignment of containers during high-speed handling operations. Built to rigorous ISO M7 ultra-heavy-duty standards with a total machine weight of 225 tons and a maximum wheel load pressure restricted to under 35 tons, it ensures supreme structural integrity, exceptional fatigue resistance, and long-term reliability in continuous multi-shift terminal environments.
Project & Technical Overview
- Equipment Type: Container Portal Crane / Rail-Mounted Gantry Crane (RMG)
- Product Model: JZD50t 32m
- Drawing Number: General Drawing (Page One)
- Manufacturer: Yuantai Cranes
- Duty Class: ISO M7 (AZ Class)
- Lifting Capacity: 50.0 t
- Span & Cantilevers: 32.0 m span, 7.5 m left cantilever, 7.5 m right cantilever (Total length 47.14 m)
- Lifting Height: 9.0 m
- Special Unit: Rotation Unit for container steering
- Operating Speeds: Hoisting 0-8 m/min (Laden) / 0-16 m/min (Unladen), Trolley Traveling 0-40 m/min (Laden) / 0-80 m/min (Unladen), Crane Traveling 0-35 m/min (Laden) / 0-70 m/min (Unladen)
- Power Supply: 3P 380V 50Hz
- Total Crane Weight: 225 t
- PDF Drawing: 50t FEM/ISO Rail-Mounted Gantry Container Crane Drawing & Technical Parameters - JZD50t-32m Project (32m Span, 9m Lifting Height, M7 Duty Class
Main Technical Parameters
| Technical Parameter | Specification Details |
|---|---|
| Duty Class (Working Level) | ISO M7 (AZ) |
| Lifting Capacity | 50.0 tons |
| Crane Span | 32.0 m |
| Cantilever Length | Left: 7.5 m / Right: 7.5 m (Total length: 47.14 m) |
| Gauge & Wheel Base | Trolley Gauge 14.5 m / Gantry Wheel Base 16.0 m (Total track base width 22.56 m) |
| Lifting Height | 9.0 m |
| Operating Speeds | Hoisting Speed: 0-8 m/min (Laden), 0-16 m/min (Unladen) Trolley Traveling: 0-40 m/min (Laden), 0-80 m/min (Unladen) Crane Traveling: 0-35 m/min (Laden), 0-70 m/min (Unladen) |
| Maximum Wheel Load Pressure | Less than 35 tons per wheel |
| Motor Power Specifications | Lifting Motor: 150 kW Trolley Travel Motor: $4 \times 11$ kW Long Travel Motor: $4 \times 30$ kW |
| Power Supply | 3P 380V 50Hz |
| Total Crane Weight | 225 t |
Mechanism & Drive Power Breakdown
| Mechanism Name | Power Specification | Operational Characteristics |
|---|---|---|
| Lifting Mechanism | 150 kW Motor | High-torque hoisting with variable speed control (0-8 m/min laden, 0-16 m/min unladen) |
| Trolley Traveling Mechanism | $4 \times 11$ kW Motors | Smooth transverse bridge transit (0-40 m/min laden, 0-80 m/min unladen) |
| Crane Traveling Mechanism (Long Travel) | $4 \times 30$ kW Motors | Balanced multi-wheel gantry propulsion (0-35 m/min laden, 0-70 m/min unladen) |
Drawing Component Index (Bill of Materials)
| Component Name | Location / Position | Engineering Function |
|---|---|---|
| Main Frame (Main Girder Bridge) | Upper Span Structure | Heavy box-girder bridge spanning 32m with integrated rail tracks for trolley movement. |
| Trolley | Top Bridge Rail | Houses the main hoisting machinery and drives lateral transit across the span. |
| Leg & Support Structure | Portal Frame Sides | Rigid structural legs transferring loads down to the gantry travel bogies. |
| Rotation Unit | Hoisting Spreader Interface | Enables mechanical rotation of containers for precise slot alignment. |
| Cable Reel | Lower Gantry Leg | Automated cable management system providing secure power and control transmission. |
| Ladder and Platform | Gantry Exterior / Leg | Safe access pathways and maintenance platforms for service engineers. |
Technical Requirements & Notes
Important Engineering Standard Notes:
- Design & Duty Classification: Engineered strictly to ISO M7 heavy-duty standards, guaranteeing exceptional durability under continuous 24/7 high-cycle container handling operations.
- Wheel Load Optimization: The structural weight distribution is optimized to keep the maximum wheel load pressure under 35 tons, significantly reducing civil foundation and rail-bed construction costs.
- Rotation Precision: The built-in rotation unit ensures high-accuracy angular adjustment, streamlining container placement onto chassis and rail cars.
- Safety & Compliance: Equipped with comprehensive limit switches, storm-locking anchor devices, and reliable earthing protection systems across all metallic structures.
How to Get Your Customized Yuantai JZD Series Container Crane Solution?
This drawing details a robust 50t container portal crane featuring a 32m wide span, M7 duty class, rotation unit, and optimized wheel load distribution. Yuantai Crane provides complete engineering customization to fit your exact terminal layout.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Share Terminal Specifications | Provide your stack yard dimensions, track gauge requirements (such as 16m wheel base), container stacking height, and power supply specs. |
| Step 2: Receive Engineering CAD Proposals | Our technical team formulates comprehensive general arrangement drawings, wheel load calculations (<35t validation), and drive mechanism matching. |
| Step 3: Technical Protocol Finalization | Confirm M7 drive configurations, rotation unit parameters, cable reel placement, and cabin ergonomics. |
| Step 4: Precision Fabrication & Global Delivery | Manufactured under strict ISO quality controls, factory pre-assembled, load-tested (FAT), and shipped with complete export documentation and installation support. |
Frequently Asked Questions (JZD50t-32m Drawing Technical Analysis)
Addressing core inquiries regarding the 32m wide span design, ISO M7 duty rating, rotation unit functionality, and wheel load limits.
1. What are the advantages of the 32m wide span combined with 7.5m cantilevers?
The 32m span creates an extensive storage block capacity accommodating multiple container rows, while the dual 7.5m cantilevers (total bridge length 47.14m) extend the working envelope over external truck lanes and rail spurs, maximizing terminal throughput.
2. What is the specific function of the Rotation Unit in this JZD50t model?
The rotation unit allows the spreader and suspended container to rotate horizontally, enabling operators to correct container orientation swiftly when aligning with twist-locks on trucks, rail cars, or dense stack layouts.
3. Why is keeping the maximum wheel load pressure under 35 tons important?
Despite a robust total machine weight of 225 tons, optimizing the load distribution across multiple bogies keeps individual wheel pressure below 35 tons, preventing excessive rail wear and substantially lowering civil foundation reinforcement costs for the terminal.
4. How does the ISO M7 duty class benefit continuous port operations?
ISO M7 represents an ultra-heavy-duty classification designed for high-frequency, severe service conditions. It ensures that all structural components, gearboxes, and the 150kW hoisting motor operate well within safe thermal and mechanical fatigue limits during 24-hour intensive terminal cycles.
Need a Customized JZD Series Rail-Mounted Container Portal Crane Solution & Quote?
Share your terminal layout, span requirements, and operational cycle targets with us. Yuantai Crane international engineering consultants will deliver a free customized CAD general arrangement drawing and precise quotation within 24 hours.
Yuantai Rail-Mounted Gantry Container Crane Full-Series Solutions
Yuantai Crane delivers customized RMG series rail-mounted gantry crane solutions globally, engineered for high-performance ports, railway intermodal yards, and inland container depots. All systems are fully tailored to your precise span, lifting capacity, duty class, and special accessory requirements.
Typical Technical Specification Range:
- Lifting Capacity: 30.5 – 65.0 tons (This model: 50.0 tons)
- Span: 18.0 – 50.0 meters (This model: 32.0 meters with 7.5m cantilevers)
- Lifting Height: 9.0 – 35.0 meters (This model: 9.0 meters)
- Duty Class: ISO M6 / M7 (This model: ISO M7 / AZ)
- Special Features: Rotation unit, cabin control, optimized wheel load <35t
- Applications: Container terminals, railway freight hubs, intermodal logistics parks
Yuantai is dedicated to providing global clients with turnkey engineering design, non-standard customization, factory pre-assembly testing (FAT), professional export documentation, and expert on-site installation guidance.
Engineering Strength & Customization Advantage Analysis
By integrating a 50t capacity, 32m wide span, rotation unit, and ISO M7 duty rating, Yuantai Crane demonstrates world-class engineering capability in solving complex container handling challenges.
| Client Challenge | Yuantai Custom Solution | Reference Parameters |
|---|---|---|
| High-Frequency Intensive Cycles Terminal operates 24/7 with heavy container throughput. | Engineered to ISO M7 ultra-heavy duty standards with a robust 150kW hoisting motor and heavy-duty drives. | Duty Class: M7 | Hoisting Motor: 150 kW |
| Complex Container Orientation Need quick angular adjustment when loading trucks and railcars. | Integrated mechanical rotation unit at the spreader interface for precise rotational steering. | Equipped with Rotation Unit |
| Civil Foundation Constraints Must prevent excessive rail pressure on existing terminal quays. | Optimized structural weight distribution keeping maximum wheel load pressure under 35 tons. | Max Wheel Load: <35 tons (Total 225t) |
How to Evaluate if This Solution Fits Your Project?
- 32m Wide Span & Cantilevers: Massive storage footprint with extended reach over external transport lanes.
- Rotation Unit Integration: Superior container positioning efficiency for intermodal transfer.
- ISO M7 Heavy-Duty Reliability: Built for continuous, uncompromised multi-shift port operations.
- Controlled Wheel Pressure: Protects terminal infrastructure by maintaining wheel loads below 35t.
Unsure if this layout perfectly matches your terminal yard?
Send us your site dimensions, throughput requirements, and track specifications today. Yuantai Crane engineering experts will provide a free customized CAD general arrangement layout, engineering evaluation, and precise quotation with a rapid 24-hour response!
