50 Ton RMG Container Crane Drawing | 32m Span A6
50 ton RMG container crane drawing with 32m span, 15.2m lifting height, 11m left cantilever, telescopic spreader, traveling cabin and full VFD.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: RMG Crane Drawing
Tags: rmggantrycranedrawing
Project Overview:
Yuantai 50-Ton Rail Mounted Gantry (RMG) Crane Custom Configuration: Span 32.0m, lifting height 15.2m, featuring an 11.0m extra-long left cantilever (total length 42.3m), specially engineered for high-density container yards with a "stack 4 over 5" capacity. Equipped with a deluxe operator cabin traveling with the trolley (featuring heating and cooling air conditioning, hollow insulated glass, and CCTV monitoring systems), full frequency conversion control system, lifting speed of 1.2~12 m/min, trolley travel speed of 3.8~38 m/min, gantry travel speed of 7.5~75 m/min, and a 310m travel length. Fitted with a telescopic spreader (supporting 20ft and 40ft containers, 1rpm rotation speed), anti-sway and digital weighing functions, R65 heavy-duty rails (73mm head width), single-side power supply with Siemens cable reel motor, designed for severe outdoor environments ranging from -40℃ to 40℃.
Yuantai Crane 50t Rail Mounted Gantry Crane Drawing and Technical Specification (Model: RMG50t-32m A6, Drawing No.: RMG50-32 A6, Span: 32.0m, Left Cantilever: 11.0m, Lifting Height: 15.2m, ISO A6/M6 Duty Class, Total Weight: 225t)
The core highlights of this project lie in its premium ergonomic and intelligent configurations: the operator cabin travels synchronously with the trolley and is fitted with hollow insulated glass and HVAC units, offering operators an exceptional panoramic view; the entire electrical system adopts full frequency conversion speed control, integrated with an anti-sway system, dynamic weighing function, and a 1.2m/min precision rotation unit. Both mechanical and electrical components are built to ISO A6 (Mechanism M6) heavy-duty standards, supporting a long gantry travel distance of 310 meters with Siemens cable reel motor drives, ensuring 24/7 stable and high-efficiency operations under extreme outdoor climates (-40℃ to 40℃).
Project & Technical Summary
- Equipment Type: Rail Mounted Gantry Crane (RMG)
- Product Model: RMG50t-32m A6
- Drawing Number: RMG50-32 A6
- Manufacturer: Yuantai Cranes
- Duty Class: ISO A6 (Mechanism M6)
- Rated Capacity: 50.0 Tons (Including Spreader)
- Span & Cantilever: Main Span 32.0 m, Left Cantilever 11.0 m (Total Length 42.3 m)
- Lifting Height: 15.2 m
- Yard Stacking Capacity: Stack 4 over 5
- Special Features: Cabin Traveling with Trolley, Hollow Insulated Glass, HVAC, CCTV, Anti-sway & Weighing Systems
- Operating Speeds: Hoisting 1.2~12 m/min, Trolley Travel 3.8~38 m/min, Gantry Travel 7.5~75 m/min
- Power & Travel: 3P 380V 50Hz, Single-side Power Supply, Siemens Cable Reel Motor, Travel Length 310 m

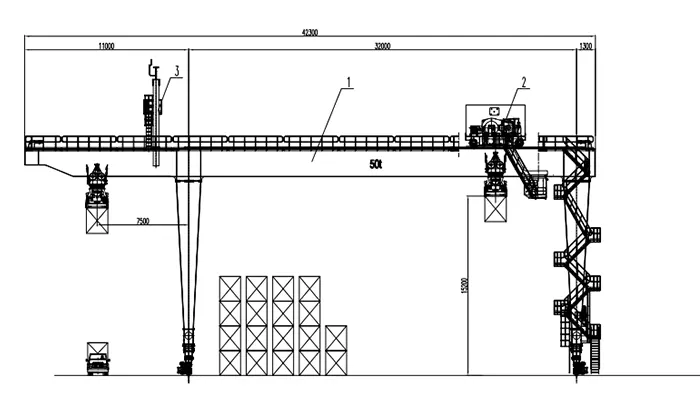

- PDF Drawing :50t FEM/ISO Rail Mounted Gantry Crane Drawing & Technical Parameters - RMG50t-32m-12.5m Project (32m Span, 11m Left Cantilever
Main Technical Specifications Table
| Technical Parameter Item | Specification Description |
|---|---|
| Duty Class | ISO A6 (Mechanism M6) |
| Rated Lifting Capacity | 50.0 Tons (Supporting 20ft and 40ft containers) |
| Main Span | 32.0 m |
| Cantilever Length | Left Cantilever: 11.0 m / Right Cantilever: 1.3 m (Total Structure Length: 42.3 m) |
| Track & Wheel Gauge | Trolley Gauge: 14.3 m / Gantry Wheel Base: 15.3 m (Total Track Span: 19.8 m) |
| Lifting Height | 15.2 m (Stack 4 over 5 standard) |
| Operating Speeds (Full VFD) | Hoisting Speed: 1.2 ~ 12 m/min Trolley Travel: 3.8 ~ 38 m/min Gantry Travel: 7.5 ~ 75 m/min |
| Rail Size & Max. Wheel Load | R65 Heavy Rail (Head Width 73mm) Max. Gantry Wheel Load: 295 KN / Max. Trolley Wheel Load: 210 KN |
| Wire Rope & Drum Specifications | Wire Rope: 24-NAT(S)*6*19W+FC1670 (12 falls) Drum Diameter: Φ650 × 2000 mm |
| Power Supply & Travel Distance | 3P 380V 50Hz, Single-side power supply, equipped with Siemens motor cable reel, Travel Length: 310 m |
| Total Crane Weight | 225 Tons |
Mechanism & Drive Motor Parameter Configuration
| Mechanism Name | Motor Specifications & Power | Reducer & Braking System |
|---|---|---|
| Hoisting Mechanism | YZP315S1-8 Motor ($2 \times 63$ kW, 739 r/min) | H3SH12-45-G/H Reducer (Ratio: 42.888) Brake: $4 \times \text{YWZ4-400/E121}$ |
| Trolley Traveling Mechanism | YZPEJ132M-4 Motor ($2 \times 7.5$ kW, 1445 r/min) | FA107 Reducer (Ratio: 74.95) Brake: Integrated with motor |
| Gantry Traveling Mechanism (Long Travel) | YZPEJ160L-4 Motor ($8 \times 15$ kW, 1455 r/min) | FA107 Reducer (Ratio: 37.73) Brake: Integrated with motor |
Drawing Bill of Materials (BOM)
| Item No. | Part Description | Subassembly Type | Qty | Technical Remarks |
|---|---|---|---|---|
| 1 | Gantry frame | Subassembly | 1 | Double girder rigid frame structure with 11m left cantilever |
| 2 | Trolley | Subassembly | 1 | Equipped with hoisting mechanism, operator cabin, and telescopic spreader |
| 3 | Maintenance facility | Subassembly | 1 | Access walkways, ladders, and safety guardrails |
| 4 | Electric system | Subassembly | 1 | Includes Siemens cable reel motor, VFD control cabinets, and monitoring system |
| 5 | Long travel | Subassembly | 1 | 8-wheel balanced bogie drive system tailored for 310m long travel |
Auxiliary Maintenance Electric Hoist Parameters
| Parameter Item | Specification Metric |
|---|---|
| Rated Capacity | 3.0 Tons |
| Lifting Height | 24.0 Meters |
| Duty Class | A3 |
| Traveling Speed | 20 m/min |
| Lifting Speed | 8.0 m/min |
| Hoisting Motor Power | 4.5 kW |
| Traveling Motor Power | 0.4 kW |
| Power Supply | 3P 380V 50Hz |
Technical Requirements & Manufacturing Standards
Important Engineering Standard Notes:
- Design & Manufacturing Codes: The design, manufacturing, installation, inspection, and acceptance of this crane shall strictly comply with the GB/T19683 national standard.
- Insulation Resistance Testing: When measuring the insulation resistance to ground and phase-to-phase resistance, the entire power circuit and control circuit of the crane must be connected across all lines, with a value of not less than 0.5M$\Omega$ (insulation resistance can be reduced by 50% in humid areas).
- Grounding Protection: The shells of all electrical equipment on the crane must be reliably grounded; crane tracks are permitted to be used for grounding, and the metal structure of the facility serves as a grounding conductor.
- Environmental & Brand Assurance: Specifically designed for severe outdoor environments (-40℃ to 40℃) with a 310m gantry travel length. Core cable reel motors utilize the Siemens brand to ensure long-distance power feeding safety and reliability.
How to Obtain Your Customized Yuantai RMG Container Crane Solution?
This drawing showcases a high-end 50t rail-mounted gantry crane featuring a 32m span, 11m ultra-long left cantilever, trolley-traveling cabin, full frequency conversion control, and a 310m travel length. Yuantai Crane provides comprehensive non-standard customization tailored to your site conditions.
| Customization Steps | Detailed Process Description |
|---|---|
| Step 1: Provide Yard & Travel Parameters | Share your yard span requirements, stacking tiers (e.g., stack 4 over 5), single/double cantilever lengths, total gantry travel distance (e.g., 310m), and power supply methods. |
| Step 2: Receive Free CAD Drawings & Proposal | Yuantai engineering team provides general arrangement drawings, wheel load calculation reports (max wheel load 295KN), and full VFD/Siemens motor configuration proposals. |
| Step 3: Technical Protocol & Detail Confirmation | Finalize ISO A6 duty class specifications, cabin HVAC and CCTV details, anti-sway, and dynamic weighing system integration standards. |
| Step 4: Precision Manufacturing & Global Delivery | Strictly manufactured and factory pre-assembled/tested (FAT) under ISO standards, providing export packaging, complete documentation, and installation guidance. |
Frequently Asked Questions (RMG50t-32m-12.5m Drawing Technical Analysis)
Professional insights addressing core highlights including the 32m span, 11m left cantilever, trolley-traveling cabin, and 310m travel length.
1. What are the advantages of the 11m ultra-long left cantilever and stack 4 over 5 yard layout?
The 11-meter left cantilever easily spans external truck lanes, access roads, or railway loading tracks outside the storage yard. Combined with the 32m main span, it achieves high-density storage capacity (stacking 4 containers high and passing over 5), significantly maximizing space utilization and turnover efficiency at terminals or freight yards.
2. Why choose an operator cabin that travels with the trolley, equipped with hollow insulated glass and HVAC?
Having the operator cabin move synchronously with the trolley grants the operator a direct, wide-angle line of sight right above the spreader and containers, eliminating visual blind spots. Combined with heating/cooling air conditioning, hollow insulated glass, and video monitoring systems, operators maintain supreme comfort and productivity even in extreme outdoor environments (-40℃ to 40℃).
3. What special configurations are applied to the cable reel for the 310-meter ultra-long travel distance?
Because the total gantry travel distance reaches 310 meters, the system utilizes a single-side power supply equipped with top-tier international Siemens cable reel drive motors. This ensures smooth cable winding and unwinding with constant tension during long-distance high-frequency back-and-forth travel, completely preventing cable wear or jamming faults.
4. How do full frequency conversion control and the anti-sway/weighing systems work together?
Full VFD speed control (hoisting 1.2~12 m/min, trolley 3.8~38 m/min, gantry 7.5~75 m/min) ensures stepless, smooth transitions during startup and stopping, minimizing mechanical shock. Integrated with built-in electronic anti-sway technology and dynamic weighing functions, the spreader quickly secures containers and accurately stacks them with utmost stability, safeguarding semi-automated and automated operations.
Need a Customized RMG Rail Mounted Gantry Crane Solution and Quotation of Similar Specs?
Feel free to share your yard span, cantilever dimensions, lifting capacity, and gantry travel distance requirements. Yuantai Crane international engineering consultants will provide a free CAD general arrangement drawing and precise quotation within 24 hours.
Yuantai Rail Mounted Gantry Crane Full Series Solutions
Yuantai Crane offers global clients customized RMG series Rail Mounted Gantry Crane Solutions, widely applied in international ports, railway container transfer stations, inland logistics parks, and bonded warehouses. All systems can be exclusively designed according to your exact span, lifting capacity, cantilever length, duty class, and special automation functions.
Typical Technical Specification Ranges:
- Rated Capacity: 30.5 – 65.0 Tons (Project Model: 50.0 Tons)
- Main Span: 18.0 – 50.0 Meters (Project Model: 32.0 Meters, Left Cantilever 11.0m)
- Lifting Height: 12.0 – 35.0 Meters (Project Model: 15.2 Meters, Stack 4 over 5)
- Duty Class: ISO A5 / A6 / A7 (Project Model: ISO A6 / Mechanism M6)
- Key Features: Trolley-Traveling Cabin, Full VFD Control, Siemens Reel Motor, Anti-sway & Weighing, 310m Long Travel
- Application Scenarios: Rail Container Yards, Large Inland Port Logistics Hubs, Automated Container Terminals
Yuantai is committed to providing global clients with comprehensive engineering design, non-standard customization, factory pre-assembly load testing (FAT), professional export document support, and senior engineer overseas installation guidance services.
In-Depth Engineering Strength & Customization Advantages
By scientifically configuring a 50t lifting capacity, 32m span, 11m ultra-long cantilever, trolley-traveling cabin, and Siemens-driven 310m long travel system, Yuantai Crane once again demonstrates outstanding R&D and manufacturing excellence in complex container handling scenarios.
| Customer Engineering Challenge | Yuantai Customized Solution | Core Reference Parameters |
|---|---|---|
| Complex Yard Space Layout Requires ultra-long cantilever to span external roads and railways. | Designed an 11.0m ultra-long left cantilever combined with a 32m main span, achieving "stack 4 over 5" high-density storage. | Span: 32m | Left Cantilever: 11m |
| Severe Outdoor Climate & Long Travel Power Gantry travel reaches 310m, withstanding -40℃ frigid cold. | Configured reinforced structures adapted to outdoor -40~40℃ environments, driven by Siemens-branded cable reel motors. | Travel: 310m | Siemens Reel Motor |
| High Precision Vision & All-Weather Operation Operators require pristine visibility and comfort during long shifts. | Adopted a trolley-traveling cabin scheme, equipped with HVAC, hollow insulated glass, and CCTV monitoring systems. | Cabin Travels with Trolley | Hollow Insulated Glass |
How to Evaluate Whether This Solution Fits Your Project?
- 32m Span & 11m Cantilever: Perfectly matches complex roadway-crossing and high-density storage requirements.
- Trolley-Traveling Cabin: Provides top-tier panoramic visibility, significantly reducing operator fatigue.
- Full VFD & Siemens Drive: Ensures 310m long travel stability and high-efficiency speed regulation.
- A6 Heavy-Duty Standard: Satisfies high-intensity, multi-shift, all-weather container throughput operations.
Unsure whether this drawing solution perfectly adapts to your yard?
Send us your yard dimensions, travel distance, and throughput requirements right away. Yuantai Crane engineering experts will provide a free customized CAD general arrangement plan, engineering evaluation, and precise quotation within 24 hours!
