20 Ton Overhead Crane for Steel Mill Maintenance: Project Case Study

When a steel mill needs an overhead crane for equipment repair and shutdown maintenance, the lifting capacity is only the starting point.

A 20 ton overhead crane for steel mill maintenance must work around heat, iron dust, humidity, frequent starts and long lifting distances. It also needs safe access for inspection and maintenance.

This project involved two 20 ton double girder EOT cranes with open winches for maintenance work inside a steelmaking plant. The cranes were engineered around the actual site conditions rather than selected from capacity alone.

Project at a Glance

Customer Requirement: A 20 Ton Overhead Crane for Steel Mill Maintenance

The customer needed overhead cranes for maintenance activities inside a steelmaking plant.

The cranes would be used when production equipment needed to be inspected, repaired, removed or replaced.

Typical maintenance lifting can include:

• Motors and gearboxes
• Pumps and mechanical assemblies
• Steelmaking equipment components
• Maintenance tools and fixtures
• Heavy replacement parts
• Other plant equipment within the rated lifting capacity

The requirement was therefore different from a standard workshop lifting application.

The crane had to provide 20 ton lifting capacity while remaining suitable for the actual steel mill environment.

The Steel Mill Environment Changed the Crane Design

The site conditions were a major part of the engineering requirement.

The specified working environment included:

• Maximum working temperature: 65°C
• Fine iron dust
• Relative humidity up to 95%
• Frequent crane starts
• Long lifting height
• Long crane travelling distance

Each condition affects crane components differently.

This is why the 20 ton overhead crane was designed around the operating environment rather than capacity alone.

Four Engineering Issues Had to Be Solved

High Working Temperature — Up to 65°C

A steelmaking plant can expose crane equipment to much higher temperatures than a normal fabrication workshop.

For this project, the specified maximum working environment temperature was 65°C.

The engineering review therefore had to consider:

• Motor temperature rise
• Motor insulation
• Cooling method
• Electrical enclosure protection
• Cable and component temperature ratings
• Brake and drive operating conditions

The selected motor configuration included Class H insulation, IC411 cooling and PTC thermal protection.

The purpose is straightforward: keep the motor within an acceptable operating temperature under the specified duty.

Fine Iron Dust

Fine iron dust can enter motors, electrical components and mechanical areas if protection is inadequate.

The project specified IP65 motors.

This provides a higher level of protection against dust ingress and water jets than lower IP-rated motor configurations.

For a steel mill maintenance crane, motor protection should be checked together with:

• Cable entries
• Electrical cabinets
• Limit switches
• Pushbuttons and control devices
• Junction boxes
• Sensors and other exposed electrical components

Frequent Starts

Maintenance cranes may make many short lifting and positioning movements.

This creates repeated thermal cycles for motors and mechanical components.

The project specification required:

• 40% ED
• Up to 100 starts per hour
• M5 mechanism classification

These parameters are more useful to the crane engineer than simply saying that the crane is “heavy duty.”

They define how frequently the crane can start, stop and operate under the specified working conditions.

Long Lifting Height

The crane required a 36 m hook stroke.

That affects the hoisting system directly.

The engineering review needs to cover:

• Wire rope arrangement
• Rope drum capacity
• Reeving arrangement
• Hook block travel
• Upper and lower limit protection
• Additional hoisting-path protection
• Brake performance

A long lifting height should be treated as a complete hoisting-system requirement, not simply as a larger dimension in the quotation.

Yuantai Crane Solution

For this project, Yuantai supplied a 20 ton double girder EOT crane with an open winch.

The configuration was selected to match the combination of:

• 20 ton rated capacity
• Steel mill maintenance application
• 36 m lifting stroke
• M5 hoist and trolley duty
• Frequent starts
• High-temperature environment
• Fine iron dust
• Long travelling course
• Requirement for maintenance access

Main Engineering Configuration

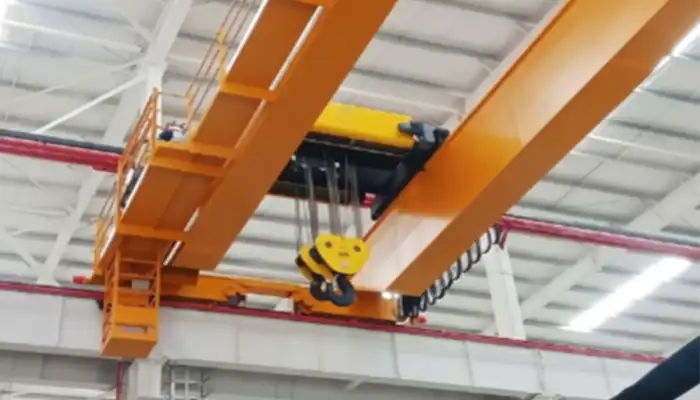

20 ton overhead crane for maintenance operation

Why Use a Double Girder 20 Ton Overhead Crane?

A double girder arrangement provides a rigid bridge structure and a suitable platform for an open winch system.

For this project, the decision was influenced by the combination of 20 ton capacity, 36 m lifting stroke, M5 duty and steel mill maintenance requirements.

A double girder configuration also provides more space for arranging:

• Open winch components
• Maintenance walkways
• Electrical equipment
• Inspection access
• Service platforms

The selection was therefore based on the complete crane configuration, not capacity alone.

Why Use an Open Winch?

The hoisting system uses an open winch rather than a compact integrated hoist.

An open winch normally separates the main hoisting components, such as:

• Motor
• Gearbox
• Brake
• Rope drum
• Coupling
• Supporting structure

This arrangement is useful when the crane requires a higher level of service access.

For a steel mill maintenance crane, technicians may need to inspect or service the hoisting mechanism during planned maintenance.

The open winch layout provides direct access to the major hoisting components.

That is particularly useful when the crane itself becomes part of the maintenance workload.

Motor and Electrical Protection

The motor configuration was selected for the specified operating conditions.

IP65 Motor Protection

IP65 protection helps limit the ingress of dust and water into the motor enclosure.

This is relevant where fine iron dust is present.

Class H Insulation

Class H insulation provides a higher thermal insulation rating than commonly used lower insulation classes.

For a site with a specified ambient working temperature of 65°C, motor thermal performance needs to be checked as part of the complete drive selection.

IC411 Cooling

IC411 uses an enclosed motor with external fan cooling.

The cooling system must be considered together with the site temperature because the temperature difference available for heat rejection becomes smaller as ambient temperature increases.

PTC Protection

PTC temperature sensors provide motor thermal monitoring.

If the motor temperature rises beyond the configured protection level, the control system can initiate the required protective action.

A5 Crane Duty and M5 Mechanism Duty

The project specified:

• A5 steel structure classification
• M5 hoist and trolley mechanism classification

These classifications help define the expected operating conditions of the crane and its mechanisms.

For buyers, duty classification is important because two cranes with the same 20 ton capacity can have very different engineering requirements.

When requesting a quotation, the buyer should provide:

• Working hours
• Number of lifting cycles
• Average load
• Maximum load
• Starts per hour
• Required lifting speed
• Required travelling speed
• Working environment

The supplier can then select the mechanism duty based on actual operation.

Maintenance Access Was Part of the Crane Design

A steel mill maintenance crane must be maintained safely.

The project therefore included provisions for crane inspection and servicing.

The design included features such as:

• Full-length walkway where specified
• Minimum 700 mm walkway width where required
• Anti-slip flooring
• Handrails
• Maintenance platforms
• Access stairs
• Emergency ladder
• Inspection covers
• Lifting lugs
• Wheel replacement provisions

These details can have a direct impact on maintenance time.

A crane may have the correct lifting capacity, but if technicians cannot safely reach the motor, brake, gearbox or electrical equipment, maintenance becomes more difficult.

For this project, maintenance access was treated as part of the crane engineering rather than an optional accessory.

Hoisting Safety and Protection

The 20 ton overhead crane was also equipped with multiple layers of lifting protection.

The specified protection included:

Overload Protection

A dedicated microprocessor-based overload system was specified.

The maximum overload setting was limited to 10%.

When overload protection operates, upward lifting is stopped while lowering remains available where the control logic permits.

Upper and Lower Limit Protection

The hoisting system included additional lifting-path protection using rotary and counterweight limit devices.

This provides another layer of protection against excessive hook travel.

Travel Protection

The crane travelling system requires suitable travel limit and stopping arrangements for the 55 m travelling course.

The exact arrangement should be finalized from the crane layout and site conditions.

What the Buyer Is Actually Buying

For a steel mill, buying a 20 ton overhead crane for steel mill maintenance is not simply a matter of choosing a 20 ton hoist.

The buyer is selecting a complete lifting system that must work under defined site conditions.

The important questions are:

1. Can it lift the required maintenance load?
2. Can it operate at the specified temperature?
3. Can the motors and electrical components handle fine dust?
4. Is the mechanism duty suitable for the operating frequency?
5. Can the crane achieve the required lifting height?
6. Can technicians safely inspect and maintain the crane?
7. Are overload and limit protections properly configured?
8. Are the crane documents and inspection records complete?

These questions provide a better basis for comparing suppliers than price per ton alone.

What Should You Provide When Requesting a 20 Ton Overhead Crane Quote?

A steel mill buyer should provide as much of the following information as possible:

Crane Capacity

• Rated capacity: 20 ton
• Maximum lifted load
• Load type
• Lifting accessories

Crane Dimensions

• Span
• Lifting height
• Crane travelling distance
• Hook approach requirements
• Available headroom

Operating Conditions

• Working temperature
• Dust level
• Humidity
• Indoor or outdoor installation
• Corrosive atmosphere, if applicable

Duty Requirements

• Working hours per day
• Working days per year
• Starts per hour
• Average load
• Maximum load
• Required duty classification

Electrical Requirements

• Voltage
• Frequency
• Phase
• Control method
• Hazardous-area requirements, if applicable

Site Information

• Building drawings
• Runway information
• Existing support structure
• Crane rail information
• Power supply location
• Maintenance access requirements

With this information, the crane manufacturer can prepare an engineering-based quotation instead of giving a capacity-only price.

FAQ: 20 Ton Overhead Crane for Steel Mill Maintenance

What type of crane is suitable for steel mill maintenance?

A double girder EOT crane is a suitable configuration for many heavy steel mill maintenance applications. The final design should be based on capacity, span, lifting height, duty and site conditions.

Why does a steel mill maintenance crane need special protection?

Steel mills can expose cranes to high temperatures, fine iron dust and high humidity. These conditions affect motors, electrical equipment, insulation, lubrication and corrosion protection.

Is a 20 ton overhead crane enough for steel mill maintenance?

It depends on the heaviest component to be lifted. The rated capacity should cover the maximum maintenance load together with the required lifting accessories and applicable safety requirements.

Why use an open winch for a 20 ton maintenance crane?

An open winch provides a separated arrangement for the motor, gearbox, brake and rope drum. It can provide better access for inspection and maintenance when compared with more compact hoisting arrangements.

What duty class should a steel mill maintenance crane use?

The duty class should be selected from the actual operating cycle. This project used A5 for the crane structure and M5 for the hoist and trolley mechanisms.

What information is needed for a 20 ton overhead crane quotation?

At minimum, provide capacity, span, lifting height, travelling distance, working temperature, dust and humidity conditions, power supply and expected operating frequency.

Yuantai Crane Engineering Summary

This project shows how a 20 ton overhead crane for steel mill maintenance should be engineered.

The starting point was the 20 ton lifting requirement.

The next step was the site.

65°C temperature, fine iron dust, 95% humidity, frequent starts and a 36 m hook stroke changed the equipment requirements.

The final configuration used a 20 ton double girder EOT crane with an open winch, A5/M5 duty, IP65 Class H motors, IC411 cooling, PTC protection, 40% ED and maintenance access provisions.

For steel mill buyers, the main lesson is simple:

Do not compare 20 ton overhead cranes by capacity and price alone. Compare the engineering response to your actual plant conditions.

Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
