A straight monorail hoist is suitable when materials move along a fixed linear path between two or more working areas.

For example, a production line may need to transfer components from an assembly station to a testing area. In this case, a straight rail provides simple operation, easy maintenance, and efficient material flow.

Straight monorails are usually more economical because the rail structure is simpler. If the transportation route does not require direction changes, there is no need to add curved sections.

A curved monorail crane is selected when materials need to follow a changing production route instead of moving in one straight line.

In many factories, the production process is not arranged in a perfect straight line. The material may need to turn around machines, connect different workshops, or follow a circular production flow.

A curved monorail track allows the hoist to travel smoothly through bends without manual transfer between different lifting systems.

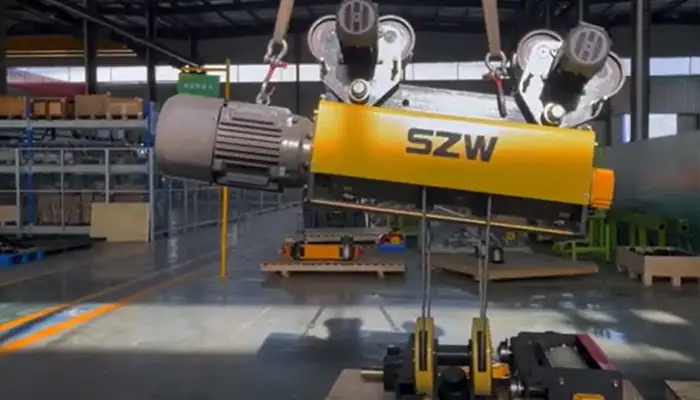

A double hoist trolley improves load stability, especially when handling long, heavy, or unbalanced materials.

With two hoisting points, the load can be supported more evenly. This reduces swinging and improves control during traveling.

In practical applications, customers often choose a double hoist design for steel structures, long components, molds, or equipment parts where load balance is important.

The monorail hoist capacity should be selected according to the maximum load weight, lifting frequency, and safety requirements.

For example, if the heaviest product is 3 tons but the production line runs continuously every day, a 5 ton hoist may be considered depending on the working duty.

Selecting only according to the average load can create problems later. Engineers usually consider the heaviest load, future production needs, and operating conditions together.

Yes, European-style monorail hoists can be designed for both straight and curved rail systems when the trolley and track design match.

However, not every standard trolley can run smoothly on curved tracks. The wheel design, trolley structure, rail radius, and traveling mechanism must be considered together.

This is why customers should provide the complete rail layout before selecting the hoist system.

Customers should provide the rail layout, lifting capacity, lifting height, working speed, and application details before selecting a monorail hoist.

The main information includes:
- Maximum lifting weight
- Lifting height
- Straight or curved rail layout
- Rail length and curve radius
- Working hours per day
- Power supply
- Material type

These details help avoid selecting a trolley that cannot match the actual track system.

European monorail hoist systems are widely used in automotive, machinery manufacturing, electronics, assembly lines, and warehouse transfer applications.

For example, automotive factories often use monorail systems to move components through different production stages. Workers can load parts at one station and transfer them automatically along the fixed rail route.

The biggest advantage is repeatable material movement with less manual handling.

A European-style monorail hoist is chosen when customers need compact design, smooth movement, and reliable operation for continuous production.

A standard lifting system may work for occasional lifting, but a monorail system is designed around production flow.

When the same material needs to move the same route hundreds of times, a well-designed monorail system can improve efficiency, reduce manual handling, and create a more organized working environment.
