How Does a Free Standing Jib Crane Work in a Confined Space?
See how a 0.5 ton free standing jib crane with an electric wire rope hoist works in a confined space workshop, with 360° jib rotation for flexible load handling.
Short Video Description
This video shows a 0.5 ton free standing jib crane working in a confined workshop where floor space is limited.
The crane uses an electric wire rope hoist to lift and lower the load, while the jib rotates through 360° around its fixed base. This allows the operator to move the load around the working area without needing an overhead crane system.
For a small workshop, the challenge is not only lifting the load. The crane must also fit the available space, provide enough hook coverage and leave enough clearance around machines and operators.
The video shows the jib rotation, hoist operation and load positioning in a compact working area.

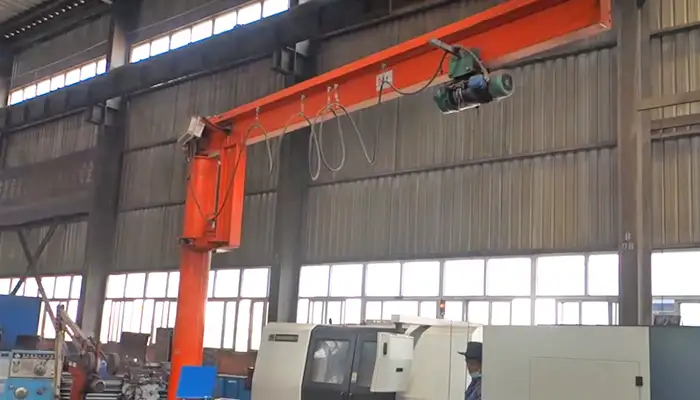

Screen short of freestanding jib crane operation video in the confired space or limited space workshops or workstations for material handling
Main Specifications
| Item | Specification |
|---|---|
| Crane type | Free Standing Jib Crane |
| Rated capacity | 0.5 ton |
| Jib length | Customized according to working area |
| Rotation | 360° |
| Hoist type | Electric Wire Rope Hoist |
| Hoist travel | Along jib arm |
| Lifting height | Customized |
| Lifting speed | Customized according to hoist configuration |
| Slewing | 360° rotation |
| Control | Pendant control or radio remote control |
| Power supply | 380V/50Hz/3Ph or customized |
| Installation | Floor mounted with base plate and anchor bolts |
| Typical use | Machine loading, maintenance, assembly, fabrication and workstation lifting |
How Does a Free Standing Jib Crane Work in a Confined Space?
A free standing jib crane is installed directly on the workshop floor. It does not need an overhead runway or building column for crane travel.
For a confined workshop, this can be useful because the crane can be installed close to the machine or workstation where lifting is needed.
The 360° rotating jib gives the crane a circular working area around its base. The electric wire rope hoist travels along the jib arm to position the hook.
So the crane has two basic movements:
- 360° jib rotation around the fixed column
- Hoist travel along the jib arm
This combination allows a 0.5 ton load to be picked up and moved between nearby machines, workstations or material positions.
In a small workshop, every metre matters. A crane that is too large can become another obstacle instead of solving the lifting problem.
Why Use an Electric Wire Rope Hoist?
For a 0.5 ton jib crane, an electric wire rope hoist can provide a compact lifting solution when a higher lifting height or longer lifting travel is required.
The hoist lifts and lowers the load vertically, while the trolley moves the hoist along the jib arm.
This gives the operator better control of the hook position without manually moving the load.
For confined-space applications, the hoist size, hook height and trolley arrangement should be selected carefully. The goal is simple: get the hook where it needs to go without hitting everything else on the way.
FAQ
Key questions about 0.5 ton free standing jib crane operation and confined-space lifting.
1. How does a free standing jib crane work in a confined space?
The crane is fixed to the workshop floor and the jib rotates 360° around its base. The electric wire rope hoist travels along the jib arm, allowing loads to be picked up and positioned within the available working area.
2. What is the advantage of 360° rotation?
360° rotation allows the jib to cover the area around the crane column. This is useful when one lifting point needs to serve several nearby machines or workstations.
3. How much can this free standing jib crane lift?
The crane shown in the video has a 0.5 ton rated capacity. The actual working capacity, jib length and lifting height should be selected according to the application and required working area.
Key questions about selecting and buying a free standing jib crane for a confined workshop.
4. Is a free standing jib crane suitable for a small workshop?
Yes, when the lifting area is local and there is enough floor space for the crane base. The 360° jib rotation can serve several nearby working positions without installing an overhead crane runway.
5. What information is needed for a quotation?
Buyers should provide lifting capacity, lifting height, jib length, rotation range, working frequency, power supply and control method. A workshop drawing or photos of the installation area are also helpful.
6. What should be checked before buying a free standing jib crane?
Check the crane capacity, jib length, hook height, floor condition, foundation, working area, hoist type and working frequency. For a confined workshop, clearance around the jib, hook and load should also be checked before installation.
