How Does a 500kg Portable Articulating Jib Crane Work?
See how a 500kg portable jib crane with an articulating cantilever, 360° rotation and castor wheels provides a flexible lifting point for workshops and maintenance areas.
Short Video Description
This video shows a 500kg portable articulating jib crane designed for lifting work where a fixed crane is not practical.
The crane uses a castor wheel base so it can be repositioned to different work areas when unloaded. Its articulating jib provides additional flexibility for reaching around machines and obstacles.
The jib can rotate through 360°, while the articulated cantilever helps position the hook closer to the required lifting point.
After the crane is moved into position, the hoist lifts and positions the load within the crane's working area. The portable travelling function is for repositioning the unloaded crane, not for transporting a suspended load.
That distinction is important. Portable does not mean "drive around with 500kg hanging from the hook." The wheels are there to move the crane between jobs.

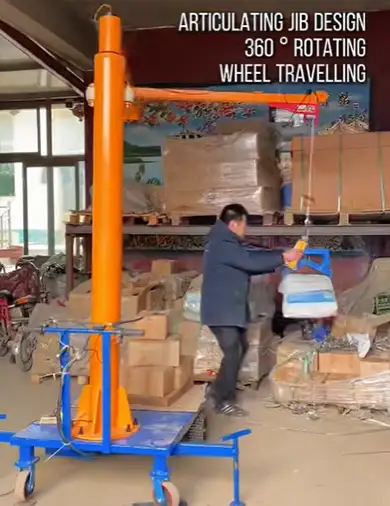

portable articulating jib crane 500kg on wheels for light load handling
Main Specifications
| Item | Specification |
|---|---|
| Crane type | Portable Articulating Jib Crane |
| Rated capacity | 500kg / 0.5 ton |
| Jib type | Articulating Cantilever |
| Rotation | 360° |
| Travelling | Castor Wheel Travelling |
| Travelling condition | Unloaded crane repositioning |
| Hoist type | Electric Chain Hoist or customized hoist |
| Jib span | Customized according to application |
| Lifting height | Customized |
| Hook reach | Customized according to articulated jib geometry |
| Control | Pendant control or radio remote control, according to hoist |
| Power supply | 380V/50Hz/3Ph or customized |
| Base | Portable base with castor wheels |
| Typical use | Machine maintenance, assembly, repair, tooling and workshop lifting |
How Does a 500kg Portable Articulating Jib Crane Work?
The crane is built around a portable wheeled base and an articulating jib.
The crane can be moved around the workshop when it is not carrying a suspended load. Once it reaches the required working position, the crane is positioned according to the manufacturer's operating procedure.
The articulated jib then provides additional flexibility compared with a straight jib arm.
The working sequence is:
- Move the unloaded crane to the required work area.
- Position and secure the crane according to the operating procedure.
- Rotate and adjust the articulating jib.
- Position the hook above the load.
- Lift the load with the hoist.
- Move the load within the jib's designed working area.
- Lower the load into position.
The main advantage is flexibility. The crane can be repositioned for different jobs instead of being permanently installed in one location.
What Is the Advantage of an Articulating Cantilever?
A conventional jib usually has one main straight arm. An articulating jib has an additional joint or arm section that can change the hook position.
This can be useful when the lifting point is not directly in front of the crane column.
The articulated arm can help the hook reach:
- Around machine corners
- Inside maintenance areas
- Closer to equipment
- Around workshop obstacles
- Different positions within a compact work area
For a 500kg crane, this can be more useful than simply making the jib longer.
A longer straight jib gives more reach. An articulating jib gives more control over where the hook reaches.
How Does the 360° Rotation Work?
The crane column and jib arrangement allow the jib to rotate through 360° around the crane base, according to the specific design.
This gives the crane access to the area around its base instead of limiting the lifting point to one direction.
Combined with the articulating cantilever, the operator can position the hook more flexibly within the designed working envelope.
This is particularly useful for maintenance work where the required lifting position can change from one job to another.
Can the Portable Jib Crane Travel With a Load?
No. The castor wheels are used to reposition the unloaded crane.
The crane should first be moved to the required location without a suspended load. After positioning and securing the crane according to the manufacturer's instructions, the hoist can lift the load.
The load is then handled within the crane's designed working area.
This is an important distinction when comparing a portable jib crane with a mobile crane.
Portable jib crane = movable lifting station.
It is not designed to carry a suspended load while travelling around the workshop.
What Floor Conditions Are Needed?
Because the crane is supported by castor wheels, the floor condition directly affects how easily and safely the unloaded crane can be repositioned.
Buyers should check:
- Concrete floor condition
- Floor levelness
- Floor load capacity
- Cracks or damaged areas
- Travel path width
- Doorway clearance
- Machine and obstacle clearance
A smooth, level and suitable workshop floor makes repositioning easier. The wheel design and crane self-weight should also be considered during selection.
FAQ
Key questions about 500kg portable articulating jib crane operation and workshop applications.
1. How does a 500kg portable articulating jib crane work?
The crane uses a castor wheel base for repositioning and an articulating jib for flexible hook positioning. The unloaded crane is moved to the required work area, then the hoist lifts and handles the load within the designed working range.
2. What is the benefit of an articulating jib?
The articulating jib provides additional hook positioning flexibility. It can help the hook reach around machines, corners and obstacles without requiring an unnecessarily long straight jib.
3. What does 360° rotation provide?
360° rotation allows the jib to work around the crane base. Combined with the articulating arm, it provides a larger and more flexible working envelope for maintenance and material handling.
Key questions about buying a 500kg portable articulating jib crane.
4. Can the 500kg portable jib crane travel with a suspended load?
No. The castor wheels are intended for repositioning the unloaded crane. The crane should be positioned before lifting the load, and the load should be handled only within the crane's designed working area.
5. What should I check before buying a 500kg portable articulating jib crane?
Check the lifting capacity, jib reach, lifting height, articulating range, 360° rotation, crane self-weight, wheel arrangement, floor condition and working frequency. The actual hook position is especially important for machine maintenance and confined work areas.
6. What information does Yuantai Crane need for a quotation?
Buyers should provide load capacity, lifting height, required hook reach, working area, rotation requirement, floor condition, travelling requirement, working frequency and power supply. Photos or a simple workshop layout showing the machines and lifting points are also useful.
