Double Hoist Cranes for Space-Limited Workshops Load Handling

Introduction -The Common Problem in Low-Ceiling Workshops

Working in a workshop with limited overhead space presents real limitations. You can't change the ceiling height, and every inch counts. Whether it's an older industrial building or a purpose-built small facility, low clearance restricts what kind of lifting equipment you can use.

Standard cranes need space — and lots of it — especially above the hook. But in many workshops, space above the crane girder is just not available. Pipes, lighting, HVAC ducts, or structural beams all get in the way. You can't move them easily, and modifying the building is often expensive.

Why Traditional Crane Systems Don't Fit

• Standard hoists often sit high above the hook, eating into your lifting height.
• Double girder cranes with standard hoist setups may waste vertical space that you can't afford to lose.
• That means loads can't be lifted to the height you need, making transfers and assembly more complicated.

Some workshop owners try to manage with forklifts or chain blocks, but these methods are slower, less safe, and not suitable for heavy or awkward loads.

What This Article Covers

This article introduces a more practical alternative: double hoist overhead cranes with low-headroom hoists.

We'll look at:

• How double hoist setups allow flexible and balanced lifting, especially for long items.
• How low-headroom hoists help you reclaim vertical space you thought was lost.
• What real-world benefits these cranes offer in cramped or height-restricted environments.

If you're operating in a tight space but still need reliable lifting capacity, this is the kind of system you'll want to consider.

Double Hoist Crane Configuration

What Is a Double Hoist Crane?

A double hoist crane is an overhead lifting system equipped with two hoisting mechanisms instead of one. These hoists can be mounted in one of two ways:

• Two hoists on a single trolley
  The hoists share the same trolley frame and move together along the bridge.
• Two separate trolleys on the same bridge girder
  Each trolley runs independently along the beam, allowing for adjustable spacing between the hoists.

Both setups serve different needs, depending on the type and shape of the load.

Tandem or Independent Operation

The beauty of the double hoist system lies in its flexibility.

• Tandem Mode (Synchronized):
  Both hoists lift the same object at the same time. This is ideal for long items like steel beams, piping bundles, machinery frames, or equipment that needs to be lifted evenly to avoid tipping or stress.
• Independent Mode:
  Each hoist can be operated separately. This allows workers to shift the center of gravity, rotate parts during maintenance, or lift two smaller items simultaneously within the same work area.

This dual function brings real operational advantages, especially when compared to a single-hook system where repositioning and load balancing often require extra labor or secondary tools.

Why Double Hoists Are Ideal for Long or Irregular Loads

If you're handling awkward loads — such as machine beds, large control cabinets, tanks, or long tooling parts — using a single lifting point simply won't cut it.

• Two hoists allow the load to be picked up at two points, avoiding bending, tilting, or dragging one side.
• Better control during movement minimizes swing, making operations safer and more predictable.
• Supports fragile or asymmetrical items that could break or shift under uneven weight distribution.

This setup reduces the need for lifting slings, spreader beams, or special rigging—and it makes daily handling faster and safer for your team.

The Role of Low-Headroom Hoists in Confined Workshops

What Makes a Hoist "Low-Headroom"?

In simple terms, a low-headroom hoist is built to take up as little vertical space as possible between the hook (where the load hangs) and the beam or track it runs on. In traditional hoists, the motor and drum are often stacked above the hook, meaning you lose a lot of vertical lifting height. That's not ideal when you only have a few meters of clearance to work with.

A low-headroom design reconfigures the components:

• The motor, gearbox, and drum are placed beside the hoisting path, rather than above it.
• The hoist body sits close to the beam or trolley, which shortens the "headroom"—that's the vertical space needed above the hook when fully raised.

This configuration allows you to lift loads closer to the ceiling, which is exactly what's needed in tight environments.

Why Lifting Height Matters in Limited Spaces

Every bit of available vertical space counts when you're dealing with tight headroom.

• A low-headroom hoist can often give you an extra half meter or more of lifting height compared to a conventional hoist.
• That extra clearance can mean the difference between successfully lifting a machine into place or needing to dismantle it before moving.
• It also reduces the risk of collisions between the hook and the ceiling or overhead obstructions.

In workshops with fixed rooflines, this is one of the most cost-effective ways to maximize usability without touching the structure.

Key Differences from Standard Hoists

Here's how low-headroom hoists compare to typical models:

• Standard hoists: Motor and drum are stacked vertically; higher overall profile; more vertical clearance required.
• Low-headroom hoists: Compact horizontal layout; minimal hook-to-beam distance; ideal for confined installations.

In practical terms, low-headroom hoists don't just "fit" better—they let you do more lifting with the space you already have. That's a real advantage when you're working under pipes, HVAC systems, or beam bracing that can't be moved.

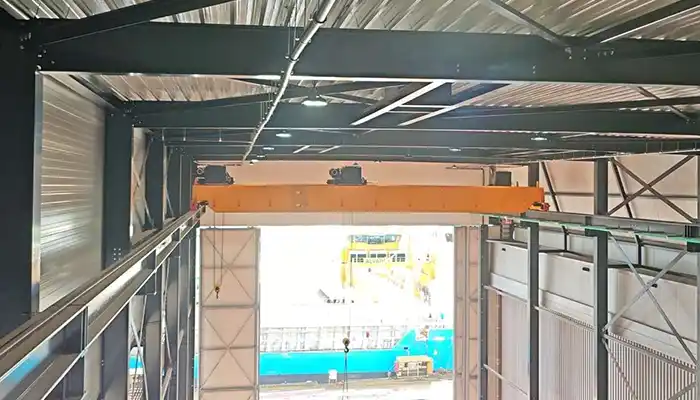

double hoist overhead crane for low limited space workshops- European style double girder overhead crane

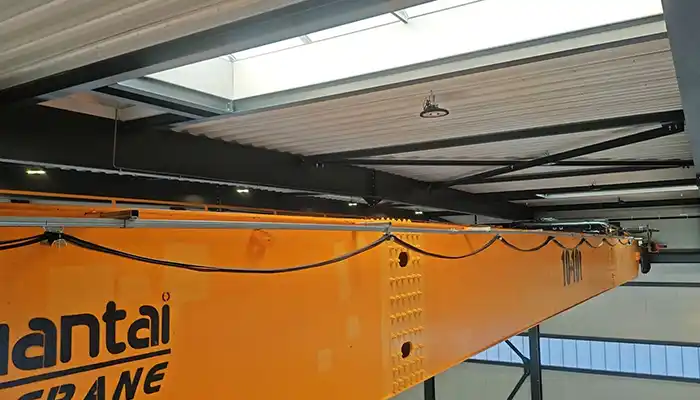

Make the best use of your workshop space to meet your material handling needs -  more types of low headroom or low built overhead cranes

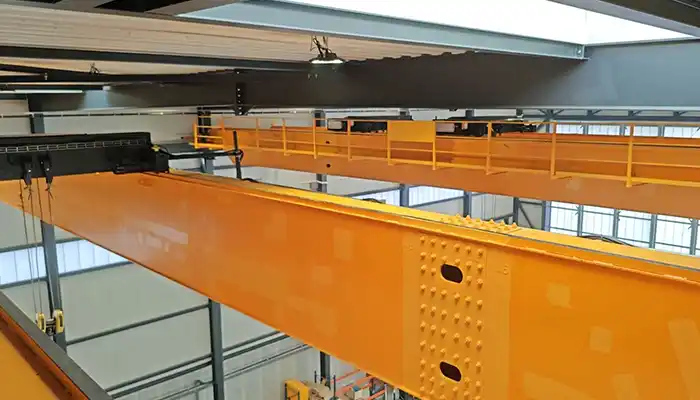

double hoist cranes used in the same working bay for busy material handling needs

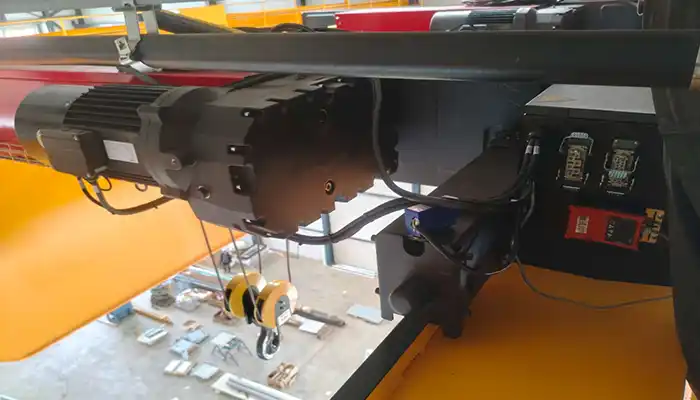

Low headroom electric wire rope hoist for double girder cranes

Low profile electric hoist with high safety and european design

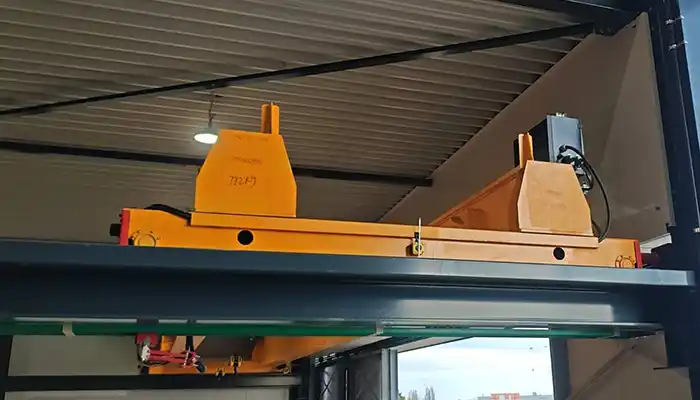

Low profile end carriages of double girder overhead bridge crane

Benefits of Double Hoist Cranes in Limited Height Applications

Efficient Use of Vertical Space

One of the biggest advantages of using a double hoist crane with a low-headroom design is the ability to make the most of the space you already have. In low-roof workshops or facilities with overhead constraints, every centimeter of lifting height matters.

• You get more usable lift without raising the building roof or altering steel beams.
• No need for extra clearance above the hook, thanks to the compact hoist design.
• Works within existing ceiling height, often enabling full-range lifting that traditional hoists can't achieve.
• Avoids high-cost structural changes such as roof raising, beam reinforcement, or pit installation for equipment.

This makes double hoist cranes a smart fit for installations in older industrial buildings or workshops built with minimal vertical clearance.

Improved Load Handling Flexibility

Double hoist cranes offer flexibility that single-hoist systems simply can't match. When handling awkward, long, or bulky loads, having two lifting points makes the process smoother and safer.

• Easily lift long loads from both ends, keeping them level during the move.
• Helps avoid sagging or twisting that can damage items like pipes, bars, or large equipment.
• Can also handle two smaller loads at once, as long as they are within the rated capacity and travel range.
• Adjustable spacing (with two trolleys) or fixed alignment (with two hoists on one trolley) depending on your operational needs.

Whether it's moving a transformer, a machine frame, or a heavy panel, the dual lifting points provide far better control.

Enhanced Safety and Precision

When lifting in tight spaces, safety and control are everything. Double hoist cranes bring both to the table—especially when paired with modern control systems.

• Loads stay better balanced, which reduces sway and tilt during operation.
• Operators can fine-tune movements, lowering each hoist at different speeds if needed to level the load.
• Synchronized control is available, allowing both hoists to move together for even lifting.
• Precise positioning reduces damage to equipment and lowers risk to personnel.

This is particularly useful when lifting fragile items or positioning machinery in close quarters.

Cost Savings in Retrofitting Projects

If you're upgrading or expanding an older workshop, the costs of modifying your building to suit a standard crane can be steep. Double hoist cranes with low-headroom design help avoid that.

• They're made for working within limitations—no need to raise roofs or dig floors.
• Perfect for mezzanine spaces, basement workshops, or older factories where ceiling height can't be altered.
• Speeds up installation and reduces civil work costs, making the overall project timeline shorter.
• Improves ROI by using existing building structure more effectively, without overhauls.

For businesses looking to upgrade lifting capabilities without a complete rebuild, this setup makes financial and operational sense.

Typical Applications in Industry

Where Double Hoist Cranes with Low-Headroom Design Truly Make Sense

Double hoist cranes aren't just for show—they solve real problems in very specific industrial settings. When facilities are short on height but still need precision, capacity, and flexibility, this crane setup becomes the smart choice.

Metal Fabrication and Steel Component Assembly

In fabrication shops, handling long or heavy steel components is part of daily operations. But space isn't always generous.

• Lifting structural beams, plates, or frames requires two lifting points for even support.
• Low-headroom hoists allow these shops to install cranes without increasing roof height.
• Improves workflow between stations, especially when overhead clearance is already tight due to ventilation systems or lighting.

Whether you're assembling heavy weldments or transferring pre-fabricated modules, these cranes offer the lift you need without demanding extra space.

Small Foundries and Machining Workshops

Foundries and machine shops often operate in compact buildings, and floor-to-ceiling space is already taken by ducts, mold conveyors, or coolant systems.

• Used for lifting molds, cast parts, or machine beds, often with odd shapes or long profiles.
• Double hoists help avoid product damage by balancing weight and reducing shifting during transport.
• Low-headroom setup fits between overhead utilities that can't be relocated.

Machining workshops especially benefit from better load control when placing parts onto precision equipment.

Equipment Maintenance and Repair Bays

When maintaining or repairing industrial machinery, disassembly often requires lifting components that are long, heavy, and difficult to balance with a single hook.

• Dual hoist system helps safely remove large gearboxes, shafts, or housings from equipment frames.
• Height limitations are common in service areas, especially those tucked inside manufacturing plants.
• Supports delicate realignment or reinstallation, where millimeter precision matters.

You'll see these cranes in utility workshops, heavy vehicle service bays, and even underground pump rooms.

Retrofit Manufacturing Facilities with Space Limitations

Older buildings converted into production areas rarely have the ceiling height needed for modern crane equipment. But that doesn't mean they can't lift heavy loads efficiently.

• Perfect for facilities where rebuilding the roof isn't an option.
• Fits into structural constraints—existing trusses, support beams, and lighting arrays.
• Speeds up loading, assembly, or material transfer in buildings originally not designed for cranes.

Manufacturers upgrading their operations—without moving locations—turn to this type of crane for flexibility and cost control.

Choosing the Right Double Hoist Crane for Your Workshop

What to Keep in Mind Before Making a Decision

Picking the right double hoist crane isn't just about capacity or price. It's about matching the crane design to your workshop's unique space and lifting demands. Getting this right upfront saves headaches down the line.

Available Headroom and Span

First things first—measure your space carefully.

• Headroom is the vertical clearance between the crane runway beam and the floor. This limits how tall your crane and hoists can be.
• Span is the width between the crane's runway rails. The span affects bridge size and trolley travel distance.
• Knowing these dimensions helps you select cranes with low-headroom hoists or other features to fit your facility's physical limits.
• If your headroom is tight, lean toward cranes with compact hoists and slim bridge girders.

Required Lifting Capacity and Hook Coverage

Next, consider how heavy and how wide your loads are.

• Total lifting capacity must meet or exceed your heaviest single load plus a safety margin.
• The hook coverage means how far apart the two hoists can travel or be spaced to support long or irregular loads.
• For very long or heavy loads, ensure the crane can position both hoists properly to avoid sag or twisting.
• If you regularly lift loads with an uneven center of gravity, flexible hoist placement or independent control can help.

Load Types: Long, Dual-Point, or Offset Loads

The shape and balance of your loads influence crane configuration.

• Long or bulky loads (pipes, beams, frames) benefit from dual hoists to lift from two points.
• Dual-point lifting keeps the load balanced, reducing stress on both the crane and the item.
• Offset center of gravity loads might require hoists to move independently or be positioned asymmetrically.
• Think about whether you'll lift single heavy loads or multiple smaller items simultaneously, which can affect hoist and trolley design.

When to Consider Custom Hoist Positioning or Trolley Arrangement

Sometimes, a one-size-fits-all crane doesn't cut it.

• If your workshop handles a variety of load sizes or shapes, customizing hoist spacing or using two separate trolleys can add flexibility.
• Some cranes offer adjustable hoist positions along the bridge, letting you adapt to different lifts.
• For very tight headroom, you may want a single trolley with two hoists close together to minimize crane height.
• Discuss with your supplier about tailored solutions to fit your exact needs, especially if you foresee changing operational demands.

Choosing the right double hoist crane requires a clear understanding of your facility, load types, and lifting goals. Taking the time to analyze these factors will pay off with smoother, safer operations.

Conclusion and Buyer Recommendations

Why Double Hoist, Low-Headroom Cranes Are a Smart Choice for Tight Spaces

When workshop ceilings are low and floor space is limited, you need a lifting solution that fits the environment without forcing expensive building modifications. Double hoist cranes with low-headroom electric hoists meet that need perfectly. They:

• Make the most of the vertical space available, giving you more lifting height without raising your roof.
• Provide flexible lifting options with two hooks, ideal for long or awkward loads.
• Keep operations smooth and safe thanks to precise control and better load balance.

In short, these cranes help you work smarter, not harder, even when space is tight.

Talk to Your Crane Supplier About Layout and Customization

Every workshop is different. So, before ordering, spend time with your crane supplier to:

• Discuss your exact building dimensions — headroom, span, and runway layout.
• Explain the types of loads you handle regularly and any special challenges like uneven weights or bulky shapes.
• Explore options for custom hoist placement or trolley setups that fit your workflow.
• Ask about installation requirements, maintenance support, and future upgrades.

Good communication upfront means the crane you get will fit your needs without surprises.

Take Time to Assess Your Loads and Space Before Buying

Don't rush the purchase just based on price or general specs. Instead:

• Review your load profiles — size, weight, balance — to determine what lifting capacity and hook coverage you need.
• Measure your workshop carefully, including any overhead obstructions or low-clearance zones.
• Think about how your operations might change in the future — will you need to handle bigger or more complex loads later?
• Plan for operator training and maintenance to keep your crane running safely and efficiently for years.

A little planning now saves time and money later.By choosing the right double hoist, low-headroom crane tailored to your space and lifting needs, you're setting your workshop up for safer, more flexible, and more efficient material handling.
