Underslung Bridge Crane,10 Ton CD/MD Rope Hoist Crane for Sale
Under Running CD/MD Wire Hoist Crane, Economical Underslung Bridge Crane 10 Ton

Underslung Bridge Crane for sale Nigeria, Custom 10 ton overhead crane, under running CD/MD wire hoist crane, economical underslung bridge crane 10 ton.

Wire a cast study of underslung bridge crane 10 ton for sale Nigeria, with the specifications of 10T-22.5M H15M 380V50HZ3, 4 sets. And also together supplied with H beam 700*296*15*25mm 9 meters /piece*3pieces.

Case study: underslung bridge crane 10 ton for sale in Nigeria

A construction company in Nigeria was in need of a high-quality underslung bridge crane to assist with their heavy lifting operations. They required a crane with a 10 ton capacity, capable of lifting heavy loads across a large span. After conducting extensive research, they found a crane that met their requirements perfectly.

Specifications of underslung bridge crane for sale Nigeria

• Capacity: 10 Ton
• Span: 22.5 meters
• Height of Lift: 15 meters
• Voltage: 380V50HZ3
• Quantity: 4 sets
• Additional Supplies: H beam 700*296*15*25mm 9 meters /piece*3pieces

Features and benefits of 10 ton underslung overhead cranes

• The 10 ton capacity of the underslung bridge crane makes it ideal for lifting heavy loads.
• With a span of 22.5 meters and a height of lift of 15 meters, the crane can easily move materials across the construction site.
• The crane operates on a voltage of 380V50HZ3, which is commonly used in Nigeria.
• The construction company required four sets of the crane to meet their heavy lifting needs.
• The additional supplies of H beam 700*296*15*25mm 9 meters /piece*3pieces were provided to assist with the installation of the crane.

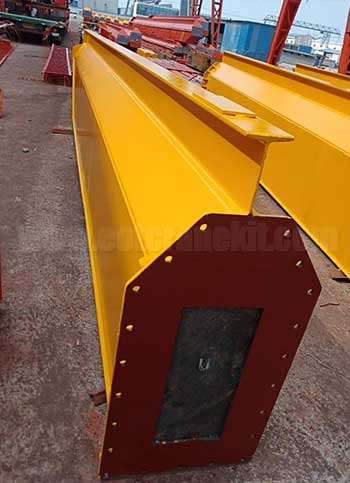

Main girder of underslung bridge crane 10 ton, typical girder design of Chinese underhung crane with U shaped box girder + I beam

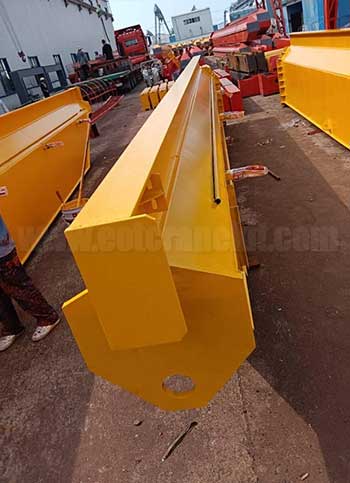

Econcomial under running overhead bridge crane from China sold to  Nigeria

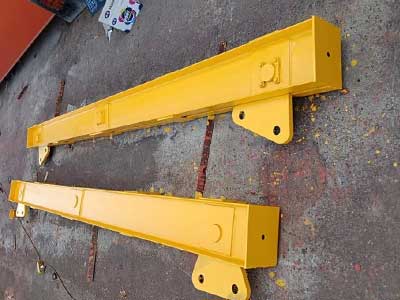

End carriage of under running single girder overhead crane 10 ton

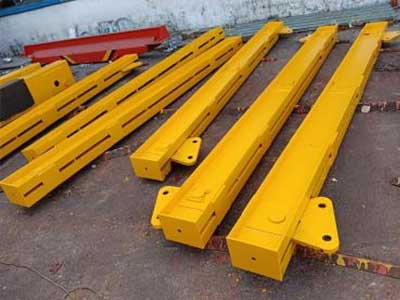

10 ton single girder under running overhead crane 10 end carriages

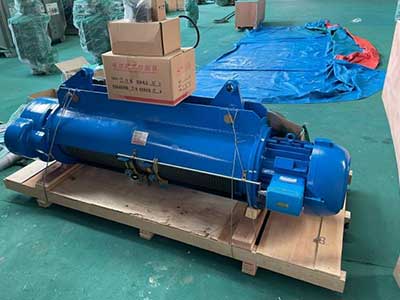

Suspension wire rope hoist 10 ton for underslung crane for sale at cost-effective price

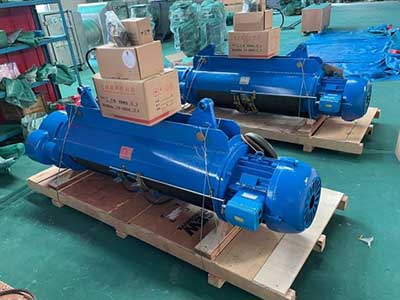

Underhung bridge crane electric hoist 10 ton

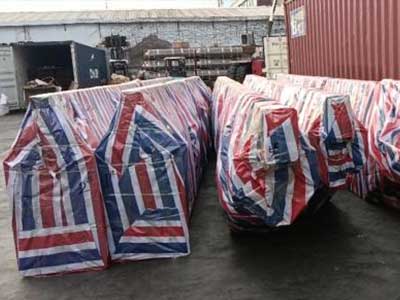

Main girder packed for delivery to Nigeria

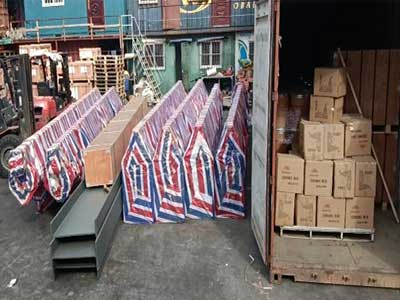

Steel structure and main parts and components of underslung bridge crane 10 ton for sale

The underslung bridge crane with a 10 ton capacity, 22.5 meter span, and 15 meter height of lift, along with the additional supplies of H beam 700*296*15*25mm 9 meters /piece*3pieces, has proven to be an excellent solution for the construction company's heavy lifting needs in Nigeria. The crane's high capacity, large span, and reliable lifting capabilities make it an essential tool for their operations.

Underslung bridge crane , economical 10 Ton Overhead Cranes CD/MD hoist crane

An underslung bridge crane, also known as an under running or underhung crane, is a type of overhead crane where the end trucks of the crane are attached to the bottom flange of the runway beams. The wheels of the end trucks run along the bottom of the lower beam flange, allowing the crane to move along the runway. This type of crane is typically used in applications where headroom is limited or where the crane needs to be supported by the existing building structure. Underslung bridge cranes are usually configured in a single girder design and are suitable for light to medium duty applications.

Economical underslung overhead crane made by Chinese crane manufacturer for sale at good price

3D presentation of underhung overhead crane

Features of underslung bridge cranes 10 ton

Underslung bridge cranes, also known as under running or underhung cranes, have several features that make them suitable for a variety of applications. Some of the key features of underslung bridge cranes include:

• Compact design: Underslung bridge cranes have a compact design that makes them suitable for use in facilities where headroom is limited or where the crane needs to be supported by the existing building structure.
• Flexible configuration: Underslung bridge cranes can be configured in a single girder design and can be customized to meet the specific lifting requirements of the application.
• Smooth and precise operation: Underslung bridge cranes are designed to provide smooth and precise operation, making them suitable for handling delicate or sensitive loads.

Underslung bridge cranes are typically used for light to medium duty applications, such as assembly, manufacturing, maintenance, and material handling. They are commonly used in workshops, warehouses, production facilities, and other industrial environments where overhead lifting is required.

Application of under-slung bridge crane 10 ton

Some typical applications for underslung bridge cranes include:

• Assembly lines: Underslung bridge cranes can be used to move components and assemblies along an assembly line.
• Manufacturing: Underslung bridge cranes can be used to handle raw materials, work-in-progress, and finished goods in a manufacturing facility.
• Maintenance: Underslung bridge cranes can be used to lift and move heavy equipment and machinery during maintenance operations.
• Material handling: Underslung bridge cranes can be used to load and unload materials from trucks, move materials between storage areas, and handle materials during production processes.

Underslung bridge cranes, also known as under running or underhung cranes, are typically available in a single girder design. This type of crane consists of a single bridge girder that is supported by two end trucks, with the hoist and trolley running along the bottom flange of the bridge girder.

The specific type of underslung bridge crane that is best for your application will depend on factors such as the weight and size of the loads being lifted, the frequency of lifting, and the available space in your facility.

Installation of 10 ton underslung bridge cranes

The installation of an underslung bridge crane, also known as an under running or underhung crane, should be performed by a qualified and experienced crane installation team. Here is an overview of the general process for installing an underslung bridge crane:

• Site preparation: The first step in the installation process is to prepare the site where the crane will be installed. This may involve clearing the area, leveling the ground, and installing the runway beams that will support the crane.
• Assembly of the crane components: The next step is to assemble the various components of the crane, including the bridge girder, end trucks, hoist, and trolley. This is typically done on the ground near the installation site.
• Installation of the runway: The runway for the crane must be installed before the crane can be erected. This involves installing the runway beams and attaching them to the building structure or support columns.
• Erection of the crane: Once the runway is installed, the crane can be erected. This involves lifting the assembled crane components into place and attaching them to the runway beams. The crane must be properly aligned and leveled during this process.
• Electrical and mechanical connections: After the crane is erected, the electrical and mechanical connections must be made. This includes connecting the power supply to the crane's motors and control systems, as well as making any necessary mechanical connections between the various components of the crane.

Testing and commissioning: The final step in the installation process is to test and commission the crane. This involves performing a series of tests to ensure that the crane is operating correctly and safely, and making any necessary adjustments or corrections.

Safety during installation

During the installation process, it's important to follow all safety guidelines and regulations to ensure that the crane is installed correctly and safely. Some things to note during installation include:

• Ensure that all components are installed according to the manufacturer's instructions.
• Make sure that all bolts and connections are properly tightened and secured.
• Verify that all electrical connections are made correctly and that all safety devices are functioning properly.
• Perform a load test to ensure that the crane can safely lift its rated capacity.
• Train operators on how to safely operate and maintain the crane.

By following these guidelines and working with a qualified installation team, you can ensure that your underslung bridge crane is installed correctly and safely.

Get your customized 10 ton underslung bridge cranes

As for the price of the 10 ton underslung bridge cranes, there are various factor that will affect the crane designs and configurations, including the crane's specifications, features, and the manufacturer. It's best to contact a crane manufacturer or supplier directly for a quote on a 10-ton underslung bridge crane that meets your specific needs.

Eureopan style under slung bridge crane, low headroom under running crane

Electric wire rope hoist crane 10 ton for sale , affordable single girder under running crane

There are several variations of the single girder underslung bridge crane design for your selection , including:

• Manual underslung bridge cranes: These cranes are operated manually and are suitable for light duty applications where the loads being lifted are relatively small.
• Electric underslung bridge cranes: These cranes are powered by electricity and are suitable for medium to heavy duty applications where the loads being lifted are larger and more frequent lifting is required.
• Semi-gantry underslung bridge cranes: These cranes have one end of the crane supported by the building structure and the other end supported by a leg that runs on a rail or track. This type of crane is suitable for applications where there is limited space for a full gantry crane.

Contact us to get your customized underslung bridge crane 10 ton. Contact us today to check what we can do to save your 10 ton crane cost.
