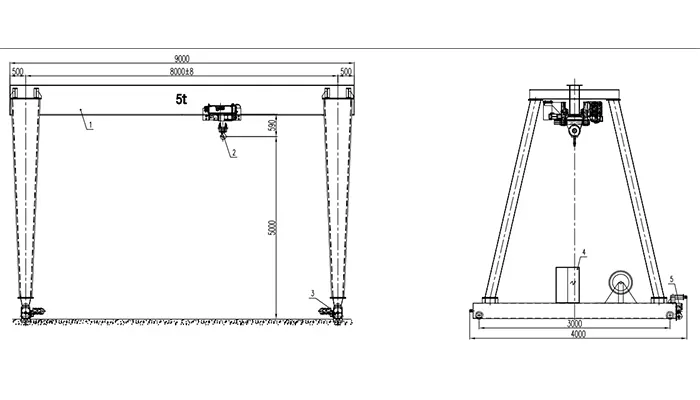

5 Ton European Single Girder Gantry Crane Drawing & 3D Model - MHO 5t-8m A5
Download the 5 ton European single girder gantry crane drawing (MHO 5t-8m A5). 8m span, 5m lift, NR European hoist, full VFD on all motions, SZW-100 travel drives, P22 rail, 480V 60Hz 3P, ISO A5 duty. Free 2D + 3D drawing package PDF and custom quote with
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 5TonGantryCraneDrawing
Overview:
Engineered and manufactured by Yuantai Cranes, this 5 ton European single girder gantry crane drawing package details a high-performance MHO 5t-8m A5 gantry crane (Drawing No: MHO 5-8 A5). Designed for indoor industrial applications—such as precision lifting of heavy drive components and machinery parts—it features an 8.0m span (9.0m overall beam length), a 5.0m lifting height, and an overall structural height of 6.0m. The crane is equipped with a premium NR European-spec wire rope hoist and features full variable frequency drives (VFD) across hoisting, trolley traverse, and long travel mechanisms. Powered by a 480V 60Hz 3P electrical grid, it operates smoothly on P22 steel rails with a maximum wheel load of 45.3 kN and an overall structural deadweight of approximately 5.2 tons. Rated for ISO A5 duty class.
Project & Technical Overview
- Equipment Type: European Single Girder Gantry Crane / Portal Crane
- Model Number: MHO 5t-8m A5 Gantry Crane
- Drawing Number: MHO 5-8 A5
- Drawing Package: 2D + 3D Drawing Package PDF 5 Ton European Single Girder Gantry Crane Drawing 8m Span 5m Lift (ISO A5, 480V 60Hz 3P)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: ISO A5
- Lifting Capacity: 5.0 t (5000 kg)
- Crane Span: 8.0 m (8000 ± 8 mm Center to Center)
- Total Beam Length: 9.0 m (9000 mm Overall Girder)
- Lifting Height: 5.0 m (5000 mm Hook Lift)
- Hoist Model: 5t European Spec Low-Headroom Wire Rope Hoist (NR Type)
- Long Travel Drive: SZW-100 Gear Motors (2 × 0.75 kW)
- Recommended Rail Type: P22 Steel Rail (Max Wheel Load: 45.3 kN)
- Control System: Full Variable Frequency Drive (VFD) Stepless Speed Control
- Power Supply: 480V / 60Hz / 3P
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 |
| Lifting Capacity | 5.0 t (5000 kg) |
| Crane Span | 8.0 m (8000 ± 8 mm) |
| Total Girder Length | 9.0 m (9000 mm) |
| Lifting Height | 5.0 m (5000 mm) |
| Overall Crane Height | 6.0 m (6000 mm) |
| Wheel Base (Wheel Center Distance) | 3.0 m (3000 mm) / End Carriage Base: 4.0 m |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Variable Frequency Control) |
| Trolley Traversing Speed | 2.0 ~ 20.0 m/min (Variable Frequency Control) |
| Crane Long Traveling Speed | 2.0 ~ 20.0 m/min (Variable Frequency Control) |
| Recommended Ground Rail | P22 Steel Rail |
| Maximum Wheel Load | 45.3 kN |
| Control Method | Pendant Control & Wireless Remote Control |
| Power Supply | 480V / 60Hz / 3P |
| Total Crane Weight | 5.21 t (approx. 5200 kg) |
Lifting Mechanism & Drive Motor Parameters
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Mechanism Model | NR Type European Low-Headroom Electric Hoist 5t |
| Lifting Motor Power | 4.0 kW (NR) |
| Trolley Travel Motor Power | 0.45 kW (NR) |
| Long Travel Drive Type | SZW-100 Gear Motors |
| Long Travel Motor Power | 2 × 0.75 kW (SZW-100, 1350 r/min, Reducer Ratio: 58.95) |
Technical Requirement
Note:
- Full VFD Stepless Speed Regulation: All three operating motions (hoist, trolley, crane travel) utilize variable frequency speed control, providing zero-sway, smooth acceleration for precise indoor positioning of drive mechanisms and sensitive components.
- NR European Low-Headroom Hoist: High-efficiency compact electric hoist maximizes hook lifting height (5.0m) while keeping overall structure weight optimized.
- 60Hz Power Grid Adaptation: Customized for 480V / 60Hz 3P electrical supply systems.
- The drawing and technical parameters presented above are for reference only. For specific workshop layouts or custom spans, please consult us for a free engineering evaluation.
- Depending on special site customization or complex civil requirements, a design fee/price may apply. Contact the Yuantai Cranes engineering team for formal proposals.
- Unauthorized copying, distribution, or manufacturing based on this technical drawing without written permission from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no legal responsibility for unauthorized usage.
How to Get Your Customized Yuantai Gantry Crane
This drawing serves as a standardized design template. Yuantai Cranes customizes every single girder gantry crane to match your specific workshop footprint and load handling requirements.
| Process Step | Details |
|---|---|
| Step 1: Share Your Facility Parameters | Send us your required capacity, span, lifting height, travel length, and electrical grid spec (e.g. 480V 60Hz). |
| Step 2: Free CAD Drawing & Proposal | Our design team generates custom general layout drawings, 3D renderings, and technical specifications free of charge. |
| Step 3: Engineering Confirmation | We review wheel loading limits, SZW drive selections, VFD parameters, and safety interlocks with your team. |
| Step 4: Precision Manufacturing & Global Shipping | Your crane is fabricated under strict quality management standards, factory tested, and delivered directly to your facility. |
Need a Customized Drawing & Quote for Your Facility?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing, 3D rendering, and tailored price quote within 24 hours.
FAQs About This Drawing Project (MHO 5t-8m A5)
Everything clients ask before using this drawing — the NR European hoist, full VFD on all three motions, SZW-100 travel drives, 480V 60Hz power, and what to send for a project drawing and quote.
1. What is included in this drawing package — is the 3D model included?
This drawing package (No. MHO 5-8 A5) is delivered as a 2D + 3D Drawing Package PDF. It covers the full machine: single girder, A-frame legs, end carriages, the 5t NR European low-headroom hoist, trolley traverse, SZW-100 long travel drives, 480V 60Hz 3P electrical panel with full VFDs, and pendant + wireless dual control. The 3D model shows the same crane in a rendered view, including the VFD panel and SZW drive arrangement. It does not cover ground rails, rail foundation, or site power supply — those are site-side scope.
2. What is an "NR type" European hoist, and why is it used here?
NR is a European-spec low-headroom wire rope hoist design used in this MHO 5t-8m A5 crane. It is chosen for indoor workshops because:
- Low headroom — the compact hoist body maximizes hook lift (5.0m) within a 6.0m total height
- Light deadweight — reduces girder load and wheel load (45.3 kN) on the P22 rail
- Precise VFD hoisting — 0.8–5.0 m/min stepless, ideal for positioning drive components
- Proven European design — widely used in gear manufacturing and assembly workshops
The NR hoist is the standard pairing for this drawing. If your project needs a different hoist type or brand, it can be re-specified.
3. What does "full VFD on all motions" mean for indoor use?
Full VFD means all three motions use variable frequency drives:
- Hoisting: 0.8 ~ 5.0 m/min stepless
- Trolley traverse: 2.0 ~ 20.0 m/min stepless
- Crane long travel: 2.0 ~ 20.0 m/min stepless (via SZW-100 gear motors)
For indoor workshops handling drive components, full VFD provides zero-sway acceleration and shock-free positioning — critical when placing gears, shafts, or precision assemblies. It also reduces noise and mechanical wear compared with dual-speed control.
4. What is the SZW-100 long travel drive, and why is it specified?
SZW-100 is the gear motor model used for the crane's long travel drive in this drawing. It is specified because:
- 2 × 0.75 kW — balanced drive on both end carriages for straight tracking
- 1350 r/min with 58.95 reducer ratio — matched to the 2.0–20.0 m/min VFD speed range
- Indoor-duty design — suitable for workshop environments with moderate dust and temperature
- Compatible with full VFD — supports stepless acceleration and deceleration
If your site is outdoor or dusty, an IP-rated or outdoor-specific drive can be re-specified.
5. Which numbers on this drawing must match my site exactly?
Four numbers must match your site, or the crane will not fit:
| Drawing Value | What It Must Match On Site | If It Does Not Match |
|---|---|---|
| Span: 8.0 m | Center-to-center distance of your two rails (8000 ± 8 mm) | Girder and end carriages must be redesigned |
| Overall beam length: 9.0 m | Clear width available for the crane to sit between obstacles | Interference with walls, columns, or structures |
| Overall height: 6.0 m | Available headroom above rail level | Crane cannot be installed or hook travel is reduced |
| Lifting height: 5.0 m | Your required hook lift above rail level | Mast height or hoist reeving must be changed |
If any of these four differ from your site, tell Yuantai before ordering — each one is adjustable, but each change affects price and lead time.
6. Is this crane suitable for indoor use only, or can it be used outdoors?
This drawing is configured for indoor industrial use — such as gear manufacturing plants, assembly bays, and power transmission workshops. The NR hoist, SZW-100 drives, and electrical panel are specified for a protected indoor environment. If your application is outdoor or wind-exposed, the following must be re-specified:
- Outdoor-rated electrical enclosure (IP55 or higher)
- Anti-wind rail clamps and anchoring devices
- Outdoor power feeding (festoon or cable reel)
- Corrosion protection for structural steel
For outdoor use, see the MHO 5t-7m A5 Siemens version with anti-toppling and anti-wind design.
7. My power supply is not 480V/60Hz/3P — can this drawing still be used?
Yes. The mechanical drawing does not change with voltage — girder, span, wheel base, and hook path stay the same. Only the electrical package changes: motor windings, VFD settings, contactors, and panel components are re-specified for your supply. This applies to 380V/50Hz, 400V/50Hz, 415V/50Hz, 440V/60Hz, or 575V/60Hz. It is a standard customization, not a redesign.
8. What site work is NOT covered by this drawing project?
To avoid surprises at installation, these items are outside the crane supply scope unless you specifically add them:
- P22 ground rail and rail fasteners
- Rail foundation, concrete beams, and anchor bolts
- Site power supply up to the crane isolator
- Erection crane and site lifting equipment
- Local electrical connection and permits
Yuantai can supply rails, anchor sets, and foundation load drawings as optional items — just state this in your enquiry so they appear in the quotation.
9. What do I need to send to get a project drawing, 3D model, and price?
Send these nine items and Yuantai will issue a free custom CAD drawing, 3D model, and proposal within 24 hours:
- Required lifting capacity (t)
- Rail gauge / span (m)
- Required lifting height (m)
- Bay length / travel distance (m)
- Power supply (V / Hz / Ph)
- Lifts per hour or hours per day (duty)
- Indoor or outdoor environment
- Longest load length and weight
- Control preference: pendant, wireless, cabin, or dual
The more complete the list, the faster and more accurate the drawing, 3D model, and quote.
10. Is this drawing free to use, and is a design fee charged?
This published drawing and 3D rendering are a free technical reference — you may use them to plan your site and check fit. A project-specific GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex site conditions, non-standard spans, or specialized customization engineering. The drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
Product Applications: Where This 5 Ton Indoor Gantry Crane Is Used
This indoor MHO 5t-8m A5 crane is configured for workshops that need precision lifting of heavy drive components with full VFD control on all motions. The NR hoist, SZW-100 drives, and 480V 60Hz package make it a specialist for North American industrial facilities. Typical applications include:
| Application / Industry | Typical Handling Task | Why This Drawing Fits |
|---|---|---|
| Gear & transmission manufacturing | Lifting gearboxes, shafts, and drive assemblies during assembly and testing. | Full VFD on all motions eliminates shock and sway during precision placement of drive components. |
| Industrial equipment assembly bays | Moving motors, pumps, and machinery parts between assembly stations. | NR low-headroom hoist maximizes hook lift (5.0m) within a 6.0m workshop height. |
| Power transmission workshops | Handling large bearings, couplings, and rotating equipment indoors. | SZW-100 drives with VFD give smooth long travel for precise positioning over workstations. |
| Heavy machinery maintenance bays | Lifting engines, compressors, and machine components for repair. | Pendant + wireless dual control lets the operator choose the best viewing position indoors. |
| North American 480V 60Hz facilities | Any indoor lifting task in plants already on a 480V 60Hz grid. | Electrical package is configured out-of-the-box for 480V 60Hz 3P, avoiding on-site transformer costs. |
| Indoor fabrication & welding bays | Moving weldments and fabricated parts between stations. | Compact European profile gives 5.0m hook lift within only 6.0m overall height. |
| Industrial stockyards (covered) | Handling pallets, crates, and heavy components in covered storage. | 45.3 kN wheel load on P22 rail keeps indoor rail foundation economical. |
Best-Fit Working Conditions
- Indoor workshops with height limits: The NR low-headroom hoist delivers 5.0m hook lift within a 6.0m total height envelope.
- Precision handling of drive components: Full VFD on hoist, trolley, and travel eliminates shock and sway during placement.
- 480V 60Hz North American facilities: Electrical package is pre-configured for this grid without additional transformers.
- Light rail foundation: 45.3 kN wheel load on P22 rail keeps indoor civil work economical.
- Workshops without building columns: Ground-rail travel means no roof runway or building structure is required.
Applications Where This Configuration Is Not Recommended
- Outdoor or wind-exposed yards: This drawing is configured for indoor use — for outdoor applications, see the MHO 5t-7m A5 Siemens version with anti-wind and anti-toppling design.
- 6m long pipe bundles or long profiles: This crane is optimized for drive components, not long-load handling — see the MHO 5t-7m A5 Siemens version.
- Very deep pits or shafts: This drawing has a standard 5.0m lift — for deep vertical reach, see the MHO 5t-4.65m A5 model with 4m + 25m extended hook travel.
- Continuous production or high cycle rates: Step up to ISO A6 / FEM 3M, which requires a different hoist and motor selection.
- Very heavy loads above 20 t: A double girder gantry crane is required.
