Overhead travelling cranes with various low headroom crane configurations including single girder & double girder low headroom overhead crane, top running & under running low headroom bridge cranes, etc. Customized low headroom crane, low clearance crane, and low profile hoist cranes are available to improve your material handling efficiency, safety which save your workshop overhead room space and lower your crane costs,etc.

Low headroom overhead travelling crane solution for low headroom & clearance workshops or for limited factory space to increase service room of crane hook and to lower workshop cost & overhead crane cost. Complete turnkey project for low headroom crane with low headroom hoist or low profile hoist system is available for you to solve all your troubles with one stop services.

Advantages oflow headroom overhead crane

The overhead travelling low headroom hoist and trolley crane has advantages of big crab trolley tread, smooth running, tight structure, strong rigidity, delicate operation, low noise, high safety and reliability and beautiful exterior， and wide application. The main advantages of the low headroom crane are as the following :

• Low clearance , low profile, larger operative space for crane hook
• Small dimension, & Light deadweight, economical crane system solution , cost-effective overhead crane price.
• With wide tread design and strong rigidity, the headroom crane trolley can smoothly travel with high safety.
• Flexible crane operation, high efficiency with high reliability and safety.

Types of low headroom cranes

For low headroom or low clearance application, there are various overhead travelling crane designs with single girder crane and double girder crane configurations, equipped with different types of low profile hoists including low headroom wire rope hoists, low profile chain hoist, single girder low profile hoists and double girder low headroom hoists, etc. The different combinations of low headroom crane and hoists can meet various lifting requirements and application conditions to improve your safety, efficiency at cost-effective price.

LDP single girder low headroom hoist crane

LDP type motor-driven single girder overhead crane with the trolley of electric hoist is placed on one side of the main girder and the electric hoist is raised to the upper side of the main crane girder in order to increase lifting height of hook and at the same time to reduce the cost. The low headroom crane is an ideal solution for material handling in limited factory space.

Main specification of overhead travelling low headroom crane

• Crane type: LDP low headroom overhead crane with single girder crane design
• Lifting capacity of low headroom overhead crane：1 ton - 20 ton
• Span length of low headroom overhead crane: 7.5~22.5m
• Working class of low headroom overhead crane:A3, A4
• Ambient temperature of low headroom overhead crane: -25~40℃

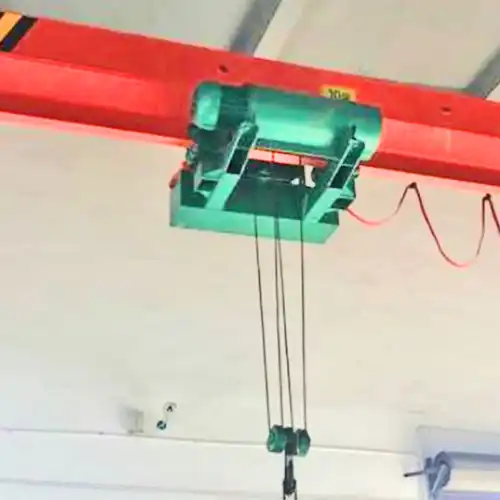

LD Single girder overhead crane with Chinese low headroom hoist design

This type of low headroom crane is designed with a single girder overhead crane , equipped with Chinese style low headroom hoists which a light duty material handling crane with lifting capacity from 1 ton -20 ton.

Main specification of overhead travelling low headroom crane

• Crane type: Single girder overhead crane with low headroom hoists designs
• Lifting capacity of low headroom overhead crane：1 ton - 20 ton
• Span length of low headroom overhead crane： 7.5~22.5m
• Working class of low headroom overhead crane:A3, A4
• Ambient temperature of low headroom overhead crane: -25~40℃

European style low headroom hoist cranes

The single girder low headroom crane is designed with European standard single girder overhead crane,equipped with European standard wire rope hoists for material handling with capacity from 1 ton to 20 tons. The European standard single girder ovehead crane also can be designed in top running crane and underhung bridge crane configurations.

Top running single girder low headroom hoists

With top running crane design, the low headroom overhead travelling cranes run on a fixed rail or track system on the top of each runway beam. European single girder overhead travelling hoist crane isour newly updated hoist crane design for workshops with low or limited headroom or clearance but with larger lifting height requirements. The European single girder overhead crane adopts the advanced crane technology in according to the international standards: DIN (Germany), FEM (Europe), and CE,ISO (International)，working class A5.

The main parameters of the European type single girder low headroom hoist crane are as follow:

• Crane types:Top running single girder low headroom hoist cranes based on European standards
• Lifting capacity of single girder low headroom hoist crane : 3.2 ton to20 ton.
• Span of European low headroom hoist crane : 7.5 m to 28.5 m
• Lifting Height of European low headroom hoist crane : 6m to 18m
• Working Class of European low headroom hoist crane : A5
• Ambient Temperature of European crane : -20℃ to 40℃

Underhung single girder low headroom hoists

The European standard single girder underhung bridge crane is a type of single girder overhead cranes, developed based on the European standards, FEM, DIN & ISO , and adopt FEM standard hoists to meet the requirements of European customers. The lifting capacity of European single girder underslung crane is a type of low headroom overhead crane with lifting capacity from 1 to 10 ton and the working class is A5.

The main parameters of the European type under running single girder low headroom hoist crane are as follow:

• Lifting capacity of underhung low headroom bridge crane:1ton, 2 ton, 3 ton, 5 ton, 10 ton
• Span of underhung low headroom bridge crane:3-15 m
• Lifting height of underhung low headroom bridge crane:3-100 m
• Working class of underhung low headroom bridge crane:A3
• Supplied with European wire rope electric hoists

Double girder low headroom hoist cranes

The European standard double girder low headroom hoists cranes are an double girder overhead crane designed and processed in accordance with the European FEM / Din standards, equipped with FEM / DIN electric wire rope hoist trolley as the hoisting mechanism, widely used for general material handling in various industrial applications.

Main parameters of DIN/ FEM wire rope hoist crane:

• Overhead crane type: European standard single girder & double girder low headroom hoists cranes
• Load capacity of Low headroom hoist crane :, 1 ton- 10 ton, 1 ton-20 ton, 5ton -80 ton
• Span of Low headroom hoist crane : 10.5-31.5m
• Lifting height of Low headroom hoist crane : 6-18m
• Work duty of Low headroom hoist crane : A5

Comparing with the Chinese conventional double girder bridge cranes , the European overhead cranes has the features of compact structure, low headroom and delicate appearance.

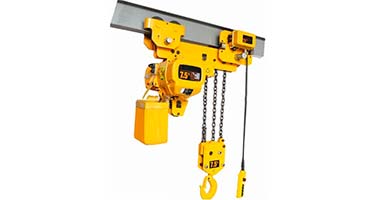

Low headroom hoist

Applications of low headroom overhead cranes

• The low headroom overhead travelling crane is widely used in low headroom workshops or workshops has limited working space but required with larger lifting hook height.
• The low headroom bridge crane can be used for the planning of new workshops to lower the construction cost of the facility.
• The low headroom overhead crane can be used for general loads handling in workshops and factories of production, assembling, transferring & storing in general manufacturing, mines, agriculture, electric power, construction, transportation, dock and warehouse, and others.

Get your custom design low headroombridgecrane

For low headroom cranes and hoists, cut to tail solution is available here. Based on workshop conditions and your lifting requirements, several low headroom crane with low profile hoists solution can be offered and the best value crane solution will be selected. For get the customized low profile hoist and crane, the following is needed for specific design and quotation:

• The dimensions of your workshop. The workshop drawing and pictures is better if possible.
• The capacity of the crane or the weight of the loads, etc.
• Your special requirements of the lifting overhead crane, etc.
• Contacting email, phones or WhatsApp, etc.
