QZ 5t-22m-12m A6 Double Girder Grab Crane Drawing | Cabin Control
QZ 5t-22m-12m A6 double girder grab crane drawing. 5t capacity, 22m span, 12m lift, four rope grab 1.2m³, material density 2.0t/m³, cabin control, 72m, 3P 400V 50Hz. Full specs inside.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Grab Bucket Overhead Crane
Tags: GrabBucketOverheadCraneDrawing
Overview:
This drawing covers a 5-ton Double Girder Grab Crane (QZ type) — model QZ 5t-22m-12m A6, file name 2. QZ5t-22m-12m A6 72m.pdf. It is a double girder, bridge-type crane with a four-rope grab bucket and cabin control. Key dimensions: 22m span, 12m max lifting height, 2.0m trolley gauge, 72m travel length. The grab is a GP412 four-rope grab bucket, 1.2m³ capacity, with a material density of ~2.0 t/m³. Lifting and switching speed is 40.1 m/min with dual 22 kW motors; trolley and crane travel run at 29.3 m/min with 1.5 kW and dual 2.2 kW motors respectively. Power is 3-phase 400V 50Hz, duty class M6/A6. Control is via cabin. Note: crane gross weight does not include grab weight; lifting weight includes grab weight.
Project & Technical Overview
- Equipment Type: Double Girder Grab Crane (QZ Type)
- Product Model: QZ 5t-22m-12m A6
- Drawing File: QZ 5t-22m-12m A6 Double Girder Grab Crane Drawing 5t Capacity 22m Span 12m Lift Four Rope Grab 1.2m³ Cabin Control 72m 3P 400V 50Hz
- Duty Class: M6 (ISO A6)
- Lifting Capacity: 5.0 t (5,000 kg) — excluding grab weight; lifting weight includes grab weight
- Crane Span: 22.0 m (22,000 ± 4 mm)
- Max. Lifting Height: 12.0 m (12,000 mm)
- Grab Model: GP412 Four Rope Grab Bucket
- Grab Capacity: 1.2 m³
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M6 (ISO A6) |
| Lifting Capacity | 5.0 t (5,000 kg) — excluding grab weight; lifting weight includes grab weight |
| Crane Span | 22.0 m (22,000 ± 4 mm) |
| Max. Lifting Height | 12.0 m (12,000 mm) |
| Trolley Gauge | 2.0 m (2,000 mm) |
| Travel Length | 72 m |
| Lifting & Switching Speed | 40.1 m/min |
| Trolley Traveling Speed | 29.3 m/min |
| Crane Traveling Speed | 29.3 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Trolley Traveling Motor Power | 1.5 kW |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Type of Rail | Trolley: P18 |
| Grab Model | GP412 Four Rope Grab Bucket |
| Grab Capacity | 1.2 m³ |
| Material Density | ~2.0 t/m³ |
| Control Method | Cabin Control |
| Power Supply & Voltage | 3P 400V 50Hz |
Lifting & Switching Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 5 t |
| Working Duty | M6 |
| Lifting Speed | 40.1 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Max. Lifting Height | 12 m |
| Switching Mechanism | Four-rope grab switching |
| Power Supply | 400V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 29.3 m/min |
| Trolley Traveling Motor Power | 1.5 kW |
| Trolley Working Duty | M6 |
| Trolley Rail Type | P18 |
| Crane Traveling Speed | 29.3 m/min |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Crane Working Duty | M6 |
| Power Supply | 400V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 5 t (excluding grab weight) |
| Span | 22 m |
| Max. Lifting Height | 12 m |
| Trolley Gauge | 2.0 m |
| Travel Length | 72 m |
| Lifting & Switching Speed | 40.1 m/min |
| Trolley Traveling Speed | 29.3 m/min |
| Crane Traveling Speed | 29.3 m/min |
| Lifting Motor Power | 2 × 22 kW |
| Trolley Traveling Motor Power | 1.5 kW |
| Crane Traveling Motor Power | 2 × 2.2 kW |
| Grab Model | GP412 Four Rope Grab |
| Grab Capacity | 1.2 m³ |
| Material Density | ~2.0 t/m³ |
| Power Supply | 3-Phase, 400 V, 50 Hz |
Drawing Views & Structural Information
| View / Item | Description |
|---|---|

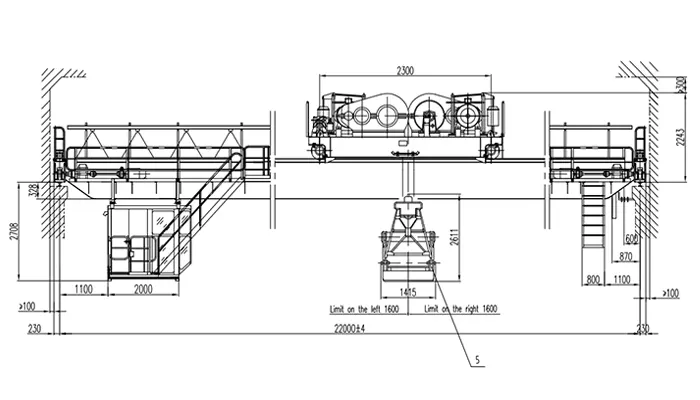

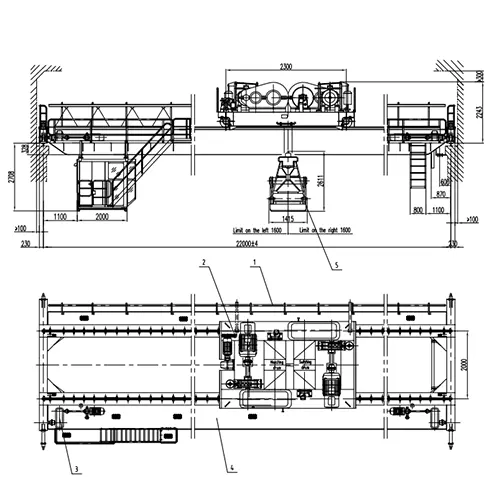

| Main View (Left) | Span: 22000 ± 4 mm; Max. lifting height: 12000 mm (12 m); Trolley gauge: 2000 mm; Trolley overall width: 2300 mm; Grab width: 1415 mm; Limit on left: 1600 mm; Limit on right: 1600 mm; Distance from workshop backspin to crane peak: >300 mm |
| Side View (Right) | Double girder, bridge-type; trolley overall width: 2300 mm; cabin control with platform and ladder; outdoor/indoor site |
| Structure Type | QZ Double Girder Grab Crane; bridge structure; trolley with lifting & switching mechanism and four-rope grab; long travel mechanism; electric system; cabin control with access platform |
| Parts List | 1. Electric system; 2. Trolley; 3. Long travel mechanism; 4. Bridge structure; 5. GP412 Four rope grab bucket 1.2m³ (material density ~2.0 t/m³, qty 1, weight 1300 kg) |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 2. QZ5t-22m-12m A6 72m.pdf, where "5t" is the lifting capacity, "22m" is the span, "12m" is the max lifting height, "A6" is the duty class, and "72m" is the travel length.
- Workshop Clearance: Distance from workshop backspin to crane peak should be greater than 300 mm.
- Control Mode: Cabin control.
- Weight Definition: Crane gross weight does not include grab weight; lifting weight including grab weight.
- Grab: GP412 four-rope grab bucket, 1.2m³ capacity, material density ~2.0 t/m³, unit weight 1300 kg.
- ISO M6/A6 Duty Class: Suited to medium-heavy duty handling in demanding industrial environments.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Grab Crane
This drawing shows a 5-ton QZ double girder grab crane with 22m span, 12m max lifting height, GP412 four-rope grab, cabin control, and 72m travel length. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your yard dimensions — lifting capacity (5t), span (22m), max lifting height (12m), grab capacity and material density, travel length (72m), and required travel speeds. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in grab selection (GP412), power supply (3P 400V 50Hz), duty class (M6/A6), and control mode (cabin). |
| Step 4: Precision Manufacturing & Global Delivery | Built to ISO and international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (QZ 5t-22m-12m A6 Grab Crane Drawing Analysis)
Common technical questions on the 5t capacity, 22m span, 12m lifting height, GP412 four-rope grab, material density 2.0t/m³, and cabin control.
1. What are the advantages of cabin control on this grab crane?
Cabin control provides the operator with a clear view of the grab and the working area, allowing precise control during slag catching and bulk material handling. It also protects the operator from the outdoor environment and offers a comfortable working position for long shifts.
2. What is the difference between crane gross weight and lifting weight?
Crane gross weight does not include the grab weight — it is the weight of the crane structure itself. Lifting weight includes the grab weight plus the material being lifted. For this crane, the grab unit weight is 1300 kg, and the material density is ~2.0 t/m³.
3. What is the function of the 72m travel length?
The 72m travel length allows the crane to cover a long runway, making it suitable for large industrial yards where material needs to be transported over significant distances. This is particularly useful for bulk material handling and storage applications.
4. What are the power requirements for this grab crane?
3-phase, 400V, 50Hz. The lifting motors (2 × 22 kW), trolley motor (1.5 kW), and crane travel motors (2 × 2.2 kW) all run on this configuration.
5. What does the model designation "QZ 5t-22m-12m A6" mean?
QZ = Double Girder Grab Crane; "5t" = 5-ton capacity; "22m" = 22-meter span; "12m" = 12-meter max lifting height; "A6" = ISO A6 duty class.
6. What is the GP412 grab bucket suitable for?
The GP412 four-rope grab bucket with 1.2m³ capacity and ~2.0 t/m³ material density is suitable for handling bulk materials such as slag, gravel, sand, and other loose materials in industrial yards and storage facilities.
Need Customized Drawings & Pricing for Your Project?
Send your yard dimensions, capacity requirements, span, lifting height, grab specifications, and power supply specs. Yuantai Crane consultants will provide a complimentary CAD layout drawing and quote within 24 hours.
Yuantai Grab Crane Solutions
Yuantai Crane supplies custom QZ Double Girder Grab Crane solutions worldwide — slag handling, bulk material handling, port terminals, and industrial yards. Each system is tailored to your capacity, span, lifting height, grab type, material density, travel speed, and power supply.
Typical Technical Specifications:
- Lifting Capacity: 5.0–20.0 Tons (This Model: 5.0 t)
- Span: 10.0–40.0 Meters (This Model: 22.0 m)
- Max. Lifting Height: 10.0–30.0 Meters (This Model: 12.0 m)
- Duty Class: ISO A5–A7 (This Model: M6/A6)
- Grab Type: Four Rope Grab Bucket (This Model: GP412, 1.2m³)
- Material Density: ~2.0 t/m³ (This Model)
- Control Mode: Cabin Control
- Structure: Double girder, bridge-type
- Travel Length: 72 m (This Model)
- Power Supply: 3P 400V 50Hz (Customizable)
- Applications: Slag Handling, Bulk Material Handling, Port Terminals, Industrial Yards, Storage Facilities
