3 Ton Single Girder Eot Crane Top Running Design for Sale Mexico
Top running single beam eot crane for sale Mexico 3 ton, Box girder with i beam, cd wire rope hoist, economical single girder eot crane for sale,good price.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Custom EOT Crane Manufacturing
Tags: 3ton,overheadcraneforsale,mexico
Your Trusted Overhead Crane Manufacturer & Supplier
3 Ton Single Girder Eot Crane for Sale Mexico
Top Running Eot Crane Design for Tailored Steel Plant
Top running single beam eot crane for sale Mexico 3 ton, Box girder with i beam, cd wire rope hoist, economical single girder eot crane for sale,good price.
Overview of 3 ton single girder eot crane project for Mexico
- Crane Type：single beam eot crane
- Date of Placing Oder：2019.02.18
- Date of Delivery ：2019.03.31
- Way of Transportation： By shipping, 2*40 GP
- Way of Payment：30% TT, 70% LC
- Destination country： Mexico
- Destination port：FOB, Qingdao
- First Contact：2017.10

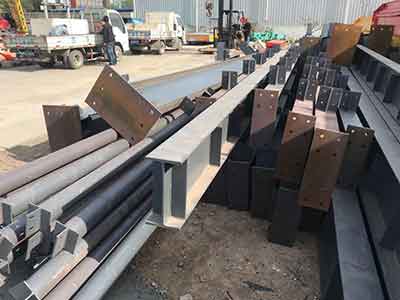

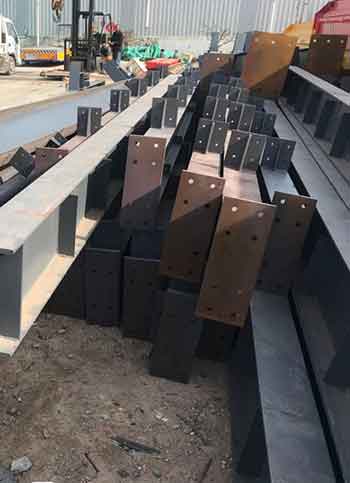

3 ton single girder eot crane steel structure supporting columns3 ton single girder eot crane main specifications & general requirements
Crane type | Single beam eot crane |
Model | LD |
Working Class | A3 |
Capacity | 3 ton |
Span (m) | 12.3m |
Lifting Height（M） | 6.5 m |
Crane control | Pendent control |
Voltage | 220v,60hz,3p |
Color | Yellow |
Quantity | 1 |
Customized features of single girder eot crane 3 ton for sale Mexico
- Factory standard, 12.3m long main girder needs to be divided into two sections for the sake of transportation.
- P24 crane rail 80 meters, 10 pairs of clamping plates, 270 pressing plates
- Seamless power supply line, 6 mm2, 40 meters, 1 collector, including brackets, tensioners and other accessories

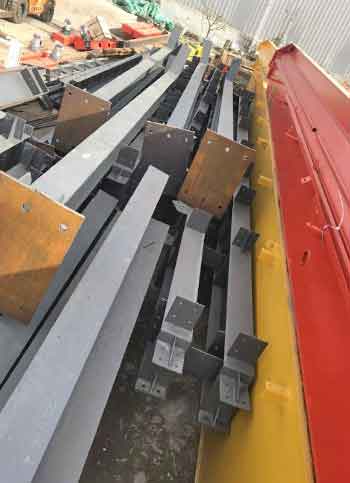

- A set of steel structure for the entire plant, with steel structure drawings and accounting price
- Delivery requirements: The steel structure should be marked on the outside of each package, for example: a package of roof beams, a bundle of crane beams, etc., materials of the same category should be put together
Customs declaration information registration
- The actual Chinese and English name of the goods: single girder eot crane
- Chinese and English name of cargo declaration: single girder eot crane
- Inland transportation cost from factory to port: 2268USD
- Port charges: 1340USD
Gallary of 3 ton single girder eot crane for sale Mexico

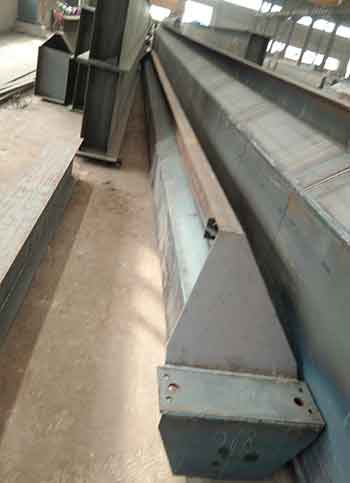

Main girder of 3 ton single girder eot crane with top running crane design for sale Mexico

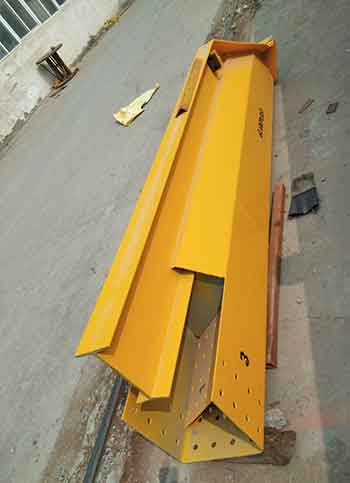

12.3 m main girder of 3 ton single girder eot crane are divided into 2 sections for easy transportion, bridge crane 3 ton for sale Mexico

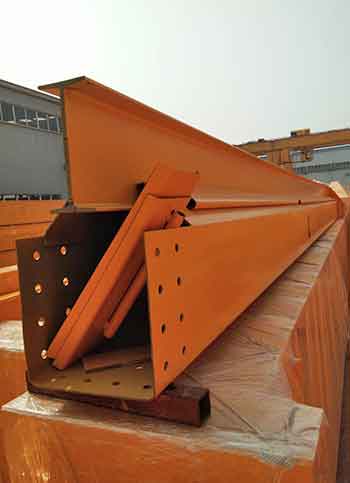

12.3 m main girder of 3 ton single girder eot crane are divided into 2 sections for easy transportion, electric overhead travelling crane 3 ton for sale Mexico

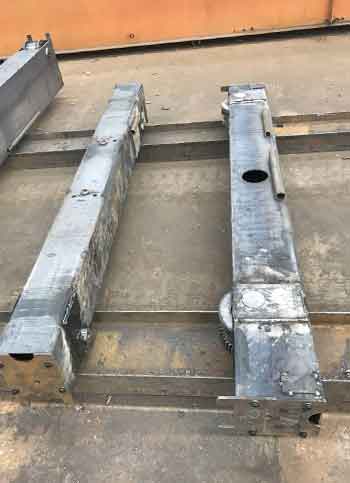

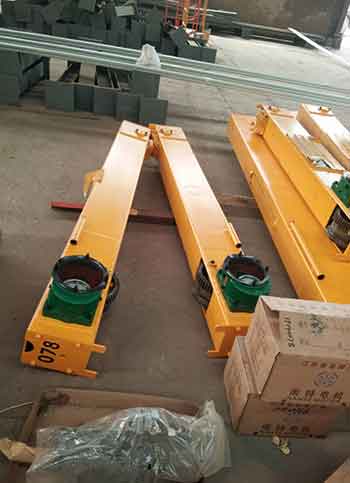

End truck and end carriages of 3 ton single girder top running overhead travelling crane for sale Mexico
3 ton overhead crane end trucks for delivery to Mexico
