15 Ton Electric Overhead Crane for Pakistan Economical Solution
Electric overhead travelling crane 15 ton for sale Pakistan, economical solution - complete overhead crane kits except main girder & crane rail. Check now.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Custom EOT Crane Manufacturing
Tags: 15ton,Pakistan
Your Trusted Overhead Crane Manufacturer & Supplier
15 Ton Electric Overhead Crane for Sake Pakistan
Economical Solution, Complete Crane kits, No Girder
Electric overhead travelling crane 15 ton for sale Pakistan, economical solution - complete overhead crane kits except main girder & crane rail. Check now.
Basics of 15 ton electric overhead crane for Pakistan
- Crane Type：Electric overhead travelling crane
- Date of Placing Oder：2018.5.29
- Date of Delivery ：2018.6.29
- Way of Transportation：Truck transportation
- Way of Payment：T/T 50%
- Destination country： Pakistan
- Place of delivery： Kashgar,Xinjiang, China
- First Contact：2017.4
15 ton overhead crane main specifications & general requirements
Crane type | Double girder electric overhead travelling crane |
Model | NLH |
Working Class | A5 |
Capacity | |
Span length (m) | 10.668M |
Lifting Height（M） | 5m |
Crane control | Ground control |
Application | Indoor use |
Voltage | 400v,50hz,3p |
Color | Standards |
Quantity | 1 |
Customized features of 15 ton double girder electric hoist crab trolley for sale Pakistan
- The complete crane kits are required except for the main beam and crane travelling rails.
- The 15 ton overhead crane is required to be equipped with SZW motor.
- The lifting speed is 1/4m/min, and the travelling speed of bridge crane travelling and cross travelling is 2-20m/min
- The rated crane capacity is 20 ton.
- The European style 15 ton bridge crane kits will be shipped to Kashgar, Xinjiang.
- And needed help will be provided to help customs declaration for free .

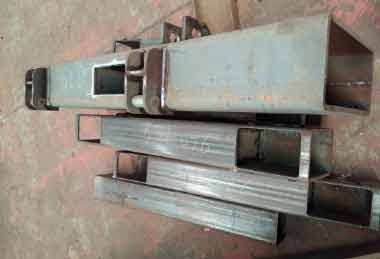

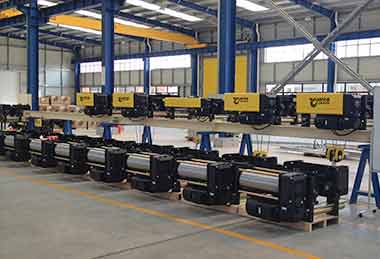

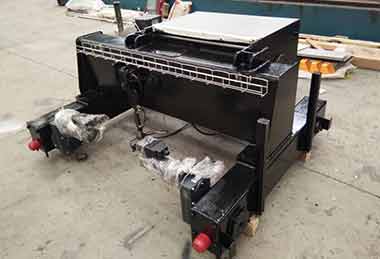

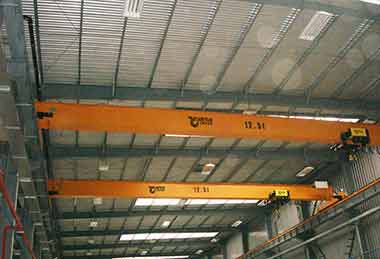

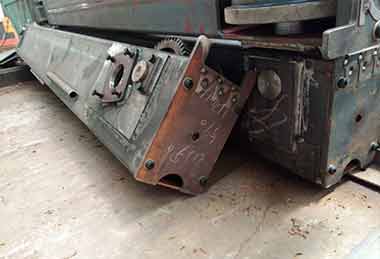

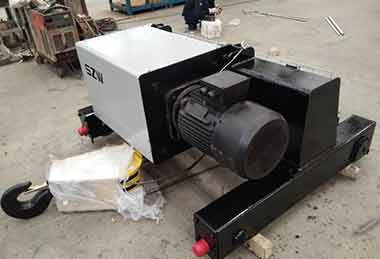

Gallary of 15 ton electric overhead travelling crane for sale Pakistan
Flexible Procurement Programme

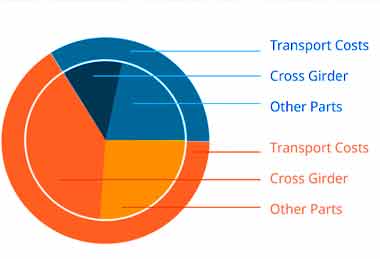

A quick check at the pie chart of overhead crane expenses on the left will reveal that the Cross Girder accounts for the most of the high transport costs. This section can be reduced, and then everything will be different. Thus, the Complete Crane System and Component Crane plans which referees to complete eot crane kit system but not including the main girder sale are presented below.
Complete overhead crane plan
A full overhead crane system includes all necessary crane components, including the trolley, cross girder, end trucks, electricity systems, and other sections. The complete overhead crane system is fully constructed and tested in our factory before being shipped. While the whole set of bridge crane system will naturally be disassembled before shipping for ease of delivery. The installation of our crane will be straightforward thanks to its Easy Installation Feature. Therefore, for you, this is the most convenient and time-saving method.
Complete eot crane kit plan except the main girder
The economical solution is the the complete crane kit plan, which including the all the necessary parts and components of an overhead crane but without the main girder.The cross girder , which usually is constructed into a massive box structure or U shaped steel structure won't be included in this sale proposal. Thus, the majority of the transport expenses will be reduced. And on the other hand, the main girder will be produced locally or even produced by you-self according the production drawing, most thorough plans and instructions possible, provided by our professional crane engineer. This purchasing scheme is preferred by lots of clients, especially by some steel mill clients.
Yuantai Cranes
Yuantai Cranes - Global Material Handling Crane Solution Provider & Manufacturer with CE, ISO, SGS, CNEX and other Third Party Certifications.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
