A telescopic coil grab is a crane coil grabs or below hook devices for lifting and moving horizontal eye steel coils. It has two arms that can be extended or retracted in accordance with the size of the coil being gripped. The grabber's arms are designed to securely grip the sides of the steel coil and lift it without harming the material. Telescope coil grabbers are frequently used in steel mills, warehouses, and other industrial environments where steel coils must be moved and transported.
Telescoping Coil Lifters can handle a variety of coil widths in the horizontal position. The telescoping gripper design allows for more headroom and aisle space. The coils must be securely bound for effective use. There are hand wheel, motorized, battery powered, and remote control options available.

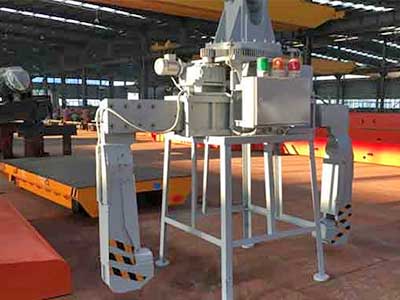

Telescopic motroized coil grab double girder overhead cranes 32 ton

Horizontal eye steel coil lifter - customized coil grabs and grippers

Features, advantages & disadvantage

Features of electric motorized telescope coil grabs include:

• Adjustable arms to fit various coil sizes
• Secure grip on the coil's sides to prevent damage
• The grabber can be controlled remotely for increased safety and convenience.
• Heavy loads or coils handling tong is available.

Advantages of telescopic steel coil grabs

• Modular design that is easily adjustable and retrofittable. No trouble with different grip legs or the Plus system.
• Sturdy - sturdy chest design and welded grab legs with integrated electrical.
• Safe - a mechanical load safety device or light sensors, as well as extra large cut-off relays.
• Economical - low maintenance effort and cost.

Disadvantages of telescope coil grabs include:

• Higher cost compared to other types of lifting devices
• Requires regular maintenance to ensure safe and efficient operation

Telescope coil grabs are commonly used in steel mills, warehouses, and other industrial settings where steel coils need to be moved and transported. They can handle a variety of objects, including steel coils, pipes, and other cylindrical objects.

Optional of coil carrying gripper

Coil gripper with mechanic operating via a motor reducer, designed for the transport of coils, cylinders, rolls, and various round bodies, designed to be used at low heights under crane in order to pile up in limited spaces, including between rows, always with the utmost safety for the people and the utmost care for the material that must be manipulated.

• Rotation powered by motor
• High accuracy weighing system
• Material safeguards for delicate materials
• Fork hooks that retract for use between extremely short rows.
• Because these coil grabs are CUSTOM BUILT, please contact an expert for the custom design to fit your applications.

Customized design for different loads or objects handling

• Telescope crane coil grab for large pipes -Maximum opening range 5,000 mm, with spindle drive system. Carrying capacity 60 tons
• Telescoping coil grab for cable reels -Carrying capacity 14 tons.
• Telescopic steel coil grab with slewing gear -Integrated slewing gear for positioning the load, with slewing range limitation. Carrying capacity 35 tons.
• Telescope coil grabber with blocking system -Carrying capacity 32 tons.
• Telescope coil grab and grippers with double-hook suspension -Integrated slewing gear. Carrying capacity 32 tons.

There are several types of telescope coil grabs, including:

• Manual telescope coil grab: This type of grab is operated manually and requires physical effort to extend and retract the arms. It is suitable for smaller coils and has a lower cost compared to other types of grabs.
• Hydraulic telescope coil grab: This type of grab is powered by hydraulic cylinders, which allows for easier and faster operation. It is suitable for larger and heavier coils.
• Motorized telescope coil grab: This type of grab is powered by an electric motor, which allows for precise control and faster operation. It is suitable for very large and heavy coils.

Cases and projects of steel coil gripper

The electric horizontal coil grab is a special spreader for transporting and stacking horizontally placed cold and hot steel coils in rolling mills, ports, station freight yards, warehouses, etc. The horizontal coil gripper  is a lifting tool with stable performance, reliable operation, low failure rate, easy maintenance, high production efficiency and labor saving. Automatic protection devices such as claw centering device, reliable clamping detection device, and safety lock detection device can be installed according to user requirements, and corresponding warning lights can be equipped.

Horizontal steel coil grabs are common types of crane coil grabs, which are classified as mechanical steel coil tongs and electric steel coil grabbers. They can be used together with steel mill cranes such as overhead bridge cranes and gantry cranes and custom double girder cranes to handle steel coils to improve material handling efficiency and safety.
Customized horizontal eye coil grippers and other types of slings can be provided based on the designs provided. The cases of 40 ton coil gripper for Russian steel factory are shown below to help you get the right coil lifting equipment.

40 ton coil horizontal steel coil tongs for Russian steel plant

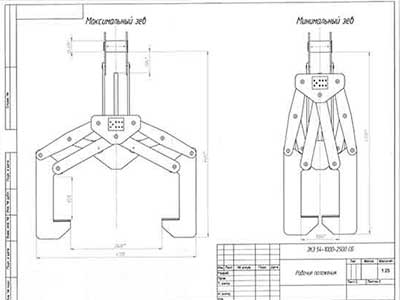

Initial design - mechanical coil grab
Mechanical coil grabs are less expensive and easier to install and operate.

Custom crane coil grab design based on your needs and application conditions at first stage. The customized horizontal eye steel coil grab drawing shown above is supplied based on the coil dimensions and lifting capabilities.

Final solution - electric motorized coil grab
After discussion, the motorized coil grab is required.
Main specifications of  steel coil grab for Russian client:

• Type: Electric Motorized coil grab
• Country: Russia
• Usage: Roll lifting and handling
• Lifting capacity: 40t
• Power : DC 220v
• Coil temperature: 800℃
• Coil Dia: 2100mm

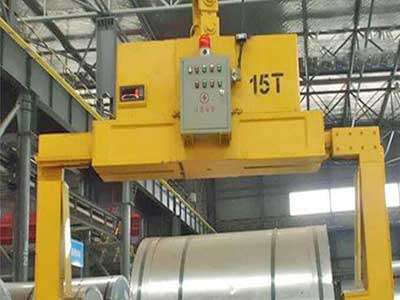

15 ton coil grab - Custom steel coil gripper

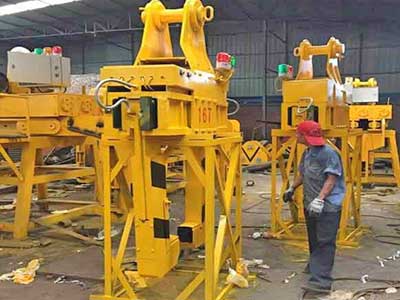

16 ton coil grab- Custom steel coil gripper

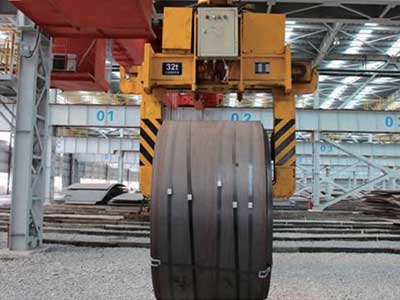

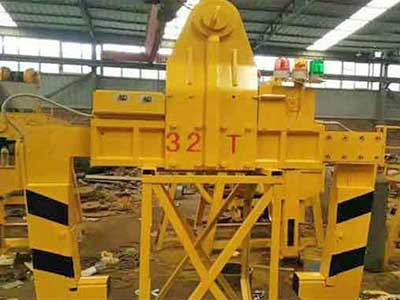

32 ton coil grab - Custom steel coil gripper

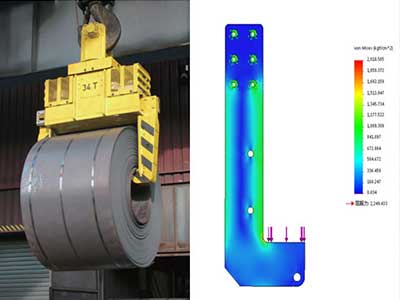

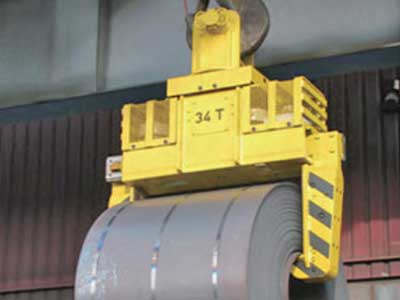

34 ton steel coil grabber -  34 ton coil grab overhead crane for horizontal eye steel coil handling

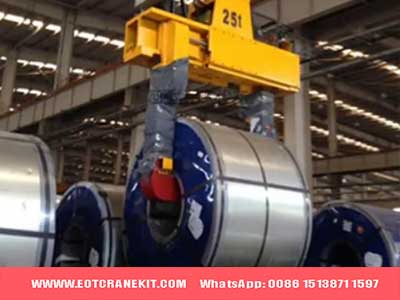

25 ton steel coil gripper with indoor crane for horizontal coil lifting

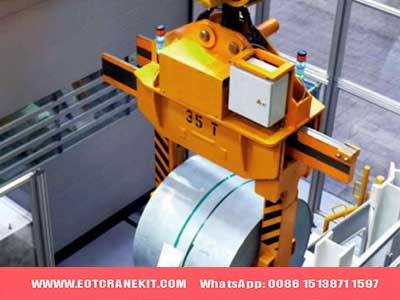

35 ton overhead grabbing cranes

How to get suitable coil grabber for your steel plant?

Coil grippers for sale. There are various types of coil lifters are provided.  As a coil tong supplier,  we offer custom coil tong and coil lifter design and supplying for your coil hanlding cranes. Contact us today to get your customized, telescoping coil lifter,   horizontal & vertical coil grabs and grippers, or other types of coil lifters or below hook devices,  etc.

To help you choose your coil gripper, consider the following questions:

• What is the source of power? Is it better to use an electric or mechanical lifting tong?
• What is the purpose of the coil grabing tong? Temperature of coils ? Dimensions of coils?
• What is the lifting capacity of the coil grabber ?
• Electric motorized coil grabs require a cable drum and cables. What is the length of the cables? What is the maximum lifting height? (There is an electrical contact between the cable drum and the lifting tong when it is put on the drum of the crane hoist. It is connected to the crane's lifting height.)

Information and parameters of steel coil grabber for quotation

There are some main points need to be mentioned during the negotiations of Horizontal steel coil tongs.

• Coil grab type: _____?Electric type or mechanical type.

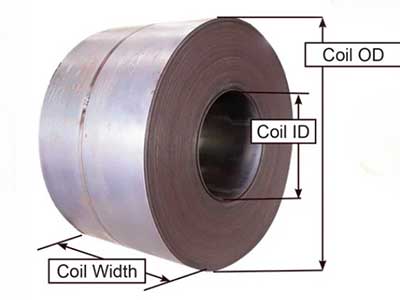

• Roll or Coil dimensions: _____?
• Coil temperature_____?
• Lifting equipment the coil grab will work with: _____?
• Main specifications of coil lifting crane:  _____?
• Any steel coil grab drawing if there is.
• Other retirements
