Mechanical Clamp Coil Clamp
Horizontal Eye Steel Coil Clamp & Gripper
Mechanical clamp coil clamp for sale. Mechanical clamp for horizontal eye coil handling, ie. steel coil & wire coils, etc. Get mechanical coil grippers !
A mechanical clamp coil clamp is a type of clamp used to hold a coil of wire or cable or rolled steel in place. It features a mechanical locking mechanism that securely holds the coil in place, preventing it from unraveling or becoming tangled.

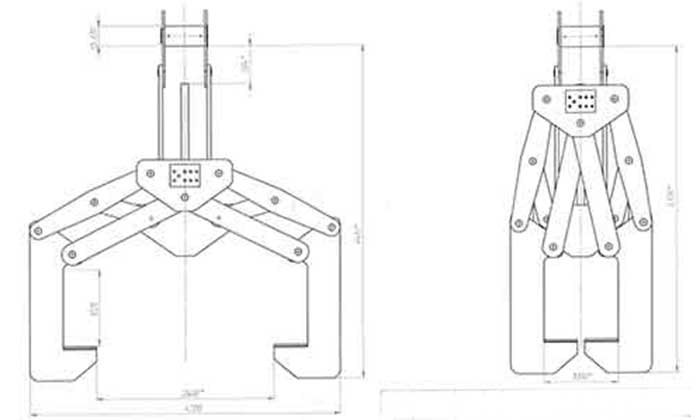

Mechanical coil clamps & grabs -coil grippier design

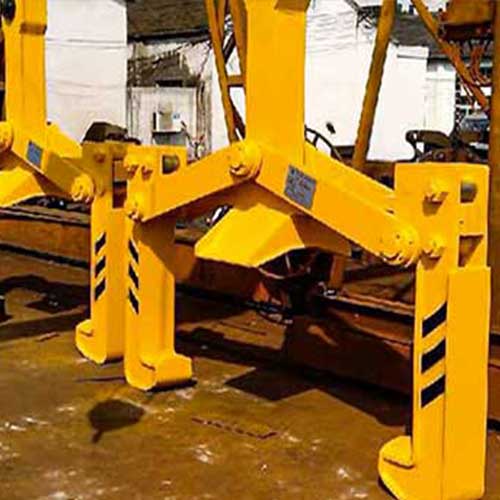

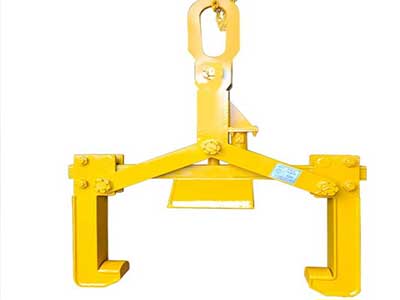

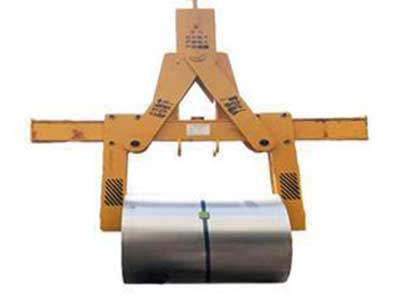

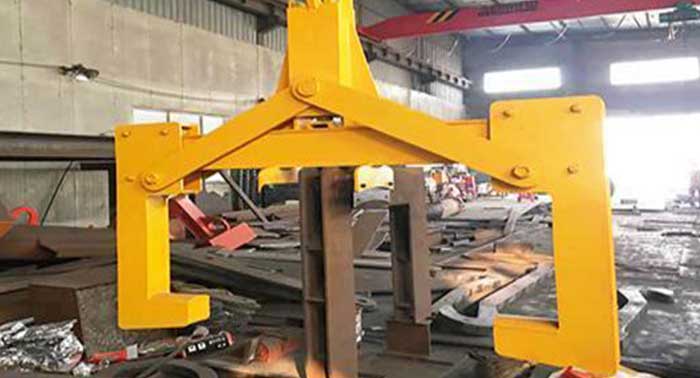

Mechanical coil clamps & grabs for horizontal eye steel coil handling
Features of mechanical clamp coil clamps
Features of mechanical clamp coil clamps include:
- Durable construction: These clamps are typically made from high-quality materials that are designed to withstand regular use and exposure to various environmental conditions.
- Adjustable design: Most mechanical clamp coil clamps are adjustable, allowing you to customize the size and tension of the clamp to suit your needs.
- Easy to use: These clamps are generally easy to install and remove, making them a convenient option for a wide range of applications.
Applications of mechanical clamp coil clamps
Common uses for mechanical clamp coil clamps include:
- Wire coil handling : These clamps are often used to hold coils of electrical wire or cable in place during installation or maintenance.
- Steel coil handling: The mechanical coil grabs can be used for all sizes and dimensions of steel coil rolls handling.
- Industrial applications: Mechanical clamp coil clamps can also be used in a variety of industrial applications, such as holding coils of tubing or piping in place.
Main specifications of mechanical clamp coil clamps
Weight | Coil Dimensions | Opening length of coil grab（mm) | Dimensions of mechanical coil grabbers | |||
ID（mm) | OD（mm) | B（mm) | H（mm) | l（mm) | ||
8 | 500 | 2200 | 250 -1900 | 1000 | 2700 | 2900 |
15 | 500 | 2200 | 250 -1900 | 1000 | 2700 | 2900 |
20 | 500 | 2200 | 250 -1900 | 1000 | 2700 | 2900 |
30 | 500 | 2200 | 250 -1900 | 1000 | 2700 | 2900 |
Applications of mechanical clamp coil clamps
Mechanical clamp coil clamps
Mechanical coil grab for outdoor gantry crane for horizontal steel coil handling
Gantry crane with mechanical coil grab for steel coil lifting
Double girder gantry crane with mechanical coil grab for steel coil positioning
