Introduction

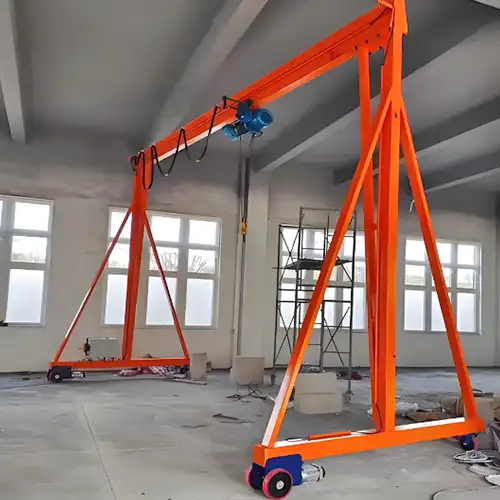

The PT-3 Motorized Electric Portable Gantry Crane is a versatile solution for industrial lifting, material handling, and workshop operations. Designed for small to medium workshops, factories, and maintenance areas, this crane provides efficient heavy load handling, precise movement, and flexible positioning in confined spaces.

With its electric drive, adjustable beam and leg centers, 360° rolling capability, and super-low lifting hoist, the PT-3 enables buyers to handle 1–10 ton loads safely and efficiently.

Specifications

Features

• Motorized Electric Drive: Smooth powered movement reduces manual labor, moves 1–10 ton loads safely, remote or pendant control
• Adjustable Beam & Leg Centers: Inner/outer beam width and leg spacing customizable for workshop layouts
• 360° Rolling & Rotation: Multi-directional movement for tight corners and narrow aisles
• Super-Low Lifting Loop Chain Hoist: Lifts 0.7–5.3 m safely, reduces sway, designed for repetitive industrial tasks
• Compact Disassembly: Quick removal of legs and beams for transport/storage
• Multi-Directional Operation & Safety: Forward/backward, side-to-side, optional manual clutch, overload protection, emergency stop

Benefits

• Efficient heavy load handling with motorized drive
• Flexible operations via adjustable beams and leg centers
• Precise positioning in confined spaces with 360° rolling
• Quick setup & transport, fully disassemblable design
• Safe and reliable with anti-sway hoist and overload protection
• Reduced labor costs and improved productivity

Applications

• Workshop & factory lifting: production lines, assembly, fabrication
• Maintenance & equipment handling: machinery, spare parts, repair equipment
• Confined or limited floor space operations: narrow aisles, tight corners
• Temporary or flexible lifting needs: seasonal operations, multi-site facilities

Frequently Asked Questions (FAQs)

Q1: Can the PT-3 electric moving portable gantry crane handle heavy loads without manual effort?

Yes. The PT-3 uses a motorized electric drive system that allows smooth, effortless movement of 1–10-ton loads, eliminating the need for manual pushing.

Q2: Is the PT-3 suitable for tight or crowded workshops?

Yes. This electric portable gantry crane offers 360° maneuverability, smooth rolling, and adjustable beam/leg centers—ideal for narrow aisles and compact workspaces.

Q3: Can I adjust the span and leg width on this portable steel gantry crane?

Absolutely. Both the inner/outer beam centers and leg spacing are fully adjustable to fit different equipment layouts or lifting tasks.

Q4: What is the maximum lifting height available?

The PT-3 provides lifting heights ranging from 0.7–5.3 meters, depending on your chosen hoist and lifting accessories.

Q5: Can the gantry crane be disassembled for transport or temporary use?

Yes. The PT-3 features a fully detachable and modular design, making it easy to relocate, store, or deploy for temporary lifting operations.

Q6: Is manual operation possible if there is a power interruption?

Yes. With the optional manual/electric clutch system, operators can switch to manual mode during power loss or emergency conditions.

Q7: What types of loads can this electric moving portable gantry crane handle?

It is suitable for lifting and transporting industrial machinery, assembly components, tools, maintenance equipment, and other medium-duty materials.

Buyer Notes

When selecting an electric moving portable gantry crane such as the PT-3, it's important to consider the specific layout, lifting needs, and mobility requirements of your workspace. The PT-3 series is engineered to offer high flexibility, easy setup, and reliable performance, making it suitable for both permanent and temporary lifting operations in tight industrial environments.

• Customizable design: Lifting height, beam span, and leg spacing can be tailored to match your workspace and operational requirements.
• Equipped with low-headroom hoists: All PT-3 electric portable gantry cranes come with super-low lifting loop chain hoists for maximum clearance.
• Best choice for compact workshops: Ideal for users who need a safe, flexible, and efficient portable steel gantry crane solution in confined working areas.
