5 Ton Underslung Crane, Single Girder 5 Ton Bridge Crane for sale
5 Ton Underslung Bridge Cranes for Tandem Control for Sale Malaysia

5 ton overhead crane for sale Malaysia. Customized underslung crane 5 ton, European style single girder crane, with suspension crane design for sale Malaysia.

Overview of 5 ton underslung crane for sale Malaysia

• Overhead crane type: European style single girder underslung crane
• Crane capacity: 5 ton
• Crane span: 9.7 m
• Crane lifting height 6.1 m
• Crane Power supply: 380v 50hz 3 Ph
• Project location: The 5 ton overhead crane is for sale Malaysia

Ask for bridge crane price

Case Study: European Style Single Girder Underslung Crane for a Project in Malaysia

A 5-ton capacity European style single girder underslung crane was installed for a project in Malaysia. The crane has a span of 9.7 meters and a lifting height of 6.1 meters. The power supply for the crane is 380v 50hz 3 Ph.

The main challenge faced during the installation of the crane was the limited space available at the project site. The crane had to be installed in an area where there was already a lot of equipment and machinery present. This made it difficult to maneuver the crane components and install them properly.

Design and Manufacturing

To overcome the space constraints, the installation team had to carefully plan and coordinate the installation process. They used special equipment and tools to lift and position the crane components in place. The team also made sure that all safety procedures were followed during the installation process.

The crane was designed and manufactured to meet the specific requirements of the project. The European style single girder underslung crane was chosen due to its compact design, which allowed it to fit into the limited space available at the project site. The crane was manufactured using high-quality materials and components, ensuring its durability and reliability.

Main parts of 5 ton underslung cranes

The main parts of a 5-ton underslung crane with a single girder typically include:

• 1. Bridge Girder: This is the main horizontal beam that spans the distance between the two end trucks and supports the hoist and trolley.
• 2. End Trucks: These are the steel frames located at either end of the bridge girder that support the wheels and allow the crane to travel along the runway beams.
• 3. Hoist and trolley : This is the lifting mechanism that is mounted on the bridge girder and is used to lift and lower loads.
• 4. Trolley: This is the mechanism that moves the hoist along the bridge girder, allowing it to position the load at different points along the span.
• 5. Runway Beams: These are the horizontal beams that support the crane and allow it to travel along a fixed path.
• 6. Electrical Controls: These are the components that control the movement of the crane, including the hoist, trolley, and bridge travel.
• 7. Power Supply: This is the electrical power source that provides power to the crane, typically 380v 50hz 3 Ph for a 5-ton underslung crane with a single girder.

These are the main components of a 5-ton underslung crane with a single girder, although there may be additional components depending on the specific design and requirements of the crane.

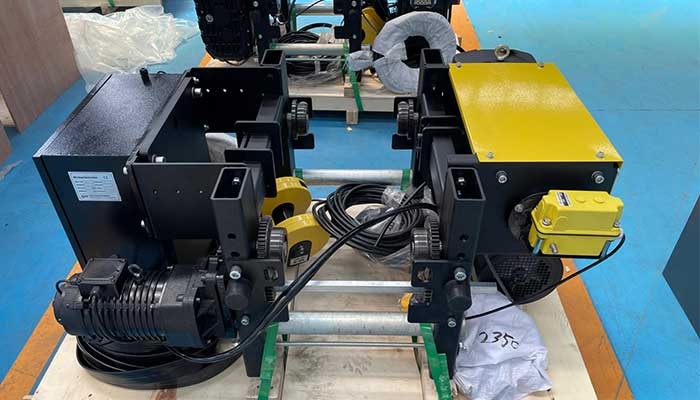

Electric wire rope hosit 5 ton for sale Malaysia

Low Headroom Design: The hoist is designed to have a low profile, making it ideal for facilities with limited headroom. High Lifting Speed and Precise Load Control: The hoist is designed to lift loads quickly and with precision, improving productivity and efficiency. Easy Maintenance and Safety Features: The hoist is designed for easy maintenance and is equipped with safety features to ensure safe and efficient operation.

Ask for bridge crane price

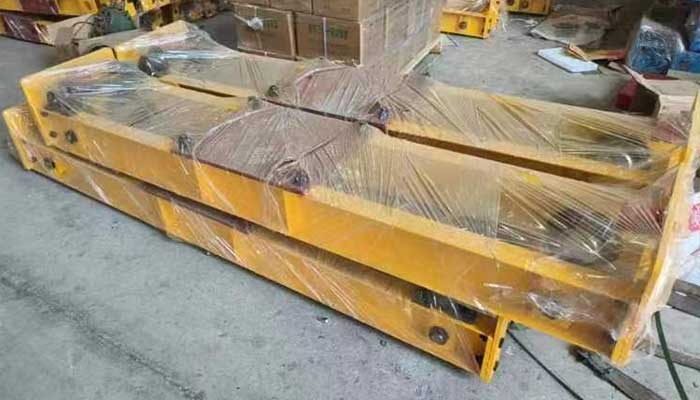

End carriages of 5 ton under running overhead crane

End carriages are an essential component of overhead cranes, providing support for the bridge girder and allowing the crane to move along the runway beams. They are designed to be durable, easy to install, and customizable to fit different runway beam sizes. End carriages are equipped with high-quality wheels and bearings that allow for smooth and quiet crane movement. They can also be customized with different wheel types or brake systems to meet specific requirements. Overall, end carriages are an important part of overhead crane design, providing stability and support for safe and efficient operation.

Ask for bridge crane price

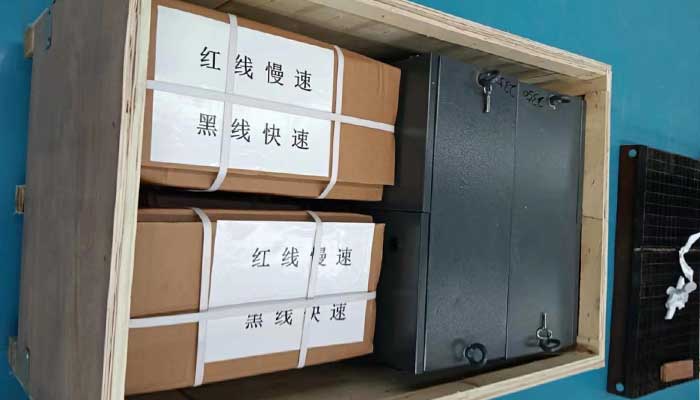

 Spare parts of underslung crane 5 ton

Spare parts are packed into wooden boxs. Anticollision devices are designed to prevent collisions between cranes or between cranes and other objects, ensuring safe operation. They use sensors to detect the presence of other cranes or objects in the crane's path and respond quickly to prevent collisions. Anticollision devices are flexible and can be customized to meet specific requirements such as different detection ranges or response times. They can also be integrated with other crane control systems to provide a comprehensive safety solution. Overall, anticollision devices are an important safety feature for overhead cranes, providing an extra layer of protection against accidents and ensuring safe operation in busy work environments.

Tandem control of the 2 sets of 5 ton underslung cranes

The features of tandem control of 2 sets of 5-ton underslung crane typically include:

• 1. Synchronized Operation: Tandem control allows two cranes to operate in sync, with both cranes moving at the same speed and in the same direction. This ensures that loads are lifted and moved smoothly and efficiently.
• 2. Increased Lifting Capacity: Tandem control allows two cranes to work together to lift heavier loads than a single crane could handle. This increases the lifting capacity of the system and allows for more efficient use of the cranes.

• 3. Improved Safety: Tandem control allows for improved safety by providing a backup system in case one crane fails. If one crane experiences a problem, the other crane can take over the load and continue the operation.
• 4. Easy Operation: Tandem control is designed for easy operation, with simple controls that allow operators to synchronize the movement of the two cranes.
• 5. Flexibility: Tandem control can be used with different types of cranes and can be customized to meet specific requirements, such as different lifting capacities or control systems.

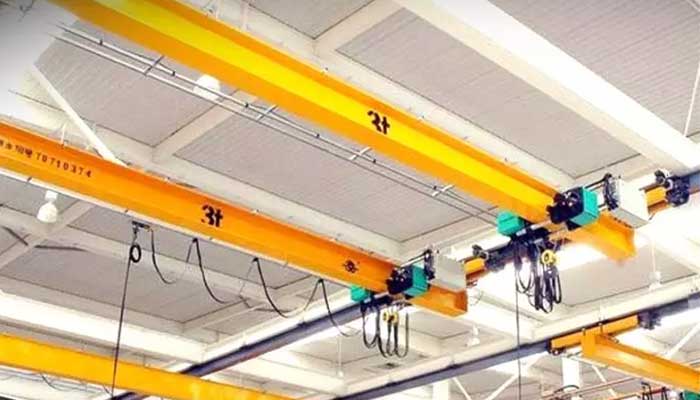

 3 ton underslung cranes for tandem operation for your reference

Overall, tandem control of 2 sets of 5-ton underslung crane is an efficient and flexible lifting solution that offers synchronized operation, increased lifting capacity, improved safety, and easy operation. It is ideal for facilities that require heavy lifting and need a reliable and efficient system for moving loads.

Installation Process

The installation process involved several stages, including the assembly of the crane components, the installation of the runway beams, and the electrical connections. The installation team had to work carefully and precisely to ensure that all components were installed correctly and securely. They also had to ensure that all safety procedures were followed during the installation process.

Testing and Commissioning

After the installation was complete, the crane underwent thorough testing and commissioning to ensure that it was functioning correctly. The testing process involved checking all the electrical connections, testing the control system, and conducting load tests to ensure that the crane could handle the specified loads.

Overall, the installation of the European style single girder underslung crane for the project in Malaysia was a complex task that required careful planning and coordination. However, with the expertise of the installation team and the quality of the crane, the installation was completed successfully, providing a reliable and efficient lifting solution for the project.

Despite the challenges faced during the installation process, the crane was successfully installed and is now fully operational. The crane has proven to be an efficient and reliable solution for the project, allowing for easy lifting and movement of heavy loads.The installation of a European style single girder underslung crane for a project in Malaysia proved to be a challenging task due to limited space at the site. However, with careful planning and coordination, the installation team was able to overcome these challenges and successfully install the crane. The crane has proven to be a valuable asset for the project, allowing for efficient and reliable lifting of heavy loads.
