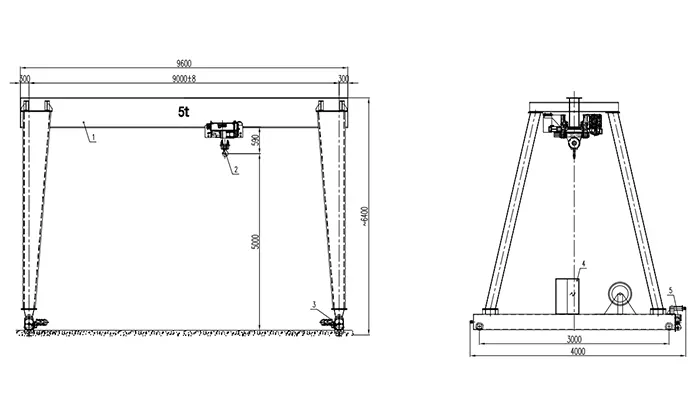

Low Headroom Single Girder Gantry Crane 5 Ton- S9m-H5m

Yes — this is exactly the workshop size this drawing is designed for. The layout works as follows:

• Workshop internal width: 10.0 m
• Crane span: 9.0 m (center-to-center of the two rails)
• Total crane width: 9.6 m (including end carriage overhang and buffers)
• Side clearance: approx. 0.2 m per side between the crane outer edge and the workshop wall

The 0.2m per-side clearance is tight but workable for a low headroom single girder gantry crane with ground rails. If your workshop has columns, piping, or equipment along the walls, tell Yuantai — the span may need to be reduced or the rail position adjusted.

This low headroom single girder gantry crane is engineered to leave safe clearance under a 7m ceiling:

• Total crane height: approx. 6.4 m — from rail level to the top of the structure
• Workshop clear height: 7.0 m
• Clearance margin: approx. 0.6 m — for structural deflection, thermal movement, installation tolerance, and maintenance access

The 6.4m total height is achieved by using the NR European low-headroom hoist, which minimizes the structural depth above the hook path. The 5.0m lifting height is the usable hook lift — the remaining 1.4m is the girder, hoist body, and trolley frame above the hook.

For a 5 ton capacity and 9m span inside a 10m wide workshop, a single girder gantry crane is usually the better choice because:

• Lower total height — a single girder is shallower than a double girder, which is critical when ceiling clearance is limited to 7m
• Lower deadweight — the single girder design keeps the crane lighter, reducing wheel load to 44.3 kN and lowering rail foundation cost
• Simpler structure — fewer components, lower maintenance, and faster installation
• Sufficient for 5t / A5 duty — a single girder covers 5 ton capacity at ISO A5 without needing the extra stiffness of a double girder

A double girder gantry crane would be required only if you need higher capacity (above 20t), a higher duty class (A6+), or a larger hook lift within the same ceiling height.

Six numbers on this 5 ton gantry crane drawing must match your workshop, or the crane will not fit:

If any of these six differ from your workshop, tell Yuantai before ordering — each change affects price and lead time on the 5 ton gantry crane.

The maximum wheel load is 44.3 kN per wheel. This is relatively light for a 5 ton gantry crane because the single girder design reduces deadweight. Key points for this low headroom single girder gantry crane:

• P22 steel rail is the recommended rail type
• Wheel diameter: 200 mm (490 mm end carriage wheel) with a 30mm buffer stroke
• Rail foundation must be designed for 44.3 kN concentrated load per wheel
• Wheel base: 3.0 m (end carriage base 4.0m) — distributes load along the rail

Because 44.3 kN is a light wheel load, the indoor rail foundation can often be a simple concrete beam rather than a heavy reinforced structure. Confirm with your civil engineer using the 44.3 kN figure.

NR is a European-spec low-headroom wire rope hoist used on this 5 ton gantry crane. It is chosen for indoor workshops because:

• Low headroom — the compact hoist body minimizes structural depth, which is what allows the 6.4m total height under a 7m ceiling
• Light deadweight — reduces girder load and wheel load (44.3 kN) on the P22 rail
• Dual-speed hoisting — 0.8 / 5.0 m/min for precise placement and faster lifting
• Proven European design — widely used in gear manufacturing and assembly workshops

The NR hoist is the standard pairing for this low headroom single girder gantry crane. If your project needs a different hoist type or brand, it can be re-specified.

To avoid surprises at installation, these items are outside the single girder gantry crane supply scope unless you specifically add them:

• P22 ground rail and rail fasteners
• Rail foundation designed for 44.3 kN wheel load
• Site power supply up to the crane isolator
• Erection crane and site lifting equipment
• Local electrical connection and permits

Yuantai can supply rails, anchor sets, and foundation load drawings as optional items — just state this in your enquiry so they appear in the quotation.

Send these ten items and Yuantai will issue a free custom single girder gantry crane CAD drawing, 3D model, and proposal within 24 hours:

1. Workshop internal width (m) — determines maximum span
2. Workshop clear internal height (m) — determines total height limit
3. Workshop length / rail travel distance (m)
4. Required lifting capacity (t)
5. Required lifting height (m)
6. Power supply (V / Hz / Ph)
7. Lifts per hour or hours per day (duty)
8. Longest load length and weight
9. Wall / column obstructions along the rail line
10. Control preference: pendant, wireless, cabin, or dual

The more complete the list, the faster and more accurate the single girder gantry crane drawing, 3D model, and quote.

This published single girder gantry crane drawing and 3D rendering are a free technical reference — you may use them to plan your workshop and check fit. A project-specific single girder gantry crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex workshop conditions, non-standard spans, or specialized customization engineering. The single girder gantry crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
