Workshop Gantry Crane on Tracks for Small Workshops1 T to 10 Ton

Small workshop cranes on tracks for material handling in limited space workshops & facilities. Get simple gantry cranes on tracks to improve efficiency.

Small Workshop Material Handling with Single Girder Gantry Cranes on Tracks

In the modern manufacturing, the need for efficient material handling solutions is important. Among the innovations reshaping small workshops, Single Girder Gantry Cranes on Tracks, often referred to as Gantry Cranes on Tracks, stand out for material handling for indoor workshops. . These cranes combine the versatility of a single girder design with the enhanced mobility provided by a track system.

Small workshops, often constrained by limited space and resources, face unique challenges in maintaining efficient material handling processes. Timely and precise movement of components is crucial for streamlined operations, minimizing downtime, and ensuring optimal productivity. In this context, the significance of adopting advanced material handling solutions, such as gantry cranes on tracks, cannot be overstated.

Small gantry crane on tracks represent a paradigm shift in small workshop material handling. With the ability to navigate along tracks, these cranes offer unparalleled flexibility in maneuvering through tight spaces and around obstacles. This transformative feature allows for the optimization of workshop layouts and the efficient utilization of available space.

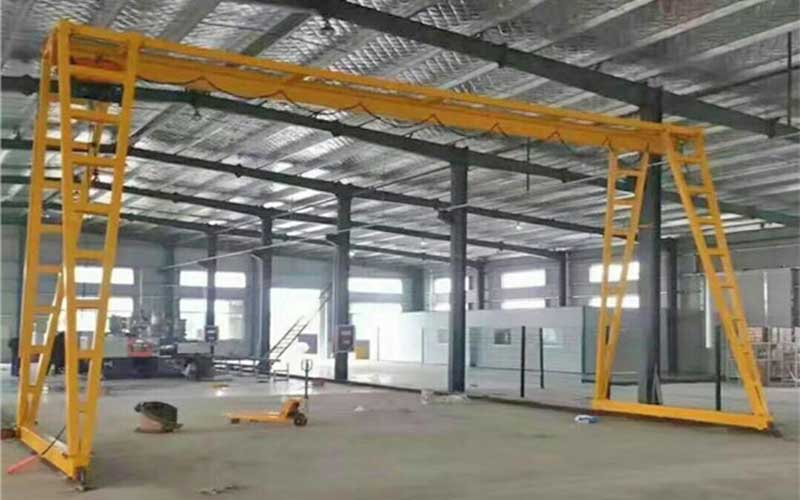

Workshop gantry crane on tracks for small workshop material handling

Characteristics of Single Girder Gantry Cranes on Tracks

The single girder design of gantry crane on tracks provides a lightweight yet robust solution. This design not only reduces the overall weight of the crane but also enhances ease of operation and maintenance.

The incorporation of a track system is a key distinguishing feature of track gantry cranes. These tracks, installed on the workshop floor, allow the crane to move horizontally with precision. This is particularly advantageous in confined spaces where traditional cranes might struggle to navigate.

Advantages of Using Tracks in Small Workshops

• Enhanced Maneuverability: Track Gantry Cranes can traverse the workshop space with a level of agility that traditional cranes cannot match. This attribute is crucial for efficiently reaching and handling components in diverse locations.
• Space Optimization: The track system enables the crane to move along predetermined paths, eliminating the need for additional clearance space. This results in a more efficient use of available workshop area.
• Increased Flexibility in Layout: Workshop layouts can be optimized to accommodate the tracks, allowing for strategic placement of workstations and machinery. This flexibility contributes to a more ergonomic and streamlined workflow.

Characteristics of Single Girder Gantry Cranes on Tracks

The single girder design of Workshop Gantry Crane on Tracks is a testament to simplicity meeting efficiency. In this configuration, a lone horizontal beam supports the lifting mechanism, making the crane lightweight and agile. This design not only facilitates easier maintenance but also enhances the overall maneuverability of the crane. Small workshops benefit from the reduced complexity, ensuring that the crane remains operational with minimal disruptions.

The track system is the cornerstone of Workshop Gantry Crane on Tracks, providing a guided path for movement. These tracks can be installed either on the workshop floor or ceiling, depending on the specific requirements. This setup eliminates the need for a cumbersome runway structure, making Workshop Gantry Crane on Tracks a practical choice for workshops with limited space. The tracks ensure a smooth and controlled traverse, contributing to the crane's precision in load handling.

Single girder workshop cranes on tracks with low headroom design

Gantry cranes on tracks for steel handling

Advantages of Using Tracks in Small Workshops

• Enhanced Maneuverability - One of the standout features of Workshop Gantry Crane on Tracks is their unparalleled maneuverability. Guided by the tracks, these cranes can navigate tight spaces with precision. This attribute is particularly advantageous in small workshops where loads need to be transported swiftly and accurately. Operators can easily position the crane to optimize the handling of materials, contributing to the efficiency of daily operations.
• Space Optimization - The track system plays a pivotal role in optimizing spatial utilization within small workshops. Unlike traditional cranes that necessitate significant floor or ceiling clearance, Workshop Gantry Crane on Tracks operate within the confines of the tracks. This results in a substantial reduction in the space required for crane movement, freeing up valuable workspace. The ability to maximize every square foot makes Workshop Gantry Crane on Tracks an ideal choice for compact workshops aiming to enhance their operational efficiency.
• Increased Flexibility in Layout - Workshop Gantry Crane on Tracks bring a new level of flexibility to workshop layouts. The adaptability of these cranes allows for easy reconfiguration of the workspace without the need for extensive structural modifications. Whether adapting to changes in production processes or accommodating new machinery, Workshop Gantry Crane on Tracks provide a versatile solution. This flexibility ensures that small workshops can seamlessly align their material handling infrastructure with evolving operational needs.

Typical Loads Handled

• Small Parts and Components: Workshop Gantry Crane on Tracks are adept at handling small parts and components crucial to manufacturing processes. This includes items such as nuts, bolts, and electronic components.
• Assembled Sub-Units: The crane's capacity extends to the transportation of pre-assembled sub-units of machinery. This could include partially assembled equipment or components ready for the next stage in the production line.
• Light to Moderate Machinery: Workshop Gantry Crane on Tracks are well-suited for moving machinery components such as motors, pumps, and smaller manufacturing equipment within the defined weight range.
• Tooling and Fixtures: The crane's precision is harnessed for transporting tools and fixtures essential to the manufacturing or assembly processes.

Importance of Matching Crane Capacity to Typical Loads in Small Workshops

Efficient material handling in small workshops hinges on the careful matching of crane capacity to the typical loads encountered in daily operations. This alignment serves several crucial purposes:

• Optimized Performance: Utilizing a crane with a capacity tailored to the typical loads ensures optimal performance. Workshop Gantry Crane on Tracks, designed for light to moderate machinery components, can handle these loads with precision and efficiency.
• Safety Assurance: Matching crane capacity to loads is paramount for maintaining a safe working environment. Overloading a crane can lead to accidents, equipment damage, and compromised workplace safety. TrackMaster's specified capacity ensures that operations proceed with the highest regard for safety.
• Extended Equipment Lifespan: Operating within the recommended capacity prevents unnecessary strain on the crane's components. This, in turn, contributes to the longevity of the equipment, minimizing downtime and reducing maintenance costs for small workshops.

Low headroom workshop gantry crane on tracks for headroom roon design

Low headroom electric chain hoist gantry crane on tracks

Typical Crane Application

Assembly lines form the backbone of small workshops, orchestrating the systematic creation of products or components. These lines are characterized by a sequence of workstations, each contributing to the incremental assembly of a final product. The efficiency of these lines is contingent on seamless material handling, making the role of cranes pivotal.

Role of Single Girder Gantry Cranes on Tracks in Assembly Processes

Single Girder Gantry Cranes on Tracks, or Workshop Gantry Crane on Tracks, play a multifaceted role in optimizing assembly line processes within small workshops:

• Precise Load Placement: Workshop Gantry Crane on Tracks, with their enhanced maneuverability, excel in precisely placing components at designated workstations. This precision is critical in maintaining the flow and sequence of assembly operations.
• Quick Material Transfers: The ability of Workshop Gantry Crane on Tracks to swiftly move along the tracks facilitates rapid material transfers between workstations. This agility is invaluable in scenarios where time-sensitive assembly processes are paramount.
• Facilitating Ergonomic Work Environments: Workshop Gantry Crane on Tracks contribute to the creation of ergonomic workspaces by effortlessly lifting and positioning components. This not only enhances the efficiency of assembly line workers but also reduces the risk of manual handling injuries.
• Adaptability to Changing Assembly Needs: The flexibility inherent in TrackMaster Crane layouts allows for easy adaptation to changes in the assembly line. Whether accommodating new product configurations or adjusting workstation layouts, Workshop Gantry Crane on Tracks provide a versatile solution.

Integration into Manufacturing Workshops for Improved Efficiency

Beyond assembly lines, Workshop Gantry Crane on Tracks seamlessly integrate into various facets of manufacturing workshops, enhancing overall operational efficiency:

• Material Storage and Retrieval: Workshop Gantry Crane on Tracks efficiently handle the movement of raw materials and finished products to and from storage areas. This streamlines inventory management and ensures that materials are readily available for production.
• Machine Loading and Unloading: In manufacturing setups, Workshop Gantry Crane on Tracks facilitate the loading and unloading of machinery components onto production equipment. This not only speeds up processes but also minimizes downtime.
• Workshop Layout Optimization: The space optimization afforded by Workshop Gantry Crane on Tracks allows for strategic placement within the workshop. This, in turn, optimizes the overall layout for improved workflow and efficiency.
• Maintenance Operations: Workshop Gantry Crane on Tracks are instrumental in supporting maintenance activities by effortlessly lifting and transporting heavy machinery parts for repairs or replacements. This capability minimizes downtime during maintenance interventions.

Range of Tonnages Handled by Single Girder Workshops Gantry Cranes on Tracks

Single Girder Gantry Cranes on Tracks, known as Workshop Gantry Crane on Tracks, exhibit versatility in handling a range of tonnages. The typical capacity of these cranes spans from 1 ton to 10 tons. This broad range allows small workshops to select the appropriate crane based on the specific requirements of their material handling tasks.

Specific Applications for Different Tonnages

• 1 to 3 Tons: Workshop Gantry Crane on Tracks with a capacity of 1 to 3 tons are well-suited for handling lighter machinery components and smaller loads. Applications include the movement of small parts in assembly lines, precise placement of delicate components, and the transportation of tools and fixtures.
• 4 to 6 Tons: In the mid-range capacity of 4 to 6 tons, Workshop Gantry Crane on Tracks become instrumental in handling medium-sized machinery components. This includes the transportation of assembled sub-units, machine loading and unloading, and supporting maintenance operations by lifting moderately heavy parts.
• 7 to 10 Tons: The higher end of the capacity spectrum, ranging from 7 to 10 tons, is designed for handling heavier machinery components in small workshops. Workshop Gantry Crane on Tracks within this capacity range find applications in moving larger machinery, facilitating the loading and unloading of heavy equipment, and supporting robust manufacturing processes.

Considerations for Selecting the Appropriate Tonnage for Specific Tasks

Choosing the right tonnage for Workshop Gantry Crane on Tracks involves careful consideration of the specific tasks and loads within a small workshop:

• Load Characteristics: Understand the weight and dimensions of the typical loads in your workshop. Select a TrackMaster Crane with a tonnage capacity that comfortably accommodates these loads to ensure optimal performance.
• Future Growth: Anticipate any changes in your workshop's operations or the introduction of heavier machinery. Select a TrackMaster Crane with a capacity that aligns with potential future needs, ensuring long-term efficiency.
• Safety Margins: Factor in safety margins when selecting the tonnage capacity. Operating within the specified limits not only ensures safety but also prolongs the lifespan of the crane by preventing overloading.
• Operational Frequency: Consider the frequency and intensity of material handling operations. Higher capacity cranes may be suitable for frequent and heavy-duty tasks, while lower capacity cranes may suffice for intermittent or lighter tasks.

Advantages of Workshop Gantry Crane on Tracks in Small Workshops

Increased Productivity and Efficiency

Workshop Gantry Crane on Tracks are catalysts for heightened productivity and efficiency in small workshops. The advantages contributing to these outcomes include:

• Swift Material Handling: The enhanced maneuverability of Workshop Gantry Crane on Tracks allows for quick and precise material handling, reducing downtime between tasks and accelerating overall workflow.
• Optimized Workflows: By seamlessly navigating the tracks, these cranes facilitate a smooth flow of materials within the workshop. This optimized workflow ensures that assembly lines and manufacturing processes operate with maximum efficiency.
• Ergonomic Work Environments: The precise load placement capability of Workshop Gantry Crane on Tracks contributes to the creation of ergonomic workspaces. Workers can focus on value-added tasks, leading to increased efficiency and job satisfaction.

Cost-Effectiveness in Comparison to Alternatives

Investing in Workshop Gantry Crane on Tracks proves to be a cost-effective solution for small workshops when compared to alternative material handling systems:

• Space Optimization: The track system eliminates the need for extensive structural support, optimizing spatial utilization. This space efficiency not only reduces construction costs but also allows small workshops to make the most of their available area.
• Adaptability to Layout Changes: Workshop Gantry Crane on Tracks offer flexibility in layout design without the need for significant modifications. This adaptability reduces the costs associated with reconfiguring the workshop to accommodate changing production needs.
• Reduced Maintenance Costs: The single girder design and straightforward track system contribute to the ease of maintenance. Minimal complexity translates to reduced maintenance costs, ensuring that the total cost of ownership remains economical for small workshops.

Improved Safety Features and Ease of Operation

Workshop Gantry Crane on Tracks prioritize safety and ease of operation, providing a secure working environment for small workshop operators:

• Overload Protection: These cranes are designed with built-in overload protection mechanisms, preventing accidents and equipment damage. This feature ensures that operators can confidently handle varying loads within the specified capacity.
• User-Friendly Controls: The controls for Workshop Gantry Crane on Tracks are designed for user-friendliness. Operators can easily navigate the crane along the tracks, control load movements, and perform tasks with precision, contributing to overall safety and ease of operation.
• Enhanced Visibility: The single girder design enhances visibility during material handling operations. Operators have a clear line of sight to the loads and work areas, minimizing the risk of accidents and improving overall operational safety.

In the final section, we will explore case studies showcasing successful implementations of Workshop Gantry Crane on Tracks in small workshops. These real-world examples will provide insights into the tangible benefits experienced by workshop owners and operators.

Case Studies

Examples of Small Workshops Successfully

Precision Engineering Solutions
Workshop Profile: A small precision engineering workshop specializing in intricate machinery components.
Implementation: Integrated Workshop Gantry Crane on Tracks for the movement of delicate components along the assembly line.
Outcomes: Achieved a 20% reduction in assembly time, enabling the workshop to handle increased orders without compromising precision.

Metal Fabrication Workshop
Workshop Profile: A metal fabrication workshop with limited floor space.
Implementation: Deployed Workshop Gantry Crane on Tracks for efficient loading and unloading of raw materials and finished products.
Outcomes: Optimized spatial utilization led to a 15% increase in production capacity without the need for workshop expansion.

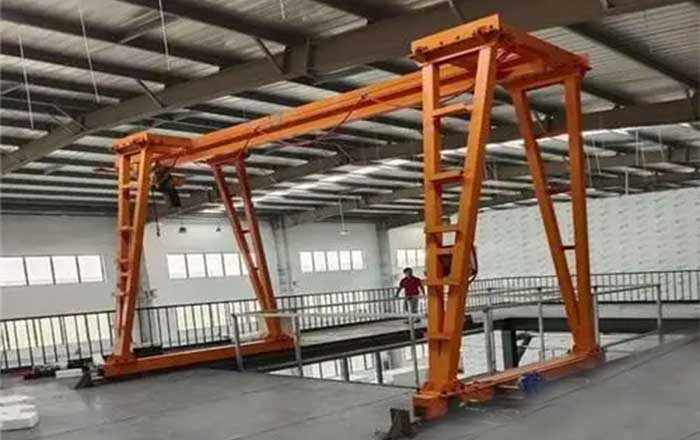

Small rail workshop gantry cranes

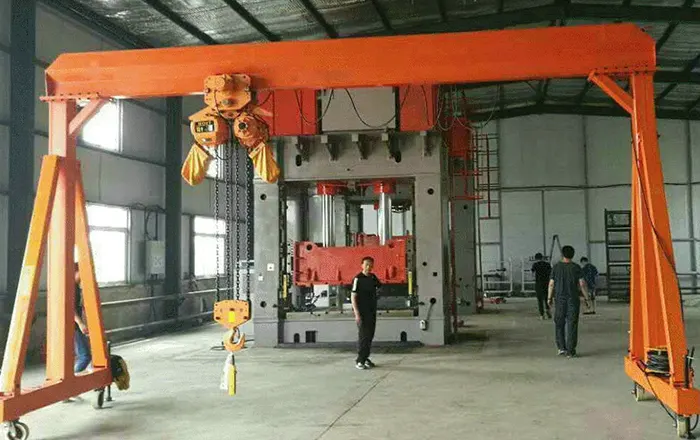

Portable workshop gantry cranes

Standard single girder workshop gantry cranes

Quantifiable Improvements in Productivity and Workflow

Time Savings in Material Handling:
Before TrackMaster: Average material handling time per component was 3 minutes.
After TrackMaster: Reduced to 5 minutes, leading to a 50% time savings.

Increased Daily Output:
Before TrackMaster: Workshop could produce 100 units per day.
After TrackMaster: Achieved a daily output of 150 units, a 50% increase in production capacity.

Reduction in Workstation Downtime:
Before TrackMaster: Workstation downtime for material transfer averaged 20 minutes per hour.
After TrackMaster: Reduced downtime to 5 minutes per hour, resulting in a 75% improvement.

These case studies and quantifiable improvements illustrate the tangible benefits of implementing Workshop Gantry Crane on Tracks in small workshops. The positive experiences of workshop managers and operators highlight the transformative impact of these cranes on productivity, efficiency, and overall operational success.

Conclusion

In this exploration of Single Girder Gantry Cranes on Tracks, specifically the Workshop Gantry Crane on Tracks, we've covered crucial aspects that underscore their significance in small workshops:

• Characteristics: Explored the unique features of Workshop Gantry Crane on Tracks, emphasizing the advantages of their single girder design and track system, such as enhanced maneuverability, space optimization, and increased layout flexibility.
• Typical Loads Handled: Defined the range of light to moderate machinery components, provided examples within this range, and stressed the importance of aligning crane capacity with typical loads for optimal performance.
• Crane Applications: Explored the important role of Workshop Gantry Crane on Tracks in assembly lines and manufacturing workshops, showcasing their contribution to precise load placement, quick material transfers, and overall efficiency.
• Typical Tonnages Used: Covered the diverse tonnage capacities of Workshop Gantry Crane on Tracks, detailing specific applications for different tonnages, and offering considerations for selecting the appropriate tonnage for specific tasks.
• Advantages: Delved into the advantages of Workshop Gantry Crane on Tracks, including increased productivity, cost-effectiveness in comparison to alternatives, and improved safety features and ease of operation.
• Case Studies: Presented real-world examples of small workshops successfully implementing Workshop Gantry Crane on Tracks, accompanied by testimonials, feedback from users, and quantifiable improvements in productivity and workflow.

The significance of Workshop Gantry Crane on Tracks in small workshops cannot be overstated. Their ability to seamlessly integrate into assembly lines, optimize spatial utilization, and provide cost-effective material handling solutions positions them as indispensable assets for small workshop owners seeking efficiency and adaptability.

In conclusion, we strongly encourage small workshop owners to consider the transformative capabilities of Workshop Gantry Crane on Tracks. The cumulative benefits of increased productivity, cost-effectiveness, and improved safety features make these cranes a strategic investment for elevating material handling operations. By embracing Workshop Gantry Crane on Tracks, small workshops can embark on a journey towards enhanced efficiency, streamlined workflows, and sustainable growth.
