Portable Gantry Crane 5 Ton, Aluminum Gantry Crane & Steel Gantry
5 ton portable gantry crane for sale. Custom A frame gantry, with fixed height & adjustable gantry crane design, made of aluminum & steel, for light loads handling.
| Crane Type | 5 ton portable gantry crane available in steel or lightweight aluminum construction; adjustable or fixed-height frame; manual/electric trolley with chain or wire rope hoist; ISO A3–A5 / FEM 1Am–3M duty class; 380/400/415V, 50Hz, 3Ph for electric systems; |
| Crane Capacity | Up to 5 ton for customized portable configurations; steel construction is generally preferred for higher loads, while aluminum gantry designs are mainly used where low structural weight and portability are priorities. |
| Span Length | Typically 2–6 m span; customized according to load, frame material, mobility, and required working area. |
| Lifting Height | Typically 2–5 m; adjustable or fixed lifting height available according to application and available headroom. |
| Coverage Area Type | Mobile or localized rectangular coverage within the gantry frame; workshops, machine areas, assembly stations, maintenance areas, warehouses, loading zones, and temporary lifting points. |
| Application | Workshop lifting, equipment installation, machinery maintenance, assembly, warehouse handling, machine loading and unloading, repair operations, and temporary lifting applications. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized 5 ton capacity, span, lifting height, aluminum or steel frame, adjustable or fixed height, wheel/caster arrangement, electric chain or wire rope hoist, manual/electric trolley, pendant or radio remote control, and application-specific lifting a |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China

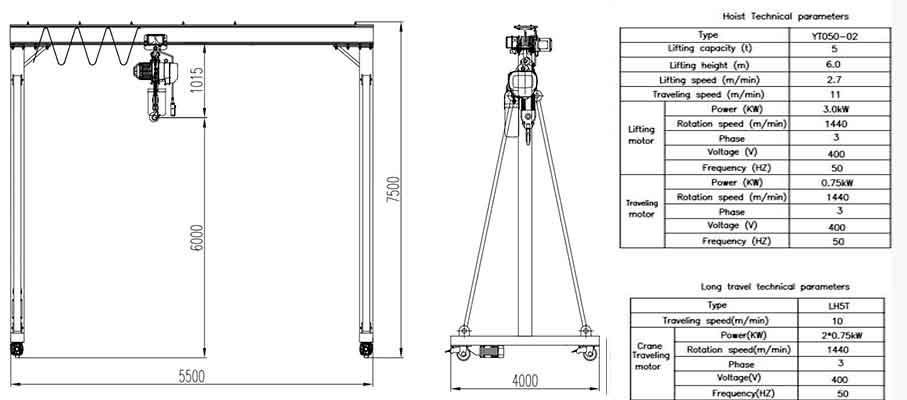

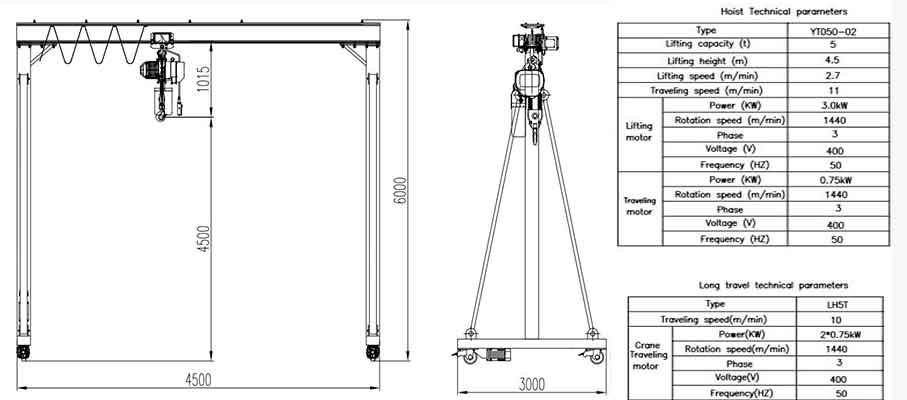

Category: Portable Gantry Crane Drawings
Tags: 5ton
Your Trusted Overhead Gantry Crane Manufacturer & Supplier
Portable Gantry Crane 5 Ton for Sale Good Price
Custom 5 Ton Aluminum Gantry Crane & Steel Gantry for Selection
5 ton portable gantry crane for sale. Custom A frame gantry, with fixed height & adjustable gantry crane design, made of aluminum & steel, for light loads handling.
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
