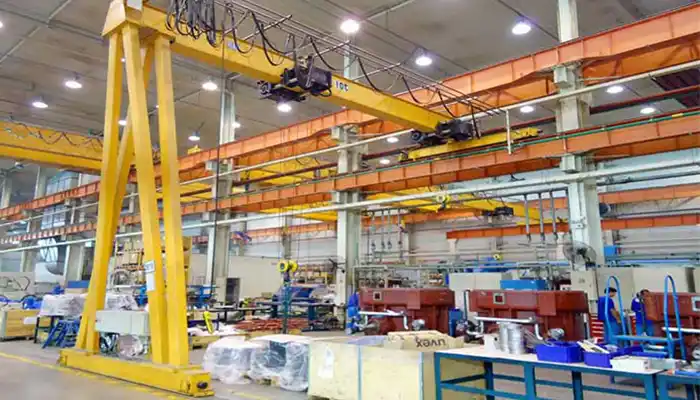

What is an A-frame crane? A-frame cranes usually refers to A frame gantry cranes which is a special variation of regular gantry cranes, with A shape like side profile. With various crane specifications and crane configuration, our A frame gantry cranes can be used for light, medium and heavy duty material handling, which includes the following:

• 5ton ~50ton light duty & medium duty single girder A frame gantry crane
• 5ton ~320ton heavy duty double girder A frame gantry cranes,
• 0.5 ton ~10 ton light duty Portable A frame gantry crane.
• Customized pee-engineeredA framegantry cranes are available.

A frame gantry crane is widely used forgeneral material handling indoors and outdoors. Combined with foreign advanced crane technology  and China's traditional crane advantages, , integrated years of experiences on gantry crane designing and manufacturing, our A frame gantry cranes offers excellent solution for small tonnage and large tonnage load handling.  All the designing and production of our A frame cranes are in accordance with GB/T 3811、GB/T 14406、GB 6067.1, and in accordance with related European gantry crane standards and regulations, Leave us a message below to get your particular designed A frame crane now.

With a choice of gantry design or portable gantry design, our A-frame gantry cranes are able to offer light duty and heavy duty material handling solution for indoor and outdoor application with capacity from 0.25 ton to 320 ton.

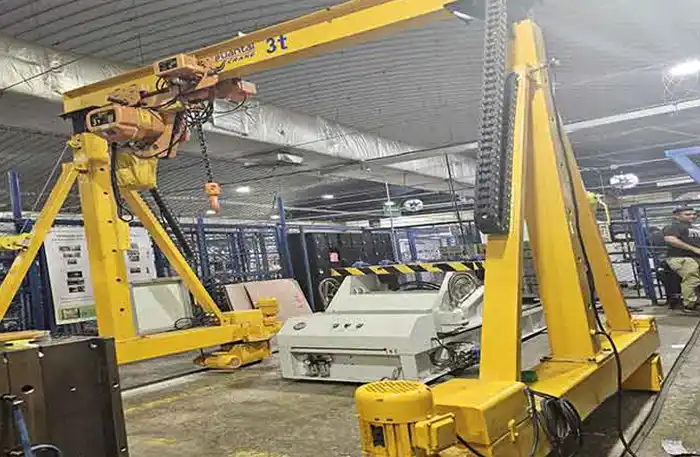

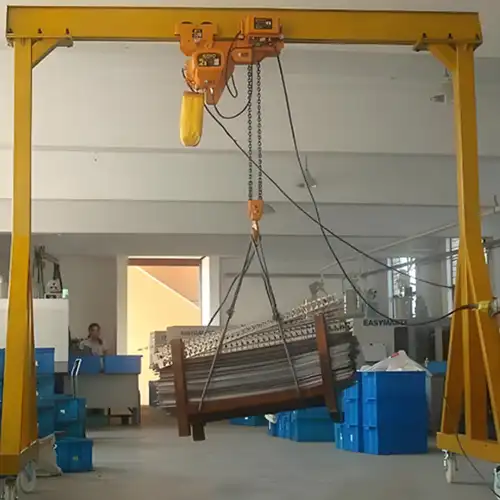

Portable A-frame cranes are simple yet reliable lifting solutions that fit a variety of needs across industries. These cranes feature a sturdy triangular frame that provides stability while lifting heavy loads. They're often used in workshops, warehouses, construction sites, and maintenance facilities where overhead cranes might not be practical. Because of their open design and mobility, A-frame cranes are especially useful for jobs that require flexibility and easy setup.

What makes these cranes popular is their quick availability and the ability to customize them based on your specific lifting requirements. Whether you need a standard model or something tailored for a unique workspace, options are ready to match your demands. Plus, if you're not ready to buy, many suppliers offer rental and hire programs to keep your project moving without a big upfront investment.

Our A-frame cranes are designed with you in mind—whether you're an industrial buyer looking to equip a production line, a contractor needing a dependable crane on a job site, or a maintenance team searching for a portable lifting device that's easy to handle.

• Fast delivery options ensure your crane arrives when you need it.
• Custom designs are available for unusual sizes, weight capacities, or workspace restrictions.
• Rental and hire options provide flexible terms to fit short-term or long-term needs.

This combination makes A-frame cranes a practical choice for many businesses, providing strong lifting support without the complexity of larger crane systems.

Features of Mini Mobile Gantry Cranes

For heavy materials handing, it is not necessary to install expensive equipment or to change your facility permanently. Portable A frame gantry crane with capacity up to 10 tons can help you do the hoisting work efficiently and economically.

• Portable - No permanent installation required, the light-weight A frame crane can travel around with casters or rollers freely. With portable gantry design, the A frame cranes can be relocated and used in many applications.
• Adjustable - With height adjustable gantry design , the A frame crane can be adjusted quickly to offer the largest flexibility for various loads handling during crane operation.
• Flexible - With portable and adjustable gantry design, the A frame crane is capable of handling loads of different sizes, with adjustable lifting height and span and A frame gantry is able to be assembled and relocated easily and rapidly, ensuring optimal productivity in your plant and facility
• Stable - The A frame crane provides a very stable base with a heavy duty end frame design and square tubing uprights, knee braces and channel base,etc.All nuts, bolts, and pins of A frame gantry are plated with corrosion resistance. And all A frame gantry cranes are designed and manufactured in accordance with the relative national regulations and laws to ensure the high safety and quality of the small A frame gantry.

Types of Portable A-Frame Cranes for Sale

A-frame cranes come in several varieties to suit different lifting tasks and environments. Knowing which type fits your needs can save you time and money, so let's break down the most common options you'll find for sale.

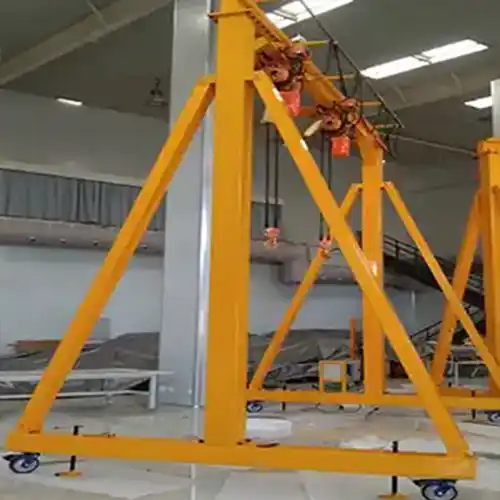

Steel A-Frame Cranes for Sale

Steel A-Frame Cranes for Sale
Steel A-frame cranes can be classifed into fixed height, adjustable height, adjustable span, manual and electric travelling A frame cranes, etc. Steel A-frame cranes are known for their heavy-duty strength and durability. These cranes can handle higher loads and harsh environments without compromising safety. If you're dealing with heavy materials or rough conditions, steel is the go-to choice.

• High load capacity for industrial use
• Resistant to wear and tear in tough conditions
• Heavier and less portable but built to last

Aluminum A-Frame Gantry Cranes for Sale

Aluminum A-Frame Gantry Cranes for Sale
Aluminum A-frame cranes can be classifed into fixed height, adjustable height, adjustable span, and freestanding A frame cranes. They are lightweight and easy to move, making them popular for applications where portability is important. Although they usually handle lighter loads than steel cranes, aluminum models resist corrosion and are easier to handle by a small crew.

• Lightweight for easy transport and setup
• Corrosion-resistant, ideal for outdoor or humid environments
• Lower weight limits but excellent for lighter lifting tasks

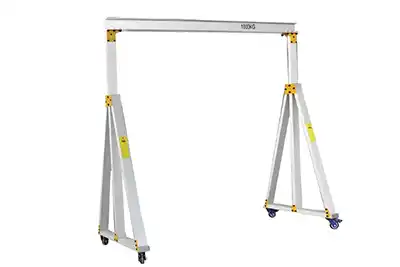

Fixed Height A-Frame Cranes for Sale

Fixed Height A-Frame Cranes for Sale
Fixed height a frame gantry cranes can be grouped into the fixed height Steel A Frame and Aluminum A Frame Gantry Crane. These cranes have a set frame height that doesn't change. They're sturdy and straightforward, perfect for repetitive lifting tasks where the height requirement stays the same. Because of their simple design, they tend to be more affordable and require less maintenance.

• Ideal for workshops and factories with consistent lifting needs
• Easy to assemble and move around
• Typically lighter weight and compact

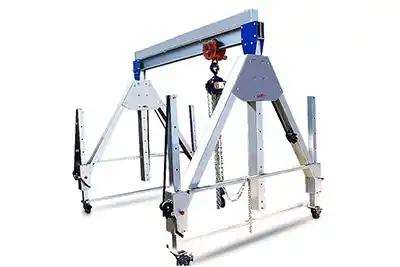

Adjustable Height A-Frame Cranes for Sale

Adjustable Height A-Frame Cranes for Sale
Ajustable height a frame gantry cranes can be grouped into the Adjustable Steel A Frame and Adjustable Aluminum A Frame Gantry Crane. If your lifting tasks vary or you need flexibility in your workspace, adjustable height cranes are a great choice. The legs can be raised or lowered to match the height of different loads or working conditions. This adaptability makes them a versatile option for projects that change often.

• Suitable for mixed-use environments or varying load sizes
• Height adjustment usually done via pins or screws for quick changes
• Slightly heavier and more complex than fixed height models

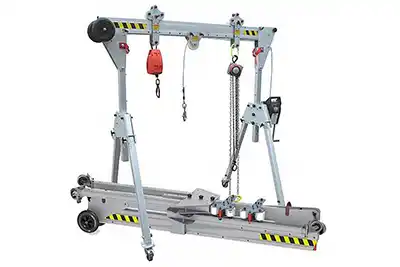

Folding or Collapsible A-Frame Cranes for Sale

Folding or Collapsible A-Frame Cranes for Sale
For those who need portability and easy storage, folding A-frame cranes are ideal. These cranes can be collapsed to a smaller size, making them easy to transport in trucks or store in tight spaces. They're especially handy for contractors or maintenance teams who move between sites regularly.

• Best for mobile operations and limited storage space
• Quick folding mechanism saves setup and teardown time
• May have lower load capacities compared to fixed or adjustable models

Fixed A frame gantry cranes are relatively static gantry crane system swith A-frame gantry designs, which make up the less of mobility with increased strength for heavier capacities from 5 ton ~320 ton. The fixed A frame gantry crane comes in multiple configurations and specifications to provide lifting solution to a number of different projects.

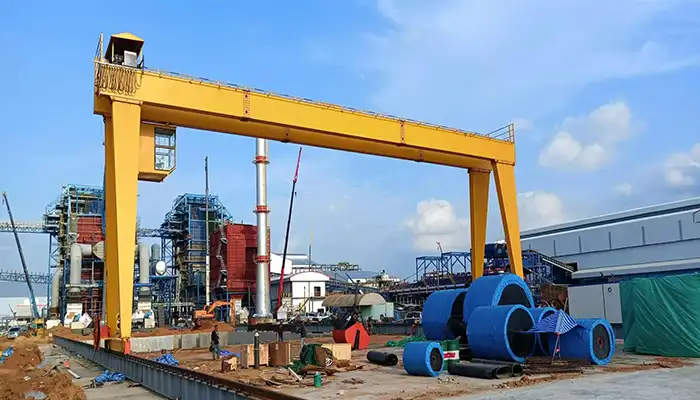

Box Girder A frame Gantry Crane

A frame gantry crane with box girder design - The box shaped gantry girder is welded withsteel plates , with features of high safety, stiffness and other, etc. Box gantry girder design is usually used for gantry cranes with large and super large tonnages. The box gantry girder design also has the drawbacks of high production cost, heavy selfweight and poor wind resistance.

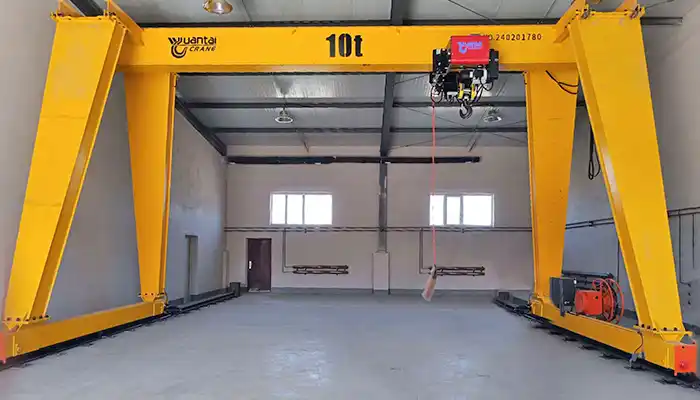

A frame gantry crane of single gantry girder design -The A frame gantry crane with single girder gantry designis for light to medium loads, handling with capacity of .5ton ~50ton. The single girder A frame cranes are for general material handling in indoor and outdoor uses

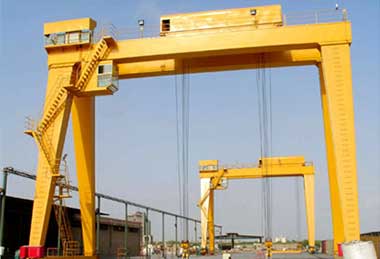

A frame crane of double girder gantry design -A frame crane with double gantry girder is designed with increased strength and large tonnages for material handling with capacity of 5 ton to 320ton. The double girder Aframe gantry crane offers higher efficiency and lifting speed than that of single girder gantry crane. The single beam A frame gantry crane is aimed at lifting light to medium loads, and it can be employed for both indoor and outdoor uses.

A frame double girder gantry crane is designed with increased strength and large capacity, usually in a range of5 tonto 500 ton. This A-type gantry crane provides higher efficiency and greater lifting speed than the single girder crane.

Features of Box Girder A Frame Gantry Crane

Single Girder Box Type

• Cost-Effective Design: Economical for light to medium-duty applications (typically up to 20 tons).
• Compact Structure: Requires less headroom; suitable for facilities with limited height.
• Easy Installation: Fewer components and simpler alignment reduce installation time and cost.
• Standard Lifting Height & Span: Customizable within moderate ranges for everyday lifting needs.
• Applications: Ideal for warehouses, fabrication shops, and small outdoor yards.

Double Girder Box Type

• Heavy-Duty Capacity: Suitable for loads up to 100 tons or more.
• High Lifting Height: Allows higher hook lift and longer span, maximizing workspace coverage.
• Supports Open Winch Hoists: Enables advanced lifting options such as tandem hooks or maintenance platforms.
• Robust Construction: Enhanced structural strength for long-span, frequent-duty operations.
• Applications: Common in steel mills, shipyards, power plants, and heavy machinery manufacturing.

Semi Gantry Box Type

• Space-Saving Layout: One side runs on ground rails; the other is supported by a wall or building structure.
• Flexible Usage: Ideal for workshops or storage areas where full gantry clearance isn't possible.
• Customizable Height & Span: Designed to match existing building constraints while maximizing lifting performance.
• Lower Cost Than Full Gantry: Saves on structural and track installation costs.
• Applications: Used in assembly lines, partial outdoor areas, and loading/unloading zones with structural limitations.

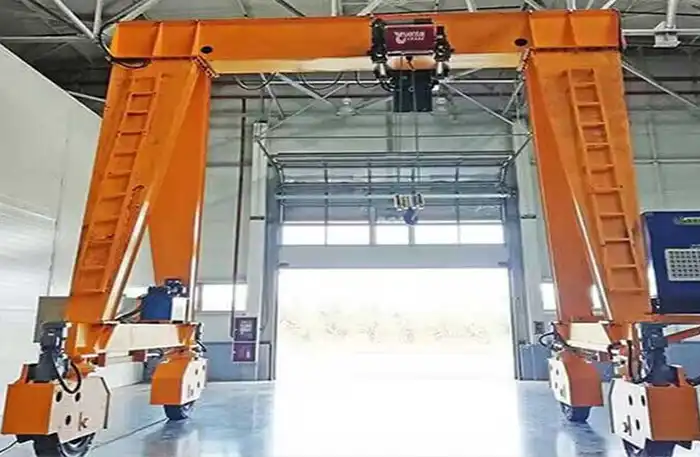

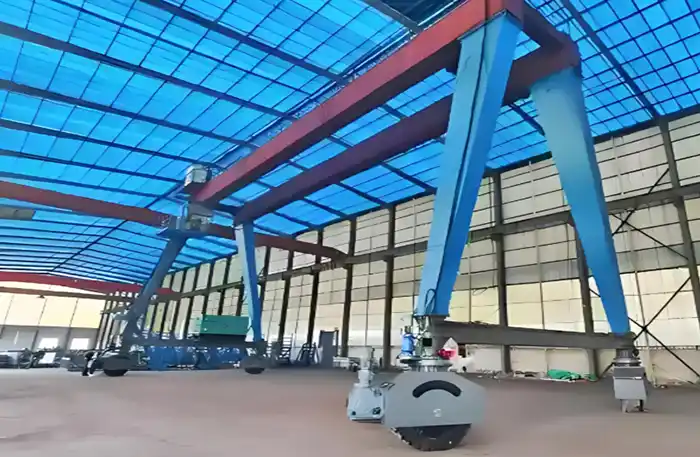

Rubber Tyred A Frame Gantry Crane

Rubber tyred A-frame gantry cranes are widely used for flexible, mobile lifting in outdoor yards, workshops, and construction sites. Choosing between a single girder and double girder design depends on your lifting capacity, span, and usage intensity. Single girder rubber tyred gantry cranes are ideal for lighter loads and easier mobility, while double girder versions support heavier lifting, greater spans, and advanced lifting systems. Understanding the differences helps you select the right gantry crane for your industrial needs.

Features of Rubber Tyred A Frame Gantry Cranes

Flexible Mobility

• Rubber Tyred Travel System: No need for fixed rails—crane moves freely across flat surfaces.
• 360° Steering or Fixed Direction Options: Offers precise movement and easy repositioning.
• Ideal for Temporary or Multi-Zone Use: Commonly used in precast yards, shipyards, and construction sites.

Single Girder Type:

Single Girder Type:

• Lightweight and cost-effective
• Suitable for light to medium loads (typically ≤30 tons)
• Easy to maneuver with a smaller turning radius

Double Girder Type:

Double Girder Type:

• Designed for heavy loads (up to 100 tons or more)
• Greater span and lifting height
• Supports larger hoists and multi-lifting points

Customizable Specifications

Customizable Specifications

• Capacity Range: 1 ton to 100 tons
• Lifting Height: Typically 3–50 meters
• Span: Fully customizable depending on site needs
• Power Options: Diesel generator, cable reel, or battery-powered

A-Frame Structure

A-Frame Structure

• Stable and Balanced: Provides reliable support even during long-distance travel
• Modular Design: Allows easier transportation, assembly, and future reconfiguration

Industrial Applications

Industrial Applications

• Used in concrete precast yards, steel stockyards, wind blade handling, shipbuilding, and modular construction projects.

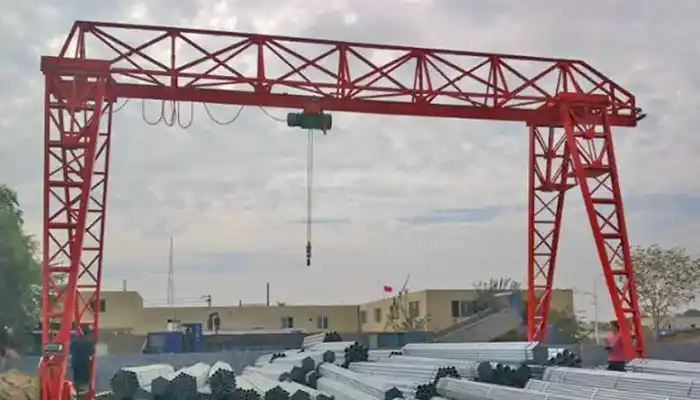

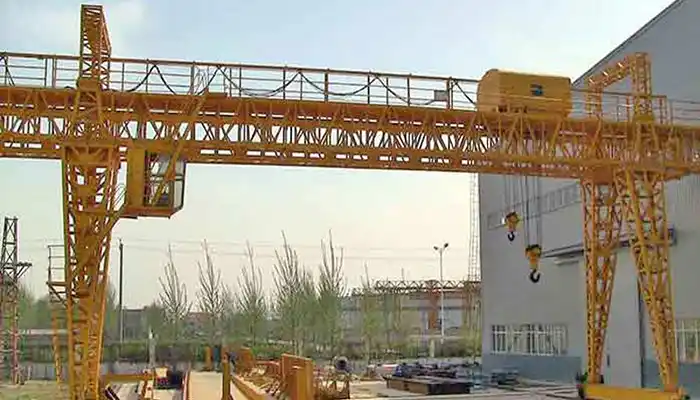

Truss Girder A frame Gantry Crane

A frame gantry crane with truss girder design - The truss gantry girder is welded with angle steel or I-beam, featured as low manufacturing cost, light self-weight, and good wind resistance. However, due to the large amount of welding points and the inborn defects of the trusses structure,the truss gantry girder has the disadvantages of large deflection, low rigidity, low reliability, and frequent welding spotsdetection

Features of Truss Girder A Frame Gantry Cranes

Overview of Truss Girder A Frame Gantry Crane

Lightweight yet Strong Structure

• Truss Girder Design: Made of welded steel tubes or angles, providing strength with significantly reduced self-weight.
• Excellent Wind Resistance: Ideal for outdoor use in open yards, coastal areas, or windy regions.

Enhanced Span and Flexibility

• Large Span Capability: Can achieve long spans with less material weight compared to box girders.
• Wide Working Area: Provides broad coverage for bulk handling, loading/unloading, or site logistics.

Cost-Effective for Outdoor Applications

• Lower Material and Fabrication Cost: Especially economical for large but lower-capacity cranes.
• Simple Support Structure: Easier to install and maintain, reducing long-term operation costs.

Single Girder Truss Girder A Frame Gantry :

Single Girder Truss Girder A Frame Gantry :

• Best for capacities under 20 tons
• Lightweight and suitable for low to medium frequency use

Double Girder Truss Girder A Frame Gantry:

Double Girder Truss Girder A Frame Gantry:

• Suitable for heavier loads and longer spans
• Enhanced stability and better hook height

Adaptable Configurations

Adaptable Configurations

• Custom Span, Height, and Capacity: Tailored to your job site or storage yard layout.
• Lifting Height: Generally up to 30 meters
• Capacity Range: 3 to 50 tons (commonly)

Typical Applications

Typical Applications

• Widely used in construction sites, precast yards, fabrication yards, pipe laying areas, and power tower assembly zones.

Send an Inquiry and Customize Your A Frame Gantry Crane Today

Looking for an A frame gantry crane that meets your exact lifting requirements? Whether you need a box girder, truss girder, or rubber tyred A-frame crane, Yuantai Crane provides fully customized solutions based on your specified capacity, span, lifting height, travel type, and site conditions.

We offer:

• Capacities ranging from 1 ton to 100 tons
• Single girder, double girder, and semi gantry configurations
• Options for open winch hoists, below-the-hook devices, and control systems

Send us your project details, and our engineering team will provide expert consultation and a tailored quotation within 12 hours.

Benifits of Our A Frame Gantry Crane Designs

• High security, stable performance. Learning from advanced crane tech abroad and from years of experiences in practical gantry crane design and manufacturing, our A frame gantry cranes with strong structure and reliable crane parts and components are inborn with the features of high safety and stable performance.
• Reliable structure, light weight, small loading pressure. By adopting a new gantry frame, the rigidity of our A frame gantry crane is improved. With various technical measures,the weight of the whole gantry crane is reduced by more than 15% and the maximum wheel pressure of A frame gantry crane is reduced by 10% to 20%.
• High precision, beautiful appearance. The complete supporting frame and the reaming holes of the trolley are produced with high precision and accuracy to avoid any deviation during manufacturing and welding to ensure the assembly and installation of A frame gantry crane easy and accurate, and finally offering you A frame gantry with excellent performance and beautiful appearance.
• Accurate operation, High safety. Adopting AC frequency conversion PLC control program, the operation of A frame crane is more simple and accurate and also the A frame gantry crane is with high safety and securityby adopting acomplete set of mechanical and electrical protection devices,including the overload limiter and height limiter of main and auxiliary hook, etc.
