10 Ton Portable Gantry Crane for Sale, Custom Design, Good PRICE
10 ton portable gantry crane for sale. Custom portable crane design, good gantry crane price. Easy assembly & operation. Check 10 ton gantry crane drawing.
| Crane Type | 10 ton portable/mobile gantry crane with steel gantry frame, typically adjustable or fixed height; electric chain or wire rope hoist; manual or electric trolley; ISO A3–A5 / FEM 1Am–3M duty class; 380/400/415V, 50Hz, 3Ph for electric systems; |
| Crane Capacity | 10 ton rated lifting capacity; designed according to load weight, wheel loads, mobility requirements, and operating conditions. |
| Span Length | Typically 3–10 m span; customized according to load distribution, mobility, site access, and required working area. |
| Lifting Height | Typically 3–6 m; adjustable or fixed lifting height available according to application and available headroom. |
| Coverage Area Type | Mobile or localized rectangular coverage within the crane frame; workshops, machine areas, assembly stations, maintenance areas, warehouses, loading zones, and temporary lifting points. |
| Application | Machine installation and maintenance, equipment lifting, workshop material handling, warehouse operations, machinery repair, assembly, loading and unloading, and temporary lifting applications. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized 10 ton capacity, span, lifting height, gantry frame, adjustable or fixed height, caster or wheel arrangement, electric chain/wire rope hoist, manual/electric trolley, pendant or radio remote control, and application-specific lifting attachments |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China

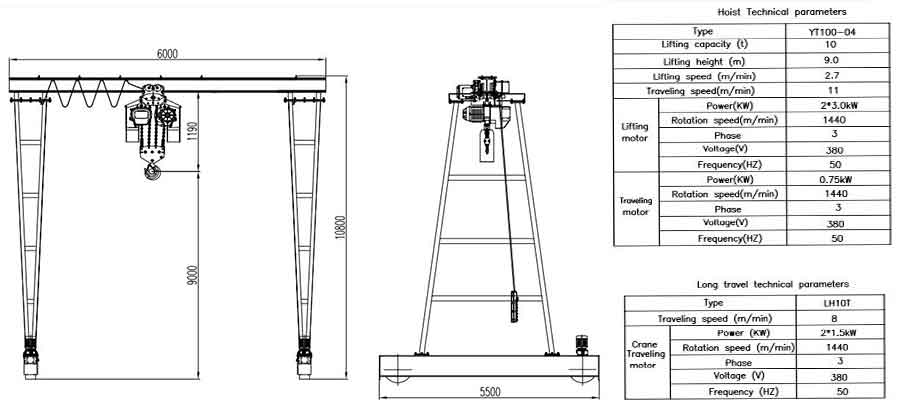

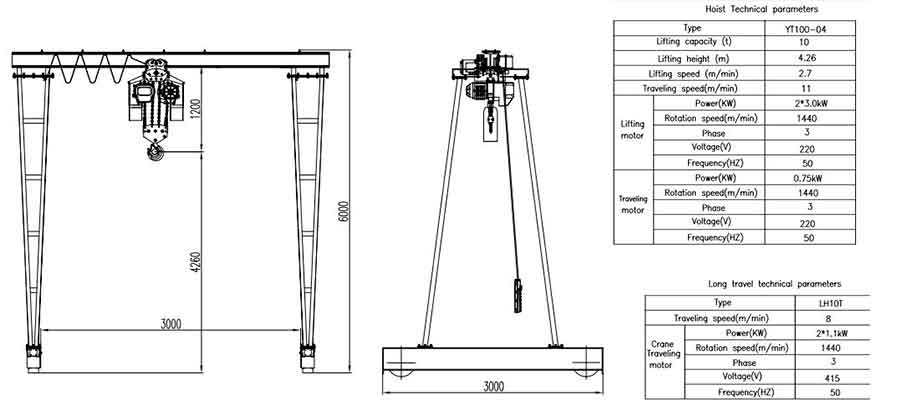

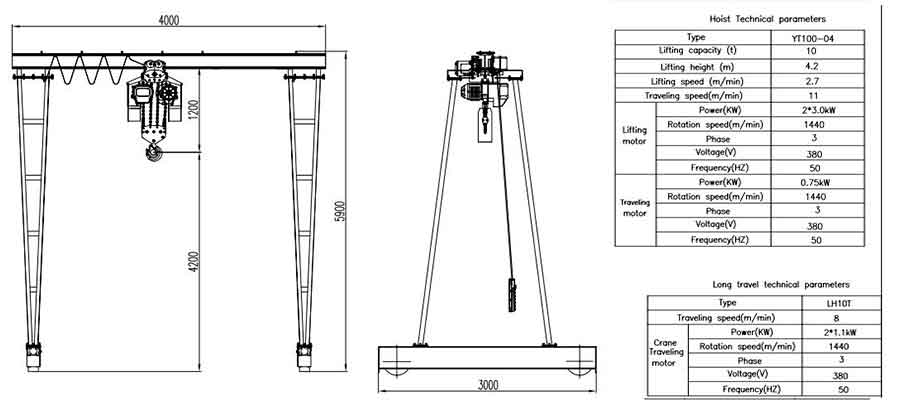

Category: Portable Gantry Crane Drawings
Tags: 10ton,portablegantrycrane
Your Trusted Overhead Gantry Crane Manufacturer & Supplier
10 Ton Portable Gantry Crane for Sale, Custom Design, Good PRICE
Economical Gantry Crane Option, Easy Asembly & Operation
10 ton portable gantry crane for sale. Custom portable crane design, good gantry crane price. Easy assembly & operation. Check 10 ton gantry crane drawing.
Types of portable gantry crane designs
Your Trusted Overhead Crane Manufacturer & Supplier
10 Ton Portable Gantry Crane for Sale Canada
Economical Small Gantry Crane for Molds & Dies Handling
10 top portable gantry crane for mold handling in coffee capsules factory in Canada. Non rail travelling gantry crane 10 ton, easy assembly & operation.
Overview of 10 ton portable gantry crane for sale Canada
- Types of Cranes:Portable Gantry Crane 10 Ton
- Date of Placing Order: 2021-09-22
- Date of delivery: 30 Days after payment
- Transportation :By sea , container.
- Payment: TT
- Destination port: DDU, delviery to the workshop of the client, the designated address
- Destination country:Canada
10 ton portable gantry crane main specifications & general requirements
Product Name | Portable Gantry Crane |
| Crane Model | Non rail travelling electric motorized gantry crane |
Lifting capacity | 10 ton |
Crane span | 10.4 m |
Lifting height | 4.6 m |
Working class | A3 |
Power supply | 480V,60HZ,3P |
Crane control | Ground control / Pendent control |
Color | Standards |
Indoor / Outdoor use | Indoor use |
Crane rail | None |
Quality | 1 |
Uses of portable gantry crane 10 tons
The 10 ton portable gantry crane will be used to handle injection molds in a coffee capsule factory in Canada. Leading the way in the design and production of multi-cavity molds for the production of coffee capsules made of biodegradable plastic is Mold&Mold. The 10 ton portable gantry crane is necessary to increase the efficiency and safety of mold exchange.
coffee capsules
Molds for coffee capsules production
10 ton portable gantry crane solutions
The 10 ton gantry crane is constructed with a roller traveling portable gantry crane based on the application conditions and lifting needs. The portable gantry may be transported easily away with motorized driving unit, with the capacity up to 10 tons.
Confirming gantry crane parameters
The 10 ton non-rail traveling gantry crane is originally designed based on the needs of the client. The 10 ton movable gantry crane will be used over the injection molder with the dimensions of 8 feet * 7 feet. Additionally, the mold needs to be raised 4 feet above the injection molder. Moreover, the following sketch shows the general lifting needs and requirements.
the 10 ton portable gantry crane's design drawing for parameter confirmation
The technical drawing of the 10 ton portable crane is designed and provided to the client for confirmation based on the detailed information provided.
Technical drawing of 10 ton portable gantry crane for mold handling
The detailed drawing of the 10 ton portable gantry crane is confirmed by the client, and then the factory arranges the processing.
Rail traveling 10 ton portable gantry crane manufacturing
Main girder of 10 ton movable gantry crane for sale Canada
Supporting legs of rolling gantry crane 10 ton for sale Canada
Electric chain hoist 10 ton for sale Canada
Gantry crane hoist trolley
Driving unit of motorized electric travelling portable gantry crane
