Hand Push Movable Gantry Crane Hoist
Light Duty Movable Gantry Crane Hoist

Movable gantry crane is a type of steel made portable gantry crane designed with fixed height & span, manual driven wheel & gantry hoist,up to 5 ton. Movable gantry crane hoist for sale.Non-standard customized movable gantry crane, fixed height and span, easy installation and disassembly.Steel gantry crane movable by hand with swivel casters and brake.

Fixed height portable gantry cranes

drawing of fixed height portable gantry crane the steel type

Parameters of movable gantry crane hoist

• Light gantry crane type: PT1 hand push movable gantry crane hoist
• Capacity of movable gantry crane : 1 ton, 2 ton, 3 ton, 5 ton, 7.5 ton, 10 ton, 15 ton / 20 ton,
• Span of movable gantry crane (m):2-12 (as your requirement)
• Height of movable gantry crane (m):1-10 (as your requirement)
• Lifting equipment:Manual hoist, Electric wire rope hoist, or Electric Chain hoist
• Crane travelling type: Hand push

Application of movable gantry crane hoist

Small mobile gantry cranes are an outstanding and cost-effective crane solution for many applications because to their reliable and versatile designs. Small A frame moveable gantry cranes are frequently used in the following situations:

• Anywhere in a building or facility where an overhead traveling crane is necessary, load handling is required.
• When a forklift, a normal gantry crane, or other overhead traveling bridge cranes option is too costly.
• Material handling in a specific location, utilizing the safety of a gantry crane
• Instead of employing a forklift, a safer portable crane can be used to maintain work and material handling.
• Anywhere there is a requirement for overhead material handling equipment on a regular basis

Workshop, warehouse, shipyard, freight yard, workstation, garage, molding plant, mine, construction site, welding and fabrication factory, and other applications where you need a portable, movable, and cost-effective way to handle material in your workshops or factories, such as workshop, warehouse, shipyard, freight yard, workstation, garage, moulding plant, mine, construction site, welding and fabrication factory, and other occasions, etc. Movable gantry cranes are excellent choices for applications where you need a portable crane.

Warehouse & Workshop

Manufacturing Plant

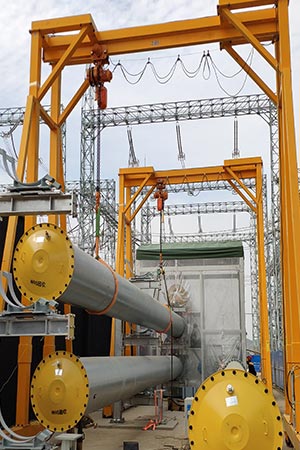

Outdoors Use for Material Handling

Open Yards for Long & Large Loads Hoisting

Sanitary Room & Clean Room

Modle Handling & Machinery Maintenance

Features of movable gantry crane hoist

• Precision parts and welding components are installed in alignment, easy to operate and stable in performance
• The movable gantry crane hoist adopts national standard steel plates,processed by laser cutting with high precision and smooth surface.
• Fully detachable design, convenient transportation, simple installation, flange butt, 8.8 grade high-strength bolt connection
• The paint is painted twice, the primer is an anti-rust primer, and the surface is a car baking paint. The baking paint has good appearance decoration and acid resistance, and the hardness of the baking paint is increased, which is not easy to be scratched.
• The movable gantry crane hoist adopts polyurethane casters, and other casters can also be used according to customer requirements, which can be used in a wider range of scenarios.
• The steel movable gantry crane can be powered by cable reels or cable reels, and the hoist can be powered by a cable bracket + high-quality power cord or C-shaped rail + flat cable.

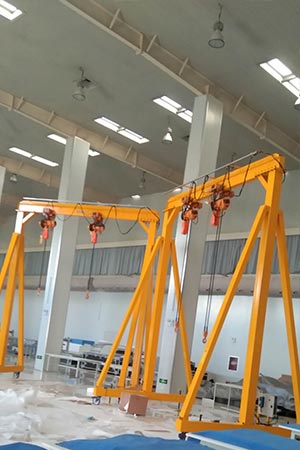

Hand push movable gantry crane hoist

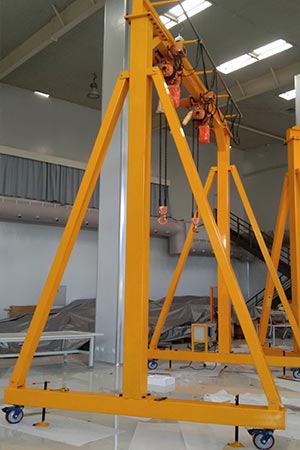

Manual travelling movable gantry crane hoist

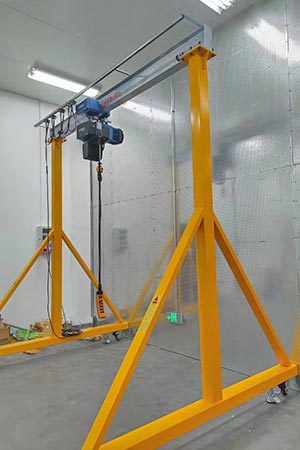

Hand push movable gantry crane with electric chain hoist

Electric motor driven movable gantry crane

Electric motor driven movable gantry crane

Electric motor driven movable gantry crane

Advantages of movable gantry crane hoist

All of the movable gantry crane hoists are manufactured by us has the following design features；

• The fixed height hand push movable gantry crane, like the portable gantry, is uniquely built for easy erection and disassembly. When the small steel gantry crane is off work, it can be packed in to compact container for easy carriage or storage which can be unpacked and get ready to use at any moment.
• In comparison to standard gantry cranes, the movable gantry crane hoist is built with square tubing uprights, knee braces, and a channel and base structure for smooth lifting and movement.
• High safety performance, the movable steel gantry crane's bolted beam design improves the crane parts connection, increasing the operator's safety performance.
• With phenolic casters, the movable gantry crane hoist can help you move the small gantry crane more steadily.

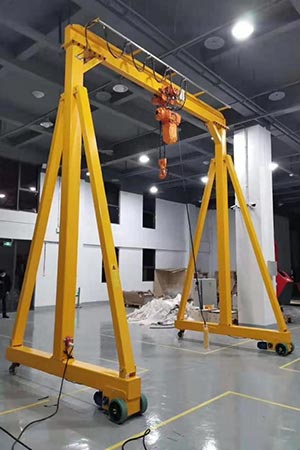

Hand push movable gantry crane hoist

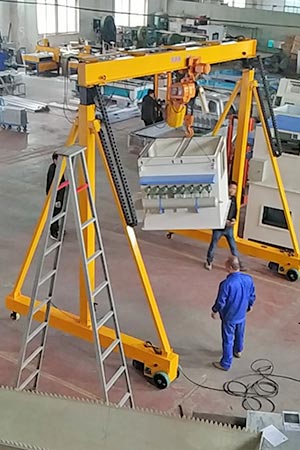

Hand push movable gantry crane hoist

Hand push movable gantry crane hoist with truss crane design

Benefits

• Ideal for light to medium industrial lifting tasks
• Flexible deployment in workshops, factories, and outdoor work areas
• Cost-effective solution for temporary lifting and relocation needs
• Safe, stable, and efficient material handling with minimal manpower
• Reduces labor costs and increases workflow efficiency in production areas

Frequently Asked Questions (FAQs)

Q1: What is the maximum lifting capacity of the PT1-1 fixed height portable gantry crane?
A: The PT1-1 fixed height portable gantry crane is available with a lifting capacity ranging from 1 ton to 10 tons, depending on the hoist type (manual or electric) and system configuration. This steel gantry crane is engineered to support a wide range of material handling needs.

Q2: Can I choose between a manual and an electric hoist for the PT1-1?
A: Yes. This portable steel gantry crane supports both manual hoists, suitable for lighter, occasional lifting, and electric hoists for heavier loads and frequent use. The choice depends on your operational demands and preferred workflow efficiency.

Q3: Is the PT1-1 portable gantry crane easy to move?
A: Yes. The PT1-1 is designed for mobility, equipped with heavy-duty swivel casters for smooth rolling and locking brakes for secure positioning. Its portable design makes it ideal for applications requiring frequent relocation within a facility or between job sites.

Q4: How long does assembly of the PT1-1 steel gantry crane take?
A: This crane is engineered for fast, tool-efficient assembly and disassembly, making it well-suited for temporary lifting operations in workshops, warehouses, and field sites. Its fixed-height frame provides stability while simplifying setup.

Q5: Where is the PT1-1 fixed height gantry crane commonly used?
A: The PT1-1 is a versatile choice for:

• Machine shops and small manufacturing plants
• Maintenance areas and repair bays
• Warehouse loading zones
• Construction and outdoor temporary sites
  Its rugged steel construction and portable frame make it ideal for both indoor and outdoor environments.

Buyer Notes

• The PT1-1 is a fixed height portable gantry crane ideal for light to medium-duty lifting in workshops, garages, warehouses, and job sites.
• Made from high-strength steel, this portable steel gantry crane delivers durability, safety, and long-term performance under industrial conditions.
• Its mobile frame and simple assembly support flexible operations wherever lifting and material handling are required—perfect for businesses needing a reliable, portable lifting solution without permanent installation.

Get your custom designed hand push movable gantry crane hoist

To get your specially designed movable gantry crane, the following parameters are needed；

• Capacity of movable gantry hoist: ___?
• Width of movable gantry hoist: ___?
• Span of movable gantry hoist: ___?
• Tread width of movable gantry hoist: ___?

Movable gantry crane, steel gantry designed with fixed height & span, manual driven wheel & gantry hoist,up to 5 ton. Movable gantry crane hoist for sale, good gantry crane price. Contact us today to get your customized movable gantry crane.
