Rope guider also called rope arranging device is an important part of an electric wire rope hoist, which is used on wire rope drum to enable the wire rope orderly and neatly arranged around the wire rope drum to preventwire rope chaos, overlap and others which may cause mechanical failureand hoist damages.

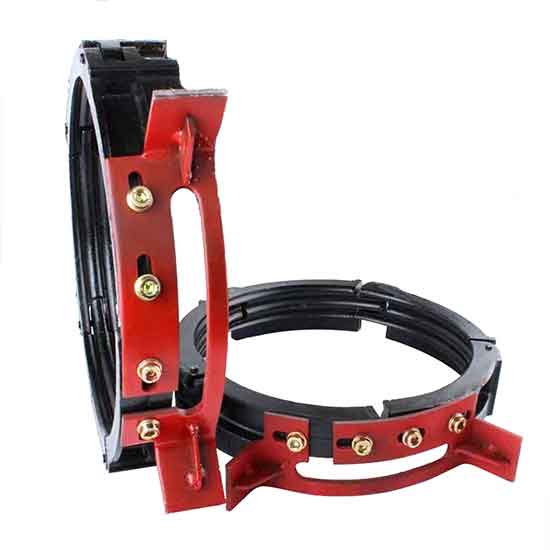

New type of electric wire rope hoist rope guider

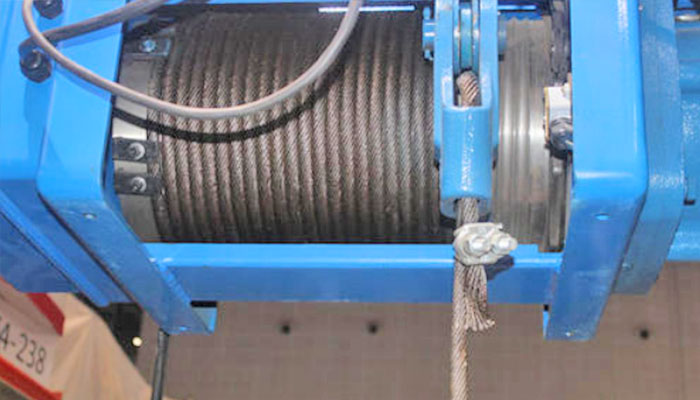

Cast iron electric wire rope hoist rope guider

Hoist rope guiders can be processed to meet to a wide range of drum diameters to fit different hoist applications. With modular designs, the wire rope guiders can be added with new features by the installation of modular devices, such as drum cleaning devices,side-pull prevention and wire rope measuring device, etc.Any need of wire rope guiders, please feel free to contact us to get your particular designed rope guider to fit your electric wire rope hoist applications and constructions.

Features of hoist rope guiders

With the development, the rope guiders has also been improved in structure, installation, maintenance and replacement,which is featured as innovative design, simple structure,easy installation, convenient maintenance,low maintenance rate, long working life and more economical. Some parts of the newly designed rope guiders are made of high-strength plastics with toughness and elasticity, to replace the cast ironone to reduce friction and wear to wire rope to extend working life.

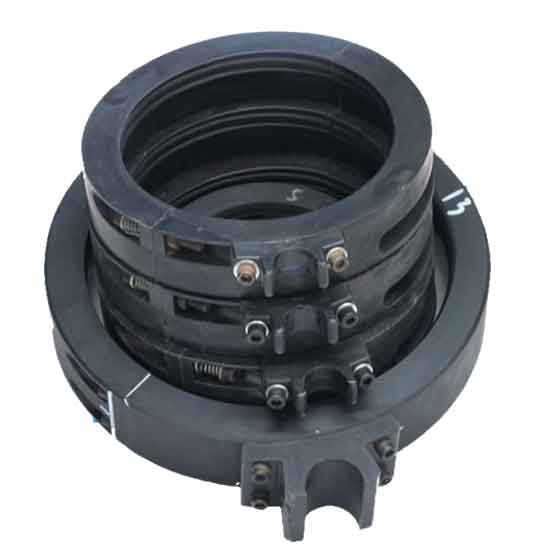

Electric wire rope hoist rope guider

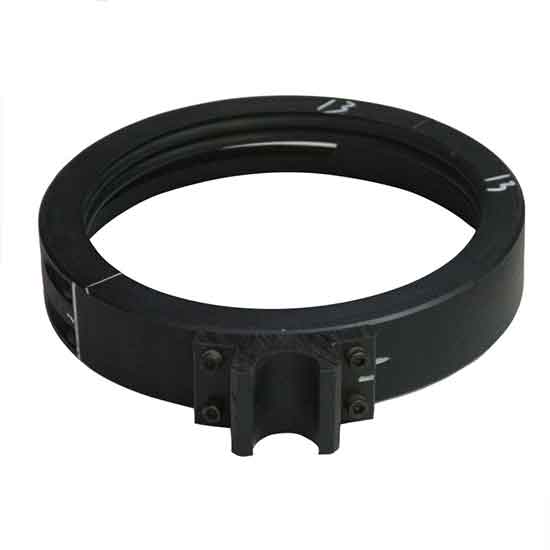

Electric wire rope hoist rope guider

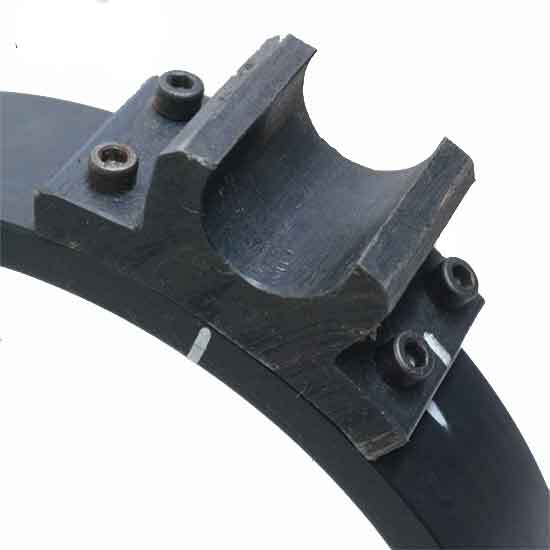

Electric wire rope hoist rope guider

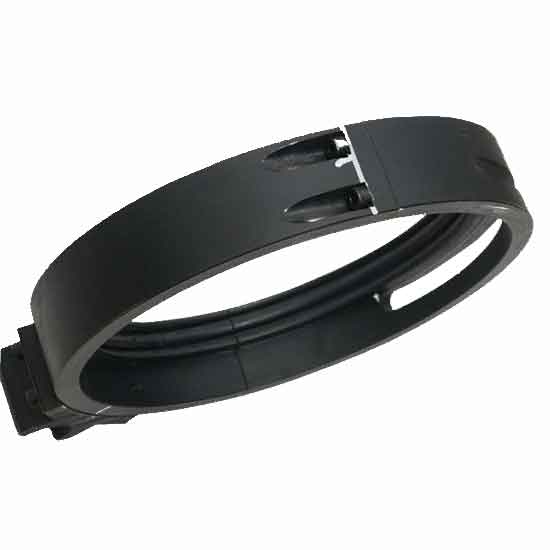

Electric wire rope hoist rope guider

Advantages of hoist rope guiders

The newly developed hoist rope guiders are with the new features and its own uniqueadvantages, including the following:

• Newly designed rope guiderss is featured as lightweight, rigid and durable.
• Simple structure,Easy installation,Convenient maintenance.
• Low maintenance rate, more practical and economical.
• Long working life by reducing. friction and wear to the rope drum and theropeguider.
• Wide application and applicable to extreme conditions and environments.
• rope guiders can be processed witha wide range of drum diameters to fit different hoist applications.

Why does your wire rope hoist need a rope guiders?

The wire rope drum is used to wind the wire rope in the hoisting mechanism, transmit force, and change the rotary motion into a liner motion. Helical grooves are usually cut on the surface of the drum,withthe helix angle of generally 3°-4°, neatly arranged around the wire rope drum. Without the rope guiders, the wire rope around the hoist drum may jump out of the spiral groove and result in wire rope disorder and deformation, and the abrasion of hoist rope drum, etc. All in all, without rope guiders , it may affect the usage of wire rope hoist drum , steel wire rope and therefore shorten the life of your electric wire rope hoist.

Do you need hoist rope guiders?A rope guider for a certain drum diameter can be configured to fit your application and hoist construction.Contact us to get a rope guiders for your electric wire rope hoist!
