2, 3, 5, and 10 Ton Wheeled Gantry Cranes for Workshops
Mobile Lifting That Fits Your Space

A Practical Guide to Choosing the Right Portable Gantry Crane for Light-Duty Workshop Applications

Introduction: Why Mobile Gantry Cranes Make Sense for Workshops

Modern workshops are changing fast. Space is tight, workstations move, and lifting needs don't always happen in one fixed spot. That's exactly where mobile gantry cranes—especially the wheeled type—start to make a lot of sense. Instead of being locked into one location like a fixed overhead crane, a wheeled gantry crane brings the lift to where it's needed.

In small-to-medium-sized workshops, where adding permanent structures isn't always possible or affordable, wheeled gantry cranes offer a practical, space-saving solution. You can roll them over to a machine, load or unload heavy parts, and move them out of the way when not in use. No track, no runway beam, no major installation work.

Let's be real—most workshop lifting jobs don't need massive capacity. That's why the most frequently used sizes are 2 ton, 3 ton, 5 ton, and 10 ton wheeled gantry cranes. These cover the sweet spot for handling machine parts, molds, metal plates, motors, and equipment during repair or assembly.

What Makes Wheeled Gantry Cranes Ideal for Workshops?

They're simple to use, fast to move, and don't get in the way when you don't need them.

Here's what makes them a workshop favorite:

• Compact footprint: Unlike fixed cranes, they don't take up overhead space or need columns or rails.
• Mobility: Equipped with swivel casters or heavy-duty wheels, they're easy to push manually or tow with a forklift.
• Quick setup: Most models arrive as a kit and can be assembled in a few hours with basic tools.
• No building modification needed: Great for rental workshops, older buildings, or temporary setups.
• Adjustable options available: Many light-duty models come with adjustable height or span to better fit your layout.

For small repair shops, fabrication plants, or tool rooms, that kind of versatility can make daily tasks a lot smoother.

Who Typically Uses 2, 3, 5, and 10 Ton Gantry Cranes?

These capacities aren't just random numbers—they match what many workshop users actually need.

• 2-ton and 3-ton cranes are popular in automotive repair, motor assembly shops, and small machining centers. They handle engines, pumps, gearboxes, and light equipment.
• 5-ton units are common in steel structure workshops, light fabrication, and machine maintenance areas.
• 10-ton gantry cranes are often used in heavier mechanical service areas or medium-scale manufacturing plants where forklifts alone can't safely lift large parts.

If your team finds themselves using chain blocks, jacks, or trying to drag heavy items across the floor—then chances are, a wheeled gantry crane in this range could make life easier.

What Are Wheeled Gantry Cranes?

Wheeled gantry cranes—sometimes simply called portable or mobile gantry cranes—are freestanding lifting systems that run on rubber wheels or casters. Unlike fixed-position cranes, these units can be moved around your workshop floor, offering on-the-spot lifting without being tied to a track or rail.

They are often used in workshops, small factories, maintenance shops, and even outdoor yards where tasks vary and flexibility matters more than large-scale lifting. If you're constantly rearranging your layout or working on equipment in different areas, a wheeled gantry crane can save both time and effort.

Main Components and Structure

A wheeled gantry crane has a straightforward structure—but don't let the simplicity fool you. It's built to handle tough lifting jobs with efficiency.

• Main Beam (Girder): The horizontal beam that supports the hoist and load. Can be I-beam or box-type depending on the design.
• Legs (Frames): Two vertical supports on each side of the crane, connected to the beam and mounted on wheels.
• Wheels or Casters: Usually four heavy-duty polyurethane or rubber wheels, with two being swivel and lockable for control and safety.
• Hoist and Trolley: Mounted on the beam. May be manual chain hoists, electric hoists, or wire rope hoists, depending on lifting needs.
• Bracing and Joints: Cross braces or gussets that ensure the frame remains stable under load.

Why Mobility Is a Big Plus in Workshop Settings

In small to mid-size workshops, every square meter counts. You can't afford to waste space or have a fixed crane block your workflow.

• Move the Crane to the Load: Rather than moving heavy materials to a lifting point, you simply roll the crane to where it's needed.
• Quick Setup and Relocation: Great for temporary tasks, repairs, or projects that shift positions over time.
• No Installation Costs: Especially useful for rental spaces or temporary work sites where permanent cranes aren't practical.

In short, wheeled gantry cranes offer a practical and economical lifting solution when space, layout flexibility, or budget are real concerns. Whether you're handling 2 tons or up to 10 tons, the concept remains the same—move the crane, lift the load, and get back to work without unnecessary complexity.

Common Workshop Uses for 2–10 Ton Gantry Cranes

Not every lifting job needs a full overhead system. In many workshops, especially smaller ones or those with frequent layout changes, mobile gantry cranes from 2 to 10 tons come in handy—really handy.

These cranes can be wheeled right to where the work is happening. You don't need to build a runway or modify your ceiling structure. That makes them a popular choice for machine shops, maintenance bays, assembly zones, and even small fabrication areas.

Whether it's a 2 ton gantry for small machine shops or a 10 ton one for bigger mechanical loads, these cranes give your team extra muscle without tying your space down.

Key Capacities Explained: Choosing Between 2t, 3t, 5t, and 10t

Selecting the right gantry crane for your workshop isn't just about how heavy your loads are — it's also about how frequently you lift, how much space you have, and how mobile you need your crane to be. Below is a breakdown of typical wheeled gantry crane capacities from 2 to 10 tons, and what they're best suited for in everyday workshop use.

2 Ton Wheeled Gantry Cranes

Compact and easy to move — often made of aluminum, these cranes are built for convenience over brute strength.

• Lightweight structure allows one or two people to relocate or reposition the crane easily
• Best for part-time use like occasional lifting of pumps, light molds, small motors, or precision tools
• Height and span are usually adjustable, giving flexibility for different setups
• Commonly used in small repair shops, electrical maintenance teams, or on-site service work

Practical Tip: If your ceiling height is low or if you need to load machines in a truck, a 2-ton gantry crane with a foldable frame works great.

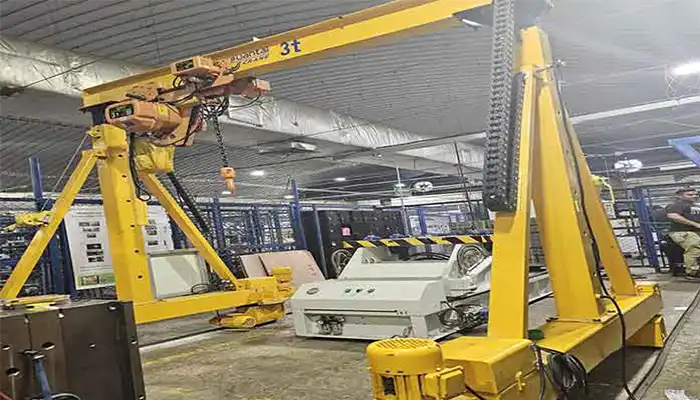

3 Ton Wheeled Gantry Cranes

A practical step up in lifting power while still staying maneuverable.

• Suits mold handling, gearbox lifting, and slightly heavier machinery
• Often steel-structured for strength, but still mobile enough for a single worker to manage with effort
• Can be used in mold shops, car service centers, or light assembly workshops
• A solid middle ground between portability and capacity

Practical Tip: Look for models with polyurethane wheels for smoother indoor use and less damage to your floors.

5 Ton Wheeled Gantry Cranes

This is where gantry cranes become workhorses in industrial-grade environments.

• Very popular in fabrication and equipment workshops
• Handles mid-weight loads such as machine parts, tool-and-die sets, and structural steel components
• Often equipped with motorized hoists for higher lifting efficiency
• Still movable with effort, or with a tow bar or powered wheel system

Practical Tip: If you're using your crane daily or need to lift large equipment like hydraulic presses or compressors, a 5-ton crane gives the balance of strength and flexibility.

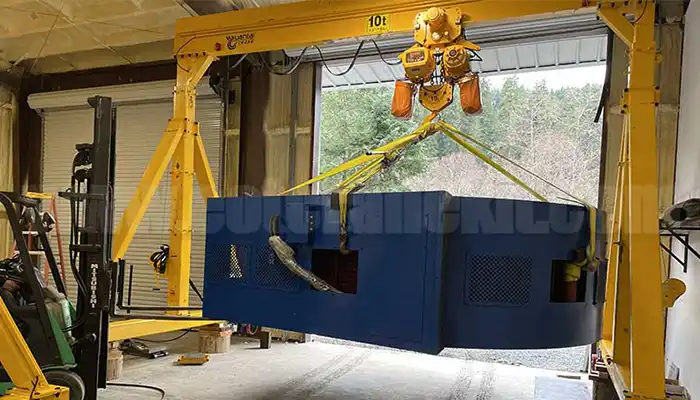

10 Ton Wheeled Gantry Cranes with Adjustable Gantry Design

Now we're talking serious lifting — but still suitable for mobile workshop setups if space allows.

• Heavy-duty but compact enough for indoor use in larger workshops
• Commonly used in foundries, equipment repair bays, or compact production lines
• Requires proper flooring and possibly powered movement if frequent repositioning is needed
• Best for full-time operations where large engines, molds, or steel frames are handled

Practical Tip: Be sure to check your floor loading and turning radius if you're planning to move a 10-ton gantry crane inside the workshop. These units often require planning for safety and maneuverability.

Choosing the right tonnage is about matching your typical load, workspace layout, and how often you'll use the crane. It's always better to slightly overestimate your needs than to risk overloading a smaller unit.

Space-Saving Design: What Makes These Cranes Ideal for Tight Workshops

When your workshop floor is limited, every inch counts. Low Headroom wheeled gantry cranes are designed with that in mind, making them a perfect fit where space is tight but lifting can't be compromised.

• Narrow wheelbase and minimal overhead clearance mean these cranes can squeeze into narrow aisles and low-ceiling areas without blocking access or disrupting workflow.
• Many models come with foldable or knock-down designs, so you can easily disassemble and store the crane when it's not in use or transport it between job sites.
• They work well in spaces without installed crane runways or overhead support structures, allowing you to set up lifting points wherever you need them without costly building modifications.

This flexibility is why many workshops, especially those renting or sharing space, prefer wheeled gantries over fixed cranes.

Cost and Maintenance Considerations

Buying a gantry crane is an investment, but it pays off with reliable lifting and workflow improvements. Knowing the costs upfront and planning maintenance can save headaches down the line.

Typical price ranges:

• 2 Ton cranes generally cost less due to lightweight materials like aluminum.
• 3 to 5 Ton cranes have moderate pricing reflecting sturdier steel construction.
• 10 Ton cranes are the most expensive, requiring heavy-duty frames and components.

Long-term upkeep:

• Regularly inspect and maintain wheels and brakes to ensure smooth movement and safety.
• Keep an eye on bearings and caster assemblies; worn parts reduce stability and increase risk.
• Paint and coatings protect against corrosion, especially if the crane is used in humid or semi-outdoor environments.

Recommended inspection intervals:

• Conduct basic safety and wear checks monthly if the crane is in daily use.
• Schedule thorough inspections of structural components and hoist systems at least once a year.
• Follow manufacturer guidelines for replacement parts and lubrication.

Proper maintenance not only extends the crane's life but also keeps your team safe and productive. Remember, a well-kept gantry crane is one you can trust every day.

Tips for Selecting the Right Model

Picking the right  wheeled gantry crane isn't just about grabbing the biggest or cheapest one. You want a model that fits your workshop's needs and makes lifting easier, not harder. Start by knowing your space and work conditions well.

Measure your space carefully:

• Check the span (the distance between the legs) to ensure the crane fits through doorways or aisles.
• Measure the clearance height to confirm the crane can operate without hitting ceilings, beams, or overhead lights.
• Note your floor type and condition—is it smooth concrete, rough, or sloped? This affects wheel choice and safety.

Assess lifting frequency and load stability:

• How often will you use the crane? For daily use, invest in durable wheels and electric hoists.
• Consider if your loads are stable or awkwardly shaped. More unstable loads may require cranes with better control and precision.

Decide on indoor-only or occasional outdoor movement:

• If your crane will sometimes work outside, look for weather-resistant coatings and tires designed for rougher surfaces.
• Indoor-only cranes can focus on smooth polyurethane wheels and lighter frames.

Taking time to evaluate these factors upfront will save you frustration later and ensure your crane works exactly how you need it.

Optional Add-ons and Customization

Many wheeled gantry cranes come with options that tailor them to specific workshop demands. These add-ons aren't always necessary but can boost safety, efficiency, and lifespan.

Motorized travel systems:

• Useful if you frequently move heavier loads or your workspace is large.
• Can be battery-powered or electric, reducing manual effort and speeding up repositioning.

Outdoor protection coatings:

• Powder coating or specialized paint protects against rust and corrosion, especially in humid or dusty environments.
• Helps cranes last longer if used near loading docks or semi-covered yards.

Hoist and trolley packages included:

• Some manufacturers offer bundles that match the crane frame with the perfect hoist (manual or electric) and trolley system.
• Ensures compatibility and smooth operation from day one.

Height-adjustable frames for different tasks:

• Cranes with adjustable legs let you change the lifting height based on the job — great for workshops with varied equipment sizes or ceiling restrictions.

These customizations can make your gantry crane a better fit for your workflow and extend its usefulness as your workshop evolves. Always check what's included in the base model and what can be added later.

Final Thoughts: Is a Wheeled Gantry Crane Right for Your Workshop?

Wheeled gantry cranes offer a simple but effective solution when you need lifting power without the hassle of fixed installations. Their biggest strengths are flexibility and mobility—they move easily to wherever the work is and don't require expensive runway beams or ceiling modifications. Plus, their setup is usually straightforward and fast, letting you get lifting right away.

When to Think About Upgrading to a Rail or Bridge Crane

That said, wheeled gantry cranes aren't perfect for every situation. If your workshop handles heavy loads daily in a fixed spot, or you need to cover a large area with frequent, repetitive lifts, a rail-mounted or bridge crane might be a better long-term investment. These systems provide faster travel speeds, higher capacities, and greater durability for continuous heavy use.

How to Get a Quote Tailored to Your Workshop

Every workshop is different—your space, load sizes, and lifting frequency all affect which crane suits you best. To get the most accurate recommendation and price:

• Provide your workshop dimensions, including ceiling height and floor conditions
• Share your typical lifting needs: weights, sizes, and frequency
• Discuss any special requirements like outdoor use, height adjustability, or motorized travel

Reach out to suppliers who can guide you through these details and offer custom options. A tailored quote ensures you get a crane that fits your needs and budget without surprises down the road.

In the end, if your workshop needs a lifting tool that moves with you and fits into tight spaces, a wheeled gantry crane is often the best place to start.
