I Beam Jib Crane 3.2 Ton for Low headroom Workshop Australia
FEM Electric Chain Hoist , Low Headrom Design for Low Ceiling Workshop

3.2 ton jib crane for sale Australia, pillar mounted jib, electric motorized slewing cantilever, low headroom i beam crane design, pendant control. Check now.

Basics of 3.2 ton I beam jib crane for Australia

• Crane Type：I beam jib crane with low headroom design
• Date of Placing Oder：2020.6.4
• Date of Delivery ：2020.6.25
• Way of Transportation： By shipping, FOB, 40GP.
• Way of Payment：TT 50% prepaid.
• Destination country： Australia
• Destination port：FOB, Shanghai, China
• First Contact：2019.11
• Application: Machinery manufactuering - conveyor factory

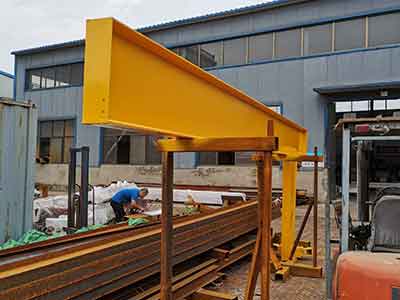

I beam jib crane 3.2 ton for low headroom workshop

3.2 ton I beam jib crane main specifications & general requirements

Custom features of I beam jib crane 3.2 ton for sale Australia

• Jib paint - The paint of small slewing jib crane should not contain lead, and the paint should be even and uniform, especially the welding position
• Welds-  All welds of rotating jib crane steel structures must be continuous welds with a minimum of 6mm, and all butt welds should be fully penetrated
• Wiring- Both the jib cranes and small hoist trolley must have a ground wire, and the color of the ground wire is yellow and green. The wires of the overhead jib crane system including the electrical cabinet, cable wires, control wires, etc., are required to use red for live wires, black for neutral wires, and yellow and green for ground wires.All the wiring adopts triangular wiring, and the wiring is strictly in accordance with the wiring diagram
• All configurations are asbestos free.
• Low headroom cantilever design - The designs and sized of the slewing jib cranes must be in accordance with the designing drawings . Due to the height limit of the workshop building, and the total height of the cantilever jib cranes cannot exceed 5.02m, with low headroom I beam design.
• Jib hoist- The 3.2 ton jib crane is equipped with European-style electric chain hoist, the low headroom hoist design,  a clearance height of 874, working level M5, protection level IP55, and  load testing for the electric hoist is required during inspection.
• Jib crane control - ground handle control,  IP65, controls up, down, left, and right and cart rotation.

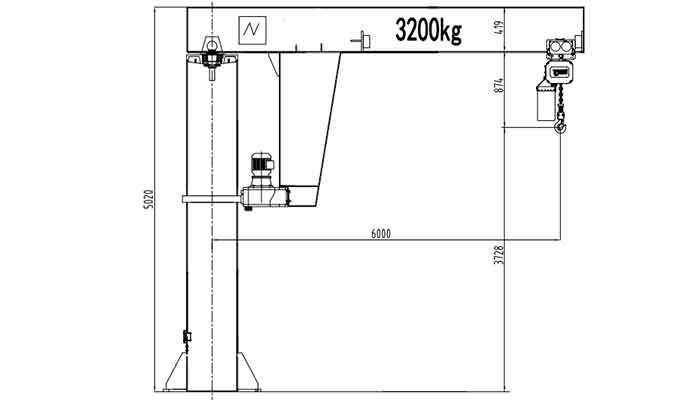

I beam jib crane drawing for 3.2 ton crane project in Australia

Production pictures of 3.2 ton slewing jib crane for sale Australia

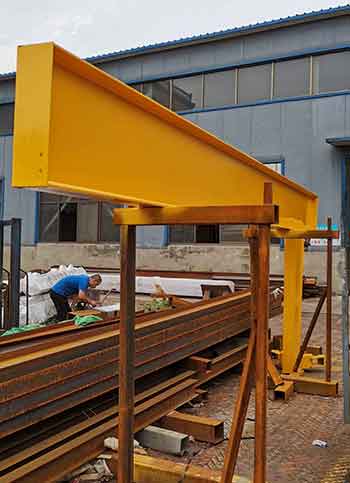

1 beam cantilever for 3.2 ton electric rotating jib crane  for sale

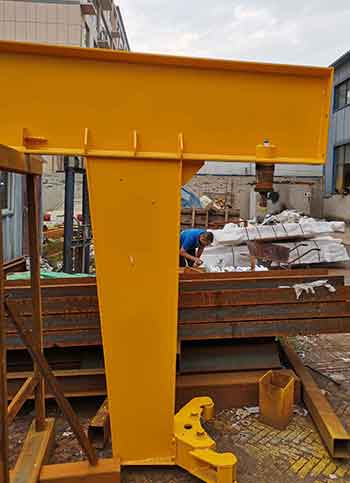

Rotating cantilever of 3.2 ton Low headroom jib crane for sale Australia

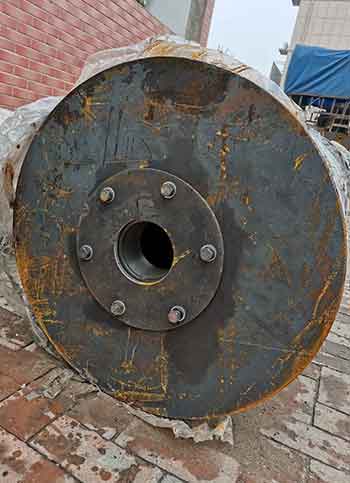

Baseplate of freestanding column mounted jib crane

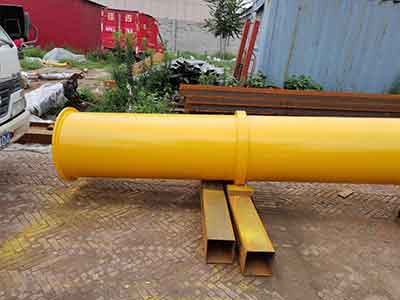

3.2 ton column of I beam jib crane

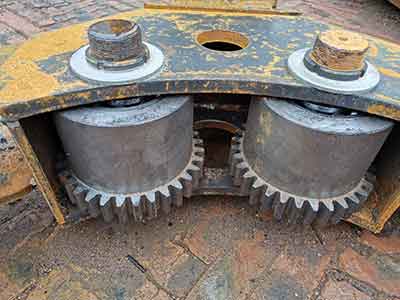

Turning mechanism of freestanding jib crane for Australian client's workshop

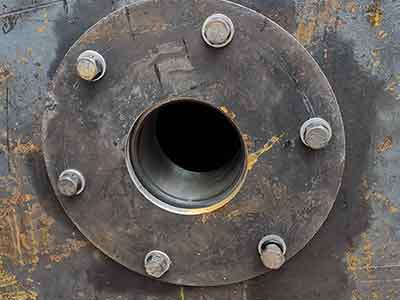

Bolts of jib columns for mounting on the ground foundation

European electric chain hoists

In comparison to European wire rope hoists, the European electric chain hoist is a new form of electric chain hoist that can meet more lifting needs. The fem electric chain hoists may be divided into several categories, such as European low headroom chain hoist, Super low headroom chain hoist, Double Hook European electric chain hoist, and wind power generation industrial utilized electric chain hoist.

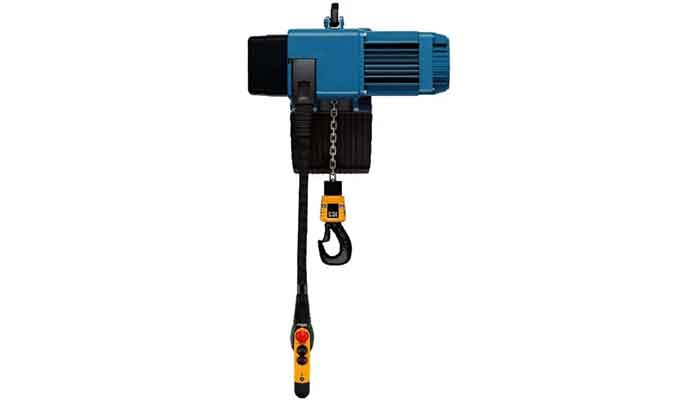

Fem standard low headroom electric chain hoist  for 3.2 ton jib crane for sale Australia - Check European style motorized chain hoist series

Main Specification of European style low headroom electric chain hoist

Save space and overhead clearance with the 500 kg – 50 ton low headroom chain hoist's FEM standard low profile hoist design of 100–150, 200–350 mm.

Main parameters of electric chain hoist with FEM chain hoist standards

• The maximum lifting capability of a European electric chain hoist is 50 tons, and its maximum lifting height is undefined.
• 100-150mm, 200mm, and 350-400mm Low Headroom Designs
• The European electric chain hoist's maximum working class is M8, and it can work for up to 48 hours.
• Low headroom (the distance from the bottom of the i-beam to the center of the hook) can be 200 mm to 350 mm, and a super electric chain hoist can be 100 mm to 150 mm in length.
• Numbers of electric chain hoist hooks of FEM electric chain hoist are 1 hoist hook ,2 hook and customized.

Features of FEM standard low headroom electric chain hoist :

The Electric Chain Hoist has the following features:

• Advanced performance structure, small volume, light weight, reliable performance, easy handling,
• Wide application scope, convenient to lift heavy objects, load and unload, maintain equipment, and lift cargos;
• It can also be installed on a suspended I-beam, curve track, cantilever crane track, and fixed point to lift heavy objects.
• It is the ideal tool for modern businesses to carry resources and make goods.
