3 Sets of Electric Overhead Crane for Sale Australia
European Style, Box Girder, Remote Control Crane, Good Buy
3 Sets of Electric Single Girder Overhead Travelling Crane 5 Ton & 6 Ton for sale Australia. European style box girder, remote control overhead cranes, good buy from China. Check the 5 ton & 6 ton overhead crane specifications to learn more. If you need a custom designed travelling crane for your workshop, contact us now.
Basics of electric single girder overhead cranee for Sale Australia
- Crane Type：electric single girder overhead cranes
- Date of Placing Oder： 2020-5-29
- Date of Delivery ： 2020-7-4
- Way of Transportation： 40GP + 20 GP container,By Sea
- Way of Payment： TT
- Destination country： Australia
- Destination port：CIF, FREMANTLE
- First Contact： 2019-1.31
Main girders of 3 sets of electric single girder overhead travelling cranes 5 tons and 6 ton for Australian projects
General requirements & main specifications
Crane type | electric single girder overhead crane | electric single girder overhead crane |
Model | HD | HD |
Working Class | A5 | A5 |
Capacity | 6 ton | |
Span length (m) | 10.866m | 10.866m |
Lifting Height（M） | 6.3m | 6.15 m |
Crane control | Remote control | |
Voltage | 415v,60hz,3p | 415v,60hz,3p |
Indoor / Outdoor Use | Indoor | Indoor |
Color | Yellow | Yellow |
Quantity | 5 | 5 |
Specifications of European style electric single girder overhead cranes
Square steel: 50*30mm, running 40m, two spans, ie 4*40m
Seamless sliding line: 6mm² 1 set of 5ton HD type electric single girder overhead travelling crane in a working bay
Seamless sliding line: 8mm² 1 set of 5 ton and 1 set of 6 ton HD type of single girder overhead crane will be installed on t on the other working bay.
C-section steel cable: 4mm² for a 2 ton low headroom electric chain hoist, the complete system are required including the 15m and 30m C-section steel cable, etc.
Customized features of 5 ton & 6 ton electric overhead crane
All the single girder cranes are required to use the SZW configuration,.
due to the height limitation of the existing workshop, the main girder and end girder are designed with a seat-mounted connection.
As for the overhead crane hook, an electronic scale is installed.
The factory building facility has been completed, the design drawings of the required single girder eot cranes have been confirmed by the customer, and the production is strictly in accordance with the design drawings
Customs declaration information registration
- English name of cargo declaration: Electric overhead travelling crane
- Inland freight: RMB9000
- Port ccharges: RMB8000
- Sea freight: USD2050
Gallary of 3 sets of electric single girder eot crane for Australia

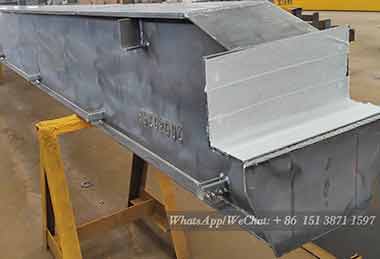

Main girder production picture for 5 ton and 6 ton wireless remote control electric overhead crane Australia project

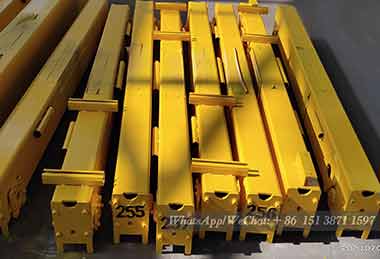

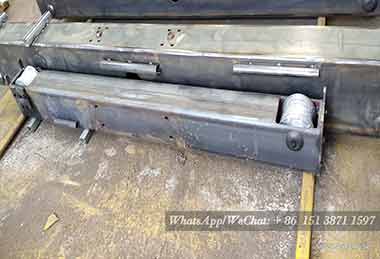

End girder production picture for 5 ton and 6 ton electric overhead travelling crane Australia project

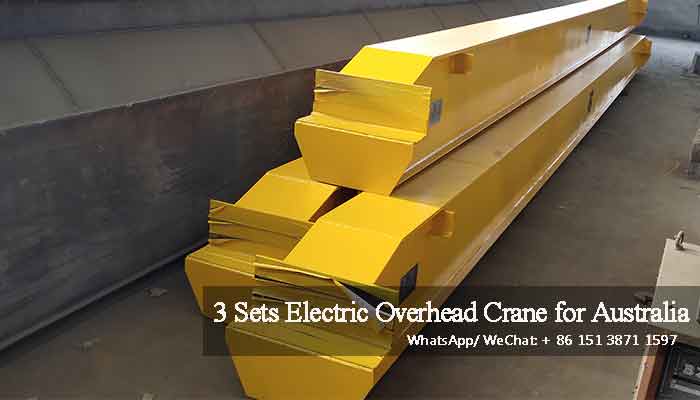

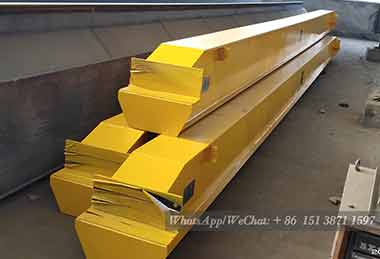

3 sets of main girder painted picture for 5 ton and 6 ton electric single girder eot crane Australia project

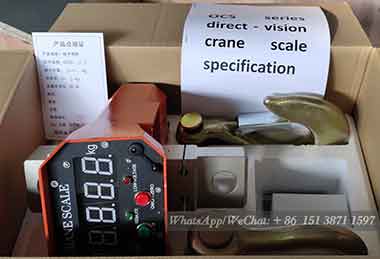

Crane hook scale for 5 ton and 6 ton electric overhead bridge crane Australia project

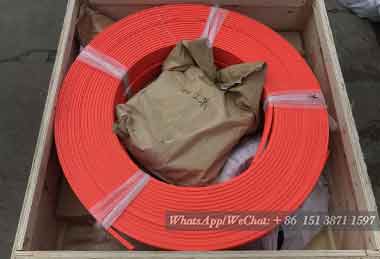

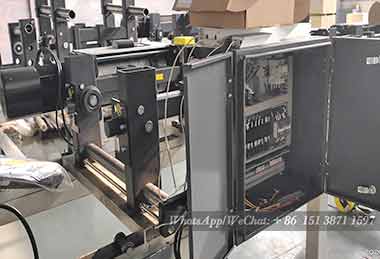

Crane busbar and other overhead crane pars for overhead crane project in Australia
