35 Ton Electric Wire Hoist for Sale
Square Hoist Body, Dual Hoist Control
35 ton electric wire hoist for sale good price. Customized electric wire hoist design, square hoist body, ground + remote control. Check 25 ton hoist specs.
Basics of 35 ton square electric wire hoist
- Crane Type：square electric wire hois
- Date of Placing Oder：2017.07.05
- Date of Delivery ：2017.7.30
- Way of Transportation： Truck
- Way of Payment：30% Downpayment
- Destination country：Tianjin, China
- First Contact：2017.6
General requirements & main specifications
Crane type | Square electric wire hois |
Model | HC |
Working Class | M3 |
Capacity | 35 ton |
Lifting Height（M） | 11m |
Crane control | Remote control + Ground control |
Voltage | 380v,50hz,3p |
Color | Standards |
Quantity | 2 |
Customized features of 35 ton square electric wire hoist for sale
- The lifting speed of the 35 ton electric hoist is r two-speed 2/0.2m/min, equipped with hoisting motor of ZDS52-6 18.5/2.2KW,
- The running speed of the electric wire hoist is 10m/min, with running motor ZDY21-4/0.8KW*4
- Wire rope model: 6*37+FC- φ28
- Each of the 35 ton electric wire hoist is required with cable of 3*16mm², 25 meters .
- Two wrenches and two screwdrivers are delivered to client for free to install the 35 ton hoist
Customs declaration information registration
- The actual Chinese and English name of the goods: 电动葫芦 electric hoist
- Chinese and English name of cargo declaration: 电动葫芦 electric hoist
- Inland transportation cost from factory to port: 2,000 yuan
Gallary of square electric wire hoist

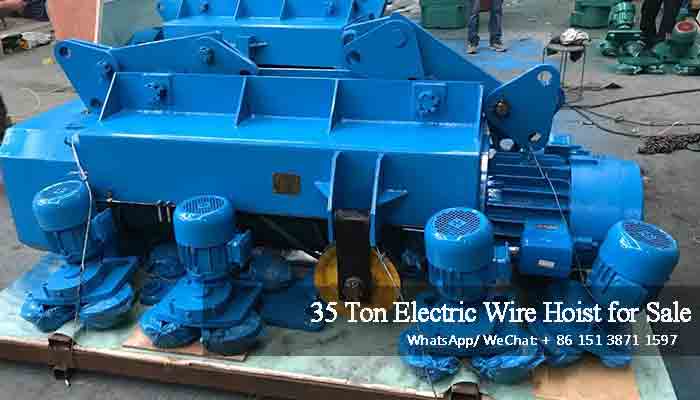

35 ton square electric wire hoist
Hoist hook of 35 ton square electric wire hoist

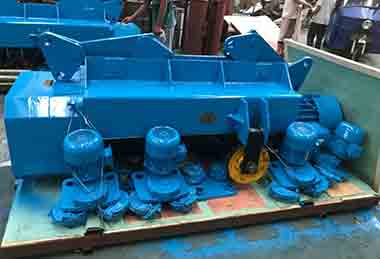

Parts and components of 35 ton square electric wire hoist

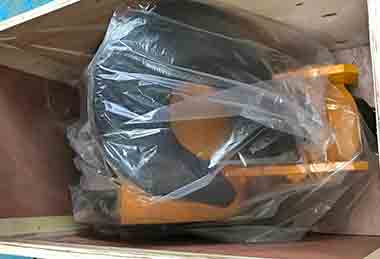

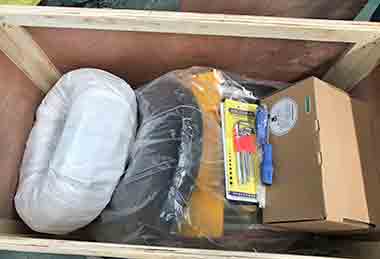

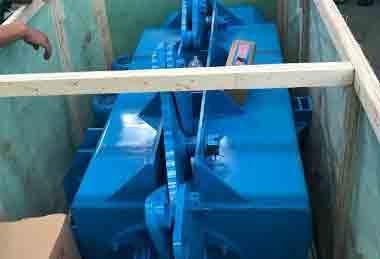

35 ton square electric wire hoist packed for delivery
