Motorized Travelling Electric Chain Hoist for H Beam & I Beam
Short Video Introduction -Motorized Travelling Electric Chain Hoist Installation on H Beam & I Beam
This video shows the installation and operation of a motorized travelling electric chain hoist mounted on H beam and I beam structures.
Designed for flexible material handling, this electric chain hoist combines vertical lifting with horizontal travelling movement, allowing operators to lift, move, and position loads across a wider working area.
With capacities from 1 ton to 32 tons, it is widely used in factories, workshops, warehouses, assembly lines, and industrial production areas where efficient and space-saving lifting solutions are required.

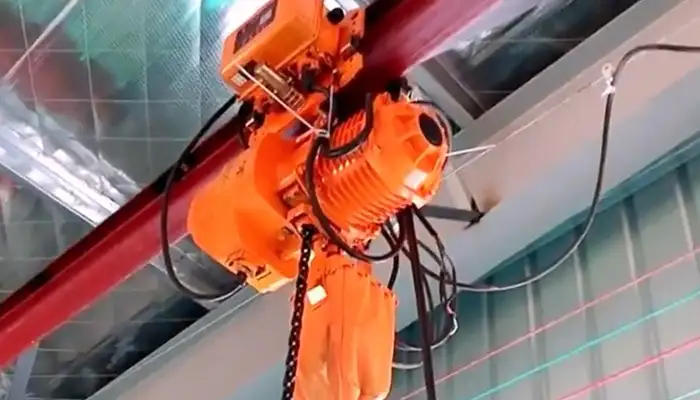

Motorized travelling electric chain hoist
Bella’s Pick – Key Points of the Video
Installing a Motorized Travelling Electric Chain Hoist on H Beam & I Beam
This video shows how a motorized travelling electric chain hoist is installed and operated on H beam and I beam structures.
At first glance, it looks like a simple lifting device.
But in actual workshops, the biggest challenge is usually not only lifting the load. It is moving the load to the right position quickly and safely.
By combining an electric chain hoist with a motorized travelling trolley, the system can:
- Lift loads vertically
- Move horizontally along the beam
- Cover a larger working area
- Reduce manual pushing and handling work
For factories with existing H beam or I beam structures, this solution is often a practical choice because it avoids installing a complete overhead crane system.
Flexible Material Handling Along the Beam
A fixed electric chain hoist can lift a load at one location. However, production processes are rarely limited to one fixed point. Operators may need to pick up materials from one area and move them to another workstation.
The motorized travelling electric chain hoist solves this problem by allowing the hoist to travel along the beam.
Typical operations include:
- Lifting machine parts for maintenance
- Moving components between production stations
- Transferring materials inside workshops
- Positioning equipment during installation
You may notice in the video that the operator does not need to manually push the load over a long distance. The motorized travelling mechanism handles the horizontal movement, making daily handling work faster and easier.
One Solution for Different Industrial Lifting Needs
Different factories have different lifting requirements. A small assembly workshop may need a 1 ton electric chain hoist, while a heavy manufacturing plant may require a 20 ton or 32 ton lifting solution. That is why motorized travelling chain hoists are available in a wide capacity range, typically from 1 ton to 32 tons.
They can be used for:
- Light-duty workstation lifting
- Heavy machine handling
- Steel structure workshops
- Factory production lines
- Equipment installation projects
In many cases, customers do not need a large bridge crane covering the entire factory. They only need a reliable lifting system in a specific working area.This is where an H beam or I beam mounted electric chain hoist becomes a cost-effective solution.
Smooth Control Improves Safety and Positioning Accuracy
When handling heavy loads, lifting speed is important. But control is even more important. A load that moves too suddenly can create impact forces and make positioning difficult.
The video highlights how the system provides:
- Smooth travelling movement
- Precise load positioning
- Stable lifting operation
- Better operator control
Safety features such as:
- Limit switches
- Overload protection
- Emergency stop function
- Remote control operation
help operators manage lifting tasks more safely. Especially in equipment installation or assembly applications, accurate positioning can save time and reduce the risk of damage.
Space-Saving Design for Modern Factories
Not every factory has enough floor space for large lifting equipment. Sometimes the production area is already crowded with machines, storage racks, and working stations. Using existing overhead H beams or I beams allows factories to use vertical space more efficiently.
The advantages include:
- Less floor space occupation
- Flexible lifting coverage
- Cleaner workshop layout
- Easier material flow
For example, in a CNC machining workshop, operators can move heavy workpieces above the production area without blocking the walking paths below.
Designed for Long-Term Industrial Operation
A lifting solution is not only about installation. The real test starts after daily operation begins. A reliable motorized travelling electric chain hoist needs to handle repeated lifting cycles, changing workloads, and long-term industrial use.
Yuantai Cranes focuses on:
- Practical application-based design
- Suitable motor and control configuration
- Different voltage options
- Customized travelling solutions
- Quality inspection before delivery
From factory workshops to maintenance areas, this electric chain hoist with motorized trolley provides a flexible solution for customers who need efficient lifting, accurate positioning, and reliable performance over years of operation.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
