Explosion Proof Double Girder Overhead Crane for Sale Yemen
3 Ton, 5 Ton, 7 Ton & 10 ton Exproof Electric Overhead Cranes, 11 sets
Explosion proof double girder overhead crane 3 ton, 5 ton, 7 ton & 10 ton, all 11 sets for sale Yemen. 380v/50 hz /3ph exproof overhead crane for sale.
Basics of exproof double girder overhead crane for Yemen
- Crane Type： double girder overhead crane with explosion proof feature
- Date of Placing Oder：2020.2.17
- Date of Delivery ：2020.5.25
- Way of Transportation： EXW
- Way of Payment：50% prepayment, 50% TT
- Destination country： Yemen
- First Contact：2019.4.5

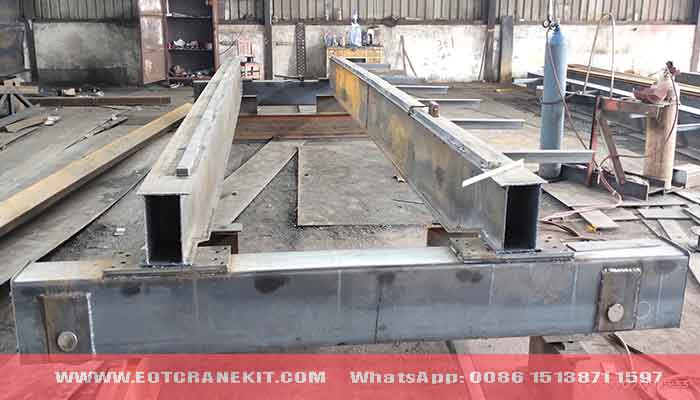

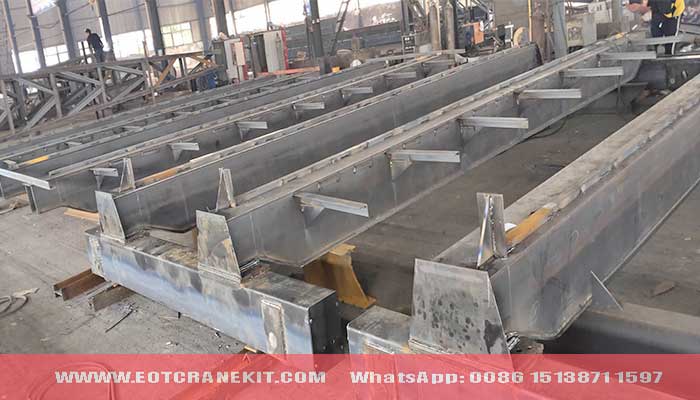

Main girder of explosion proof overhead crane with top running double girder design under construction Explosion proof overhead crane main specifications & general requirements
Crane type | Model | Working class | Tonnage（T） | Crane span (m) | Lifting height（M） | Crane control | Voltage | Color | Indoor/Outdoor Use | Crane Rail | Quantity |
Explosion proof double girder overhead crane ( Variable conversion) | LHB | M3 | 10 ton | 6.7 （total length of main girder 7m） | 12 | Remote control | 380/50/3 | Yellow | Indoor use | Included | 4 |
P38 crane track (including welding plate):
| |||||||||||
Explosion proof double girder overhead crane ( Variable conversion) | LHB | M3 | 7 ton | 6.7 （total length of main girder 7m） | 12 | remote control | 380/50/3 | Yellow | Indoor use | Included | 1 |
P38 crane track including clamping plates, travelling distance 20m, track 2*20m | |||||||||||
Explosion proof double girder overhead crane ( Variable conversion) | LHB | M3 | 7 ton | 6.7 （total length of main girder 7m） | 10 | remote control | 380/50/3 | Yellow | Indoor use | Included | 1 |
P38 crane track including clamping plates, travelling distance 20m, track 2*22m | |||||||||||
Explosion proof double girder overhead crane ( Variable conversion) | LHB | M3 | 5 ton | 6.7 （total length of main girder 7m） | 9 | remote control | 380/50/3 | Yellow | Indoor use | Included | 1 |
P24 crane track including clamping plates, travelling distance 20m, track 2*20m | |||||||||||
Explosion proof double girder overhead crane ( Variable conversion) | LHB | M3 | 5 ton | 6.7 （total length of main girder 7m） | 6 | remote control | 380/50/3 | Yellow | Indoor use | Included | 1 |
P24 crane track including clamping plates, travelling distance 60m, track 2*60m | |||||||||||
Explosion proof double girder overhead crane ( Variable conversion) | LHB | M3 | 3 ton | 6.7 （total length of main girder 7m） | 9 | remote control | 380/50/3 | Yellow | Indoor use | Included | 3 |
3 sets of 3 ton LHB will be installed in different workshops, the running distance is 20m, 20m, 25m respectively, equipped with P24 track and welding pressure plates. | |||||||||||
Customized features of explosion proof double girder overhead cranes
- Reel shell is required to be square casing
- The whole vehicle frequency conversion is required for all the explosion proof crane.
- Explosion-proof grade of all the double girder overhead crane is BT1
- All the overhead crane hoists are required to be four rope hoists.
Gallary of explosion proof double girder overhead crane for sale Yemen

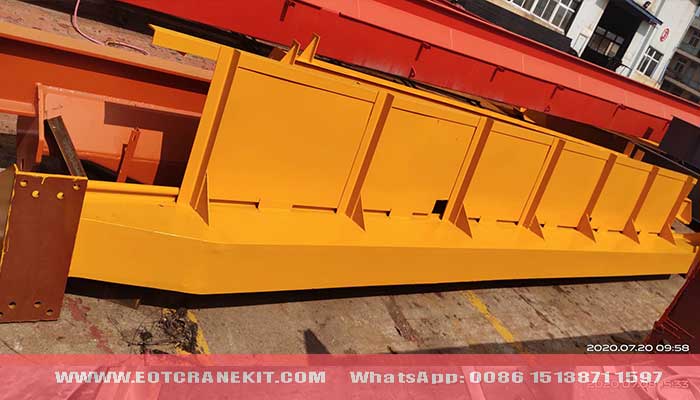

Main girder of double girder overhead crane with explosion prood design

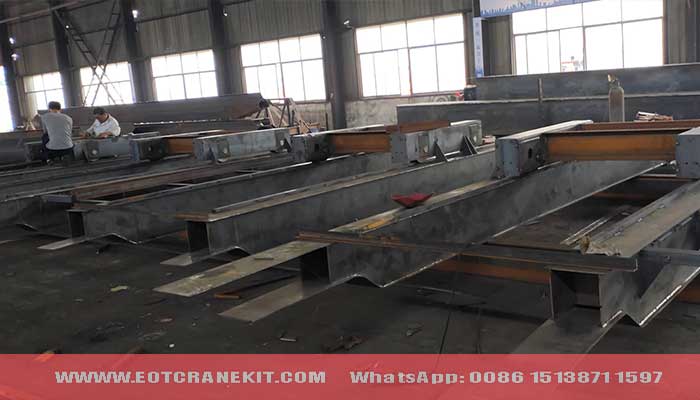

Main girder of overhead crane under construction for sale Yemen
Main strucure of 11 sets of overhead travelling crane for sale Yemen 3 ton, 5 ton, 7 ton, 10 ton

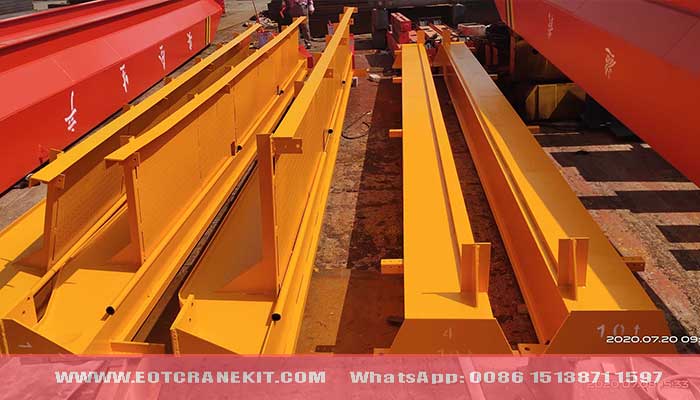

Main girder of explosion proof crane, top running design, with double beam for sale Yemen

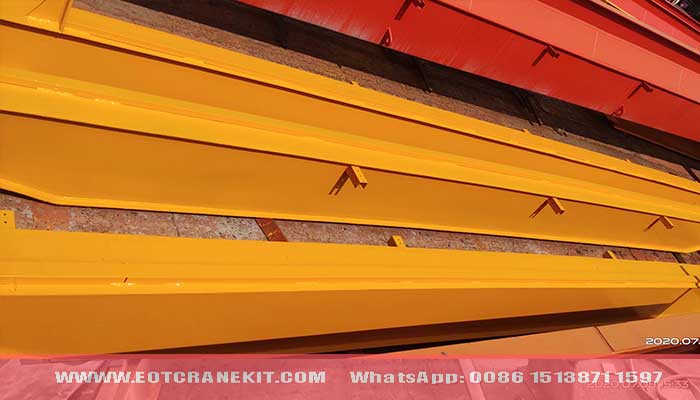

Main girder of double beam bridge cranes for sale Yemen
Main girder of exproof overhead crane for sale Yemen

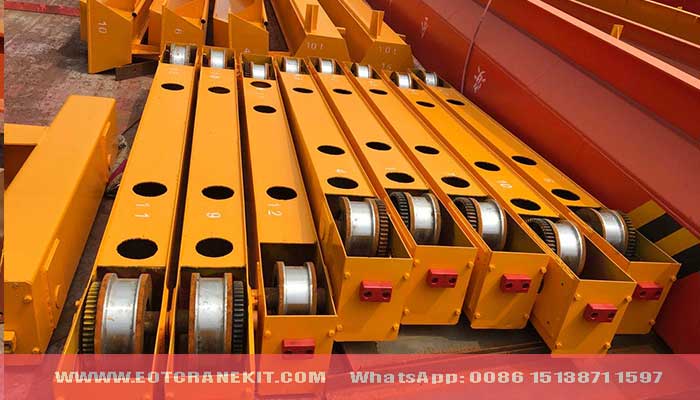

End carriages / end trucks of top running overhead crane with double beam designs for sale Yemen

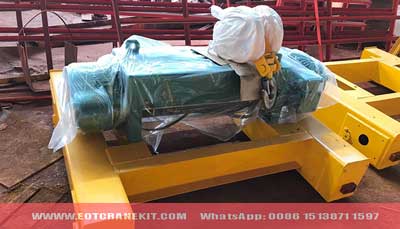

Custom electric wire rope hoist for sale Yemen

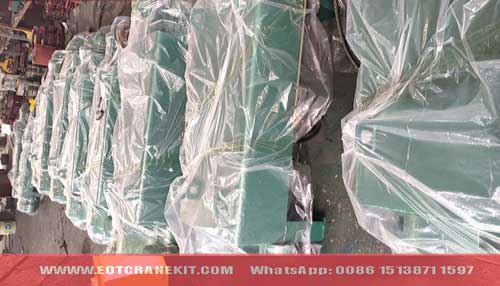

11 sets of electric wire rope hoist for sale Yemen
