4 Sets ofSingle Girder Electric Overhead Travelling Cranes 7 Tons
Complete Workshop Overhead Crane for Sale Haiti
7 ton single girder overhead crane for sale Haiti. 4 sets of 7 ton overhead cranes, single beam, low headroom hoist, economical overhead crane price.
Basics of Crane for Sale Haiti
- Crane Type ：Single Girder Electric Overhead Crane Overhead Crane
- Date of Placing Oder ： 2016.7.13
- Date of Delivery ： 2016.8.10
- Way of Transportation ：40GP Container * 4
- Way of Payment：20% TT
- Destination country ：Haiti
- Destination port ：Port-au-Prince, Haiti
- First Contact： 2015.10
General requirement & main specifications
Crane Type | Working class | Capacity | Span | Lifting height | Crane control | Voltage | Color | Quantity |
A3 | 7T | 18.5M | 4M | 480v,60hz,3phase | Standard | 4 |
Customized features of 7 ton single girder overhead crane
- The workshop of the Haiti client is with a total length of 52m and a width of 40M, which is divided into two parallel workshops.
- P30 track 208M (52m*2*2), 696 pressure plates, 30 pairs of clamp plates, 4 relays, 104M sliding contact line (no seam, 16 mm2, 52m*2).
- The column of 7 ton overhead crane is H450*200*6*10, each column is 3.65M, a total quantity of 32. The distance between the crane supporting columns is 7.6 between the 6 columns in the middle, and 2 on both sides of 7. The total weight of the column with inclined support is 10.8 ton.
- Rail-bearing beam H506*201*11*19, total 208M, 20 sections of 7.6m, 8 sections of 7m
- The overhead crane is additionally equipped with 4 spare hoisting motors and 4 spare running motors.
- Beside, a certain amount of free wearing parts are provided which includes the lifting limit, contactor, brake pads.
- The main beam of the overhead crane is a box beam, and the height of the main beam does not exceed 750mm
- The main beam of the 7 ton eot crane should be cut into two sections, 11.5M and 7M
- The electric hoist for the 7 ton bridge crane is a low headroom hoist, the upper limit of the hoist does not exceed 700mm.
Customs declaration information registration
- The actual Chinese and English name of the goods: 桥式起重机
- Chinese and English name of cargo declaration: Overhead Crane
- The land transportation cost from the factory to the port: 20,000 yuan ( overhead crane), the total weight of the steel structure is 11 ton, and the total freight is 3300 yuan。
- Sea freight: USD 15200
- Premium: USD 235
- Drawings by Ms Li.

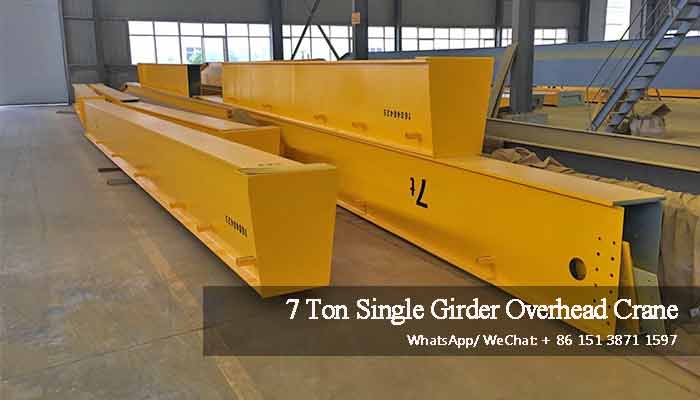

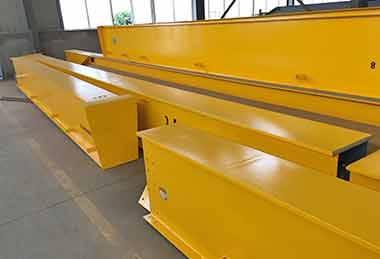

7 ton overhead crane bridge girder

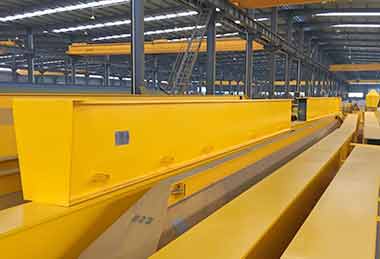

7 ton eot crane should be cut into two sections, 11.5M and 7M to fit into the containers.

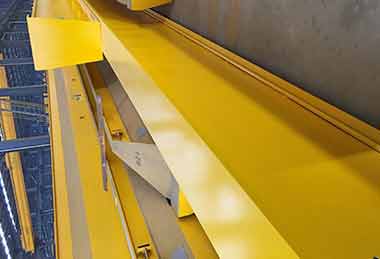

Box girder design of single girder overhead crane

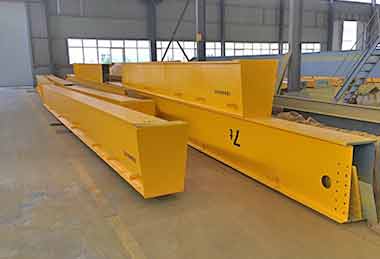

4 sets of 7 ton overhead bridge cranes
