5 Ton Double Rail Wire Rope Hoist Trolley for Sale Pakistan
Electric wire rope hoist 5 ton for sale Pakistan, low profile & low headroom design for double girder crane. Chek 5 ton electric hoist specifications now.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Custom EOT Crane Manufacturing
Tags: 5ton,electrichoistforsale,pakistan
Your Trusted Overhead Crane Manufacturer & Supplier
3 Sets of 5 Ton Wire Rope Hoists for Sale Pakistan
Low headroom Hoist Crab Trolley for Double Girder Cranes
Electric wire rope hoist 5 ton for sale Pakistan, low profile & low headroom design for double girder crane. Chek 5 ton electric hoist specifications now.
Basics of Electric Wire Rope Hoist for Sale Pakistan
- Crane Type：Electric wire rope hoist for double girder cranes
- Date of Placing Oder：2016.9.13
- Date of Delivery ：2016.9.25
- Way of Transportation： 40GP container,By Sea
- Way of Payment：100% Letter of Credit
- Destination country： Pakistan
- Destination port: Karachi, Pakistan
- First Contact：2016.2
General requirements & main specifications
Crane type | European style low headroom wire rope hoist | European style low headroom wire rope hoist | European style low headroom wire rope hoist |
Working Class | M3 | M3 | M3 |
Capacity | 5 ton | 5 ton | 5 ton |
Gauge | 0.71M | 1.155 M | 1.2M |
Lifting Height（M） | 5m | 5 m | 5 m |
Crane control | Pendent control | Pendent control | Pendent control |
Voltage | 400v,50hz,3phase | 400v,50hz,3phase | 200v,60hz,3p |
Color | Standard | Standard | Standard |
Quantity | 1 | 1 | 1 |
Customized features of 5 ton electric wire rope hoist for sale Pakistan
- The track gauge of one set 5 ton rope hoist trolley is 0.71M. The track is 50*50 track, hoisting speed is 12/1.8m/min, the travelling speed is 0-30m/min, equipped with ABM motor & Schneider Electrics.
- The track gauge of one set of 5 ton electric hoist crab trolley is 1.155M. The track is 47*47, hoisting is 12/1.8m/min, and the travelling speed is 0-30m/min.
- The track gauge of one set of 5 ton electric crab trolley is 1.2M.The track is 47*47, hoisting is 12/1.8m/min,and the travelling speed is 0-30m/min.
- Each electric wire rope hoist crab trolleys are required to distributed with 30 meters of power supply cable, a total length of 90M, 8 mm2 cables.
- Lift limit, weight limiter and contactor are delivered for free.

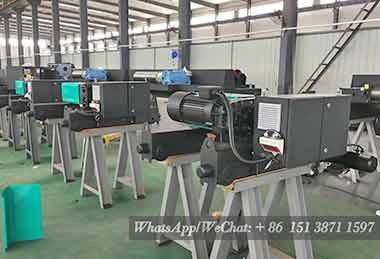

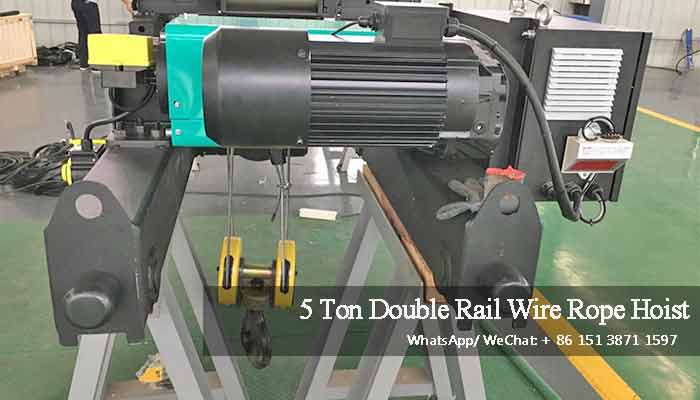

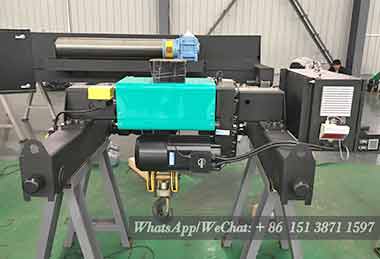

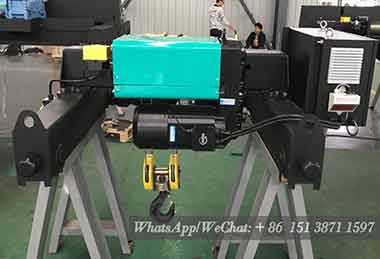

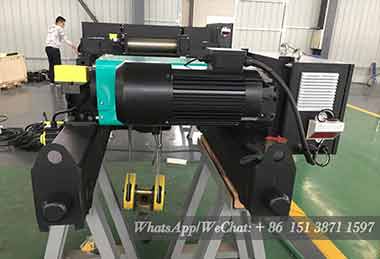

Gallary of 5 ton electric wire rope hoist for sale Pakistan
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
